Acid-resistant sterilizable ceramic metering pump for filling machine
- $100.00 /set
- 1 set
- Xiamen Unipretec Ceramic Technology Co., Ltd.
- Fujian, China
- Mr Thomas Yang
Product Detail
| model: | Not applicable | application: | Structural Ceramics |
| Moh's hardness: | > 8.0 | port: | Xiamen |
| Material: | Stainless steel + Al2O3 + ZRO2 | place of origin; place of origin: | Fujian China |
| brand: | UNIPRETEC | payment terms: | L/C, Western Union, T/T, Paypal |
| Packaging Details: | carton | Supply capacity: | 100 sets per month |
| Processing services: | polishing | type: | ceramic parts |
Structure and working principle

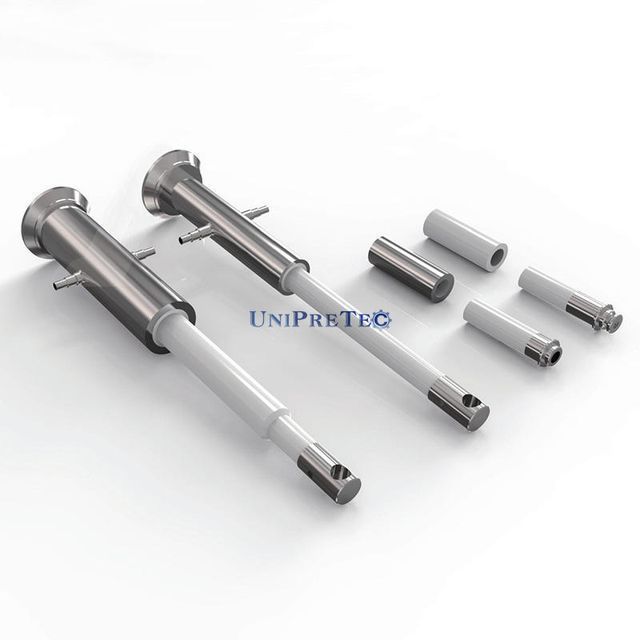

1. Structure: The ceramic filling metering pump is composed of ceramic metering parts (ceramic pump sleeve, rotary valve, metering rod), stainless steel inlet and outlet nozzles and joints. 2. Working principle of ceramic filling metering pump:
(1) The rotary valve port is aligned with the liquid inlet, and the ceramic column moves downward in a straight line to generate negative pressure and suck liquid;
(2) The rotary valve port is aligned with the liquid outlet, and the ceramic column moves upward in a straight line to generate positive pressure to discharge the liquid.
Cleaning and Sterilization
1. Cleaning procedure:After cleaning with pure water, rinse with water for injection; long-term storage and initial use, need to remove the pyrogen, soak with 1-2% NaOH for 30 minutes, be careful not to use hot lye (the temperature should not be higher than 40°C), seal ring It is not advisable to soak in lye for too long, otherwise the elasticity will change.2. Sterilization procedure:Sterilization can be done by dry heat sterilization or high-pressure steam sterilization: but since the sealing ring can only withstand the temperature of 160°C, the sealing ring should be removed before dry heat sterilization, and the sealing ring should be sterilized by steam. High pressure moist heat steam. (It is recommended to use high-pressure moist heat steam for sterilization, the sterilization temperature is 121°C, the pressure is 0.1MPa, and the time is 30 minutes).3. Precautions for cleaning and sterilization:(1) Do not contact stainless steel with chlorine-containing chemical solutions to prevent corrosion of stainless steel parts. (2) Do not put the ceramic metering element into hot water above 40°C when cleaning. The ceramic plunger and ceramic sleeve should be cleaned separately. (3) When sterilizing, the rotary valve, ceramic sleeve and measuring rod should be placed in a special sterilization box respectively, and the ceramic rod and ceramic sleeve should be hung vertically for moist heat sterilization to prevent deformation and bending due to heat; The temperature naturally dropped to room temperature. Before the temperature of the pump body drops to room temperature, avoid sudden cooling and damage to various components. (4) Since the hardness of ceramics is greater than that of metals, the contact between ceramics and metals will make the surface of ceramics dirty. Clean with a small amount of concentrated sulfuric acid (hydrochloric acid); if there is yellow dirt on the pump body, soak it in 10% oxalic acid for 5-10 minutes, and then rinse it with water for injection. (5) Since the hardness of ceramics is greater than that of stainless steel, the contact between ceramics and stainless steel will make the ceramic surface adhere to the stainless steel and cannot be removed, resulting in poor operation or motion of the filling pump. Cause damage. It is recommended to use non-metallic materials as storage containers for cleaning and sterilization.
Material properties
thing | unit | Aluminum oxide A950 | Aluminum oxide A990 | Silicon nitride GPSN | Zirconia YSZ95 |
main content | - | 95% Aluminum Oxide | 99% Aluminum Oxide | Si3N4 > 90% | ZrO2 > 94.5% |
color | - | white/pink | ivory | Black | white, black |
density | g/cm3 | 3.7 | 3.85 | 3.22 | 5.95 |
Vickers hardness | Gpa | 14 | 17 | 15 | 12 |
Bending strength | MPa | 310 | 360 | 580 | 800 |
Compressive strength | MPa | 2,200 | 2,500 | 2,200 | 2,500 |
Resistivity | Ω·cm | >1014 | >1014 | >1012 | >1010 |
Dielectric strength | kV/mm | 15 | 17 | 19 | 9 |
Dielectric constant | 1 MHz | 8 | 9 | 9.6 | 28 |
Thermal Conductivity | W/m·K | 25 | 29 | 27 | 2.2 |
maximum. Operating temperature | Celsius/Fahrenheit | 1,500 / 2,730 | 1,650 / 3,000 | 1,200 / 2,190 | 800 / 1,470 |
Thermal shock resistance | ΔT(°C) | 210 | 230 | 750 | 260 |
Coefficient of Thermal Expansion (25 - 1,000 ℃) | 10-6/K | 7-9 | 7-9 | 3 - 4 | 11 - 13 |
