Graphite Aluminum Crucible Silicon Carbide Graphite Melting Crucible Spot
-
$200.00 / 2 - 19 pieces
$180.00 / >=20 pieces - 2 pieces
- Qingdao Tk Bricks Refractories Co., Ltd.
- Shandong, China
- Mr Bill Yang
Product Detail
| model: | TK-Crucible | application: | aluminum melting |
| Refractoriness: | 1800 | Bottom diameter: | 450 |
| brand: | Dongjiang brick | Packaging Details: | The products in the wooden box are packed in PE moisture-proof bags. Or can be customized according to your requirements |
| Application one: | melting non-ferrous metals | shape: | crucible |
| Supply capacity: | 10000 pieces per month | high: | 900mm |
| Thermal conductivity (w/mK): | 34 | Material: | Silicon carbide |
| Compressive strength: | 20-100 MPa | size: | different sizes available |
| Certificate: | ISO9001:2008 | place of origin; place of origin: | Shandong China |
| color: | Black | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| work: | Silicon carbide | Density (g/cm3): | 2.1-2.4 |
| Top Diameter: | 780 | type: | refractory |
| port: | Qingdao, Tianjin, Shanghai or other major seaports. | Package preview: |
product name:

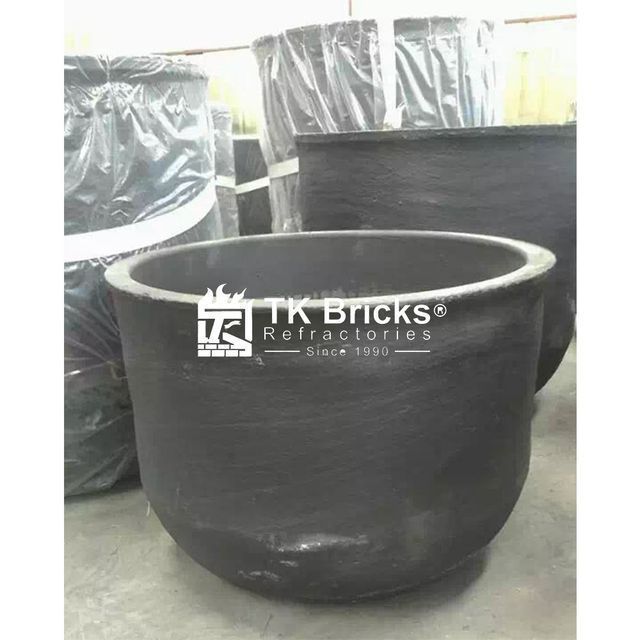

Crucible Aluminum Crucible Silicon Carbide Graphite Melting Crucible Stock Graphite Crucible
Product Description:
SIC crucible is a utensil or melting tank container made of graphite powder and clay as the main raw materials, which are pressed and fired by different molds (according to different needs).
Also known as molten copper clad, molten copper, etc., refers to a
A crucible made of graphite, clay, silicon dioxide, and wax. Graphite crucible is mainly used for smelting copper, brass,
Gold, silver, zinc, lead and other non-ferrous metals and their alloys.
The main raw materials of graphite crucible are graphite, silicon carbide, silicon dioxide, refractory clay, pitch, tar, etc.
A crucible made of graphite, clay, silicon dioxide, and wax. Graphite crucible is mainly used for smelting copper, brass,
Gold, silver, zinc, lead and other non-ferrous metals and their alloys.
The main raw materials of graphite crucible are graphite, silicon carbide, silicon dioxide, refractory clay, pitch, tar, etc.
Physical and Chemical Properties:
With its special advantages and plasticity, graphite crucible is widely used in metallurgy, silver smelting, aluminum smelting, copper smelting and other smelting fields in metallurgy, casting, machinery, chemical industry and other industries.
standard parameters | Test Data | ||||
Refractoriness≥ | 1630°C | Refractoriness≥ | 1635°C | ||
Carbon content≥ | 38% | Carbon content≥ | 41.46% | ||
Apparent porosity≤ | 35% | Apparent porosity≤ | 32% | ||
Bulk density≥ | 1.6 g/cm3 | Bulk density≥ | 1.71 g/cm3 | ||
Specification | unit | value |
Bulk density | g/cubic centimeter | 1.65-1.80 |
Compressive strength * | MPa | 20-55 |
Bending strength * | MPa | 10-30 |
Elastic Modulus * | GPa | 9-21 |
Specific resistance * | u.Ω.m | 5.0-15.0 |
Ash | % | 0.05-0.5 |
The existing dimensions are as follows (for other dimensions, it can be customized according to the buyer's drawing):
model | Upper diameter (mm) | Bottom diameter(mm) | height (mm) |
2# | 70 | 47 | 87 |
3# | 105 | 70 | 120 |
5# | 120 | 85 | 150 |
8# | 130 | Post-90s | 160 |
10# | 150 | 100 | 180 |
12# | 155 | 105 | 200 |
16# | 165 | 110 | 215 |
20# | 185 | 130 | 230 |
30# | 210 | 155 | 250 |
40# | 240 | 185 | 295 |
50# | 260 | 190 | 318 |
60# | 270 | 200 | 335 |
70# | 273 | 175 | 360 |
The existing dimensions are as follows (for other dimensions, it can be customized according to the buyer's drawing):
model | Upper diameter (mm) | Bottom diameter(mm) | height (mm) |
1000# | 640 | 380 | 773 |
800# | 630 | 335 | 720 |
500# | 540 | 313 | 698 |
400# | 520 | 282 | 648 |
350# | 485 | 275 | 610 |
300# | 470 | 240 | 573 |
250# | 450 | 240 | 550 |
200# | 398 | 220 | 490 |
150# | 370 | 192 | 430 |
