Wholesale Price Fast Impregnated E-glass Fiber Chopped Strand Mat
-
$1.50 / 1 - 4999 kilograms
$0.80 / >=5000 kilograms - 1 kilogram
- Wilload Tech Co., Ltd.
- Jiangsu, China
- Ms Elena Zhang
Product Detail
tensile strength: | 90-250 Newton | Softness: | soft |
technology: | Chopped Fiberglass Mat (CSM) | Moisture content: | ≤0.2% |
40ft container: | 20 tons | Mat Type: | combination pad |
Binder Type: | powder or lotion | aspect: | 100-900 g/m² |
Binder Contents: | 2-13% | Package preview: | |
Supply capacity: | 2000 tons per month | width: | 50-3200mm |
Fiberglass Type: | E-glass, C-glass, E-glass | 20ft container: | 10 tons |
Processing services: | cutting, other | Packaging Details: | 1 roll/carton Net weight: 35kg/roll 12 or 16 cartons/pallet |
payment terms: | L/C, Western Union, T/T, MoneyGram | model: | electromagnetic compatibility |
place of origin; place of origin: | Jiangsu, China | Compatible resins: | UP, VE, EP, PF resin |
brand: | Wiltek | port: | Shanghai, Guangzhou, Tianjin, Qingdao |
Process and application of chopped strand mat:
Chopped strand mat is a reinforced product made of continuous glass fiber strands, chopped to a certain length, distributed randomly and non-directionally, and finally bonded with a binder. It is used in the production of hand lay-up by FRP and other processes. , molding, winding, mechanical forming, etc. The downstream products mainly include various plates, boats, complete sets of sanitary equipment, auto parts, winding pipes, cooling towers, roofs, etc.
Name explanation:
EMC: product type
1. EMC: E-glass chopped strand mat (powder)
2. EMC: E-glass chopped strand mat (emulsion)
3. CMC: C-glass fiber chopped strand mat
Simple Dimensions for Chopped Strand Mat:
Specification |
glass type |
bond type |
weight / g/ |
Roll weight |
moisture content |
flammable |
break in |
EMC 100 |
Alkali free glass |
powder |
100±20 |
28kgs-55kgs |
<0.2% |
13.6±0.35 |
≥30 |
EMC 150 |
Alkali free glass |
powder |
150±30 |
28kgs-55kgs |
<0.2% |
13.6±0.35 |
≥40 |
EMC 225 |
Alkali free glass |
powder |
225±45 |
28kgs-55kgs |
<0.2% |
13.6±0.35 |
≥60 |
EMC 300 |
Alkali free glass |
powder |
300±60 |
28kgs-55kgs |
<0.2% |
13.6±0.35 |
≥90 |
EMC 450 |
Alkali free glass |
powder |
450±90 |
28kgs-55kgs |
<0.2% |
13.6±0.35 |
≥120 |
EMC 600 |
Alkali free glass |
powder |
600±120 |
28kgs-55kgs |
<0.2% |
13.6±0.35 |
≥150 |
Features of chopped strand mat:
-
Consistent Thickness and Stiffness
-
Fast impregnation speed, good compatibility with resin
-
Excellent wet through and less air pockets
-
Good mechanical properties, high strength parts
-
Cover molds well and is suitable for modeling complex shapes.
Advantages of Chopped Strand Mat
-
Fluorine-free and boron-free glass makes the product have excellent
-
anti-corrosion properties;
-
Quickly wetted by resin, good mold performance, not easy to foam;
-
Uniform distribution of fibers and binders;
-
The finished product has high mechanical strength and can effectively maintain the strength against boiling water.
Uses of chopped strand mat:
Use of EMC 450g Fiberglass Chopped Strand Mat for Epoxy Resin
-
auto parts
-
plumbing accessories
-
Chemical anti-corrosion pipeline
-
cooling tower basin
-
ship
-
architecture
-
furniture
Mainly used in hand lay-up, filament winding and compression molding processes. Typical FRP products include panels, water tanks, boats, complete sanitary equipment, auto parts, cooling towers, pipes, etc. Uniform thickness, good softness and good hardness.

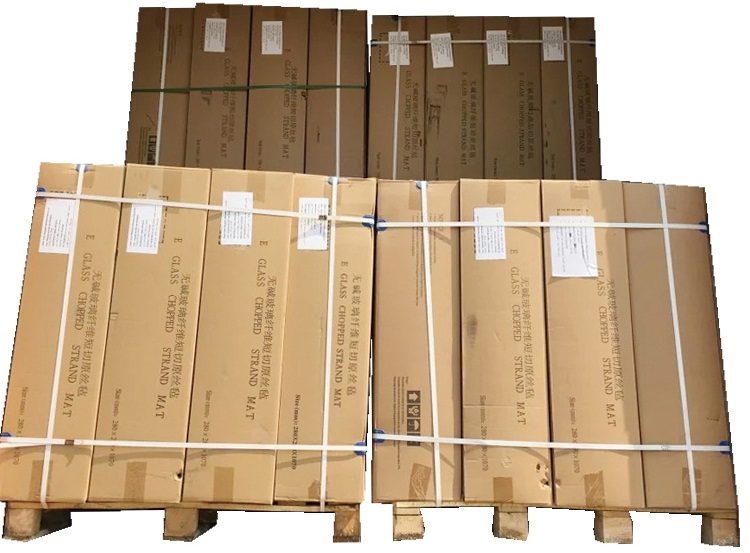

Storage and Packaging:
-
Each roll is packed by a polyester bag, then put into a cardboard box or plastic woven bag.
-
The weight of each rill is between 20-85 kg.
-
Rolls should be placed horizontally and can be loose or on pallets.
-
The best storage conditions are temperature between 5-35°C and humidity between 35%-65%.
-
Products should be used within 12 months of delivery and in original packaging until used.
