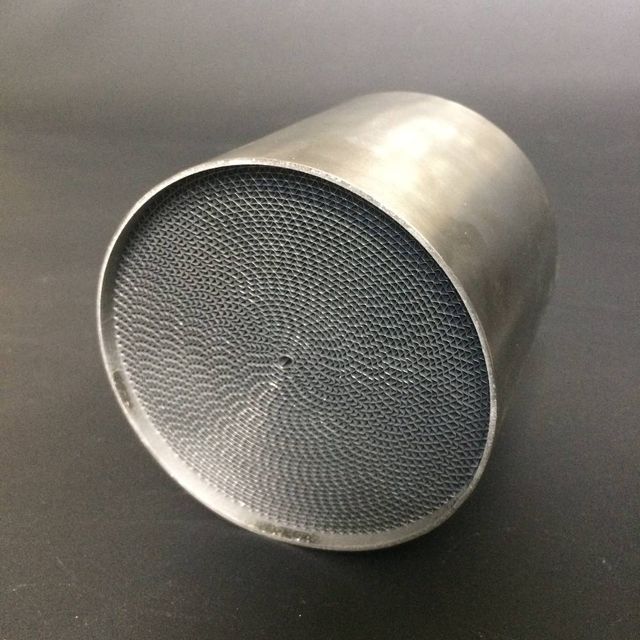

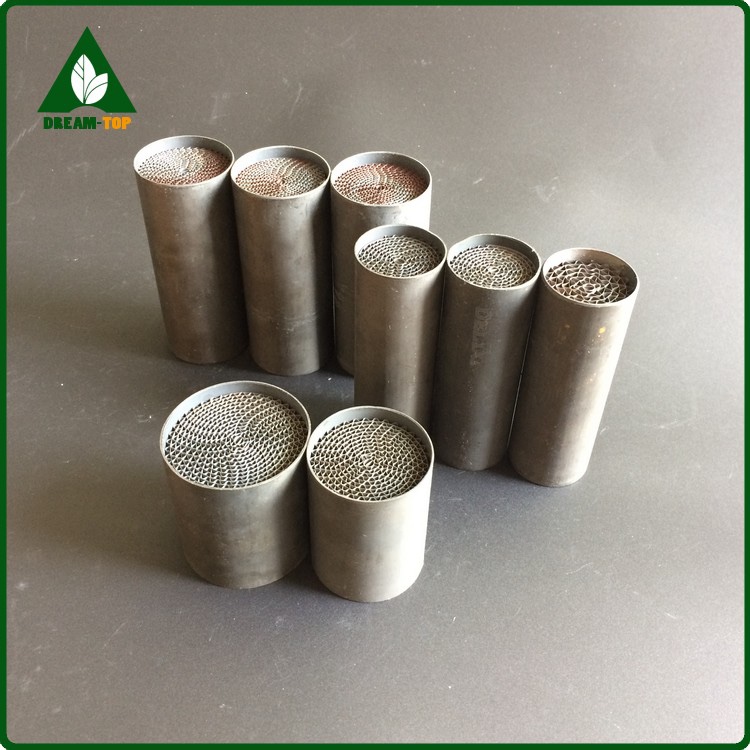

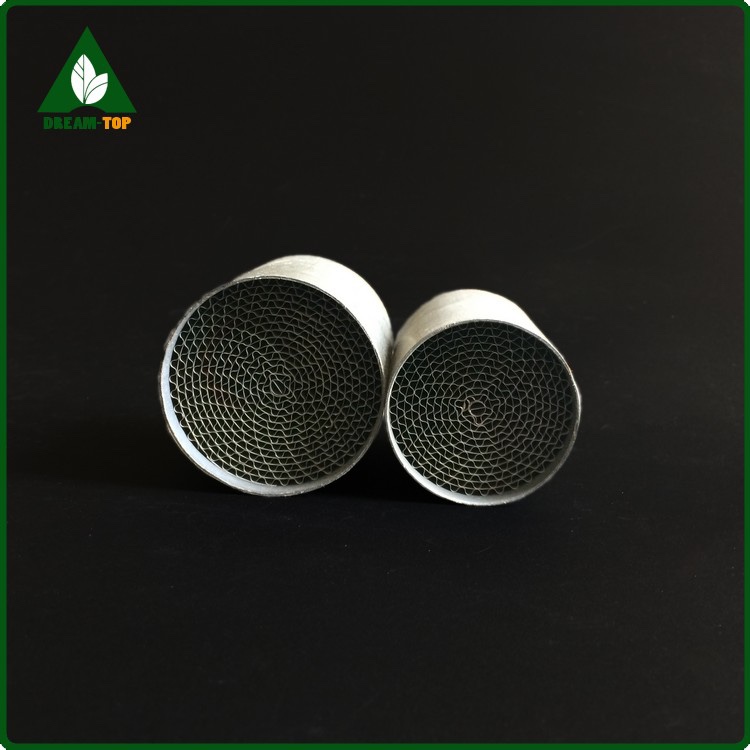

Metal Honeycomb Substrates for Catalytic Converters
- $1.00 /piece
- 1 piece
- Beihai Dream-Top Environmental Protection Technology Co., Ltd.
- Guangxi, China
- Mr Jacky Huang
Product Detail
| port: | North Sea | Durability: | More than 120,000 km |

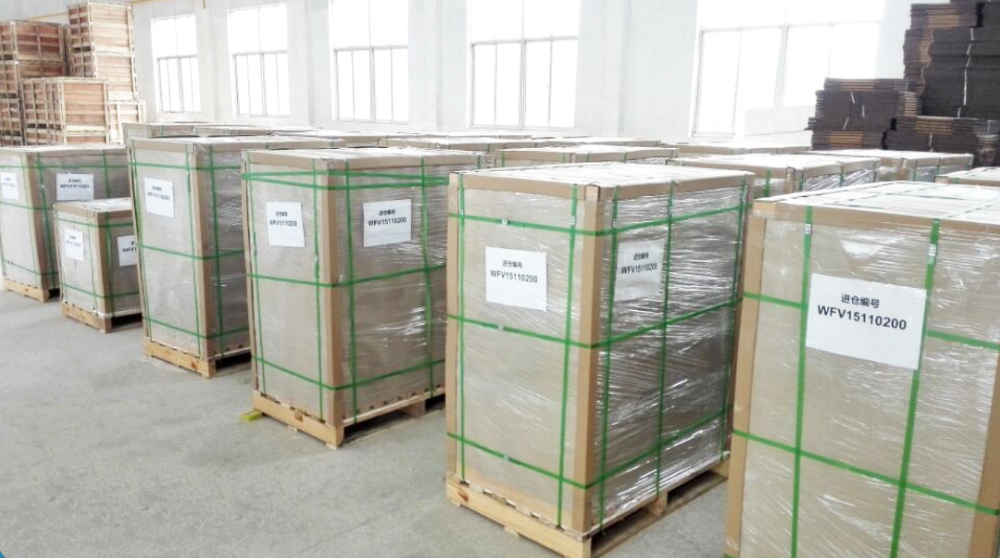

| product name: | Metal Honeycomb Substrates for Catalytic Converters | Packaging Details: | All products will be protected with bubble foam. Small orders are shipped in cartons, and large orders are shipped in door-to-door express wooden boxes. Carton to pallet, plywood case or as per customer's requirement. Pallets are fumigated or not fumigated according to customer requirements. |
| model: | Metal Honeycomb Substrate-001 | MOQ: | 1 item |
| payment terms: | L/C, D/A, D/P, T/T, Western Union, PayPal | brand: | Dream-Top, Dream-Top |
| type: | ceramic parts | car brand: | common |
| Supply capacity: | 1,000,000 pieces per year | application: | Industrial ceramics, RTO/RCO, tower packing, heat exchange gas treatment |
| Origin: | Guangxi, China | shape: | Can be customized according to your requirements |

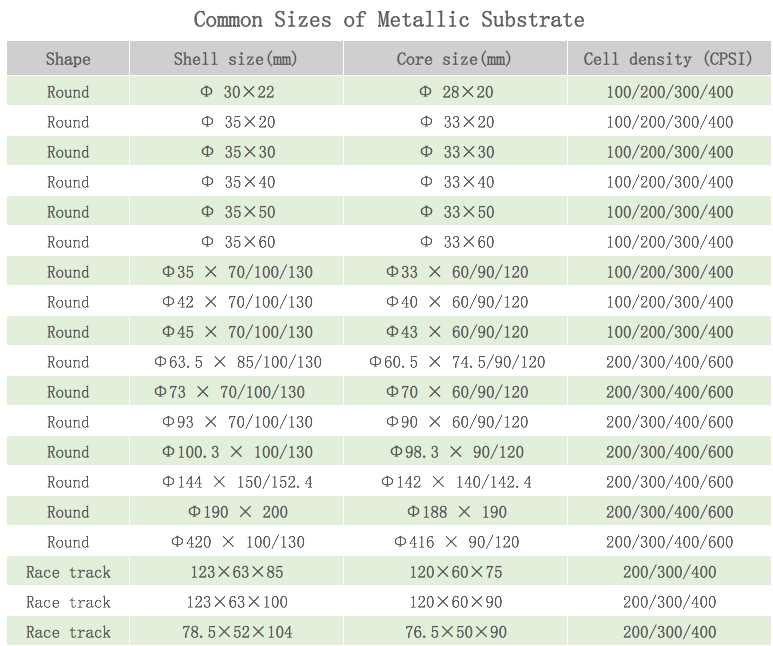

| Body material: | stainless steel/feces | size: | Can be customized. Please refer to the following details for commonly used sizes |
| Material: | Metal |
product introduction

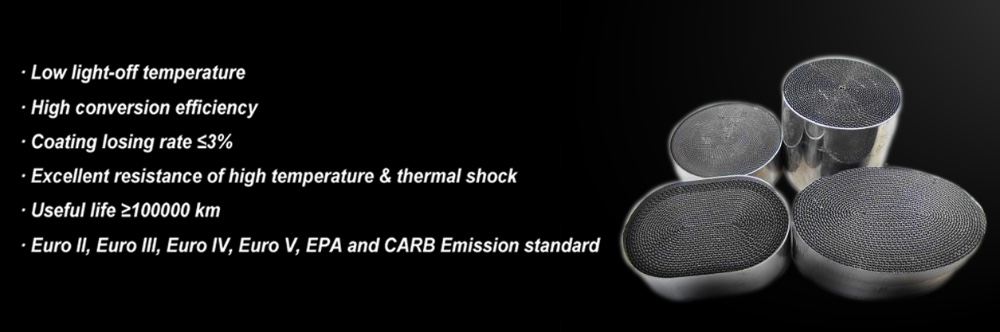

Metal substrates are widely used in the exhaust systems of motorcycles and automobiles (petrol and diesel). We can provide metal substrates coated with Pt, Pd, Rh precious metals and precious metals without precious metals, which can meet the emission standards of Euro II, Euro III, Euro IV, Euro V, EPA and CARB.

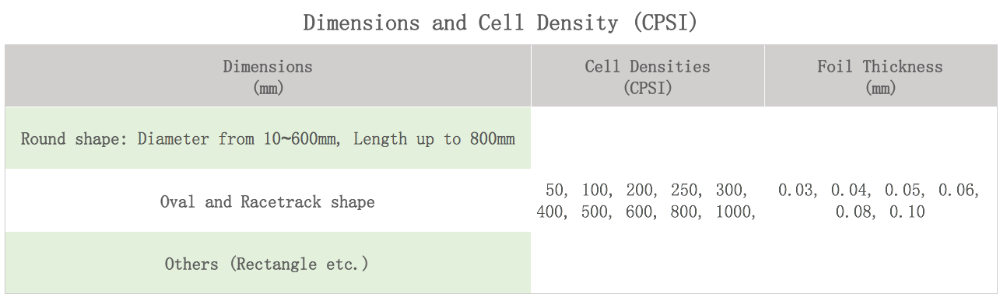

Cells with metal substrate densities can be 100, 200, 300, 400 or 600 CPSI etc. There are special shapes such as circle, ellipse, and track shape.
We can help you make the most suitable and competitive choice according to your requirements for different vehicles and different emission standards.

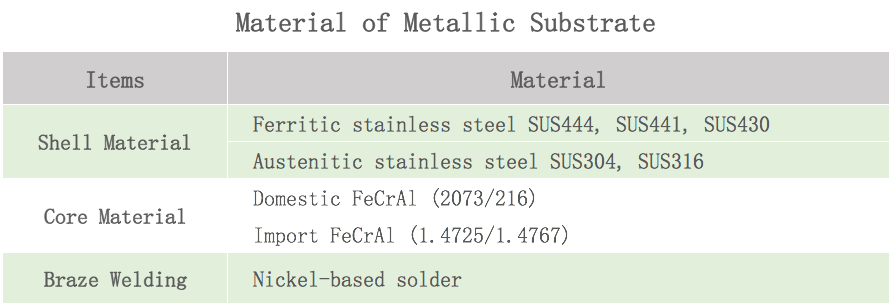

Shell material:Ferritic stainless steel SUS444, SUS441, SUS430 and austenitic stainless steel SUS304, SUS316.
Core material:Domestic iron chromium aluminum (2073/216), imported iron chromium aluminum (1.4725/1.4767), copper and iron, etc.
Film thickness:0.05-0.1 mm.
Hole density:100-900 Consumer Price Index.
Brazing:Nickel based solder.
shape:Circular, oval, racetrack, rectangular and other special shapes can be designed according to customers.

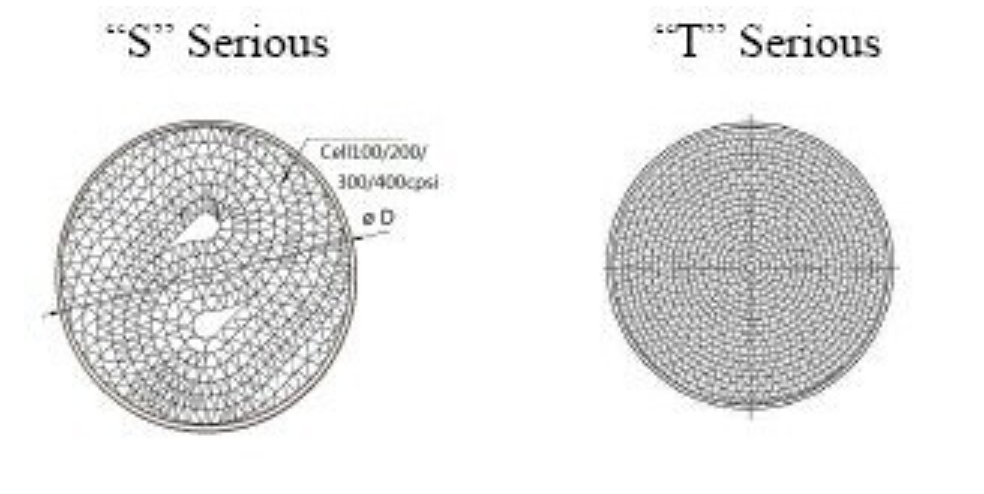

type:Spirality Series, "S" Series and "SM" Series.
Dream-Top is one of the leading manufacturers and suppliers of advanced metal honeycomb products in China.Very high quality guaranteed here Because we use durable, efficient paint and high-quality materials.
Our metal substrates are specifically designed and manufactured to provide optimum performance for each application while minimizing horsepower. Honeycomb's advanced methods combined with our vacuum brazing technology allow us to exceed the requirements of the most demanding applications.
Plus, you get maximum support with quick quotes and advice whenever you need it. Our thoughtful service will help your work become easier and happier.
We strive to provide you with the highest quality products and services.

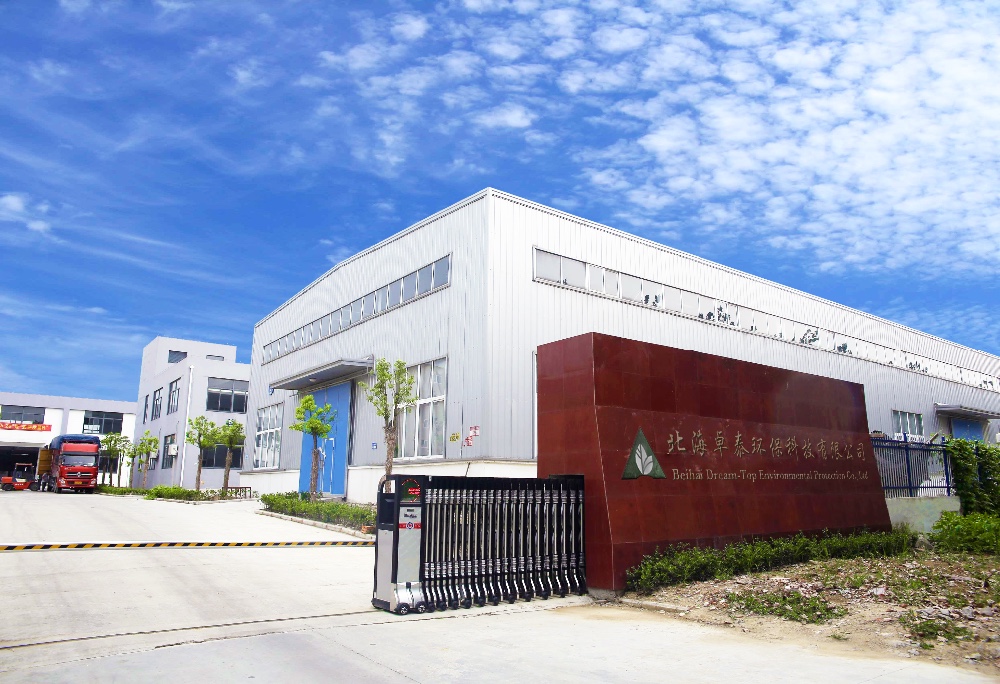

Dream-Top Company is one of the largest manufacturersSeries of industrial environmental protection productsin Beihai, China. Advanced and completeequipmentServing the daily production of various products. From products to contributions to society, multiple certificates also prove our efforts and achievements.

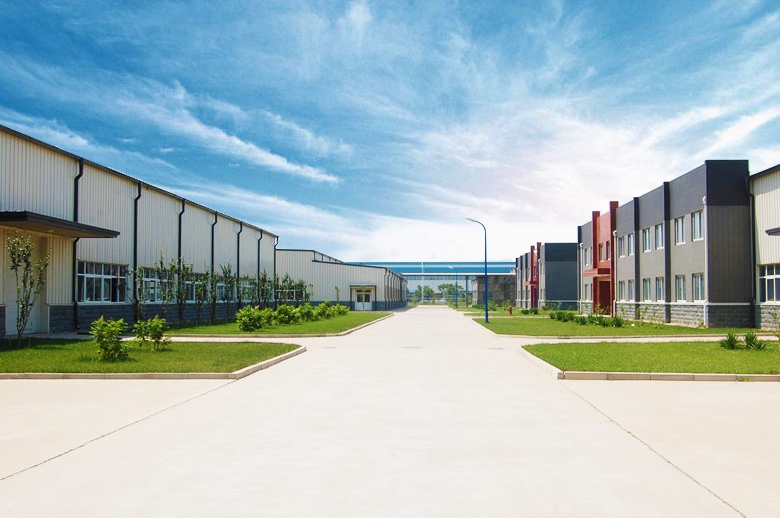

The total scale of the plant exceeds15,000square meters and above3,000Experienced staff, we can assure youfast and high qualityproducts in each of your orders; our well-trained sales team can assure you of fast and professional service from the first minute of your contact to the arrival of your order.

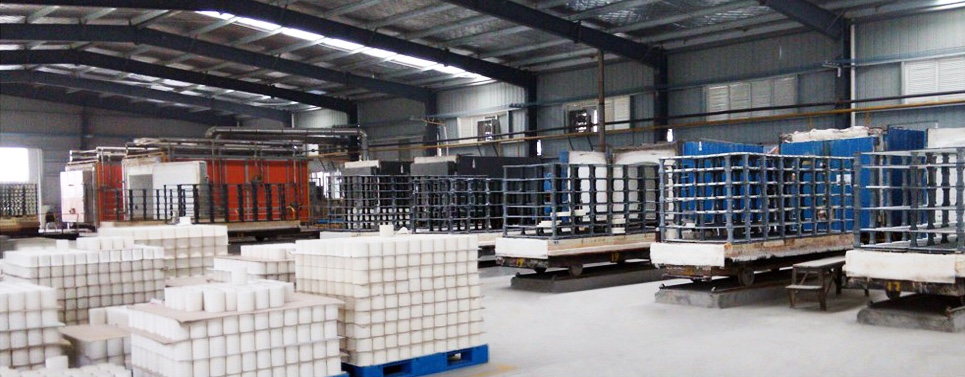

Well organized factory with advanced and high performance equipment

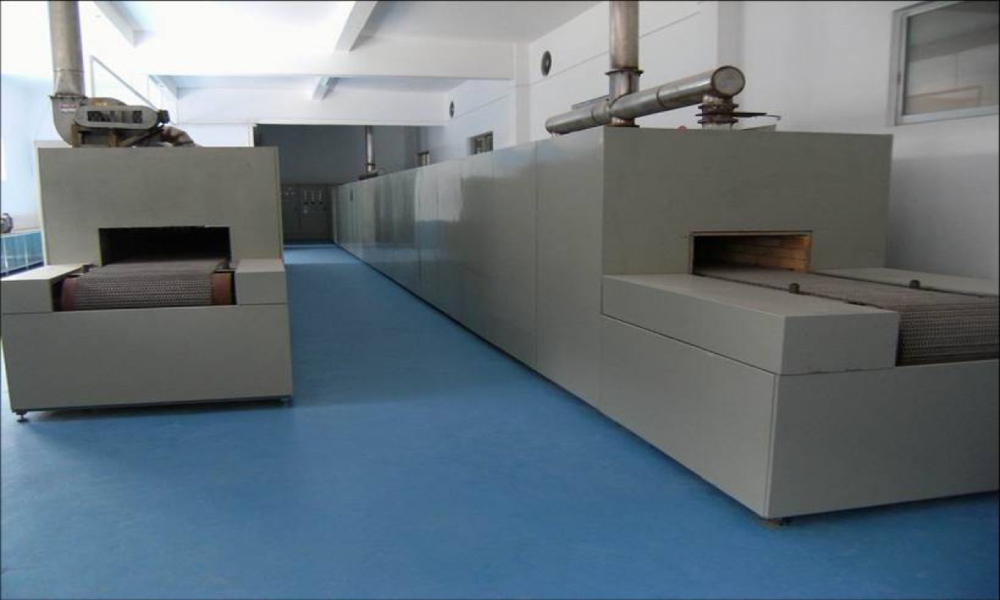

A glimpse of the kiln
Honeycomb ceramic regenerator

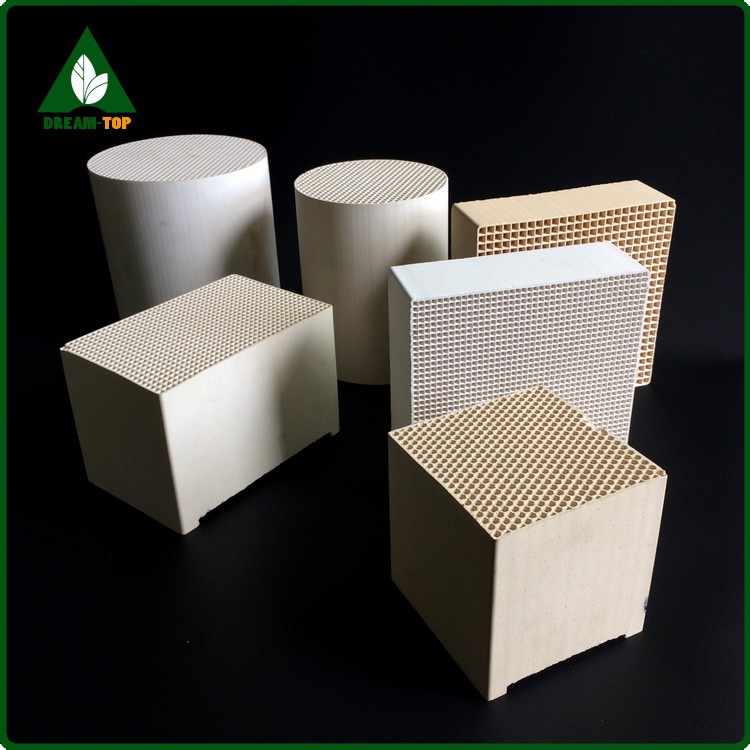

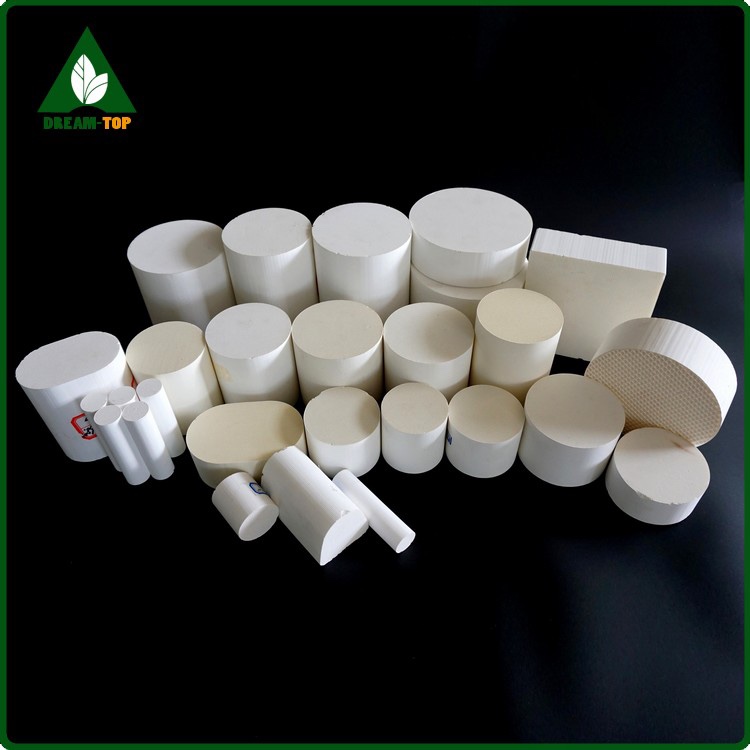

Honeycomb ceramic substrate

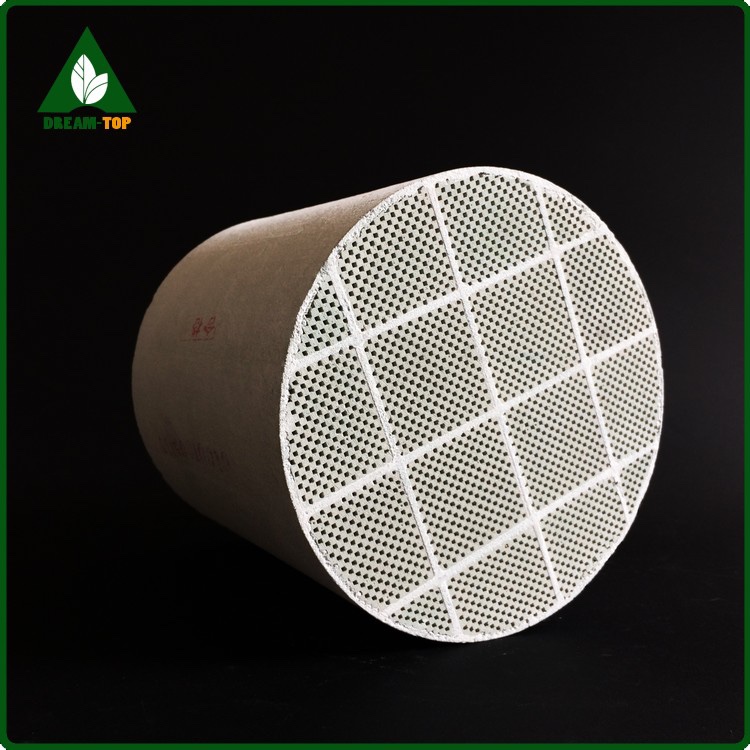

Diesel Particulate Filter (DPF)
Honeycomb ceramic filter

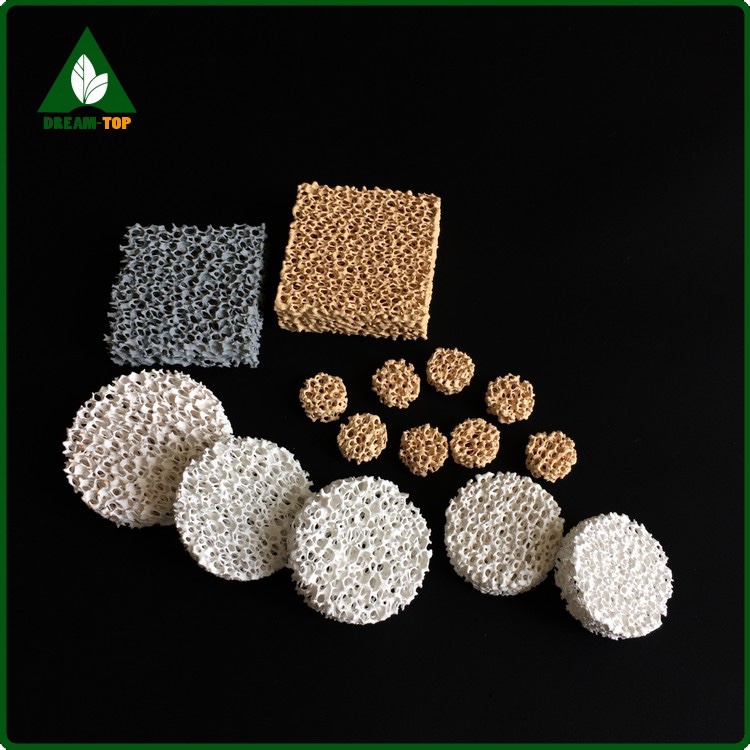

Ceramic Foam Filter

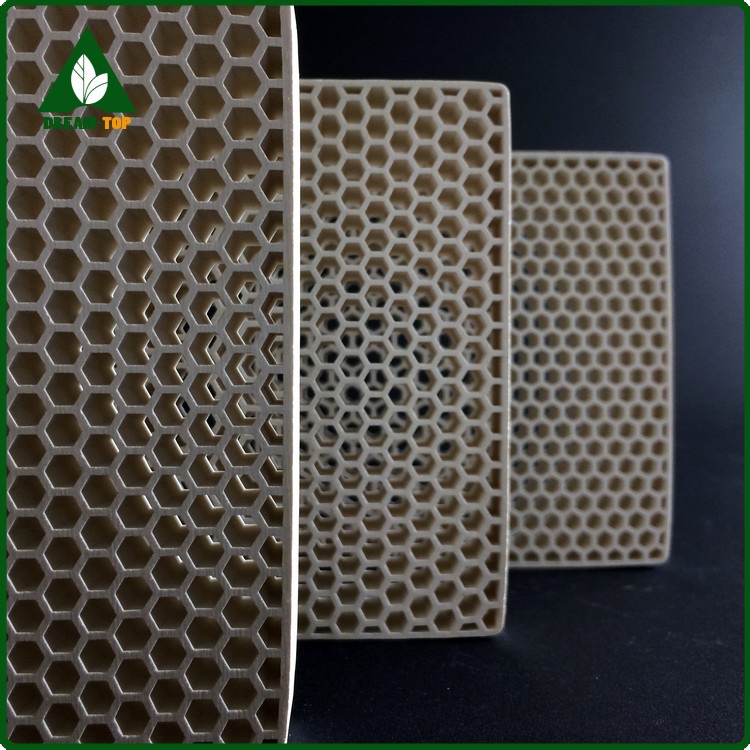

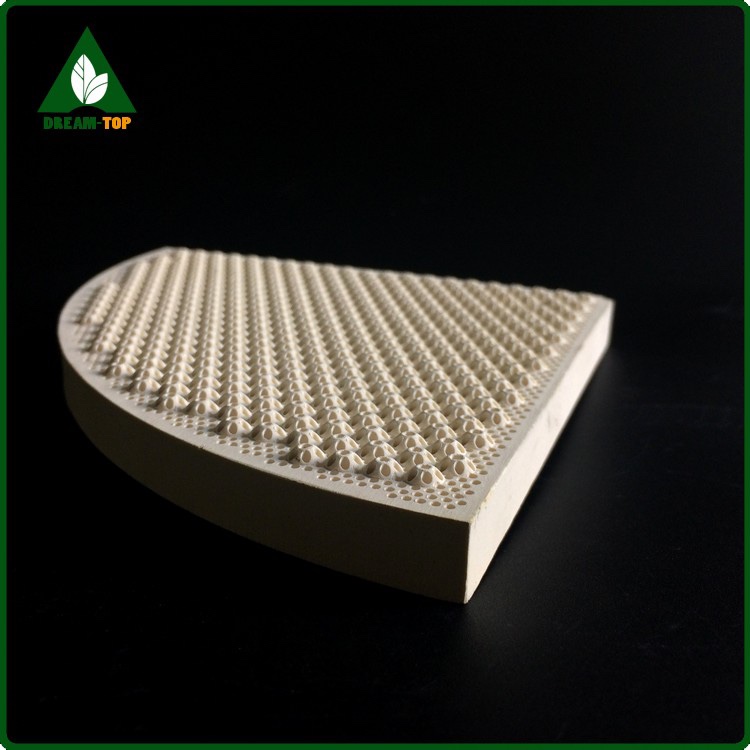

Infrared Ceramic Plaque
