Pem proton exchange membrane electrolysis water battery

Product Detail

technology:Pickling, sandblasting, brushingcolor:Black
application:chlorine gas generationproduct technologies:Pickling, sandblasting, brushing
Titanium content (%):99.6%Battery output:200g/h 500g/h 1kg/h
Customized or not:custom madebrand:luxury
port:Qingdao, Tianjinpayment terms:L/C, Western Union, T/T
Coating Type:Ru-Ir oxide mixtureshape:round
Origin:Shaanxi, Chinaproduct name:Chlorine generator electrolysis anode cell
Anode surface:SmoothPowder or not:not powder
grade:Gr1 Gr2 titanium as the matrix, Gr1 Gr2 Timodel:custom made
Key words:chlorine generatorPackaging Details:Wooden box or according to customer's requirement
Supply capacity:10000 pieces per week
Product Description

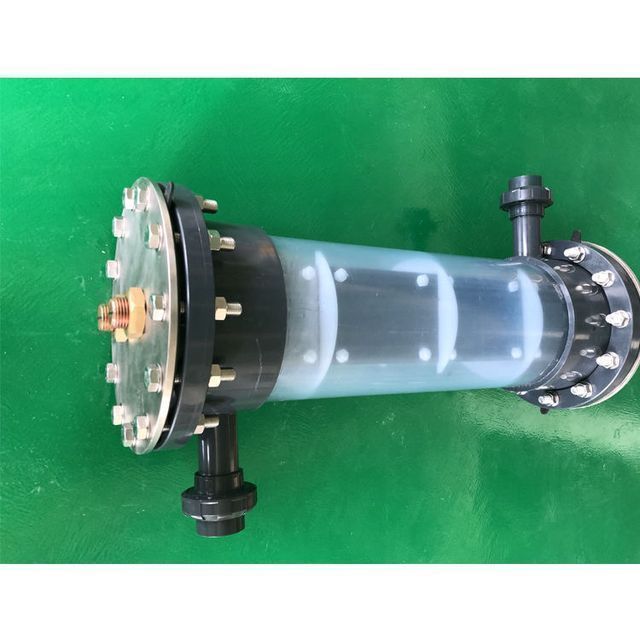

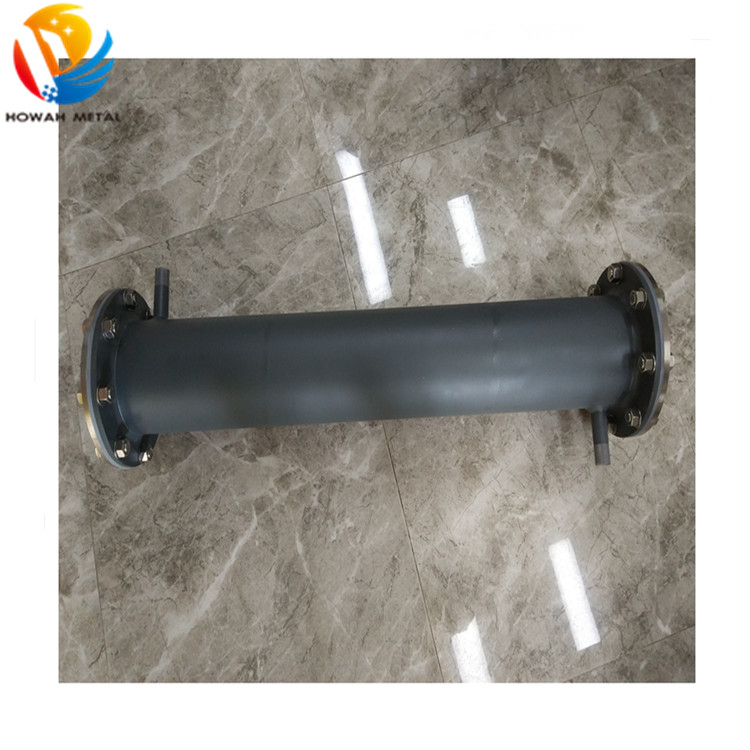

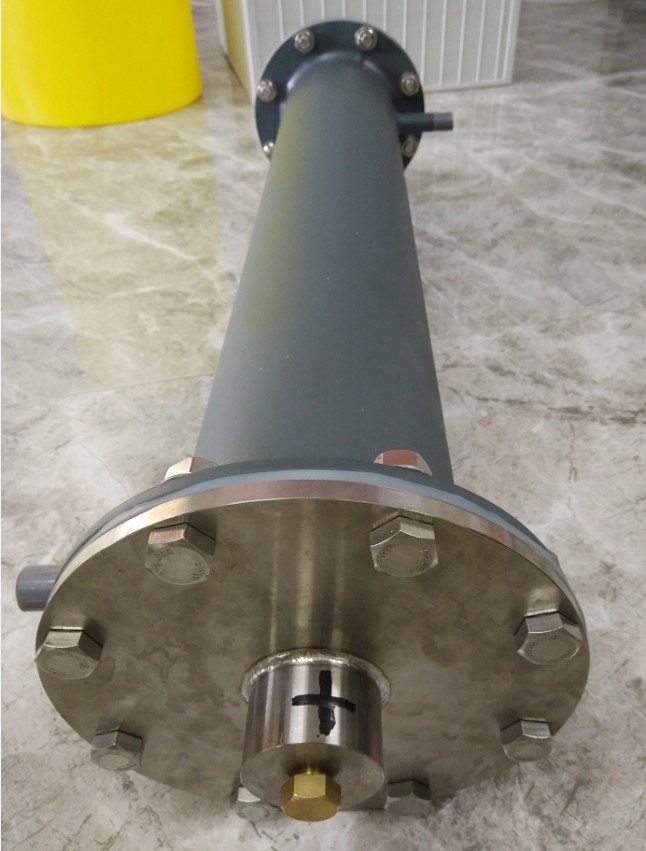

Chlorine generator electrolysis anode cell

Howah MMO AnodeConsists of a titanium substrate coated with a mixed metal oxide catalyst. Since the titanium substrate is naturally passivated by the oxide film, the anode remains dimensionally stable over time. Direct current transmission is achieved through mixed metal oxide catalysts, which are highly conductive and fully oxidizing, so they can output higher currents.

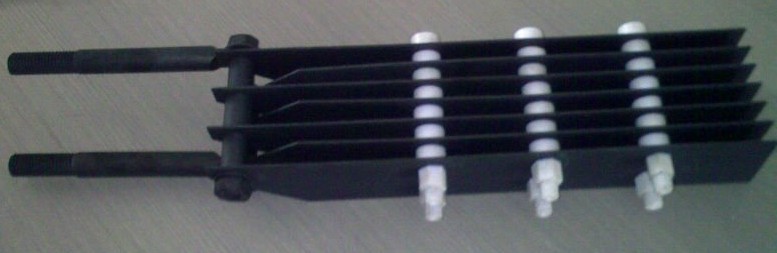

Luxury MMO coated titanium anode plate

* Produce high quality lead-free cathodes and longer life anode structures, capable of catalyst recoating.
* Various complex structures are available, which can be manufactured according to customer-specific designs.
* Professional handling equipment, unique headline welding technology.

Specification
Material
Gr1 titanium as base material
coating:
mixed ruthenium oxide
platinum
Battery output: 200g/h, 500g/h, 1kg/h
Coating thickness
MMO coating: 5~10 microns
Platinum coating: 0.5-5 microns
scope
1. Current density≤2000A/M2
2. Temperature <60°C
3. PH value 0.1~14
4. The maximum content of fluoride ion is 200PPM
size and shape
1. Plate/tube/rod/mesh, different sizes available
2. Or according to customer drawings
advantage
1. Effective and environmentally friendly
2. High current efficiency
3. High anti-corrosion performance
4. Long service life
5. Keep the working voltage stable
6. Small size and light weight
7. Repeat for the titanium substrate. ETC.
application

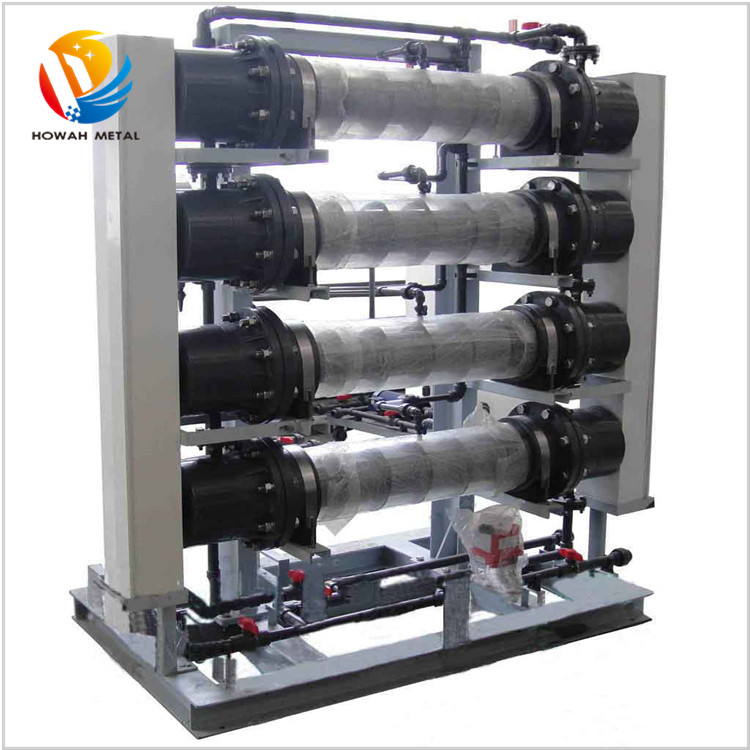

HOWAH MMO Titanium Coated AnodesAvailable for on-site sodium hypochlorite generators, the working principle is a brine electrolytic chlorination system with a chlorine capacity ranging from 0.1 to 1,200 kg/hour, using three common consumables of salt, water and electricity to generate 0.8% sodium hypochlorite disinfectant.

* Municipal and community water treatment: drinking water and wastewater

* Cooling water treatment: power station, petrochemical and refinery

* Disinfection: swimming pools and water parks

* Ocean sewage treatment

* Anti-fouling: ship planks, boats

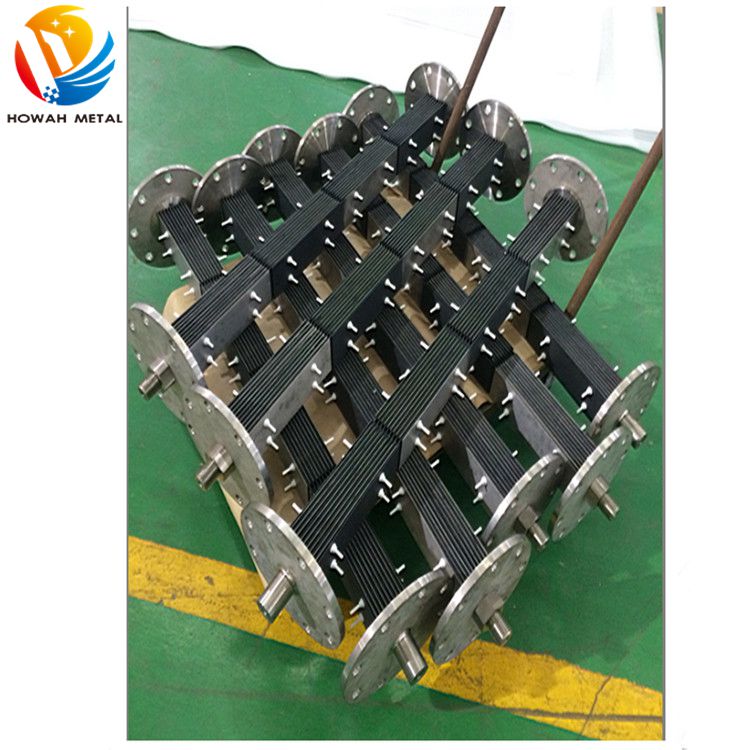

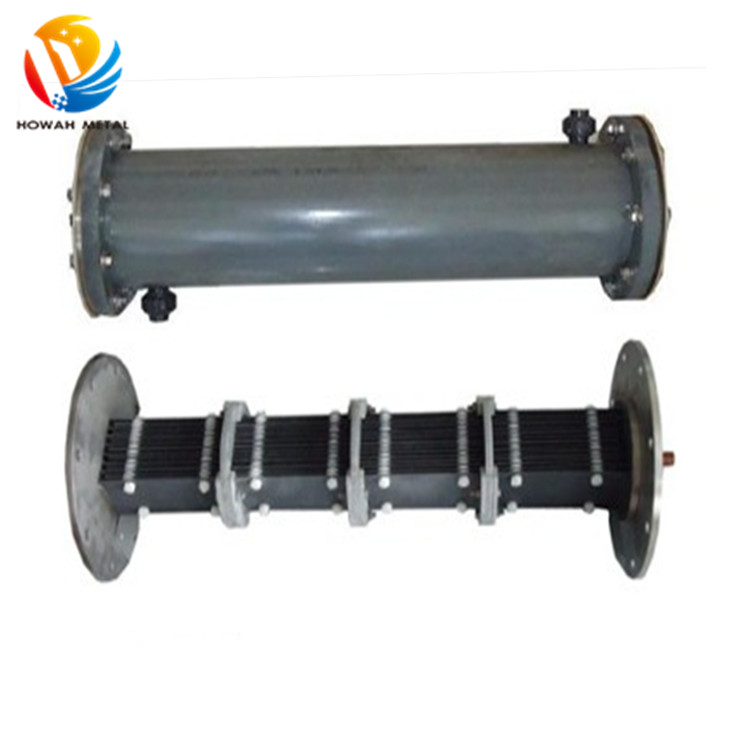

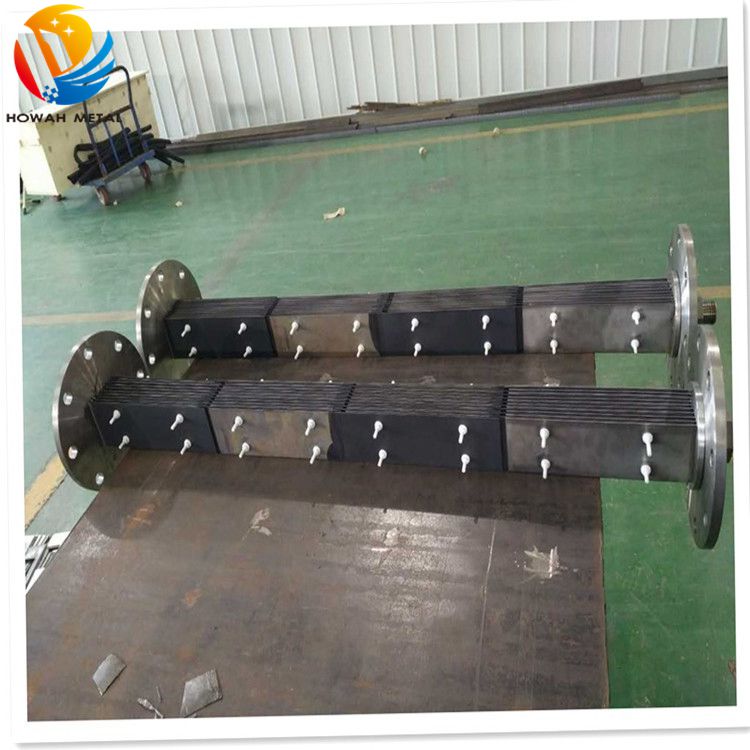

detailed image
Packaging and Shipping

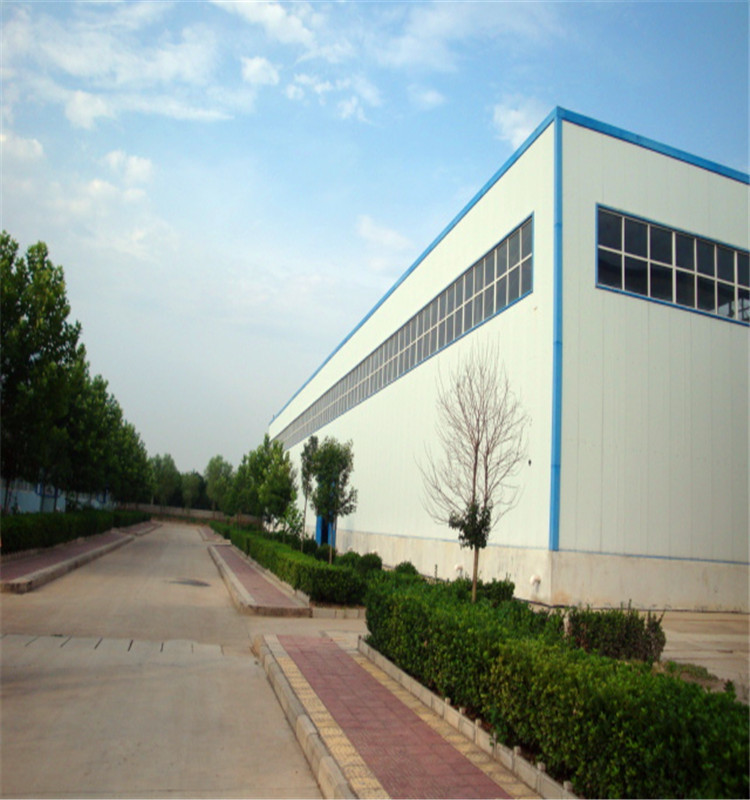

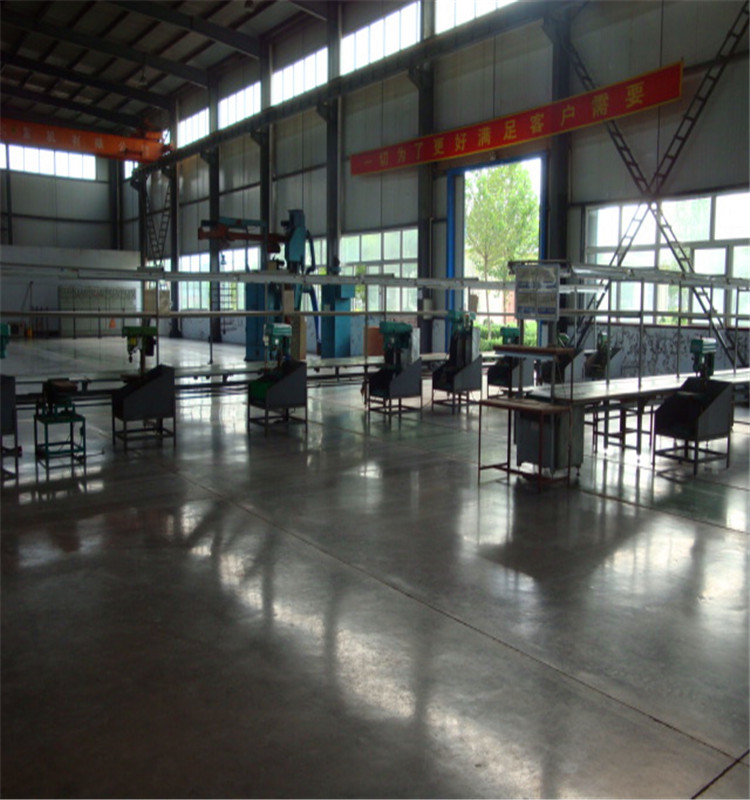

factory facilities
QC

"Quality creates the future." is the popular motto of Howah Industry. Quality has been the focus since the beginning of the company. From the procurement of materials to the delivery of finished products, Hehua Industrial regards quality as its life. In order to ensure the quality and control the cost, Huahao Industrial has introduced advanced production and testing equipment from the United Kingdom, the United States, Germany, Switzerland, Italy, Japan and other countries. The advanced testing equipment provides a reliable guarantee for product performance testing.

Why choose us

1) More than 10 years of negative electrode production experience;
2) Three workshops and a strong technical team;
3) A complete production and processing line, from raw materials, mechanical processing, surface treatment, electrodeposition, and has deep processing capabilities.
4) ISO9001:2008, SGS, DNV GL standardization enterprise;
5) Wide range of business, variety of products, guaranteed market share

Luxury products are sold all over the country and exported to North America, Europe, Mexico, Brazil, Chile, Argentina, Australia, Indonesia, Malaysia, Singapore, United Arab Emirates, Saudi Arabia, Algeria, Nigeria, South Africa, Turkey and other countries.

contact us

Now that you've pulled our page here,
Why don't you call us right away?
Xi'an Luxury Industrial Technology Co., Ltd.
Address: Fengcheng Sixth Road, Xi'an
Tel: 86-29-86680870 extension 601
Fax: 86-29-86680871
Mobile: 86-15229212446
Email: elsa(at)howahmetal.com
Skype: elsa.lee.lf
WeChat: 86-15229212446
URL: www.howahanode.com
