0.1mm gr1 astm b265 pure titanium sheet titanium 2 thin

  • $34.00 / 1 - 9 kilograms
    $26.00 / 10 - 49 kilograms
    $18.00 / >=50 kilograms
  • 1 kilogram
  • Baoji Dynamic Trading Co.,Ltd
  • Shaanxi, China
  • Mr Jim Zhang

Product Detail

Titanium (min):99%color:primary color
finishing:Pickling, Machining, Sandblastingplace of origin; place of origin:Shaanxi
Advantage:Corrosion resistance, high strength and light weight.brand:Jimmy Cloud
application:industrialPackaging Details:Plywood shell, then tied with steel straps. Packaging will make the goods safer when transported over long distances.
product name:Pure titanium grade 2 thin titanium foilMaterial:GR1,GR2,GR5,GR7,GR9,GR12
Processing service:Cutting, bending, welding, uncoiling, cutting, punchingmodel:Titanium foil
Supply capacity:10000 kg per monthgrade:GR1 GR2 GR5, GR1, GR2, GR5
standard:ASTM B265, AMS, ASTM 4911width:10~400mm
density:About 4.51g/cm3port:Qingdao. Shanghai. Shenzhen Guangdong
length:500-6000mm, cut as requiredPackaging Preview:
payment terms:L/C,Western Union,D/P,D/A,T/T,MoneyGramtype:Titanium foil titanium strip
surface:Polishing, Pickling, Sandblasting
Product Description

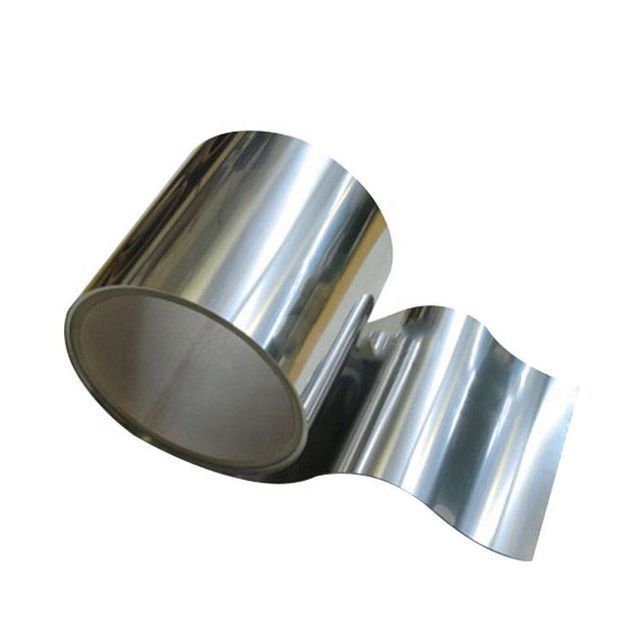

♠Titanium foil is a titanium plate, strip, roll or sheet with a thickness of less than or equal to 0.1mm. The maximum width of rolled titanium foil is about 600mm.
♠The width of the titanium foil is cut according to the user's requirements. But the wider the manufacturing, the higher the productivity.
♠Titanium foil is mainly used in aerospace, navigation, nuclear power, electronics, chemical industry, petroleum, precision manufacturing, medical and pharmaceutical fields.

describe Titanium foil/titanium tape
Material

Gr1, Gr2, Gr3, Gr4, Gr5, Gr7, Gr6, Gr9, Gr11, Gr12, Gr16, Gr17, Gr25



TA0,TA1,TA2,TA5,TA6,TA7,TA9,TA10,TB2,TC1,TC2,TC3,TC4

standard ASTM B265, ASME SB265, DIN17851, TiA16Zr5Mo1.5, JIS4100-2007, GB3461-2007
size

Thickness: 0.01-2.0mm

Width: 0.7-240mm

Length: upon request

Minimum order quantity 1kg/kg
equipment used CNC lathes, milling machines, machining centers, thread rolling machines, magnetic needle polishing machines
feature

1. High corrosion resistance

2. Low density

3. Non-ferromagnetic

4. Good biocompatibility

pack Standard export packaging, suitable for various shipments, or as required.
application

1. Based on high strength, the tensile strength of titanium products can reach 180Kg/mm².

2. Titanium and titanium alloys in the aviation industry are called "space metals"; in addition,

In shipbuilding, chemical industry, manufacturing machine parts,

Telecommunications equipment, cemented carbide and other applications are becoming more and more extensive

3. In addition, due to the good compatibility of titanium alloy with the human body,

So titanium alloy can also be artificial bone.

chemical composition:

work(%) C n iron H aluminum five titanium
GR1 ≤0.08 ≤0.03 ≤0.20 ≤0.18

≤0.015

- - Barr.
GR2 ≤0.08 ≤0.03 ≤0.30 ≤0.25 ≤0.015 - - Barr.
GR5 ≤0.10 ≤0.05 ≤0.30 ≤0.20 ≤0.015 5.50-6.80 3.50-4.50 Barr.

Stretching Requirements:

grade tensile strength Yield Strength 0.2% Offset elongation
at 2 in. or 50mm min.%
Bending test
sensitive sensitive sensitive maximum Less than 0.070" (1.8mm) thick 0.070 to 0.187 inches
(1.8 to 4.75mm) thickness
Kersey MPa Kersey MPa Kersey MPa
1 35 240 20 138 45 310 twenty four 1.5T 2T
2 50 345 40 275 65 450 20 2T 2.5T
3 65 450 55 380 80 550 18 2T 2.5T
4 80 550 70 483 95 655 15 2.5T 3T
