CRgo Laminate 0.27mm m3 Cold Rolled Grain Oriented Steel for Transformer
-
$2500.00 / 25 - 99 pieces
$2420.00 / 100 - 999 pieces
$2300.00 / >=1000 pieces - 25 pieces
- Tianjin Zhanzhi Steel Co., Ltd.
- Tianjin, China
- Ms Sunny Wei
Product Detail
| Package preview: | delivery time: | 15 days after payment | |
| grade: | M3 | model: | ZZCRGO-17 |
| product name: | Transformer silicon steel coil | thickness: | 0.1 - 0.3 mm |
| type: | Oriented silicon steel | pricing term: | FOB CFR CIF |
| port: | Tianjin, Qingdao, Shanghai | standard: | Aisi |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Processing services: | Bending, welding, decoiling, cutting, punching |
| Supply capacity: | 2000 tons per month | shape: | steel coil |
| Thickness Tolerance: | +/-0.02mm | Origin: | Tianjing, China |
| expiration of pay: | L/CT/T (30% deposit) | Surface treatment: | coating |
| tolerant: | ±3% | Packaging Details: | Fully seaworthy export packaging |
| application: | Electrical products such as transformers and reactors | MOQ: | 25 tons |
| technology: | cold rolling | delivery time: | 15-21 days |
Product Description
product name | 0.27mm m3 crgo lamination cold rolled grain oriented steel for transformer |
Material | Silicon steel |
grade | M3 |
capacity | Coil products about 2000 tons per month |
brad | exhibition |
width | 40mm-1200mm 1000/1100/1200(mm) or according to customer requirements |
Nominal thickness | 0.27mm |
Maximum core loss | 50w1300 7.5W/kg, 50W800 5.8W/kg, 50W600 4.2W/kg. |
Minimum induction | 50w1300 1.74T, 50W800 1.70T, 50W600 1.67T. |
Minimum Lamination Factor | 97% |
application | Compressor motors, motors, rectifiers, transformers, etc. |
product display

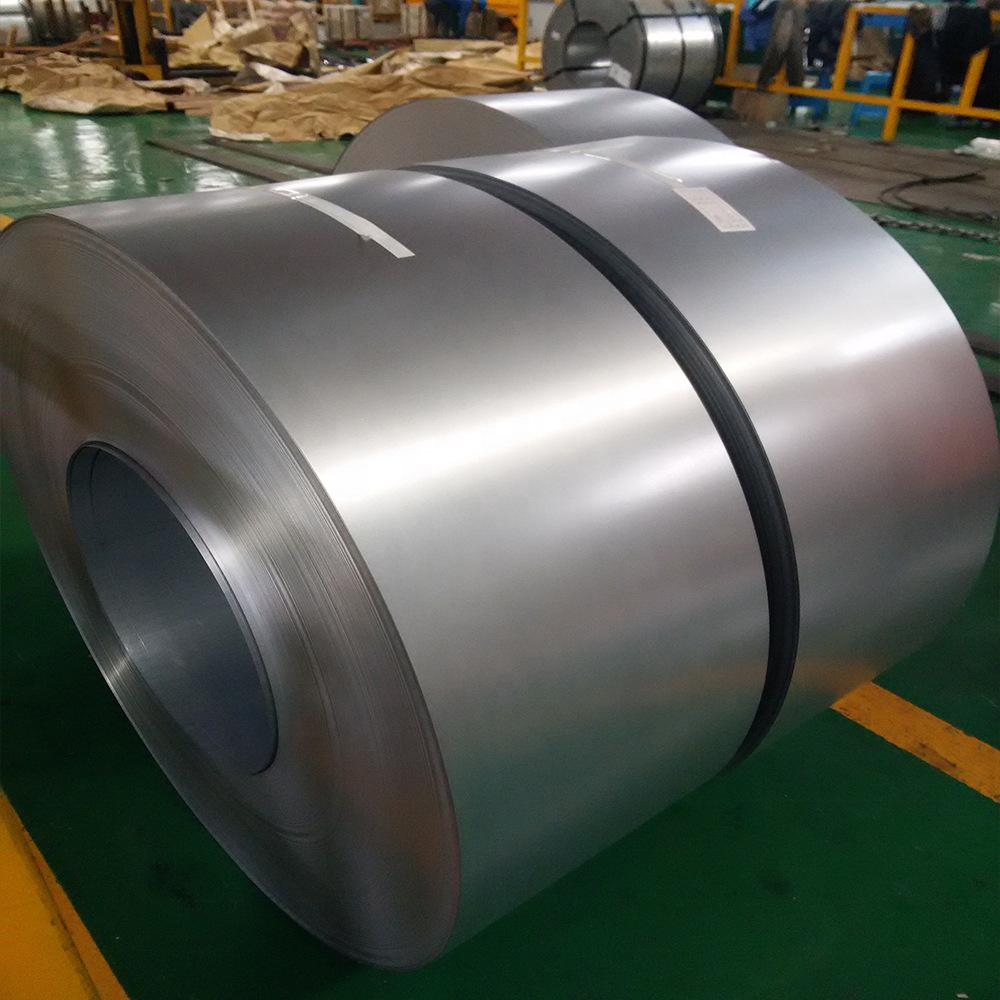

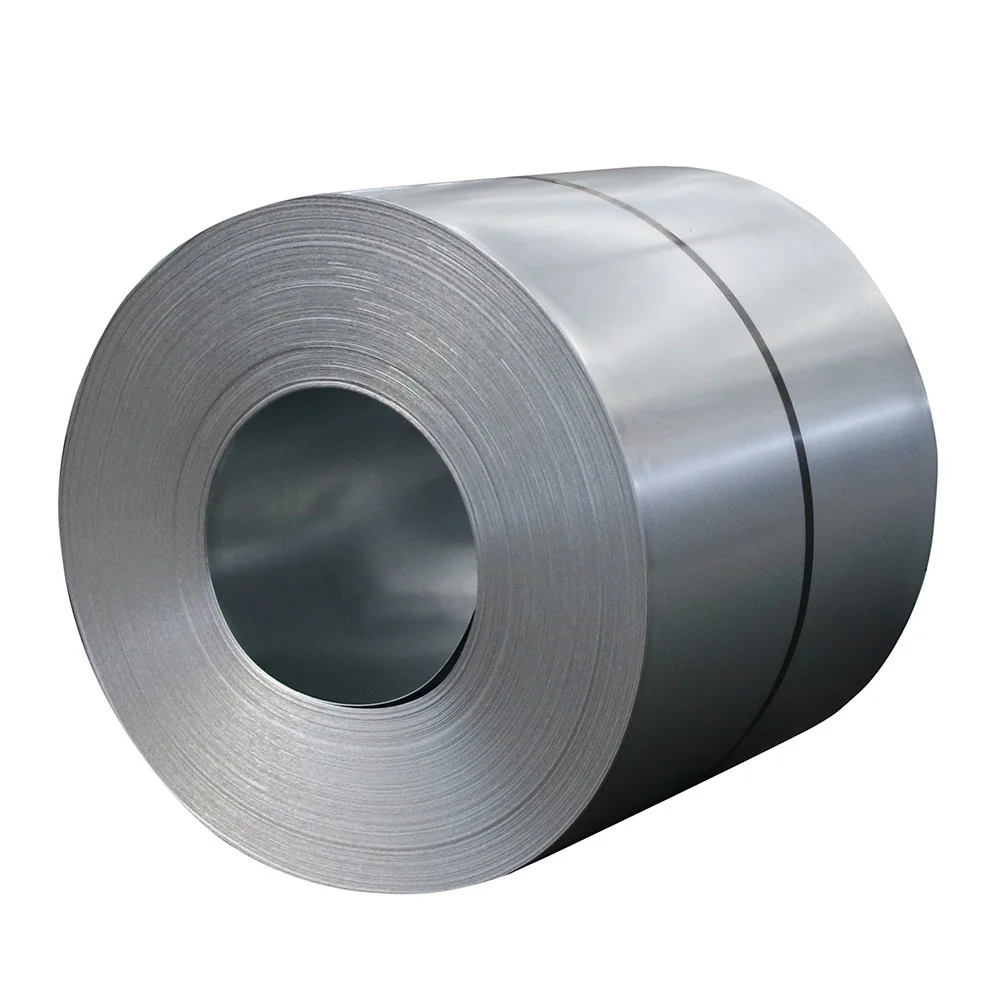

Detail pictures of 0.27mm m3 crgo lamination cold rolled grain oriented steel for transformer

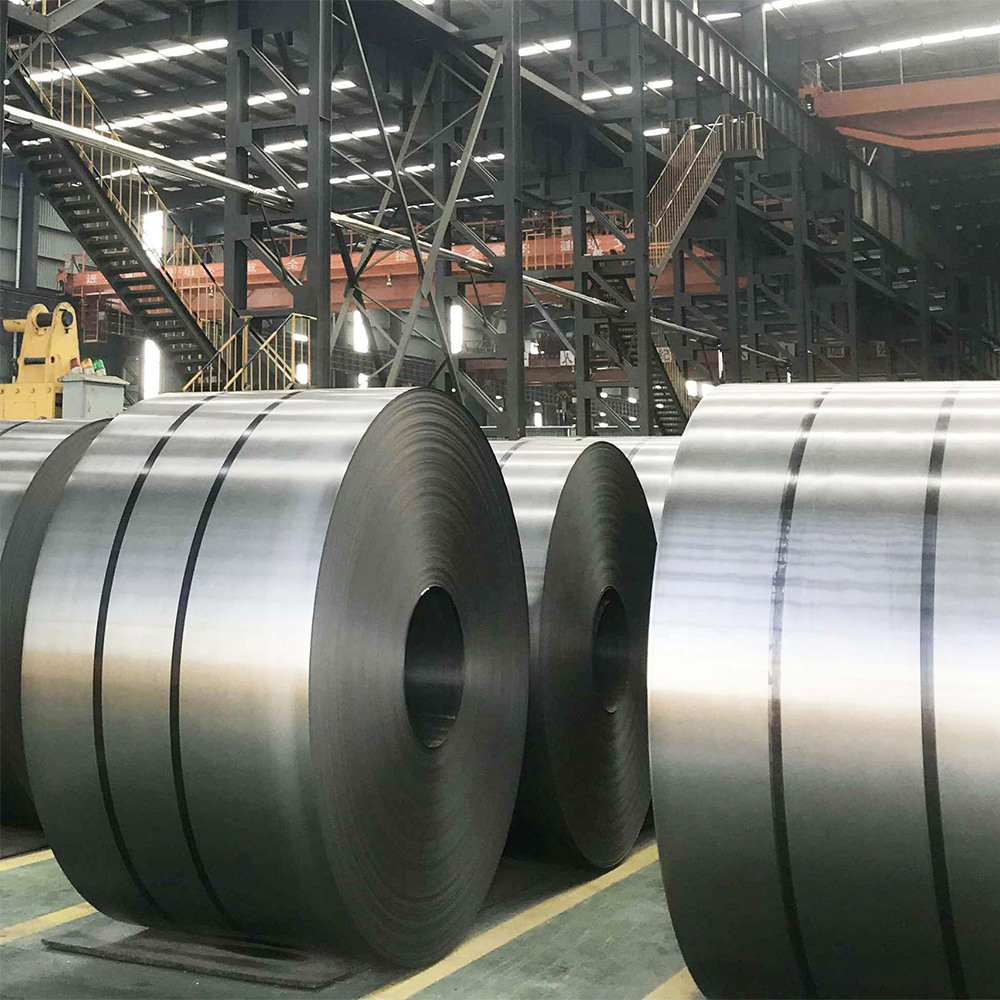

Detail pictures of 0.27mm m3 crgo lamination cold rolled grain oriented steel for transformer

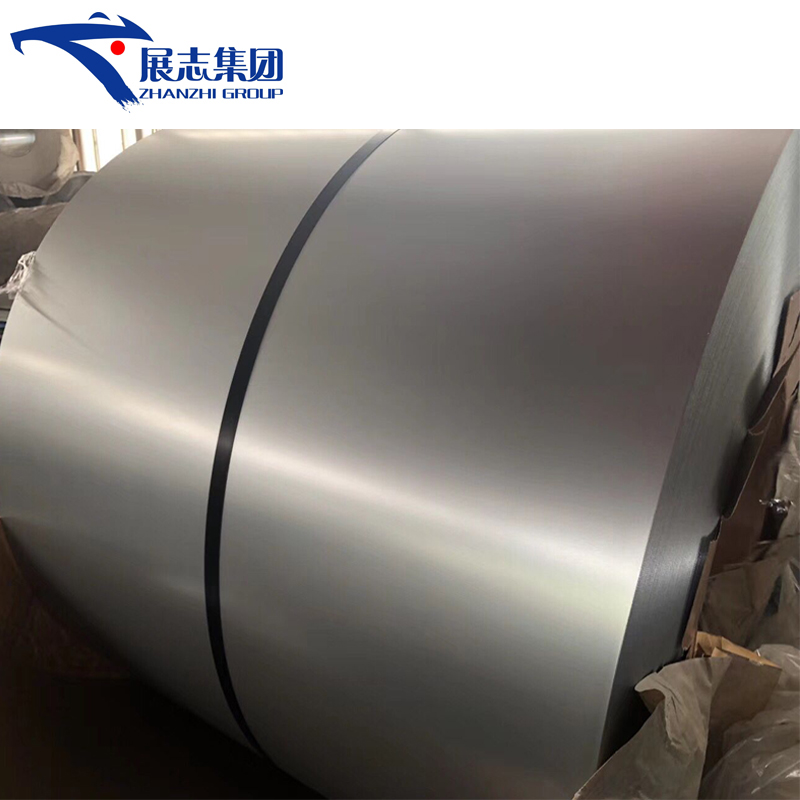

Detail pictures of 0.27mm m3 crgo lamination cold rolled grain oriented steel for transformer

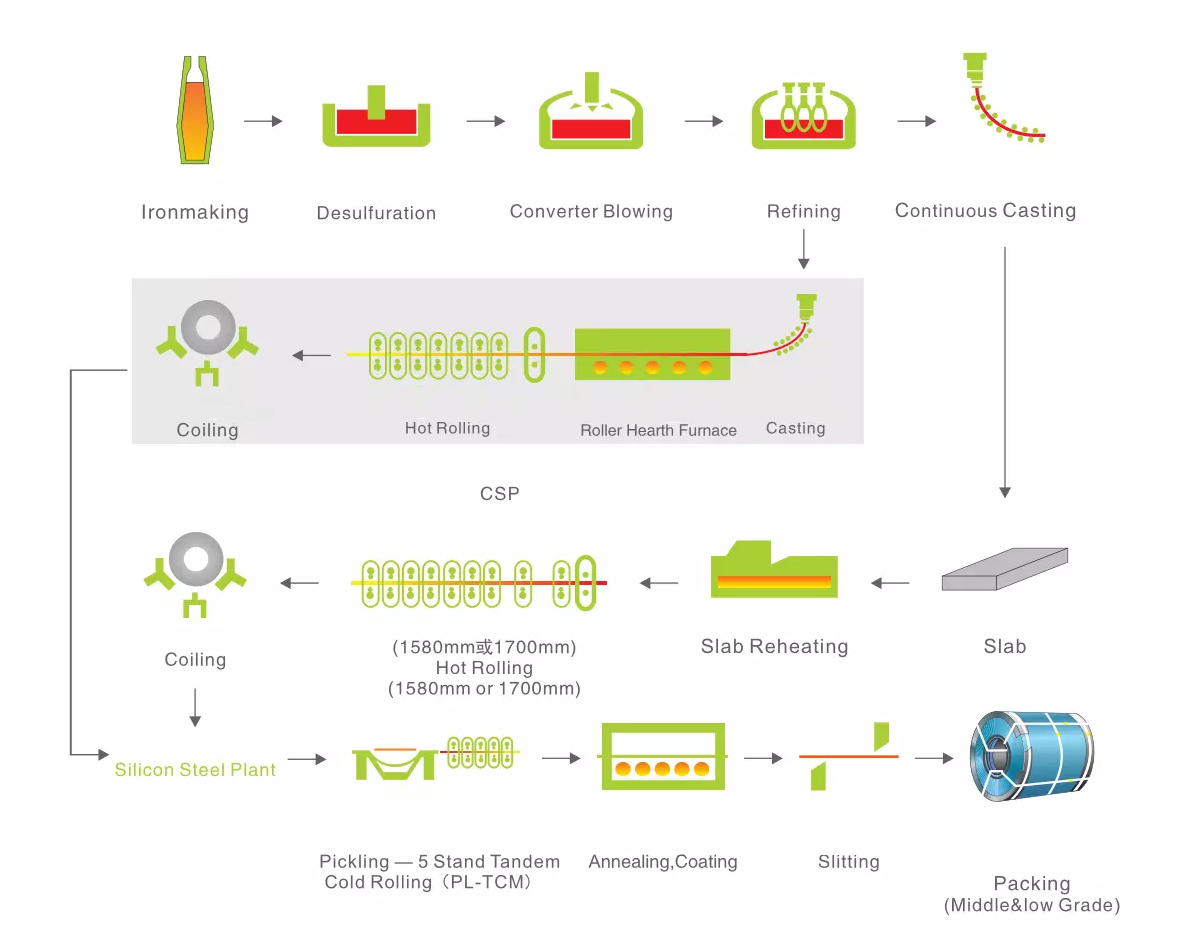

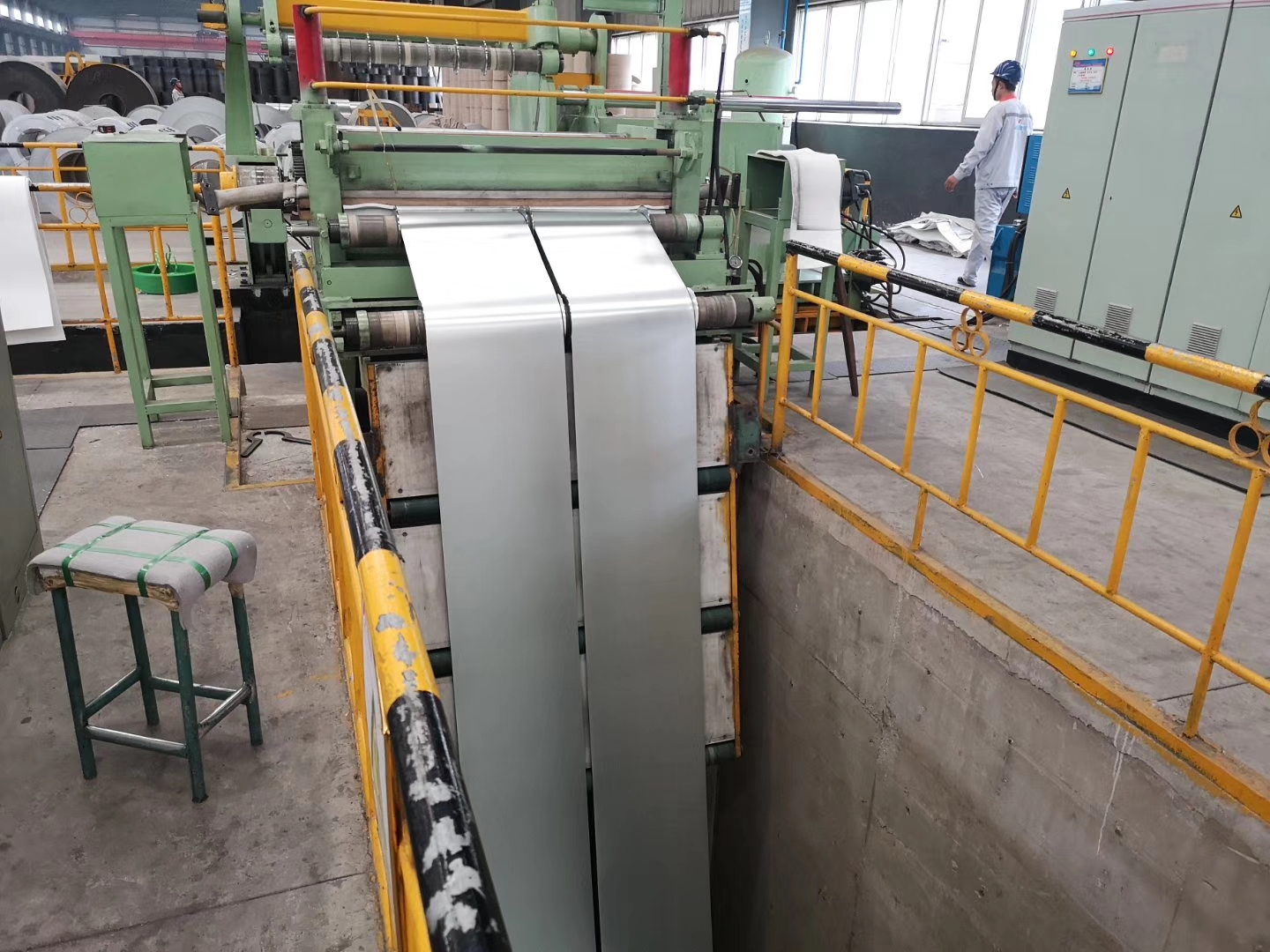

High-quality 0.27mm m36 cold-rolled grain-oriented silicon steel sheet production line

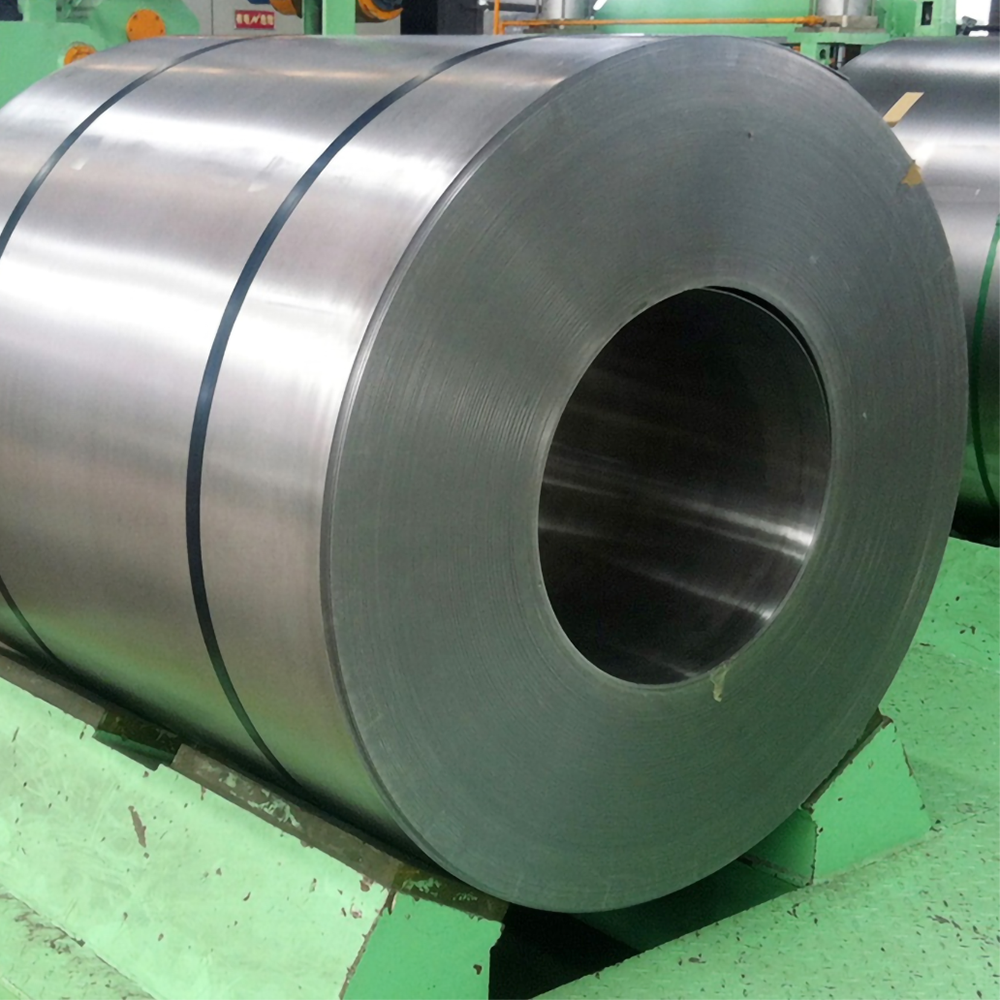

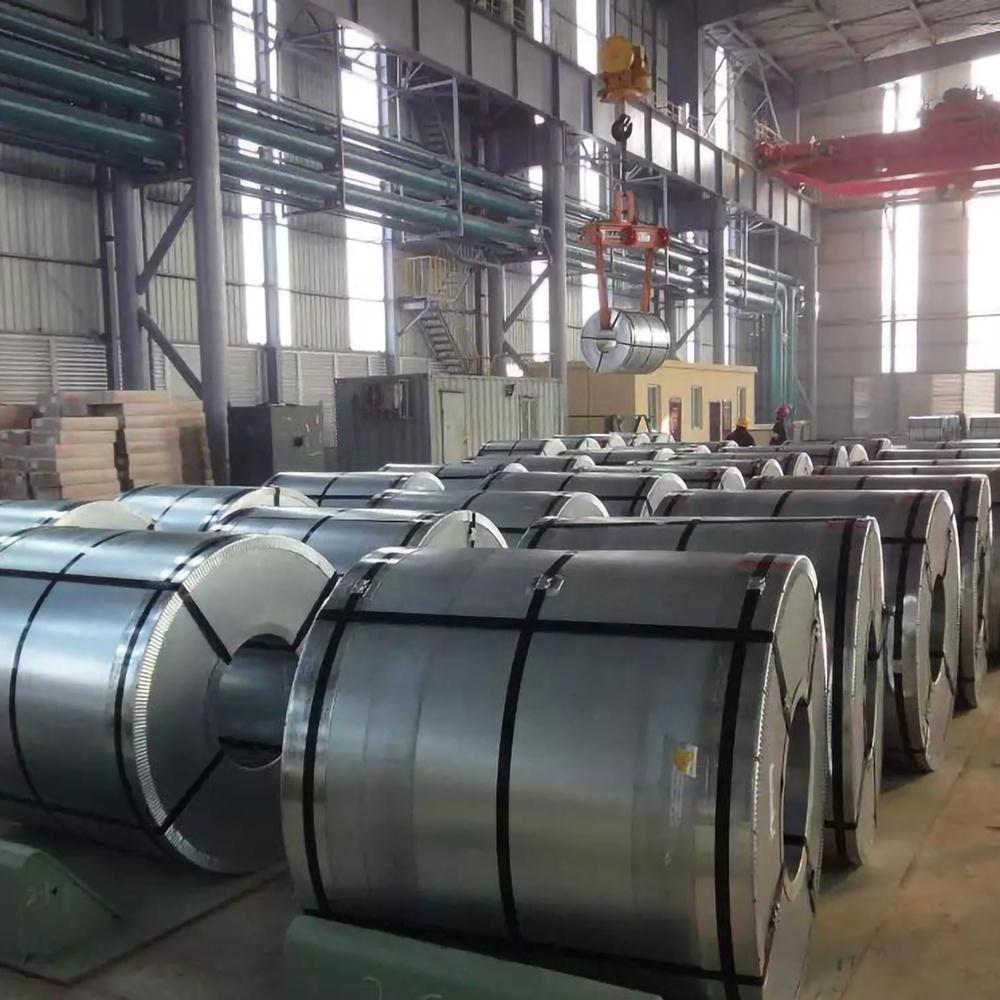

Processing of high-quality 0.27mm m36 cold-rolled grain-oriented silicon steel sheet
application

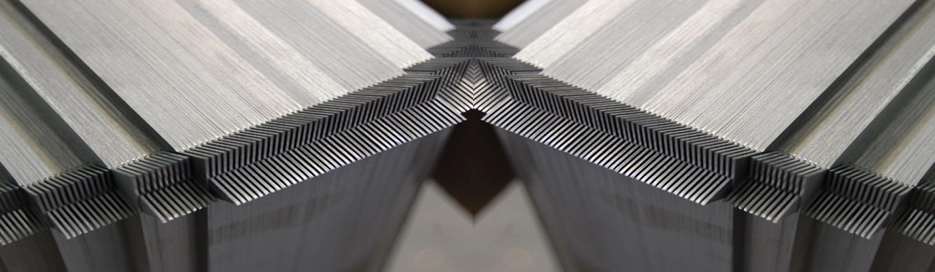

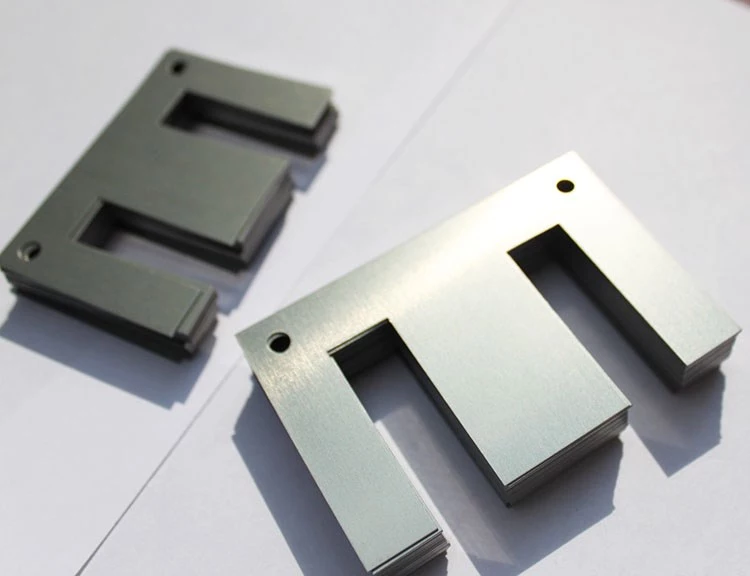

Application of high-quality 0.27mm m36 cold-rolled grain-oriented silicon steel sheet
Non-oriented fully machined steels are iron-silicon alloys with different silicon contents that have similar magnetic properties in all directions in the plane of the sheet. They are primarily used in electric motors, generators, alternators, ballasts, small transformers, and various other electromagnetic applications.
our service
high quality
Passed the ISO9001:2008 quality system certification.
perfect packaging
Perfect seaworthy package or according to customer's requirement.
convenient transportation
Deliver these goods with excellent shipping.
