Single-phase silicon core UI EI laminated core for transformer
-
$0.98 / 5000 - 7999 kilograms
$0.97 / 8000 - 14999 kilograms
$0.96 / >=15000 kilograms - 5000 kilograms
- Hangzhou Weshare Import And Export Co., Ltd.
- Zhejiang, China
- Mr Tong Chao
Product Detail
| Packaging Details: | 25kg/carton, then palletized for EI laminated iron core of EI 66 silicon steel sheet transformer | type: | Non-oriented silicon steel |
| grade: | Silicon steel | technology: | cold rolled |
| Supply capacity: | 50000 pieces per month | delivery time: | 15-21 days |
| shape: | EI lamination | process: | punching |
| model: | 50w470, 50w600, 50w800 | Surface treatment: | coating |
| Steel shape: | EI | thickness: | 0.5 - 0.65mm |
| port: | Shanghai or Ningbo port | application: | Transformer core, motor core |
| Processing services: | bending, cutting | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| Name: | Single-phase laminated silicon steel plate | Origin: | Zhejiang, China |
| standard: | ASTM, GB, DIN, AISI, JIS | surface: | insulating coating |
| tolerant: | ±1% |

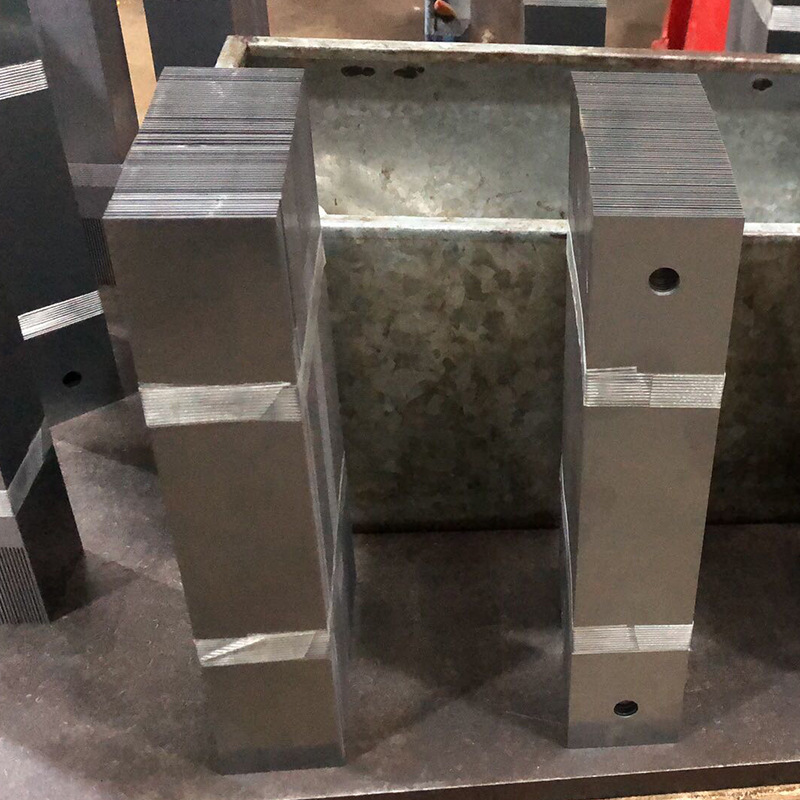

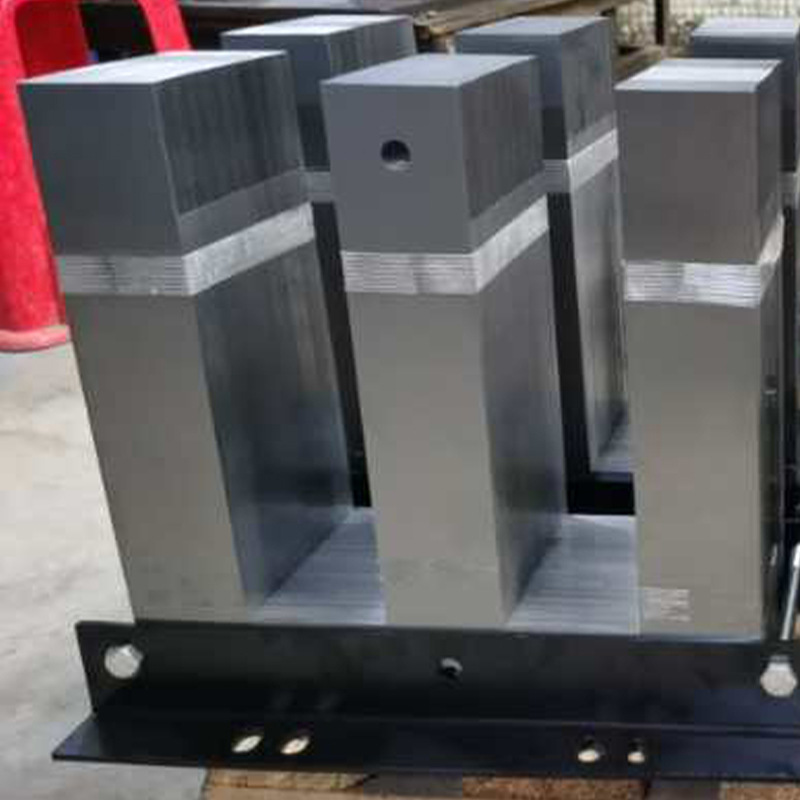

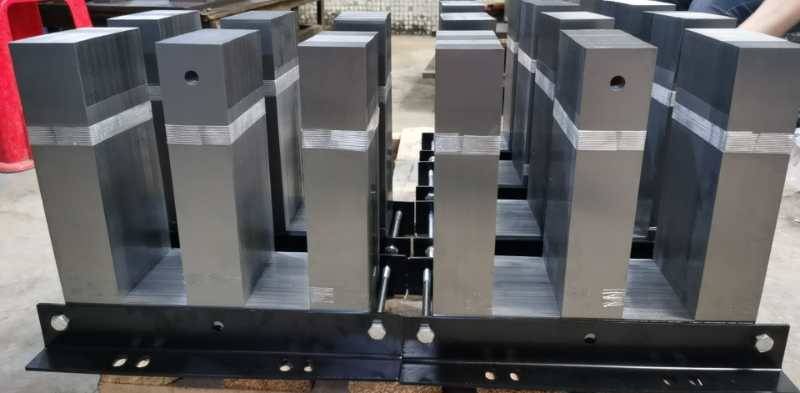

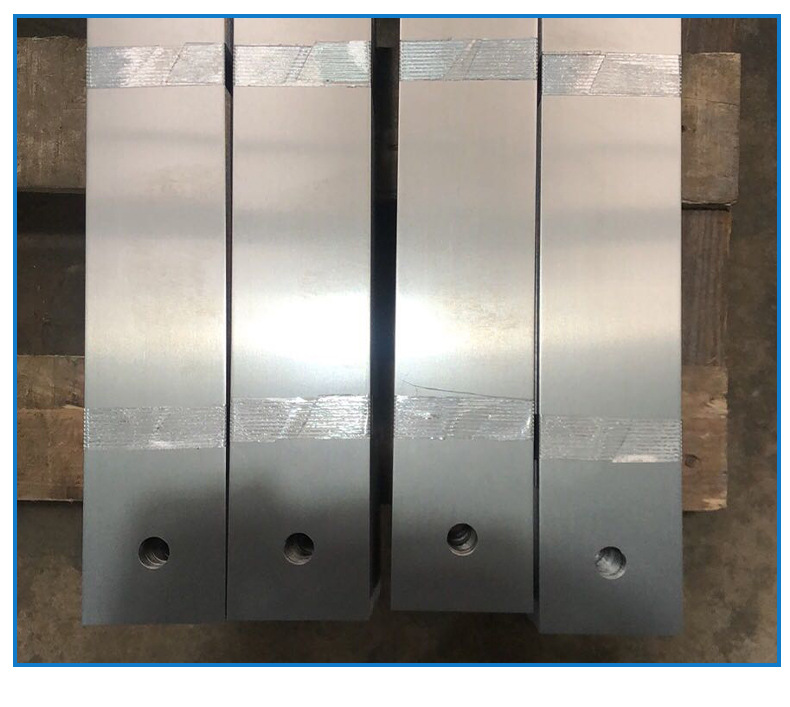

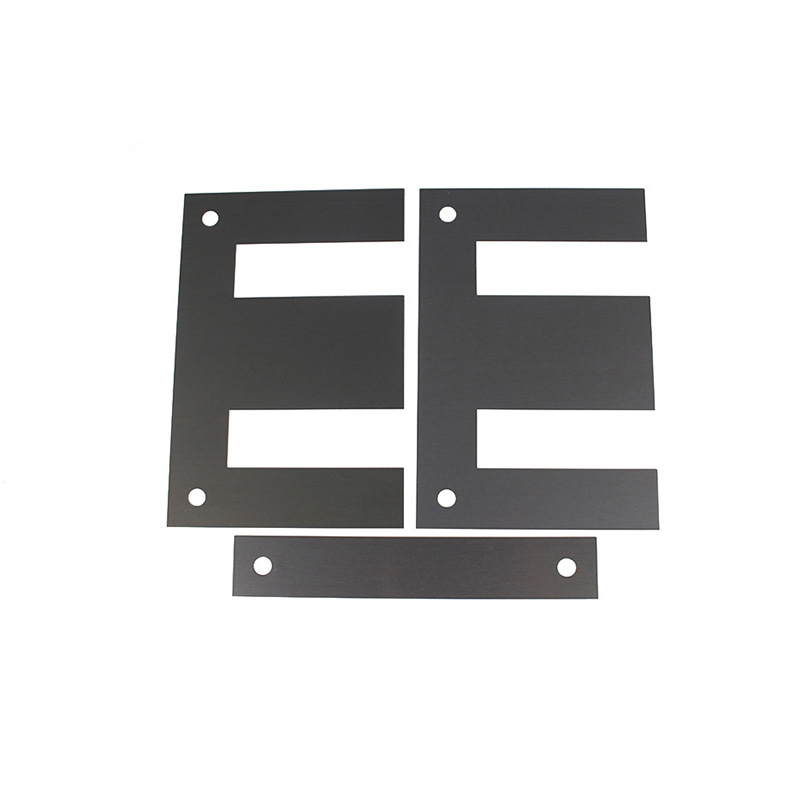

Electrical single-phase silicon core transformer UI EI laminated core

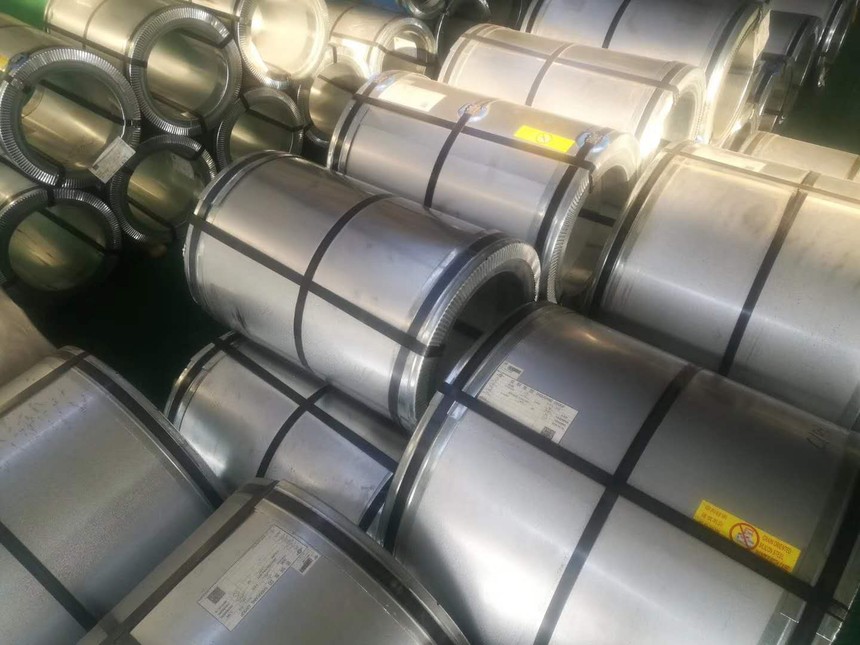

Grain-oriented electrical silicon steel sheet (CRGO), with a thickness of 0.23mm-0.5mm.

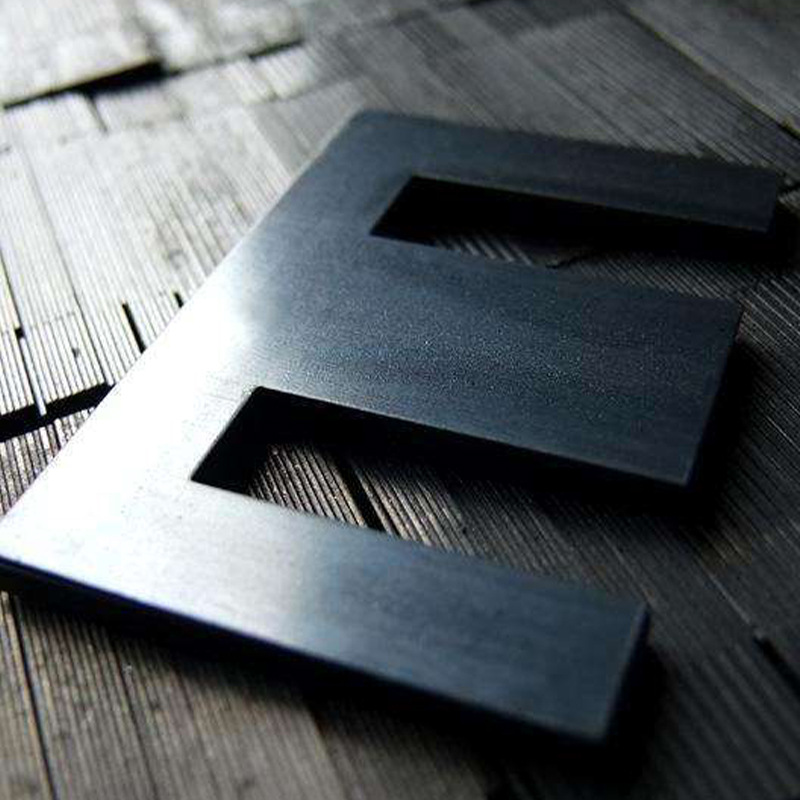

Single-phase EI transformer core, also known as single-phase EI core, the main size of our factory is EI19-EI300, which can be used for small or large transformer cores. If you have a special size, we will do our best to make it in large quantities.
The catalog specifications are as follows:
Simplex:
EI core: EI 19, EI 30, EI 35, EI 41, EI 48, EI 57, EI 60, EI 66, EI 75, EI 76.2, EI 78, EI 84, EI 85.8, EI 96, EI 105, EI 108 , 114, EI120, EI 126, EI 133.2, EI 150, EI 152.4, EI 162 EI 168, EI 171, EI 174, EI 180, EI 192, EI 190.5, EI 210, EI 240, EI 270, EI 300 , EI 360.
Simplex:
EI core: EI 19, EI 30, EI 35, EI 41, EI 48, EI 57, EI 60, EI 66, EI 75, EI 76.2, EI 78, EI 84, EI 85.8, EI 96, EI 105, EI 108 , 114, EI120, EI 126, EI 133.2, EI 150, EI 152.4, EI 162 EI 168, EI 171, EI 174, EI 180, EI 192, EI 190.5, EI 210, EI 240, EI 270, EI 300 , EI 360.
UI lamination:
UI16, UI22, UI25, UI27, UI38, UI40, UI45, UI50, UI60, UI70, UI80, UI90, UI 100.

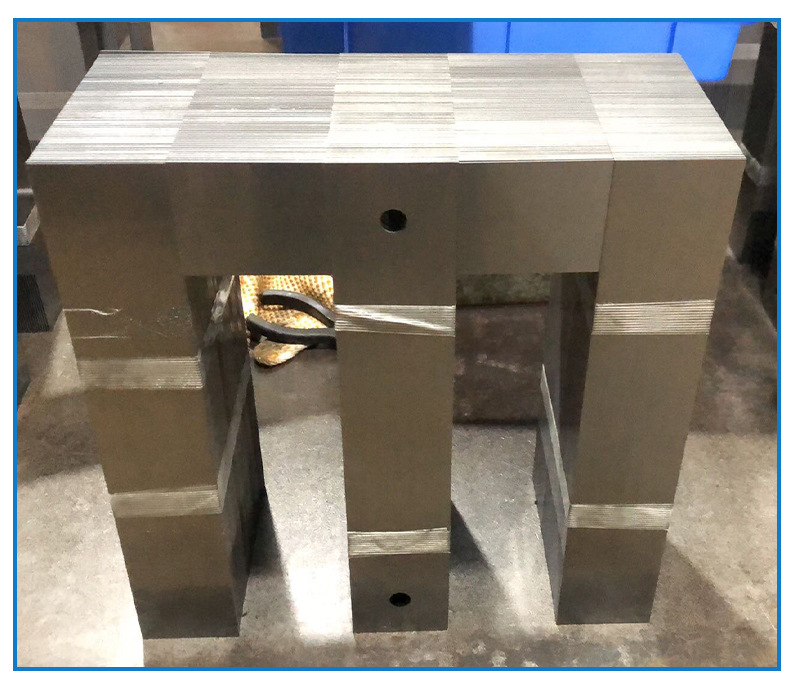

Three-phase EI core:
3PEI 13, 3PEI 17.5, 3PEI 20, 3PEI 22, 3PEI 25, 3PEI 27, 3PEI 28, 3PEI 29, 3PEI 30, 3PEI 30.5, 3PEI 32, 3PEI 35, 3PEI 36, 3PEI 38, 3PEI 40 , 3PEI 44, 3PEI 45 , 3PEI 50, 3PEI 56, 3PEI 60, 3PEI 61, 3PEI 70, 3PEI 80, 3PEI 90, 3PEI 100, 3PEI 120.

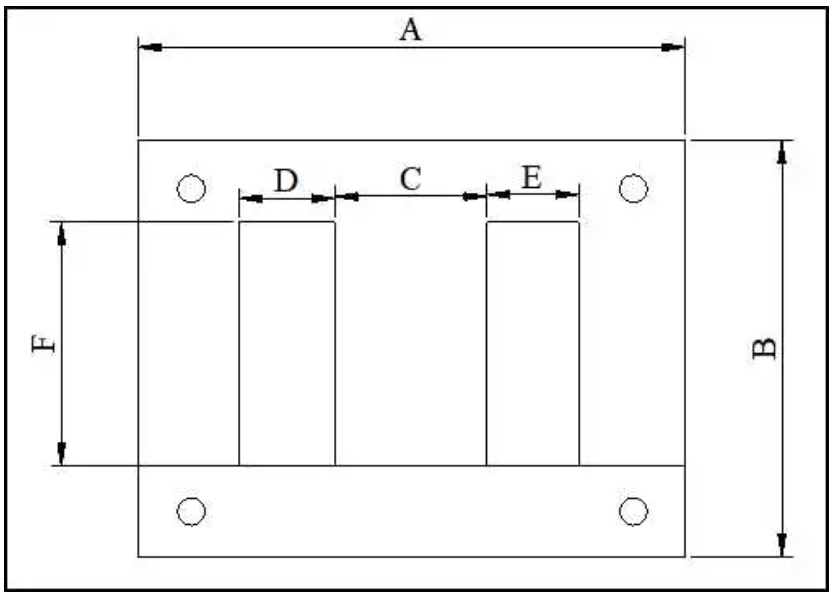

| type | A | Second | C | d | electronic |
| EI-28 | 28 | 4 | 6 | 8 | number 17 |
| EI-35 | 35 | 5 | 7.5 | 10 | 19.5 |
| EI-41 | 41 | 6 | 8 | 13 | twenty one |
|
EI-42 |
42 | 7 | 7 | 7 | 14 |
| EI-48 | 48 | 8 | 8 | 16 | twenty four |
| EI-50 | 50 | 8 | 9 | 16 | 25.5 |
|
EI-57 |
57 | 9.5 | 9.5 | No. 19 | 28.5 |
| EI-60 | 60 | 10 | 10 | 20 | 30 |
| EI-66 | 66 | 11 | 11 | twenty two | 33 |
| EI-75 | 75 | 12.5 | 12.5 | 25 | 37.5 |
| EI-76.2 | 76.2 | 12.7 | 12.7 | 25.4 | 38.1 |
| EI-78 | 78 | 13 | 13 | 26 | 39 |
| EI-84 | 84 | 14 | 14 | 28 | 41 |
| EI-85.8 | 85.8 | 14.3 | 14.3 | 28.6 | 42.9 |
| EI-96 | 96 | 16 | 16 | 32 | 48 |
| EI-105 | 105 | 17.5 | 17.5 | 35 | 52.5 |
| EI-108 | 108 | 18 | 18 | 36 | 54 |
VIEW MORE
