Factory price 99.95% pure tungsten plate tungsten foil
-
$110.00 / 1 - 99 kilograms
$87.00 / 100 - 199 kilograms
$75.00 / >=200 kilograms - 1 kilogram
- Baoji Hanz Metal Material Co., Ltd.
- Shaanxi, China
- Ms Eleanor Guan
Product Detail
| shape: | Sheet, plate, foil, strip | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| density: | 19.2 g/cm3 | Key words: | Tungsten sheet, tungsten foil |
| surface: | Hot rolling, cleaning, polishing, machining, milling, grinding | Package preview: | |
| Supply capacity: | 10 tons per month | Packaging Details: | Regarding the packaging of astm b760 pure tungsten sheet/tungsten plate/tungsten foil/tungsten tape, the details are as follows: 1. There are waterproof paper and protective foam inside the carton 2. Standard wooden box or carton 3. According to the requirements of consumers |
| brand: | Baoji Chinese Characters | purity: | Minimum 99.95% |
| Name: | Factory price 99.95% pure tungsten plate tungsten foil | model: | W1 W2 |
| application: | Industry, Medical, Metallurgy | Boiling point: | 5927°C |
| Health status: | stress relief annealing | Origin: | Shaanxi, China |
| Melting point: | 3410°C | port: | Shenzhen, Shanghai, Qingdao, Tianjin, Xi'an |

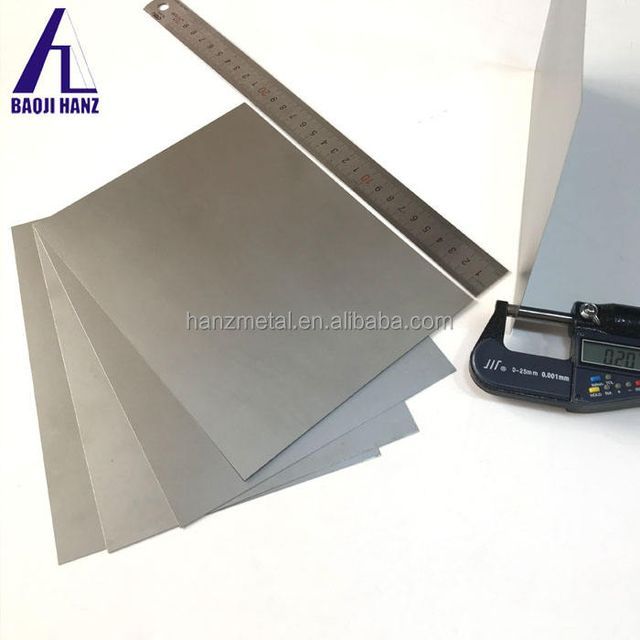

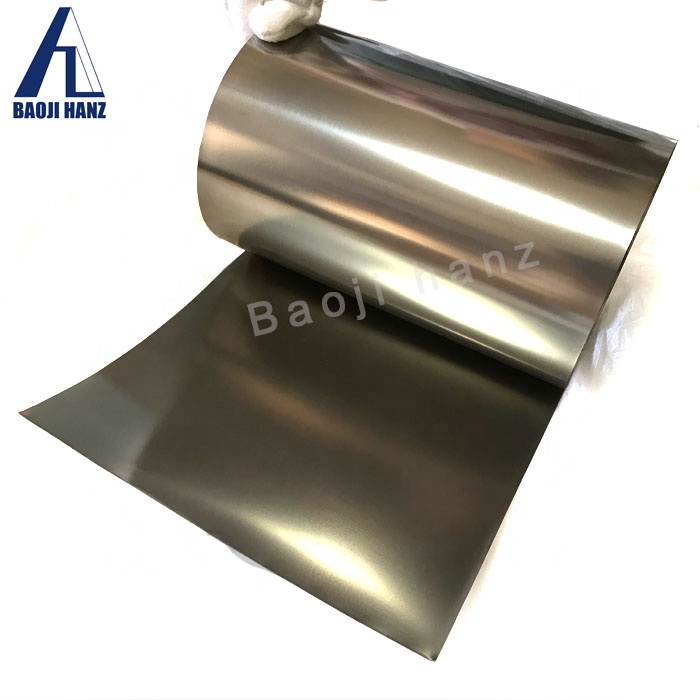

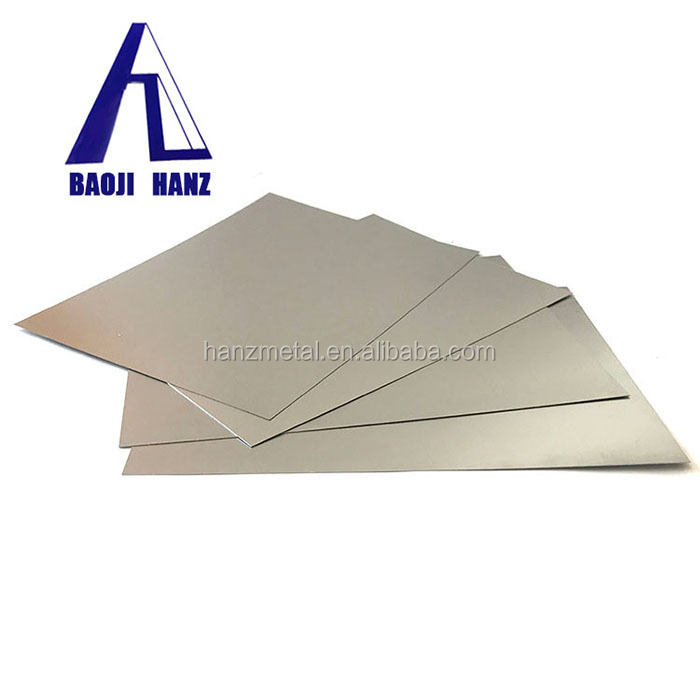

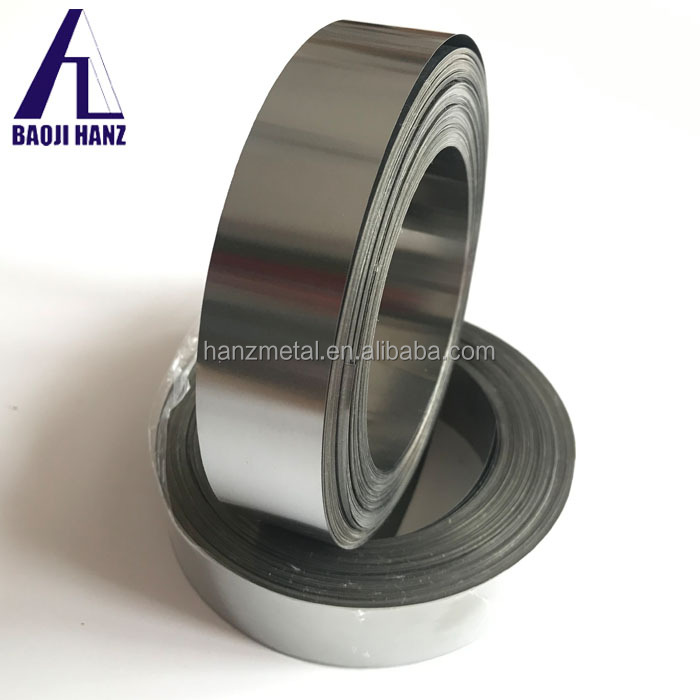

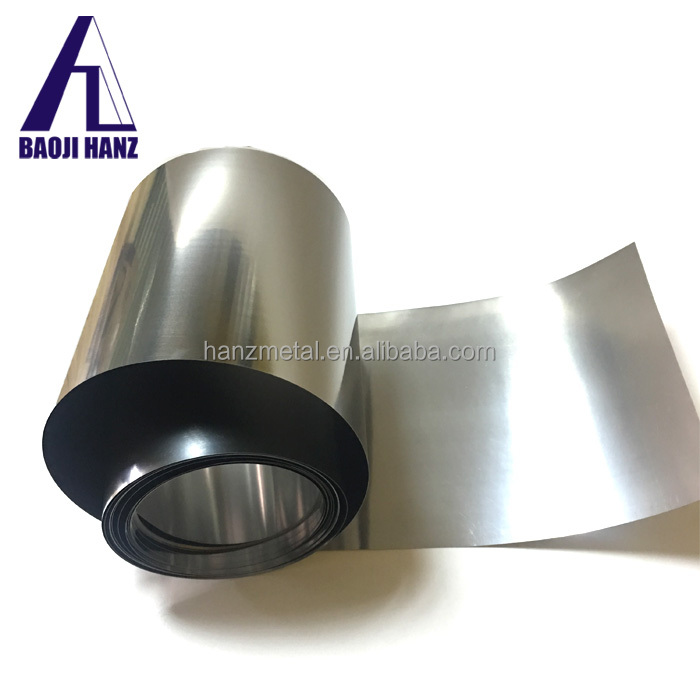

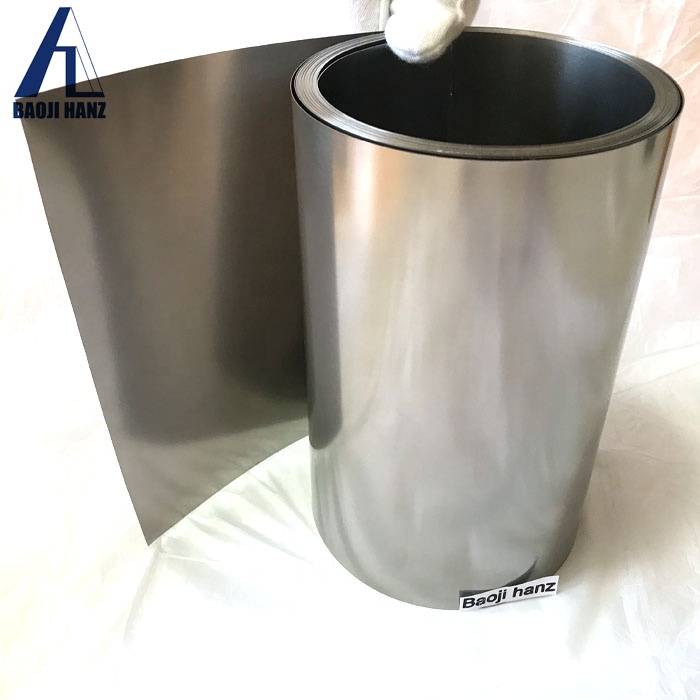

product display
astm b760 pure tungsten sheet/tungsten plate/tungsten foil/tungsten bar spot price
Product Description
astm b760 pure tungsten sheet/tungsten plate/tungsten foil/tungsten bar spot price
| thing |
Factory price 99.95% pure tungsten plate tungsten foil |
| standard |
ASTM B760 GB-T 3875 ASTM B777 |
| normal size |
Thickness: Minimum: 0.10mm Maximum: >6.0 Width: <600mm Length: <1000mm |
| special size | Thickness: 0.02-1mm Width: Discussion Length: Discussion |
| surface | Hot rolling, cold rolling, alkali cleaning, machining, polishing, grinding |
| in stock | 0.085mm, 0.1mm, 0.2mm, 0.5mm, 1.0mm, 1.5mm, 2.0mm, etc. |
| shape | Foil, sheet, plate, disc, block, circle, disc |
| application | Industry, medical treatment, metallurgy, electric vacuum components, electric light source parts, heat shields, aerospace development |
- Dimensions and Allowable Variations:Pure Tungsten Sheets/Plates and Cubes
astm b760 pure tungsten sheet/tungsten plate/tungsten foil/tungsten bar spot price
|
thickness |
Thickness Tolerance |
width |
Width Tolerance |
length |
Length Tolerance |
|
|
I |
two |
|||||
|
0.10-0.20 |
±0.02 |
±0.03 |
30-150 |
±3 |
50-400 |
±3 |
|
>0.20-0.30 |
±0.03 |
±0.04 |
50-200 |
±3 |
50-400 |
±3 |
|
>0.30-0.40 |
±0.04 |
±0.05 |
50-200 |
±3 |
50-400 |
±3 |
|
>0.40-0.60 |
±0.05 |
±0.06 |
50-200 |
±4 |
50-400 |
±4 |
|
>0.60-0.80 |
±0.07 |
±0.08 |
50-200 |
±4 |
50-400 |
±4 |
|
>0.8-1.0 |
±0.08 |
±0.10 |
50-200 |
±4 |
50-400 |
±4 |
|
>1.0-2.0 |
±0.12 |
±0.20 |
50-200 |
±5 |
50-400 |
±5 |
|
>2.0-3.0 |
±0.20 |
±0.30 |
50-200 |
±5 |
50-400 |
±5 |
|
>3.0-4.0 |
±0.30 |
±0.40 |
50-200 |
±5 |
50-400 |
±5 |
|
>4.0-6.0 |
±0.40 |
±0.50 |
50-150 |
±5 |
50-400 |
±5 |

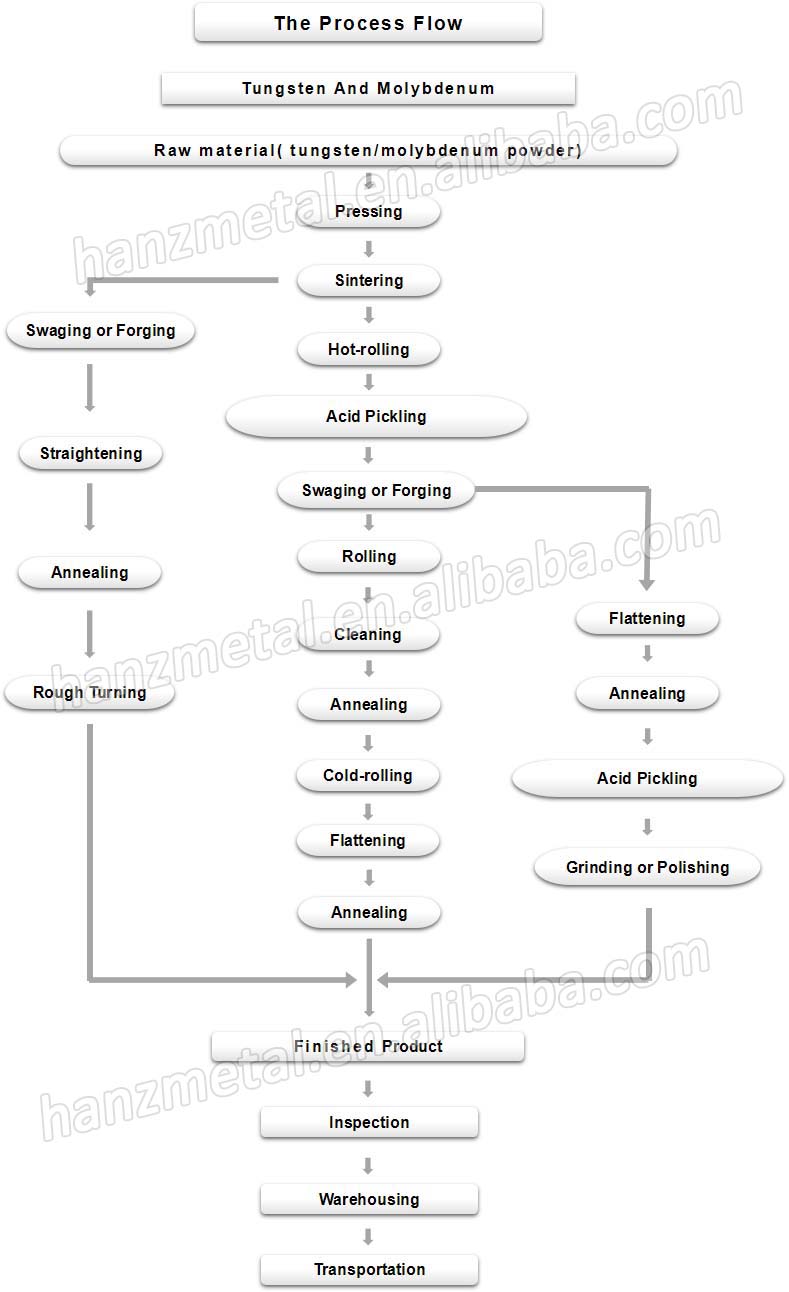

- Process flow:Tungsten Sheet/Plate and W Cube
Application & Features
astm b760 pure tungsten sheet/tungsten plate/tungsten foil/tungsten bar spot price
application:
- Metallurgical industry, chemical industry, machinery industry, medical treatment;
- Electronic technology industry source technology industry;
- Electric light source components, heat shield;
- Tungsten boat, high temperature furnace;
- Computer, communication technology, optical material, medicine;
- Aerospace, new energy materials, photosensitive materials, catalyst materials
feature:
- The melting point is the highest among all metals, and its chemical properties are relatively stable
- Excellent resistance to electrochemical corrosion, not easily corroded by air.
- High wear resistance, high hardness, high density.
- Good high temperature strength.
- Good electron emission properties.
- The mechanical properties are mainly determined by the state of pressure processing and heat treatment process.
