ASTMB760 0.05mm pure tungsten foil for high temperature

Product Detail

density:19.1 g/cm3product name:ASTMB760 0.05mm pure tungsten foil for high temperature
brand:Handsshape:defeat
Material:99.95% Pure TungstenPackage preview:
aspect:Thickness 0.05mm min* W 300mm max * L 1000mm maxPackaging Details:About factory ASTMB760 refractory tungsten sheet for sale, we will choose the fastest, cheapest and safest shipping method for you, with plastic bag and waterproof paper inside, and wooden box outside.
Supply capacity:10 tons per monthpayment terms:L/C, D/A, D/P, T/T, Western Union, MoneyGram, paypal
color:silver metallic lusterstandard:ASTMB 760
Origin:Shaanxi, Chinamodel:W1-Film
Melting point:3260 DCpurity:W>=99.95%
Surface treatment:Alkaline washport:Shanghai, Qingdao, Tianjin

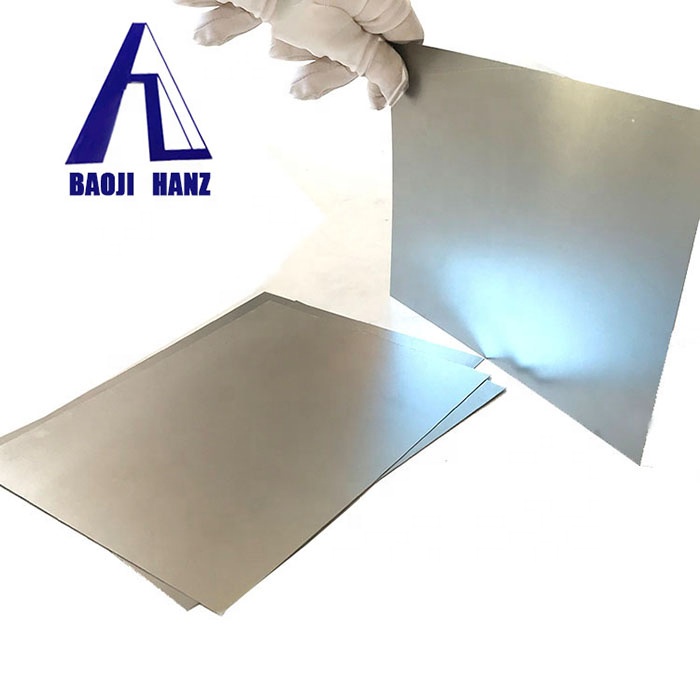

Product Image

ASTMB760 0.05mm pure tungsten foil for high temperature







99.95% pure tungsten sheet

Product Description

Tungsten Foil Specifications:

1. Brand: Hanztech

2. Standard: ASTMB760-07; GB/T3875-83

3. Grade: W1

4. Density: 19.2g/cc

5. Purity: ≥99.95%

6. Size: Thick0.05mm min*Width300mm max*L1000mm max

7. Surface: black/alkali washed/polished

8. Melting point: 3260C

9. Process: hot rolling



Chemical composition of tungsten foil:

ASTMB760 99.95% industrial tungsten foil

chemical composition
  Impurity content (%), ≤
Al calcium iron magnesium mo you silicon C no Europe
balance 0.002 0.005 0.005 0.003 0.01 0.003 0.005 0.008 0.003 0.005

ASTMB760 99.95% industrial tungsten foil

Dimensions and Allowable Variations:99.95% pure tungsten sheet

Polished 1mm thick pure W1 tungsten plate

thickness

Thickness Tolerance

width

Width Tolerance

length

Length Tolerance

I

two

0.10-0.20

±0.02

±0.03

30-150

±3

50-400

±3

>0.20-0.30

±0.03

±0.04

50-200

±3

50-400

±3

>0.30-0.40

±0.04

±0.05

50-200

±3

50-400

±3

>0.40-0.60

±0.05

±0.06

50-200

±4

50-400

±4

>0.60-0.80

±0.07

±0.08

50-200

±4

50-400

±4

>0.8-1.0

±0.08

±0.10

50-200

±4

50-400

±4

>1.0-2.0

±0.12

±0.20

50-200

±5

50-400

±5

>2.0-3.0

±0.20

±0.30

50-200

±5

50-400

±5

>3.0-4.0

±0.30

±0.40

50-200

±5

50-400

±5

>4.0-6.0

±0.40

±0.50

50-150

±5

50-400

±5

production process:

Tungsten plate application:

A Tungsten plate/sheet metal
1. Heat-resistant components: heat shield, heating element of high-temperature vacuum furnace.


2. Tungsten sputtering target for vacuum coating and evaporation coating.


3. Electronic and semiconductor components.


4. Ion implantation components.


5. Tungsten boats for sapphire crystal furnaces and vacuum furnaces.


6. The Unclear Industry: The First Wall of Fusion Reactors






Packaging and Shipping



Package:

• Carton packed with waterproof paper and protective foam

• Standard wooden box

• According to customer's request

Shipping:

• Shipping: TNT, EMS, UPS, FED, DHL, air, sea, rail.

• Can meet consumer shipping requirements.

• We will recommend the most suitable shipping method for your reference.

A99.95% pure tungsten metal sheet

We will send the tracking number as soon as the tungsten plate is shipped, and we will track the order until you receive it successfully.
