LUYANGWOOLAluminum silicate refractory ceramic fiber module with anchoring system
-
$13.99 / 50 - 499 pieces
$2.99 / >=500 pieces - 50 pieces
- Luyang Energy-Saving Materials Co., Ltd.
- Shandong, China
- Mr Louis LU
Product Detail
| Alumina: | ≥43/44/52/35 | payment terms: | L/C, D/P, T/T |
| port: | Qingdao Port | describe: | LUYANGWOO STD/HP/HA/HZ module |
| Supply capacity: | 100 tons per month | Density (kg/m3): | 160-220 |
| Packaging Details: | 1. Inner plastic bag, outer carton; 2. Inner plastic bag, pallet; 3. Inner plastic bag, outer carton, and pallet. | feature: | fire protection |
| Grading temperature (°C): | 1260/1260/1350/1430 | Silica: | ≥54/55/47/49 |
| Package preview: |
Product Description
Egret® Module

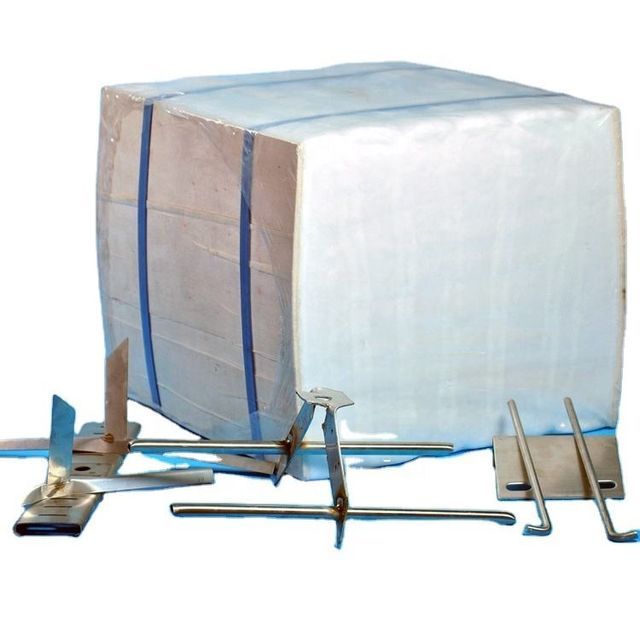

Luyangwool ® modules are made of compressed ceramic fiber blankets. This module is specially designed to meet the insulation requirements of industrial furnaces under certain special thermal conditions. Luyangwool ® modules are produced with a variety of anchoring systems allowing for quick, easy and efficient installation in most furnace linings. Modular linings can increase furnace productivity and reduce maintenance costs.
Quick and easy installation
quick and easy repairs
rapid temperature cycling
quick and easy repairs
rapid temperature cycling
Low installation and maintenance costs
low thermal storage
low thermal storage
Typical parameters
describe | Luyang Wool® Standard Module | Heron hair ® HP module | Heron hair ® HA module | Heron hair ® Hertz module | ||||
Grading temperature (°C) | 1260 | 1260 | 1350 | 1430 | ||||
chemical composition(%) | ||||||||
Aluminum oxide | ≥43 | ≥44 | ≥52 | ≥35 | ||||
silica | ≥54 | ≥55 | ≥47 | ≥49 | ||||
Zirconia | - | - | - | ≥15 | ||||
color | white | white | white | white | ||||
Density (kg/m3) | 160-220 | 160-220 | 160-220 | 160-220 | ||||
Permanent line shrinkage (%) | 1000℃×24h≤2.5 | 1100℃×24h≤2.5 | 1200℃×24h≤3.0 | 1350℃×24h≤3.0 | ||||
Thermal conductivity (W/m·K) | ||||||||
400°C | 0.10 | 0.10 | 0.10 | 0.10 | ||||
600°C | 0.18 | 0.17 | 0.16 | 0.15 | ||||
800℃ | 0.20 | 0.20 | 0.20 | 0.19 | ||||
1000℃ | 0.27 | 0.26 | 0.26 | 0.26 | ||||
application
typical application
petrochemical
refining, steel
Non-ferrous metals
ceramics and glass
heat treatment
petrochemical
refining, steel
Non-ferrous metals
ceramics and glass
heat treatment
production line
