1000c 1100c 1200c 1300c Fire and Heat Resistant Fiber Wool Cotton Block Thermal Insulation Ceramic Fiber Module

Product Detail

Packaging Details:1000c 1100c 1200c 1300c fire-resistant and heat-resistant fiber cotton block thermal insulation ceramic fiber module can be packaged according to customer requirementsport:Qingdao, Tianjin
size:customizablegrade:HP/HA/HZ module
Package preview:payment terms:L/C, Western Union, T/T
type:Ceramic Fiber ProductsSupply capacity:Monthly production of 6,000 tons of low-volume-density high-alumina insulation bricks
chemical composition:alumina, silicaShrinkage (1800F, 3 hours):3% (24 hours)
thickness:10-50mmDensity (kg/m3):160-220
feature:fire protectionproduct name:Insulating ceramic fiber modules
Operating temperature:1000-1350application:refractory
Product Description

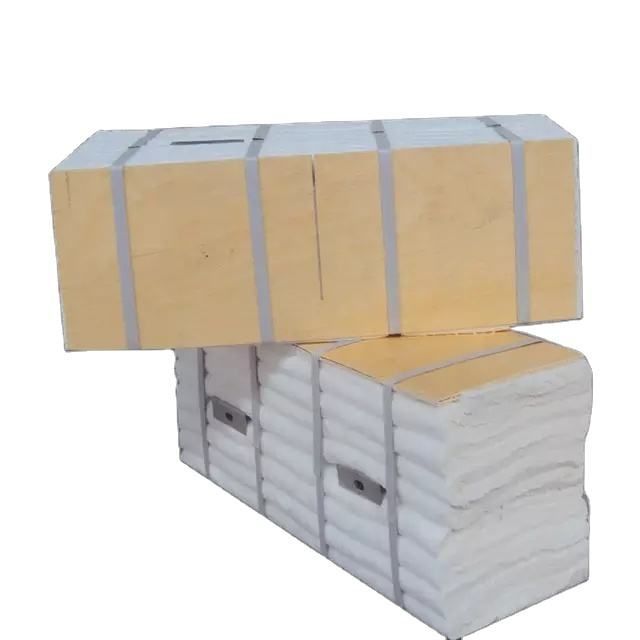

Ceramic Fiber Module Description

Rongsheng ceramic fiber module is made of Rongsheng ceramic fiber blanket folded or cut by experienced professional and technical personnel. We use specialized equipment to produce the modules, determine the precise dimensions of the modules and keep the surface of the modules smooth, and then apply the inner lining of various thermally conductive materials. equipment. The product has the characteristics of reliable quality, quick installation and superior insulation performance.
The Rongsheng ceramic fiber module adopts reinforced H-type anchor bolts, which have greater strength and are closer to the cold end surface. It ensures strength at high temperatures. The fixed connecting rod is welded by high-quality heat-resistant steel and stamped butterfly plate. Two circular fixed connecting rods are embedded in the module system, which enlarges the bearing area and ensures the firmness of the anchoring system.
Product advantages
Specification
Ceramic Fiber Module
RS1050
RS1260ST
RS1260HP
RS1350
ha
RS1430
zirconium
RS1600
PMF
Classification temperature
1050
1260
1260
1350
1430
1600
192kg/m3/at()℃/24h
Linear Shrinkage
≤2.0
(850°C)
≤2.0
(1000℃)
≤2.0
(1050°C)
≤2.0
(1100℃)
≤2.5
(1200℃)
≤1.5
(1450°C)

Density(KG/M3)
172-240
172-240
172-240
172-240
172-240
172-240

Thermal conductivity (W/mk)
400°C
0.08
0.08
0.08
0.08
0.08
-
600°C
0.15
0.15
0.15
0.12
0.12
0.12
800℃
0.22
0.20
0.19
0.18
0.16
0.15
1000℃
-
-
0.22
0.12
0.19
0.18
chemical composition(%)
Aluminum oxide
42-44
45-46
47-49
52-55
34-36
72-75
Alumina + Silica
≥99.0
≥99.0
≥99.0
≥99.0
≥99.0
≥99.0
Zirconia
-
-
-
-
15-17 days
-
other
≤1.0
≤1.0
≤1.0
≤1.0
≤1.0
≤1.0
Features of ceramic fiber modules
Low bulk density and low thermal conductivity. Resistance to thermal shock and airflow erosion. Excellent mechanical strength, built-in anchor bolts, good safety performance. Easy to install. After installation, the lining forms a seamless space and has a good thermal insulation effect.
Applications
Ceramic fiber module product application
Ceramic industry: tunnel kiln, shuttle kiln, roller kiln. Petrochemical industry: atmospheric furnace, reformer, coking furnace, cracking furnace, flue, etc. Steel industry: ladle cover, annealing furnace, rotary furnace, bell furnace, walking beam furnace, hot air, flue, etc. Green energy industry: waste incineration Furnace, RTO exhaust gas treatment furnace, SCR environmental protection catalytic furnace, etc.
