High temperature blast furnace insulation ceramic fiber module
- $2.00 /roll
- 1 roll
- Zhengzhou Rongsheng Refractory Co., Limited
- Henan, China
- Mr Refractory Rongsheng
Product Detail
| size: | customizable | payment terms: | L/C, Western Union, T/T |
| thickness: | 10-50mm | Packaging Details: | Packaging of high-temperature advanced kiln insulation ceramic fiber modules can be made according to customer requirements |
| feature: | fire protection | Shrinkage (1800F, 3 hours): | 3% (24 hours) |
| product name: | Insulating ceramic fiber modules | grade: | HP/HA/HZ module |
| Supply capacity: | Monthly production of 6,000 tons of low-volume-density high-alumina insulation bricks | type: | Ceramic Fiber Products |
| application: | refractory | chemical composition: | alumina, silica |
| Package preview: | port: | Qingdao, Tianjin | |
| Density (kg/m3): | 160-220 | Operating temperature: | 1000-1350 |
Product Description

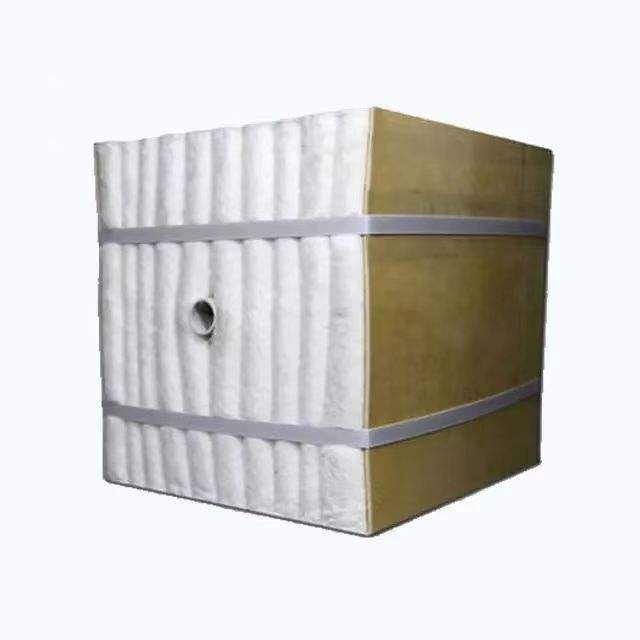

Ceramic Fiber Module Description
The Rongsheng ceramic fiber module adopts reinforced H-type anchor bolts, which have greater strength and are closer to the cold end surface. It ensures strength at high temperatures. The fixed connecting rod is welded by high-quality heat-resistant steel and stamped butterfly plate. Two circular fixed connecting rods are embedded in the module system, which enlarges the bearing area and ensures the firmness of the anchoring system.
Product advantages
Specification
Ceramic Fiber Module | RS1050 | RS1260ST | RS1260HP | RS1350 ha | RS1430 zirconium | RS1600 PMF | ||
Classification temperature | 1050 | 1260 | 1260 | 1350 | 1430 | 1600 | ||
192kg/m3/at()℃/24h Linear Shrinkage | ≤2.0 (850°C) | ≤2.0 (1000℃) | ≤2.0 (1050°C) | ≤2.0 (1100℃) | ≤2.5 (1200℃) | ≤1.5 (1450°C) | ||
Density(KG/M3) | 172-240 | 172-240 | 172-240 | 172-240 | 172-240 | 172-240 | ||
Thermal conductivity (W/mk) | 400°C | 0.08 | 0.08 | 0.08 | 0.08 | 0.08 | - | |
600°C | 0.15 | 0.15 | 0.15 | 0.12 | 0.12 | 0.12 | ||
800℃ | 0.22 | 0.20 | 0.19 | 0.18 | 0.16 | 0.15 | ||
1000℃ | - | - | 0.22 | 0.12 | 0.19 | 0.18 | ||
chemical composition(%) | Aluminum oxide | 42-44 | 45-46 | 47-49 | 52-55 | 34-36 | 72-75 | |
Alumina + Silica | ≥99.0 | ≥99.0 | ≥99.0 | ≥99.0 | ≥99.0 | ≥99.0 | ||
Zirconia | - | - | - | - | 15-17 days | - | ||
other | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ||
Features of ceramic fiber modules
Low bulk density and low thermal conductivity. Resistance to thermal shock and airflow erosion. Excellent mechanical strength, built-in anchor bolts, good safety performance. Easy to install. After installation, the lining forms a seamless space and has a good thermal insulation effect.
Applications
Ceramic fiber module product application
Ceramic industry: tunnel kiln, shuttle kiln, roller kiln. Petrochemical industry: atmospheric furnace, reformer, coking furnace, cracking furnace, flue, etc. Steel industry: ladle cover, annealing furnace, rotary furnace, bell furnace, walking beam furnace, hot air, flue, etc. Green energy industry: waste incineration Furnace, RTO exhaust gas treatment furnace, SCR environmental protection catalytic furnace, etc.VIEW MORE
