bsv brine chlorinator battery 15g repair plate coated titanium electrode plate

Product Detail

Coating Thickness:8~12 micronstechnology:brush
Packaging Details:Inner packing plastic bag or paper, outer packing wooden box, or according to customer requirements.Warranty:2-5 years
Service life:8000-15000 hoursMinimum order quantity:1
Number of cell plates:5-13Titanium content (%):99.99%
payment terms:L/C,D/A,D/P,T/T,Western Union,MoneyGrambrand:Youchuang
coating:Ruthenium and iridium or platinumPolarity reversal:Yes
port:any Chinese port.Self-cleaning:Yes
place of origin; place of origin:ChinaPowder or not:not powder
Supply capacity:845,700 sets per weekgrade:Pure Titanium Gr1/Gr2
aspect:custom mademodel:UTron1911040000000044
application:Brine Chlorinator Electrolyzershape:solid parallel plate
Product Description

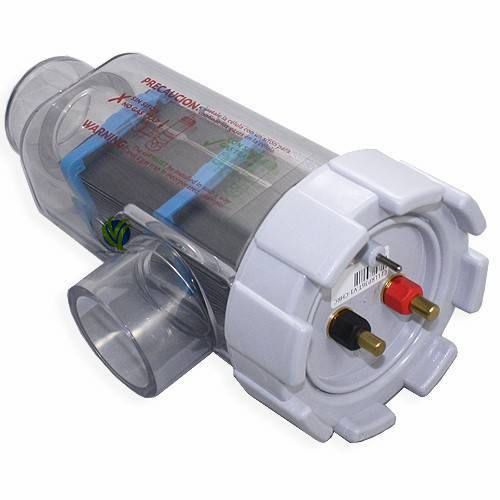

The chlorinator electrolytic cell is part of the overall system that actually produces chlorine in the cell. Sodium chloride or table salt dissolved in water passes through the cells. A small amount of current flows into a set of parallel titanium plates inside the cell. The plates are covered with a metal called iridium, which electrolysis separates sodium chloride molecules and creates hypochlorous acid, the same substance that is produced by adding chlorine (in the form of tablets, granules, or liquid water) to non-saline pools of water , keep the swimming pool sanitized. Ultimately, two things happen to the plate in the cell. The first is that the iridium coating wears down over time and causes the battery to fail. The second problem is that these plates can build up limescale, reducing potential chlorine production.



Long life salt battery:Electrochlor's salt batteries consist of a series of oppositely charged titanium electrodes. Electrochlor's clear salt pool enclosure allows for visual inspection of salt pool slabs and monitoring of chlorine production. The battery case is made of clear UV stabilized acrylic. Both the anode and cathode of the self-cleaning chlorinator are made of uniquely coated titanium mesh for extra durability and longevity.

Low maintenance:Electrochlor self-cleaning salt batteries have the additional ability to reverse the voltage polarity to remove calcium build-up on their electrodes.
Brass pin connection– Quick and easy battery removal using the quick connector
Salt Levels - Action: Once Electrochlor is installed and the desired salt content (see table) is achieved, only add salt occasionally to compensate for any moisture loss, eg splashing, evaporation, backwashing. Salt Level (ppm) Min = 4000 Best = 5500 Max = 6000 NOTE: Low salt levels will shorten the life of the salt pool and result in low chlorine production
Five-year warranty:
Electrochlor Chlorinator 2 Years + 3 Years (Proportional)* Titanium Batteries 2 Years + 3 Years (Proportional) Power Pack 2 Years Commercial Installation 1 Year *See Waterco's Warranty Terms and Conditions





our service

Custom Titanium Electrodes:

Utron has a professional technical team with decades of experience in titanium electrodes, coated titanium anodes; we can design coatings according to your specific working conditions. Customize the service life according to the specific needs of customers.



Development of new products:

UTron has excellent innovative technical engineers to help you develop new products.



Consulting and technical assistance:

Utron's sales engineers and technical engineers are specialized; they have in-depth knowledge in the fields of cathodic protection, wastewater treatment, electroplating and electrowinning. Feel free to contact them if you have any questions. They work on improving your processes or solving tough challenges that, in some cases, may never have existed before.



Original Equipment Manufacturer:

UTron can be produced according to customer's needs.



test:

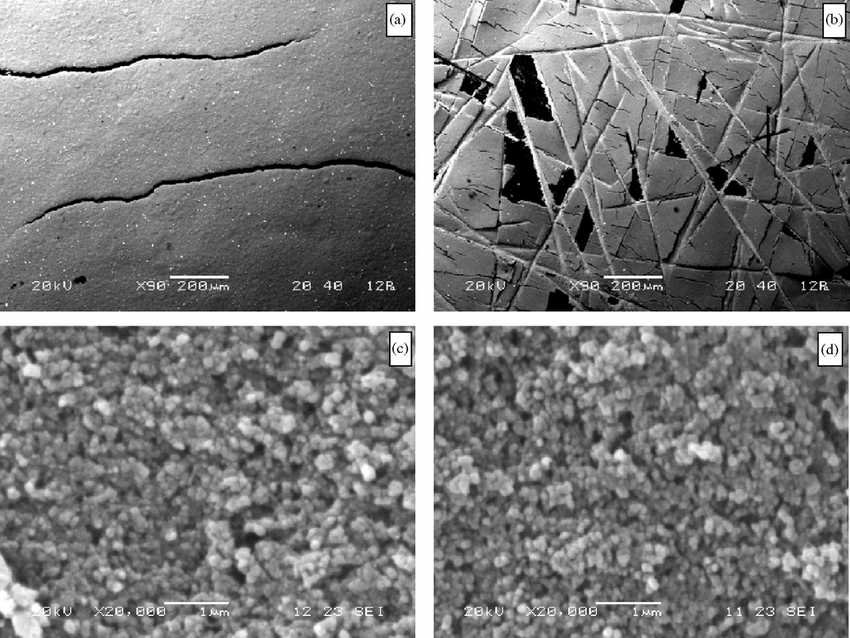

UTron can provide accelerated life testing, coating X-ray testing, coating thickness testing, helium leak detection testing, contact resistance testing, electrochemical performance testing and other tests.



sample:

UTron can provide free or paid samples for testing.
