ASME SA210 Gr A1 Cold Drawn Multi-Rifle Seamless Boiler Tube
- $1215.00 / >=25 pieces
- 25 pieces
- Liaocheng Kuncheng Pipe Co., Ltd.
- Shandong, China
- Ms Jack Fan
Product Detail
| place of origin; place of origin: | Shandong China | Alloy or not: | is an alloy |
| Outer diameter: | 10 - 30 mm | Key words: | Cold drawn boiler tubes |
| Special tube: | API pipeline | grade: | 10#-45#,10#,20#,45#,Q195-Q345,Q235,Q345,Q195,Q215,ST35-ST52,ST37,ST52,ST42,ST45,ST35.8,ST35,ST37.4,ST54 |
| Packaging Preview: | technology: | cold drawn | |
| tolerant: | ±1% | Supply capacity: | 500 tons per quarter |
| payment terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram | Processing service: | Bending, welding, cutting |
| usage: | steam | port: | Tianjin/Shanghai/Qingdao |
| Material: | SA210 A1 | application: | boiler tube |
| Certification: | ce | Surface treatment: | copper plated |
| Section shape: | round | type: | seamless steel pipe |
| standard: | API,API 5L,ASTM,ASTM A210-1996,bs,BS 4568,DIN,DIN EN 10217-1-2005,DIN 17175,GB,GB 5130,JIS,JIS C8305-1999 | thickness: | 4 - 16 mm |
| Packaging Details: | Bulk or bundled | product name: | multi-rifle tube |

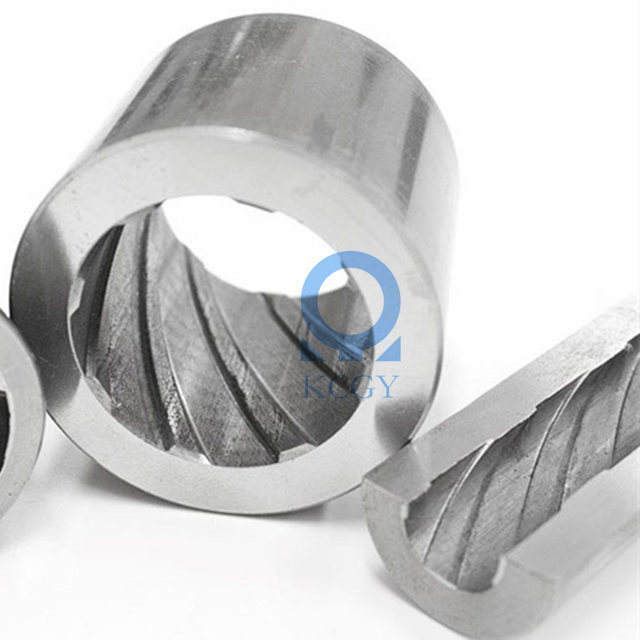

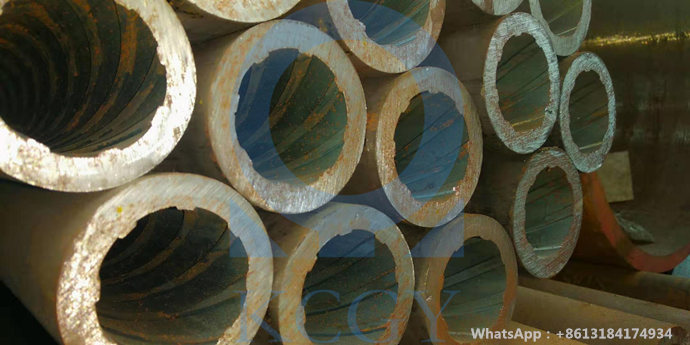

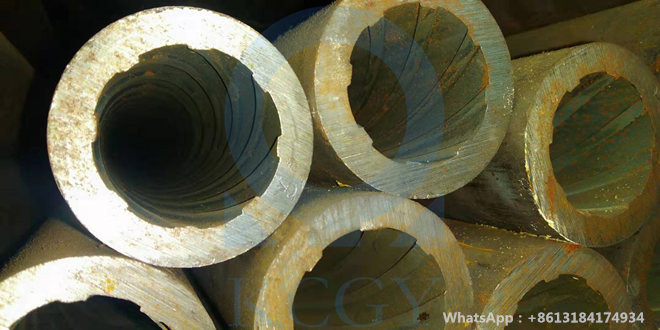

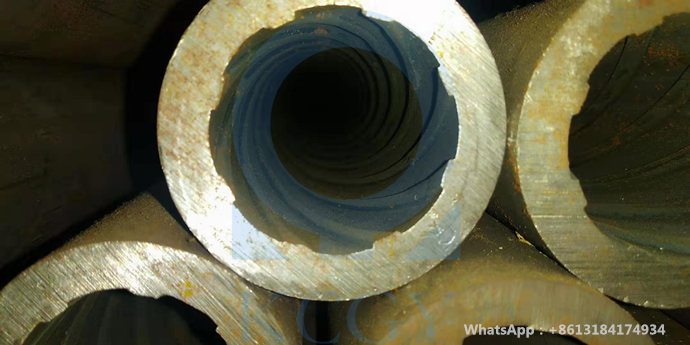

The water cooling wall of the power plant boiler should be made of internal multi-lead threaded steel pipe, as the main part of heat exchange, the rotating motion of the water caused by the internal spiral ribs can eliminate the steam film on the inner surface of the pipe, thereby realizing nucleate boiling. There are two types of internally threaded pipes: multi-threaded pipe and optimized multi-threaded pipe.
Multi-lead threaded pipes are available in Type A and Type B with a helix angle of 30 degrees, these unique products provide 30% higher thermal efficiency compared to bare pipe.
Standard (part): GB5310-2008, GB/T 20409-2006 Chinese national standard multi-threaded seamless steel pipe for high-pressure boilers.
ASME SA-210M-2015 Standard Specification for Seamless Medium Carbon Steel Boiler and Superheater Tubes.
ASME SA-213M-2015 Specification for Seamless Ferritic and Austenitic Alloy Steel Boiler, Superheater, and Heat Exchanger Tubes.
Product size: OD:22mm---83mm;wt:4.0mm~16.0m
Ribs: 4 Ribs/6 Ribs/8 Ribs/12 Ribs/14 Ribs
Length: 6M/8M/9M/12M/15M
Production method: cold drawn
Material/Standard/Grade:
ASME SA213 grades: T2/T5/T11/T12/T22/T23/T91
ASME SA210 Grade: C/A1
ASME SA209 T1, T1a, T1b
GB/T 5310: 20G/12Cr1MoVG/15CrMoG
ASTM A210 / A210M Grade A-1 Chemical Composition
| chemical composition(%) | ||||||||
| grade | C | silicon | manganese | phosphorus | small | Mo | chromium | five |
| A-1 | ≤0.27 | ≥0.10 | ≤0.93 | ≤0.035 | ≤0.035 | / | / | / |
Requires ASTM A210 / A210M mechanical testing
| Mechanical behavior | ||||
| grade | stretch
Strength (Mpa) |
yield
Strength (Mpa) |
elongation
(%) |
hardness (HRB) |
| A-1 | ≥415 | ≥255 | ≥30 | ≤79 |
Advantage:
1. The higher the steam quality, the higher the heat transfer rate.
2. Better heat transfer at lower mass flux levels.
3. The average metal temperature of the pipe wall decreases.
4. Ability to increase heat transfer by optimizing rifle geometry.
