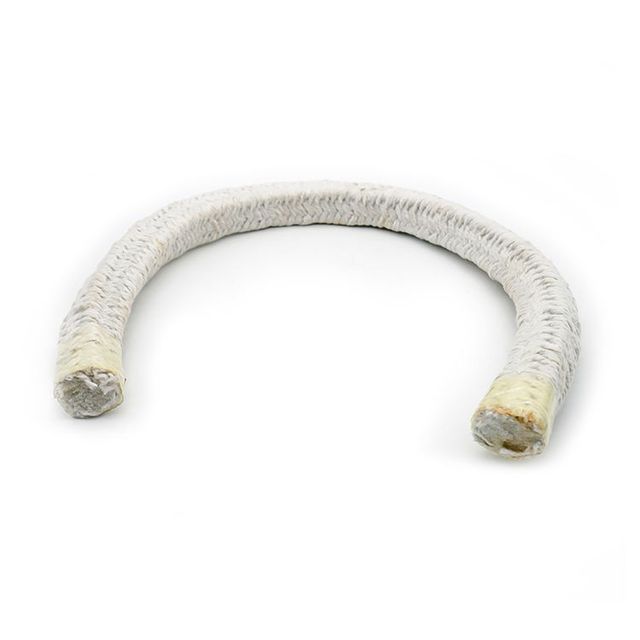

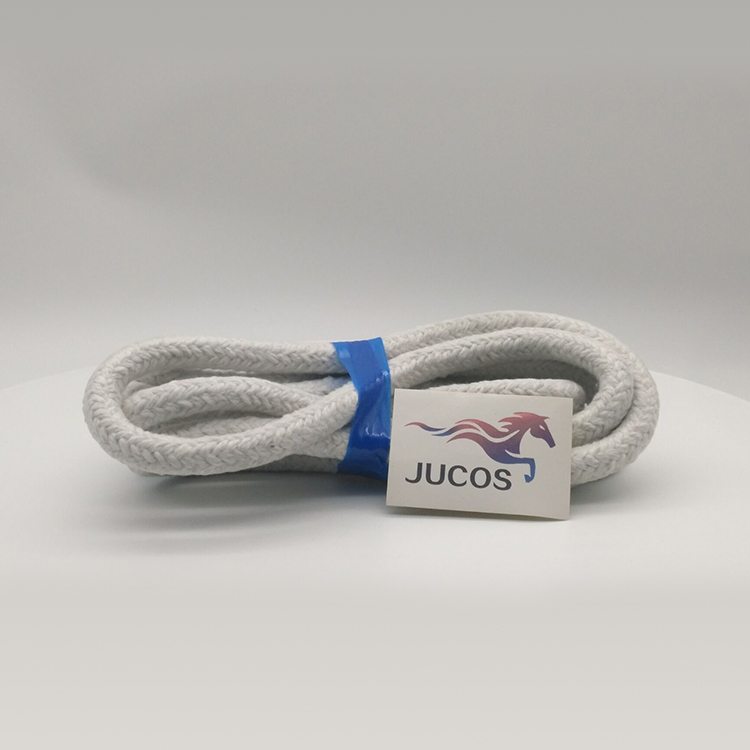

Furnace high temperature insulation tape ceramic fiber rope
-
$26.00 / 10 - 499 rolls
$24.00 / >=500 rolls - 10 rolls
- Zibo Jucos Co., Ltd.
- Shandong, China
- Mr Marlene Ma
Product Detail
| Shooting content: | 12% | grade: | COM (Common) |
| tensile strength: | 0.33 | SiO2+MgO+CaO: | 96% |
| brand: | Yukos | pack: | bag/carton |
| Specification temperature: | 1260°C | length: | 1-1000 meters |
| payment terms: | L/C, D/P, T/T | Origin: | Shandong Province, China |
| Shrinkage (1800°F, 3 hours): | 1 | model: | tape |
| Fiber Diameter: | 1 micron | Supply capacity: | 20 metric tons per day |
| Operating temperature: | 1100°C | product name: | Water soluble fiber blanket |
| Operating temperature: | 500-1500 | Thermal Conductivity: | 0.09(400℃) |
| width: | 1-1000cm | Ultimate Strength (≥MPa): | 0.080 |
| port: | Qingdao Port | Packaging Details: | Waterproof woven bag packaging |
| Package preview: | Bulk density: | 64kg/m3-96kg/m3-128kg/m3 | |
| Permanent linear change: | -3 | chemical composition: | Aluminum silicate |
| application: | insulation | Thermal Conductivity: | 0.09-0.22 |
Aluminum silicate ceramic fiber refractory 3m heat-resistant adhesive tape
Product Description
Ceramic fiber and bio-soluble fiber textiles contain ropes, belts, yarns and cloths, Jucos textiles are woven or braided from fibers containing about 20% organic fibers, insert materials are reinforced into yarns and ropes to increase their tensile strength fibers, Stainless steel inserts for maximum strength at high temperatures, glass wool inserts for applications requiring electrical resistance, Jucos fiber textiles have become an available insulating material for thermal gaskets and wraps, and their unique capabilities and characteristics are gaining acceptance in high temperature insulation applications more popular
Characteristics of Ceramic Fiber Textiles
1. High temperature resistance
2. Low thermal conductivity
3. Excellent thermal and chemical stability
4. High tensile strength
5. Light weight
6. Easy to process and use
7. Dustproof
8. Pollution resistance
Typical Applications of Ceramic Fiber Textiles
1. The outer insulation layer of industrial furnaces, mechanical equipment, and pipelines.
2. Welding spark cloth for construction, shipbuilding and large construction equipment industries.
3. Fireproof and heat insulation of rail vehicles and vehicle transportation heat insulation parts
4. It can be processed into building fireproof curtains, fireproof clothing (clad with aluminum), fireproof gloves, fireproof shoes, etc.
Characteristics of Ceramic Fiber Textiles
1. High temperature resistance
2. Low thermal conductivity
3. Excellent thermal and chemical stability
4. High tensile strength
5. Light weight
6. Easy to process and use
7. Dustproof
8. Pollution resistance
Typical Applications of Ceramic Fiber Textiles
1. The outer insulation layer of industrial furnaces, mechanical equipment, and pipelines.
2. Welding spark cloth for construction, shipbuilding and large construction equipment industries.
3. Fireproof and heat insulation of rail vehicles and vehicle transportation heat insulation parts
4. It can be processed into building fireproof curtains, fireproof clothing (clad with aluminum), fireproof gloves, fireproof shoes, etc.
Physical and chemical indicators of ceramic fiber textiles
|
brand |
Bio-soluble fiber rope/cloth/silk/yarn |
ceramic fiber rope/Cloth/Ribbon/Yarn |
|||
|
GF-rope/cloth/belt/yarn |
SS-rope/cloth/belt/yarn |
GF-rope/cloth/belt/yarn |
SS-rope/cloth/belt/yarn |
||
|
Specification temperature (℃) |
1260 |
||||
|
Operating temperature (℃) |
500-600 |
1100 |
500-600 |
1100 |
|
|
Bulk density (kg/m33) |
500 |
||||
|
Organic matter (%) |
15 |
||||
|
Moisture content (%) |
1 |
||||
|
chemical composition(%) |
silica2 |
55-65 |
51 |
||
|
Calcium Oxide |
23-35 |
-- |
|||
|
magnesium oxide |
5-10 |
-- |
|||
|
Aluminum oxide |
-- |
45 |
|||
|
Ferric oxide |
-- |
0.8 |
|||
|
Reinforcement material |
glass wool |
stainless steel 304 |
glass wool |
stainless steel 304 |
|
|
Note: Rope diameter size: (mm)6/10/12/20/25/32/38/50,Rope shape: round braided rope & twisted rope & square braided rope |
|||||
