Heat Resistant Cloth/Refractory Ceramic Fiber Cloth/Rope/Yarn/Belt/Products
-
$12.00 / 5 - 99 rolls
$7.00 / >=100 rolls - 5 rolls
- Dalian Huayu Refractories International Co., Ltd.
- Liaoning, China
- Ms Julia Guo
Product Detail
Operating temperature: | 1150°C | Shrinkage (1800°F, 3 hours): | 0.3 |
grade: | COM (Common) | port: | Shanghai;Tianjin;Qingdao;Dalian |
color: | white | length: | 30000mm |
density: | 500~550kg/cubic meter | brand: | Hyde |
Weft density: | 21~30 pieces/10cm | Grading temperature: | 1260°C |
Supply capacity: | 3,000,000 rolls per month | model: | JSCW-289 |
chemical composition: | ceramic fiber textiles | Warp density: | 48~60 pieces/10cm |
Packaging Details: | The inside is a plastic bag, and the outside is a carton. tray. Neutral packaging is available. According to customer's requirement. | Origin: | Liaoning, China |
Ultimate Strength (≥MPa): | 0.5 | Organic matter content: | ≤15% |
Fiber Diameter: | 2~5 microns | Thermal Conductivity: | 0.05~0.195W/Mike |
Operating temperature: | 1050~1400℃ | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
width: | 30~500mm | application: | refractory |

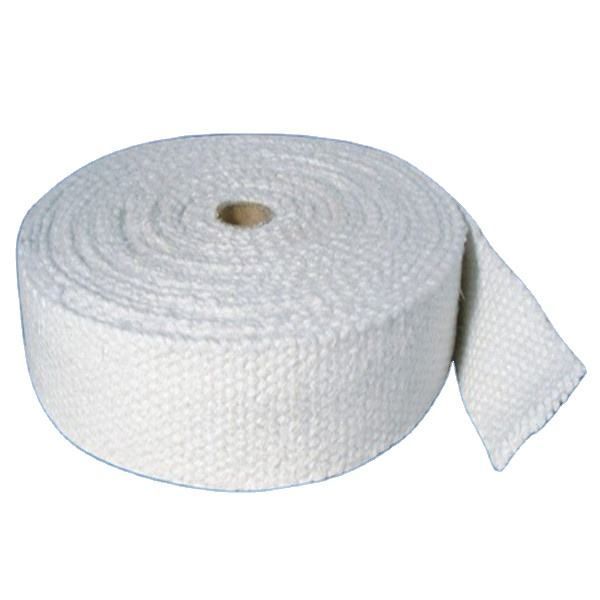

Heat Resistant Cloth/Refractory Ceramic Fiber Cloth/Rope/Yarn/Belt/Products
The ceramic fiber tape is woven with high-quality ceramic fiber weaving yarn. According to different working temperature and different working conditions, the rope can be heightened by glass fiber, heat-resistant alloy wire, etc. It has the advantages of high temperature resistance, low thermal conductivity, good thermal shock resistance, low heat capacity, excellent heat insulation performance and long service life. It is widely used in heat insulation furnace curtain, large area heat preservation, safetyBlankets, insulation covers, spacers, pipe wraps, etc.
Typical applications 1. Industrial furnace wall lining and masonry insulation layer 2. Heat insulation of high temperature and high heat equipment 3. Aerospace, shipbuilding industry heat insulation, fire prevention, sound insulation 4. Boiler, heater combustion chamber
grade | Common | standard | High purity | high aluminum | zirconium | ||||||
Classification temperature(℃) | 1000 | 1260 | 1260 | 1300 | 1430 | ||||||
Serving temperature(℃) | ≤1000 | 1150 | 1200 | 1260 | 1400 | ||||||
Density(kg/m3) | 220-500 | 220-500 | 220-500 | 220-500 | 220-500 | ||||||
Thermal Conductivity By average temperature (W/mk) (density 285kg/m3) | 0.085(400℃) 0.132(800℃) 0.180(1000℃) | 0.085(400℃) 0.132(800℃) 0.180(1000℃) | 0.085(400℃) 0.132(800℃) 0.180(1000℃) | 0.085(400℃) 0.132(800℃) 0.180(1000℃) | 0.085(400℃) 0.132(800℃) 0.180(1000℃ | ||||||
Compressive strength (Mpa) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | ||||||
Chemical work (%) | Aluminum oxide | 44 | 46 | 47-49 | 52-55 | 32-33 | |||||
Alumina + Silica | 96 | 97 | 99 | 99 | - | ||||||
Al2O3+SiO2+ZrO2 | - | - | - | - | 17-18 days | ||||||
Zirconia | - | - | - | - | 15-17 days | ||||||
Ferric oxide | <1.2 | <1.0 | 0.2 | 0.2 | 0.2 | ||||||
Na2O+K2O | ≤0.5 | ≤0.5 | 0.2 | 0.2 | 0.2 | ||||||
Dimensions (mm) | Other sizes and shapes suitable for working conditions |
