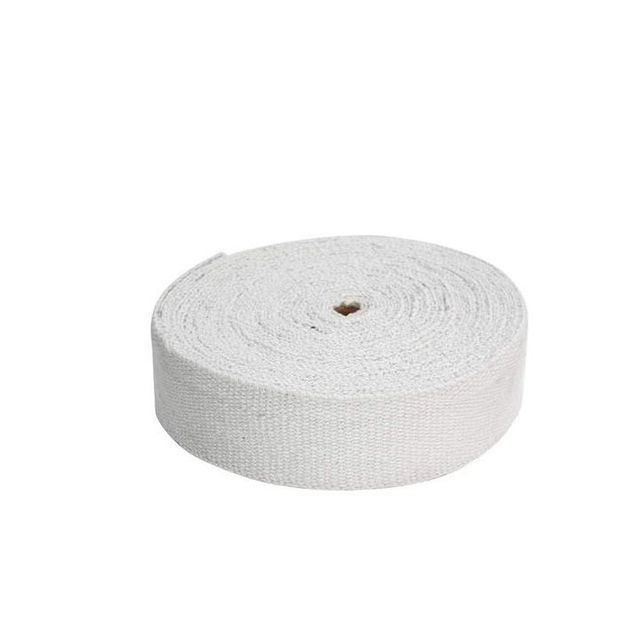

High temperature ceramic fiber tape/winding gas pipe products
- $10.00 / >=10 rolls
- 10 rolls
- Dalian Huayu Refractories International Co., Ltd.
- Liaoning, China
- Ms Julia Guo
Product Detail
| color: | white | Packaging Details: | The inside is a plastic bag, and the outside is a carton. tray. Neutral packaging is available. According to customer's requirement. |
| Supply capacity: | 3,000,000 rolls per month | grade: | COM (Common) |
| model: | JSCW-289 | Shrinkage (1800°F, 3 hours): | 0.3 |
| application: | refractory | Organic matter content: | ≤15% |
| brand: | Hyde | Grading temperature: | 1260°C |
| Warp density: | 48~60 pieces/10cm | chemical composition: | ceramic fiber textiles |
| Ultimate Strength (≥MPa): | 0.5 | Thermal Conductivity: | 0.05~0.195W/Mike |
| port: | Shanghai;Tianjin;Qingdao;Dalian | width: | 30~500mm |
| Fiber Diameter: | 2~5 microns | Package preview: | |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Operating temperature: | 1050~1400℃ |
| Weft density: | 21~30 pieces/10cm | density: | 500~550kg/cubic meter |
| length: | 30000 mm | Operating temperature: | 1150°C |
| Origin: | Liaoning, China |
White Ceramic Fiber Products Insulation/Blanket
Typical applications 1. Industrial furnace wall lining and masonry insulation layer 2. Heat insulation of high-temperature and high-heat equipment 3. Heat insulation, fire prevention and sound insulation in aerospace and shipbuilding industries 4. Combustion chambers of boilers and heaters
grade | Common | standard | High purity | high aluminum | zirconium | ||||||
Classification temperature(℃) | 1000 | 1260 | 1260 | 1300 | 1430 | ||||||
Serving temperature(℃) | ≤1000 | 1150 | 1200 | 1260 | 1400 | ||||||
Density(kg/m3) | 220-500 | 220-500 | 220-500 | 220-500 | 220-500 | ||||||
Thermal Conductivity By average temperature (W/mk) (density 285kg/m3) | 0.085(400℃) 0.132(800℃) 0.180(1000℃) | 0.085(400℃) 0.132(800℃) 0.180(1000℃) | 0.085(400℃) 0.132(800℃) 0.180(1000℃) | 0.085(400℃) 0.132(800℃) 0.180(1000℃) | 0.085(400℃) 0.132(800℃) 0.180(1000℃ | ||||||
Compressive strength (Mpa) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | ||||||
Chemical work (%) | Aluminum oxide | 44 | 46 | 47-49 | 52-55 | 32-33 | |||||
Alumina + Silica | 96 | 97 | 99 | 99 | - | ||||||
Al2O3+SiO2+ZrO2 | - | - | - | - | 17-18 days | ||||||
Zirconia | - | - | - | - | 15-17 days | ||||||
Ferric oxide | <1.2 | <1.0 | 0.2 | 0.2 | 0.2 | ||||||
Na2O+K2O | ≤0.5 | ≤0.5 | 0.2 | 0.2 | 0.2 | ||||||
Dimensions (mm) | Other sizes and shapes suitable for working conditions | ||||||||||
