Fabrication of Optical 4" 0.2mm Thick Fused Silica Wafers

Product Detail

size:2",3",4",5",6",8",12"port:Shanghai
thickness:0.1-1.5mmmodel:JGS1 JGS2 JGS3
place of origin; place of origin:Jiangsu, Chinatolerant:0.02mm
spread:92%Name:Fabrication of Optical 4" 0.2mm Thick Fused Silica Wafers
Material:Eagle XG,BOROFLOAT,PYREX7740,Fused Silica,B270,D263T,AF32,BK-7application:Optical Instruments
type:Transparent Quartz PlateSupply capacity:1,000,000 pieces/month

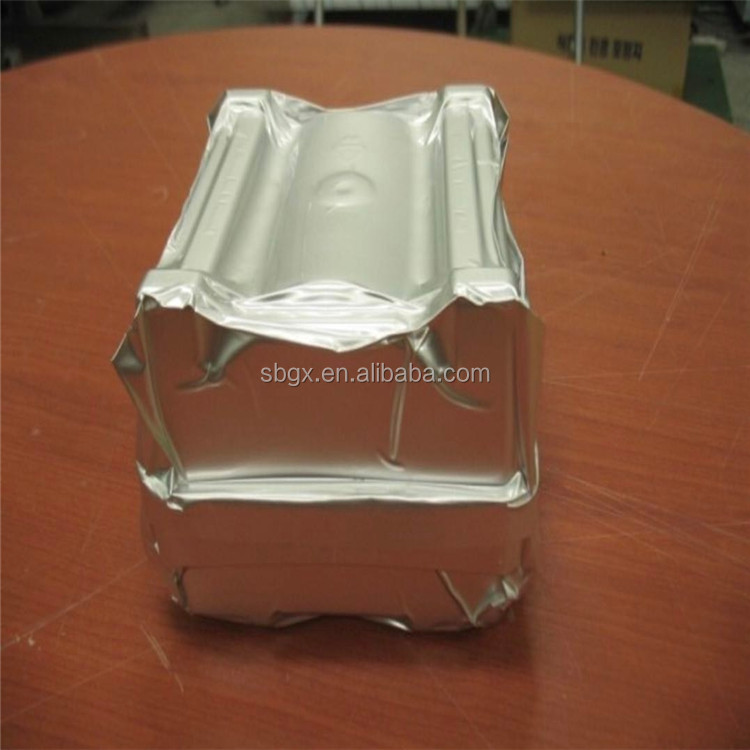

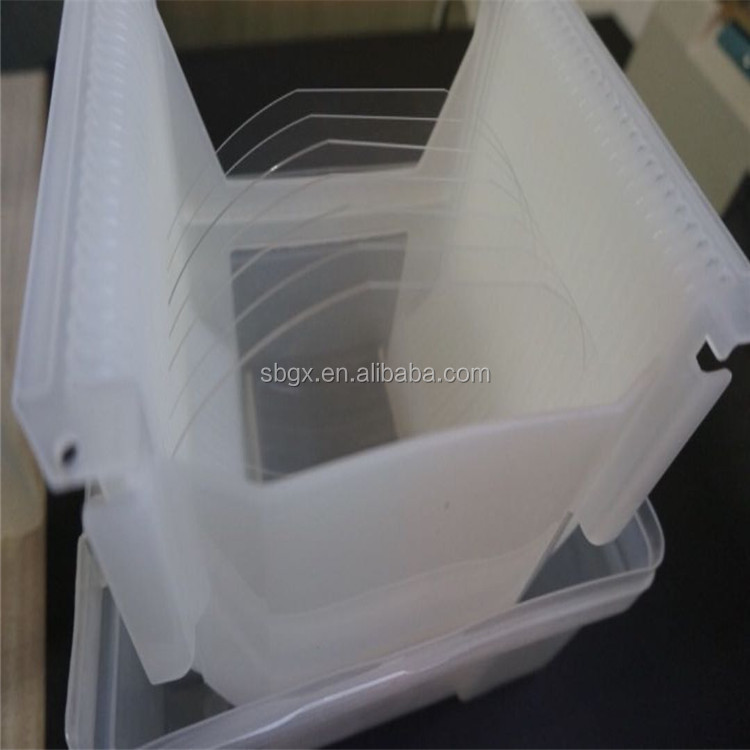

Packaging Details:carton and spongebrand:North Jiangsu
Parallelism:0.01mmshape:round shape
color:clearpayment terms:L/C,D/A,T/T,Western Union,credit card,bnak,Alibaba Trade Assurance

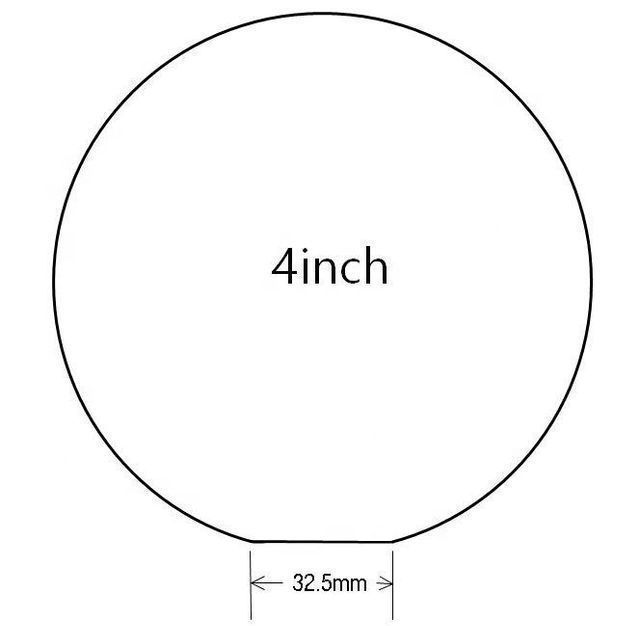

   Fabrication of Optical 4" 0.2mm Thick Fused Silica Wafers



Product Description

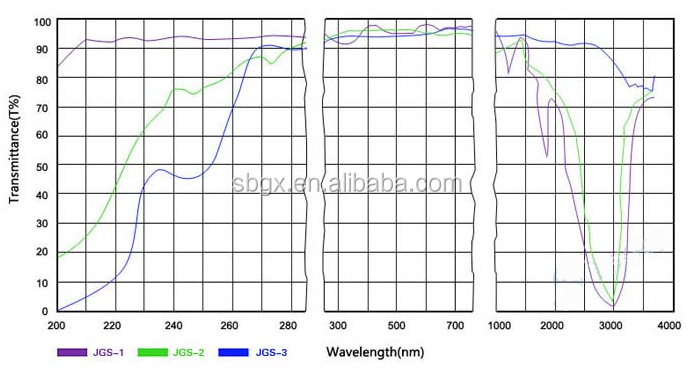

Fused silica glass properties:



Attributes

Measurement

diameter

Φ2",Φ3",Φ4",Φ5",Φ6",Φ8",Φ12"

thickness

0.2mm, 0.3mm, 0.4mm, 0.5mm, 0.7mm, 1.0mm, 1.5mm tolerance ±0.02mm)

Dimensional tolerance

+/- 0.02

Thickness tolerance

+/- 5 microns

Thickness Variation (TTV)

< 0.01mm

Flatness

1/10 wave/inch

Surface Roughness (RMS)

<1.5nm

Dig from scratch

5/2

particle size

<5μm

bow/warping

<10μm

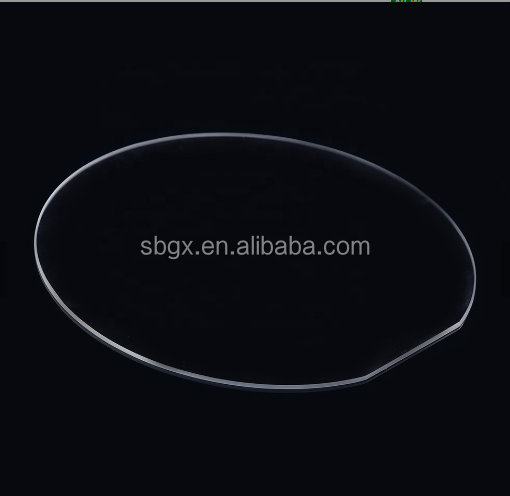

Product Image:
