Hot Sale Ultra High Power Graphite Electrode RP HP UHP Diameter 300mm 400mm 500mm Graphite Electrode
-
$2800.00 / 5 - 19 pieces
$1800.00 / >=20 pieces - 5 pieces
- Hebei Nanhe Trade Co., Ltd.
- Hebei, China
- Ms Liya Di
Product Detail
| brand: | south river | type: | Electrode bolt |
| thermal expansion: | 1.1-1.4 | Bending strength (N/㎡): | 10-14 MPa |
| Raw materials: | Petroleum coke, needle coke, coal tar | diameter: | 200 250 300 350 400 450 500 600 700mm |
| product name: | RP HP UHP Diameter 300mm 400mm 500mm Graphite Electrode | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| application: | steelmaking | model: | UPH |
| grade: | UHP HP RP, UHP (Ultra High Power) | Package preview: | |
| Resistance (μΩ.m): | 4.4-5.8 μΩm | nipple: | 3TPI/4TPI/4TPIL |
| color: | black gray | place of origin; place of origin: | Hebei china |
| Apparent Density (g/cm3): | 1.68-1.74 g/cm3 | Advantage: | Low consumption rate |

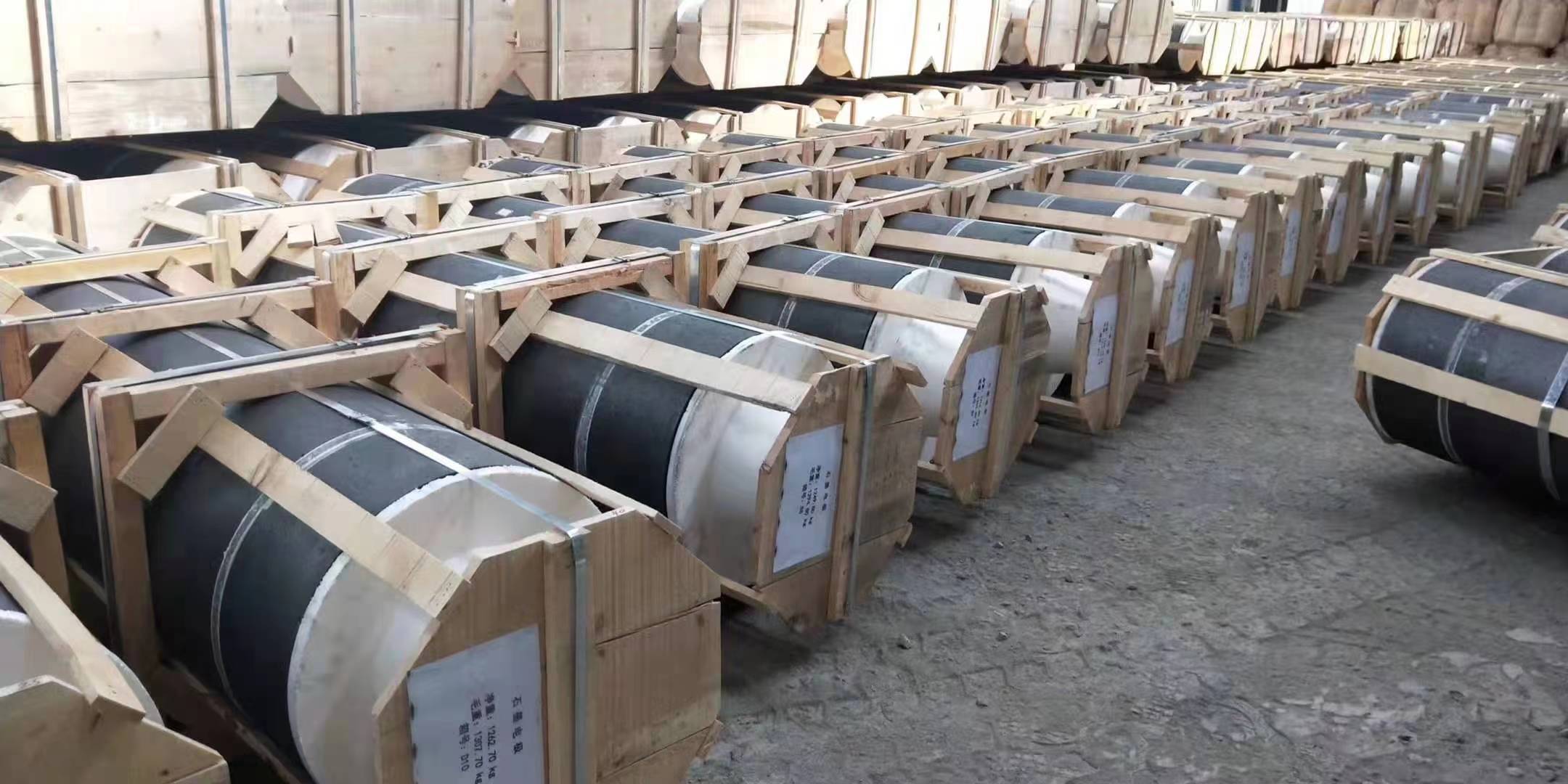

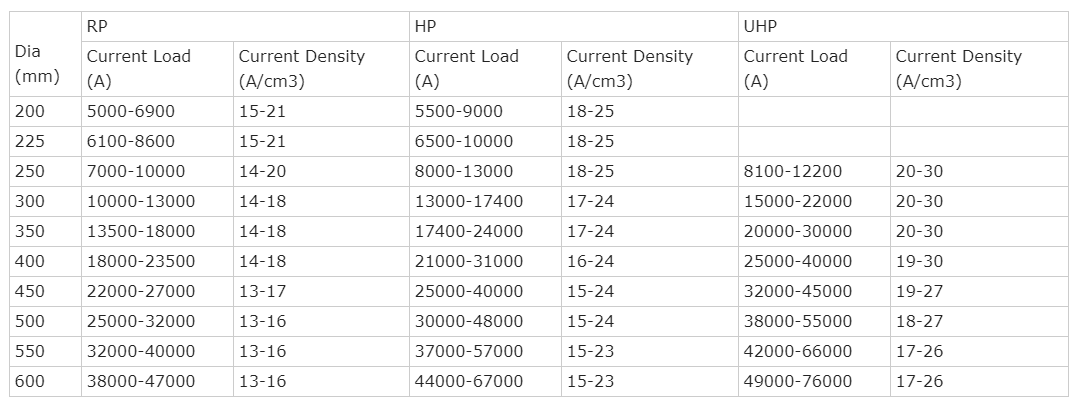

| Current load: | 2000-45000 a | Packaging Details: | Hot Sale Ultra High Power Graphite Electrode RP HP UHP Diameter 300mm 400mm 500mm Graphite Electrode Steel Bar Wooden Box Packaging Standard Carton Standard Carton |
| Ash: | 0.2-0.3 | length: | 1500-2400mm |
| application: | EAF (Electric Arc Furnace)/LF (Ladle Furnace) | port: | Guangzhou Port, Ningbo Port |
| Supply capacity: | 1000 tons per month |
Product Description
Hot Sale Ultra High Power Graphite Electrode RP HP UHP Diameter 300mm 400mm 500mm Graphite Electrodehttps://hebeinanhe.en.alibaba.com/Electrode

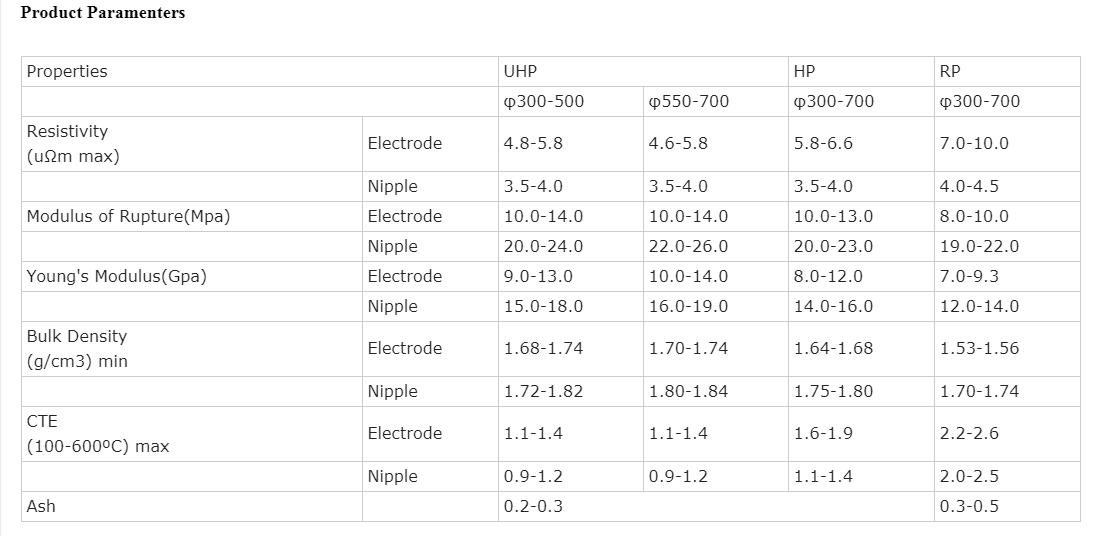

Specification
product name | Hot Sale Ultra High Power Graphite Electrode RP HP UHP Diameter 300mm 400mm 500mm Graphite Electrode |
application | steel making |
grade | UHP (Ultra High Power), HP (High Power), RP (Regular Power) |
nipple | 3TPI/4TPI/4TPIL |
Product Description

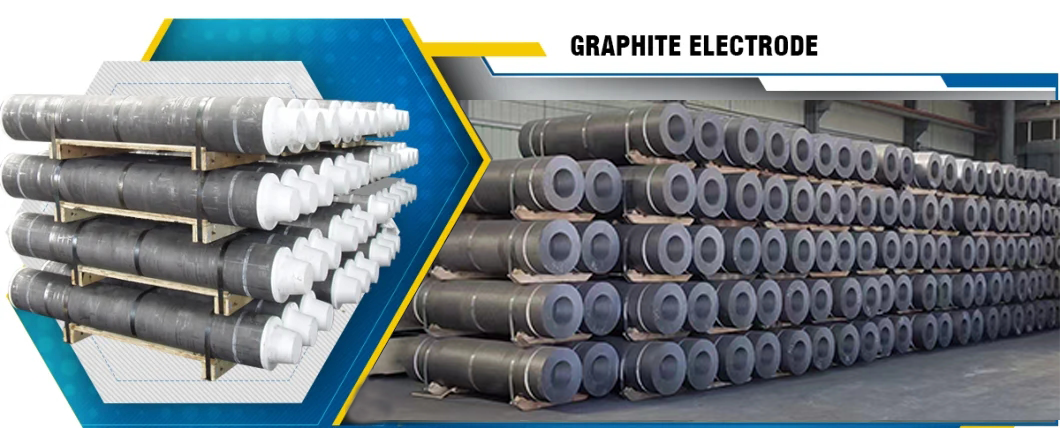

graphite electrode

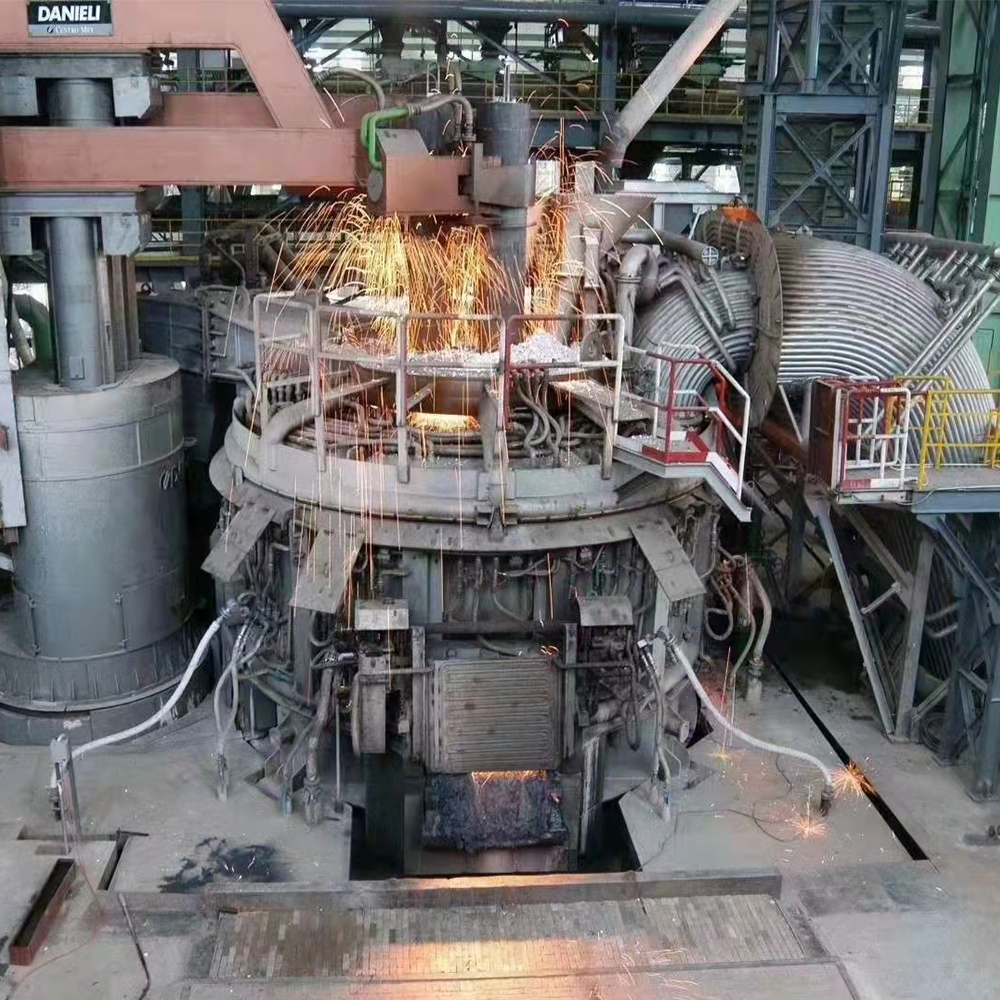

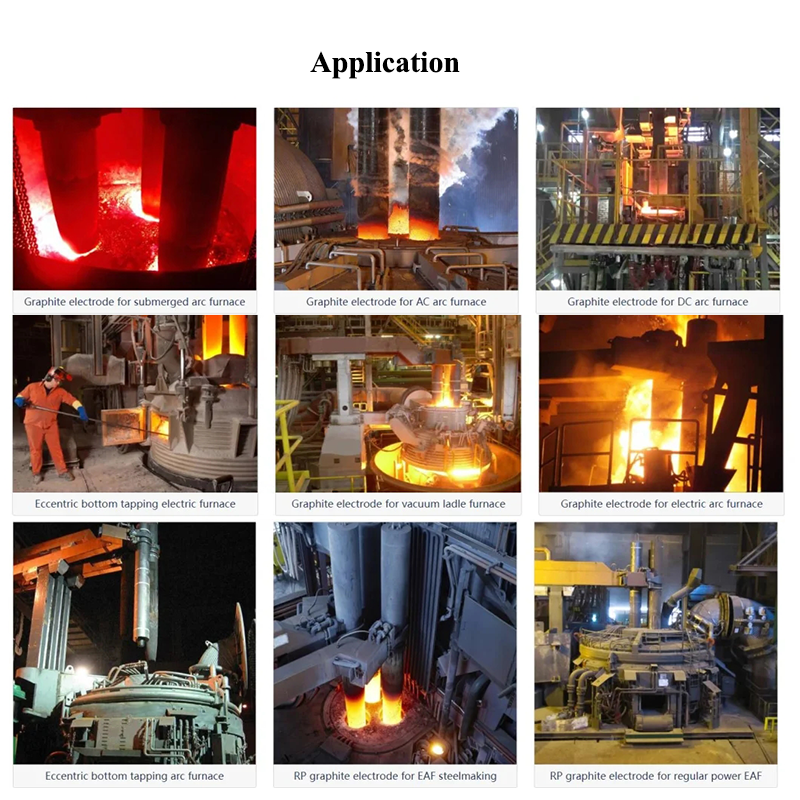

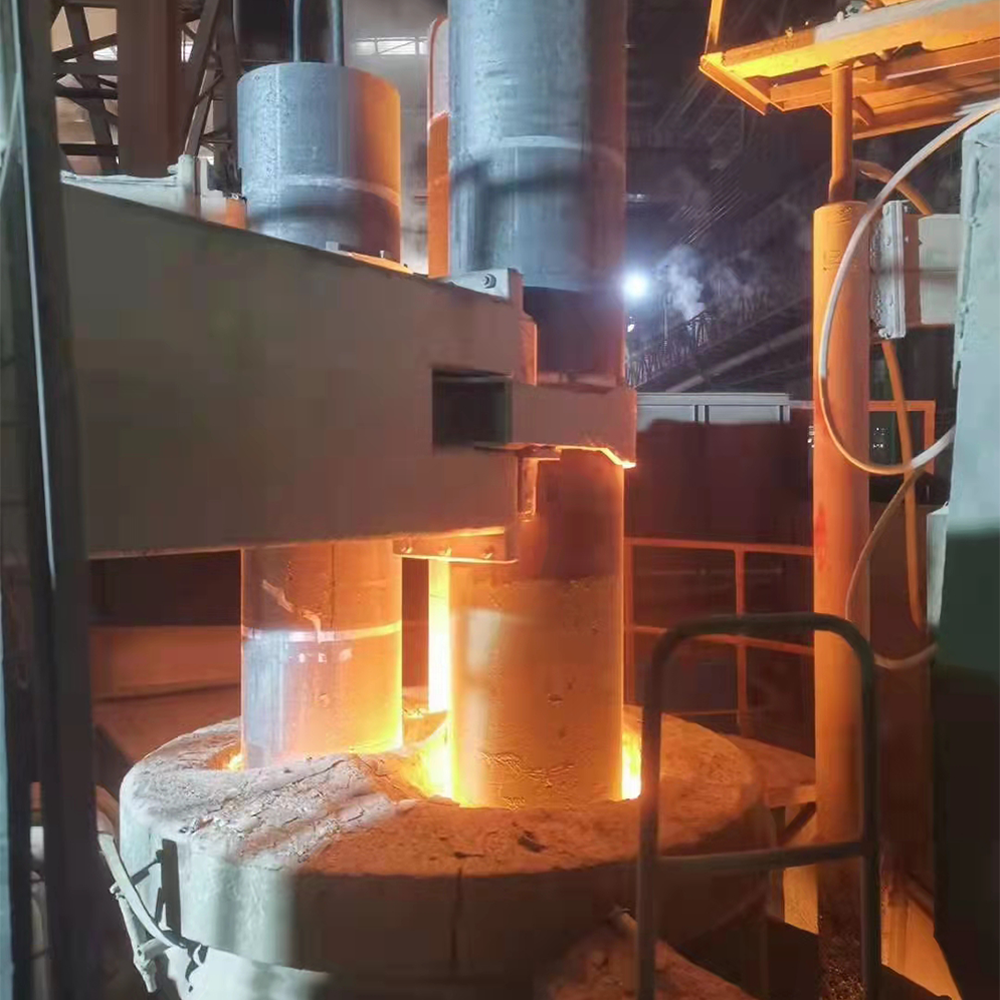

Graphite electrodes have good electrical conductivity and chemical properties, high mechanical strength at high temperatures, good shock resistance, and are good conductors of heat and electricity. Widely used in steelmaking, ferroalloy, industrial silicon, yellow phosphorus and other electric arc furnaces and refining furnaces. , corundum and other submerged arc furnaces and other smelting furnaces that use electric arc furnaces to generate high temperatures.

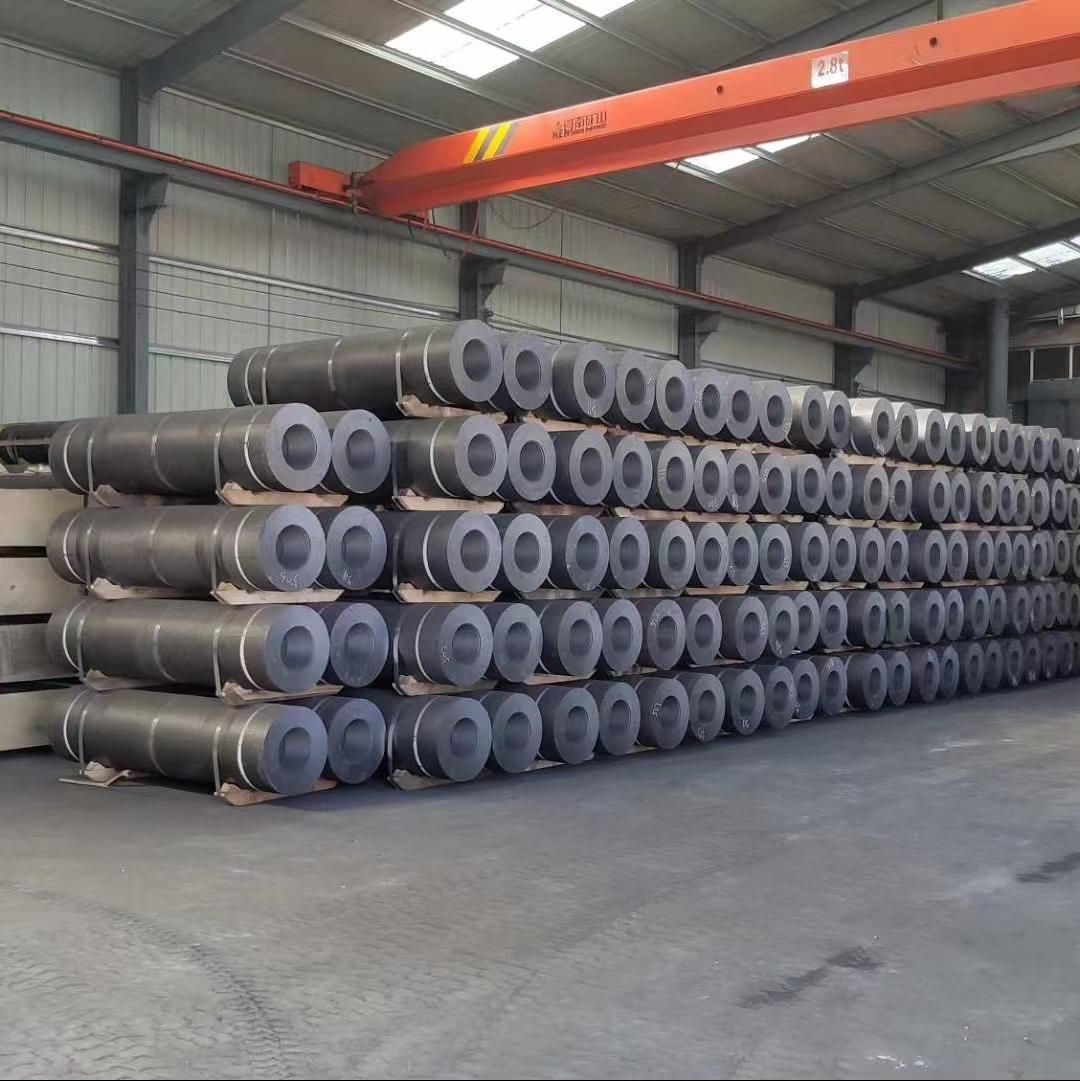

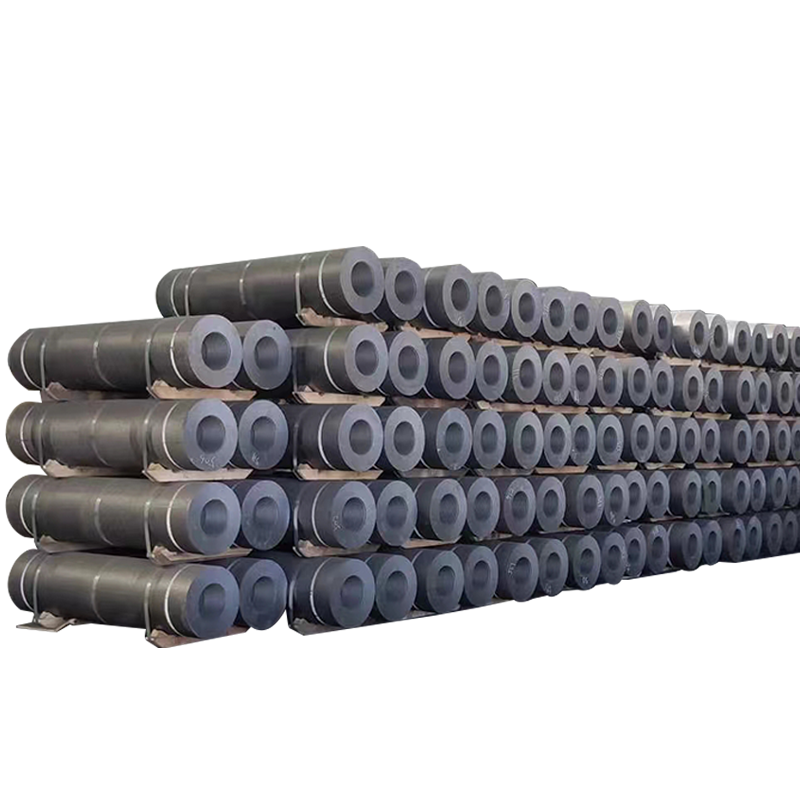

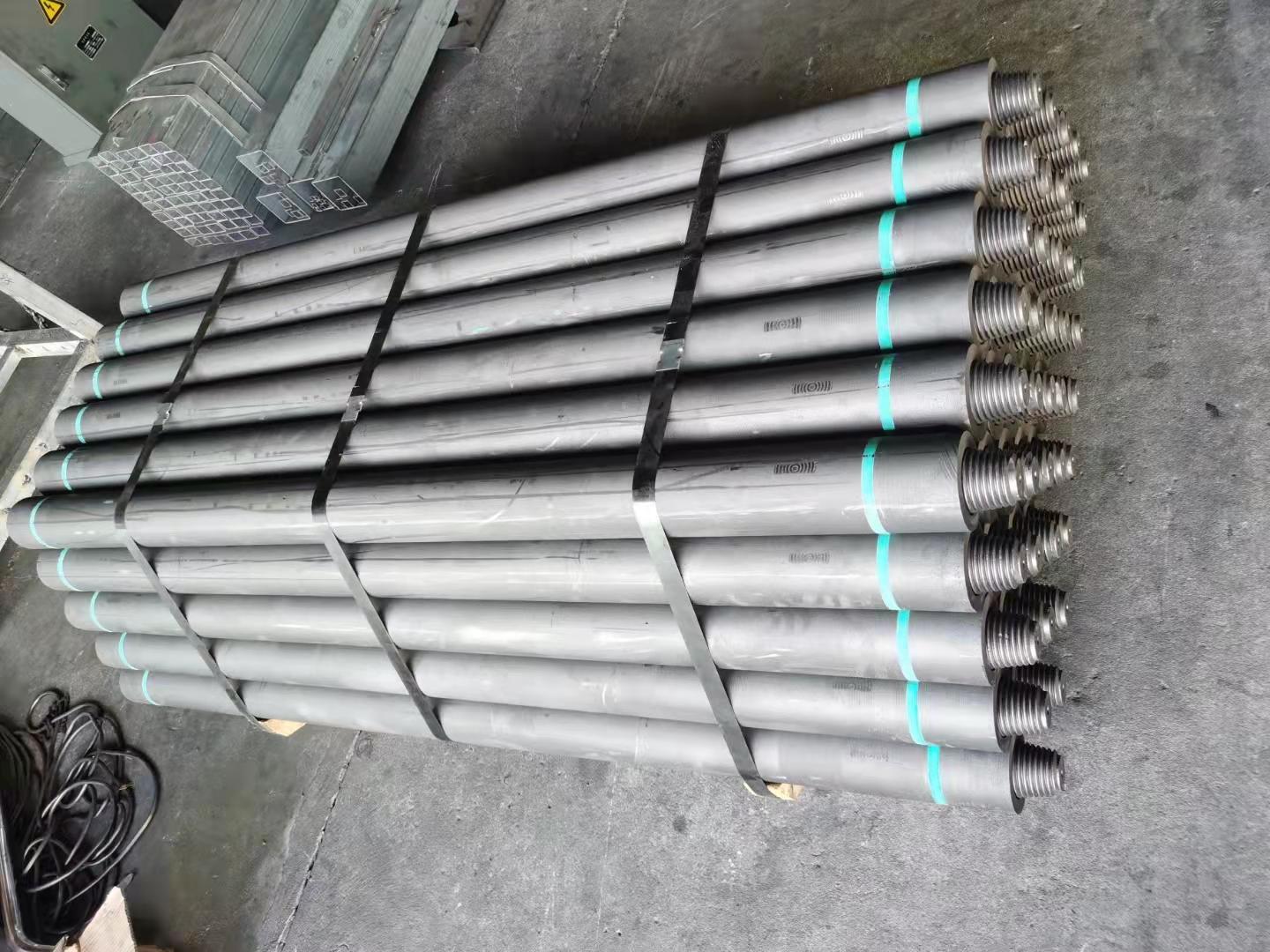

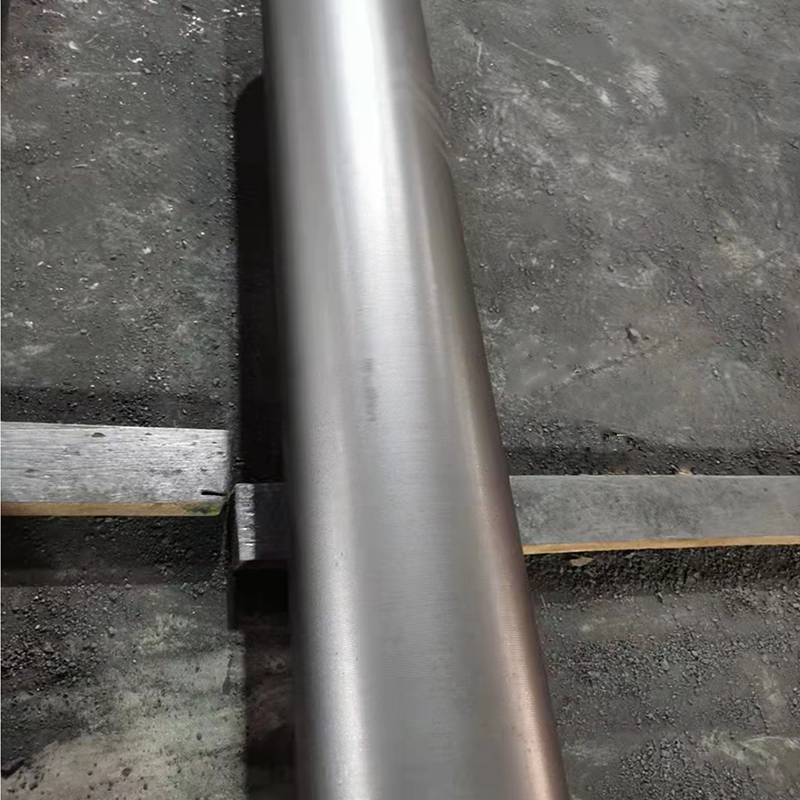

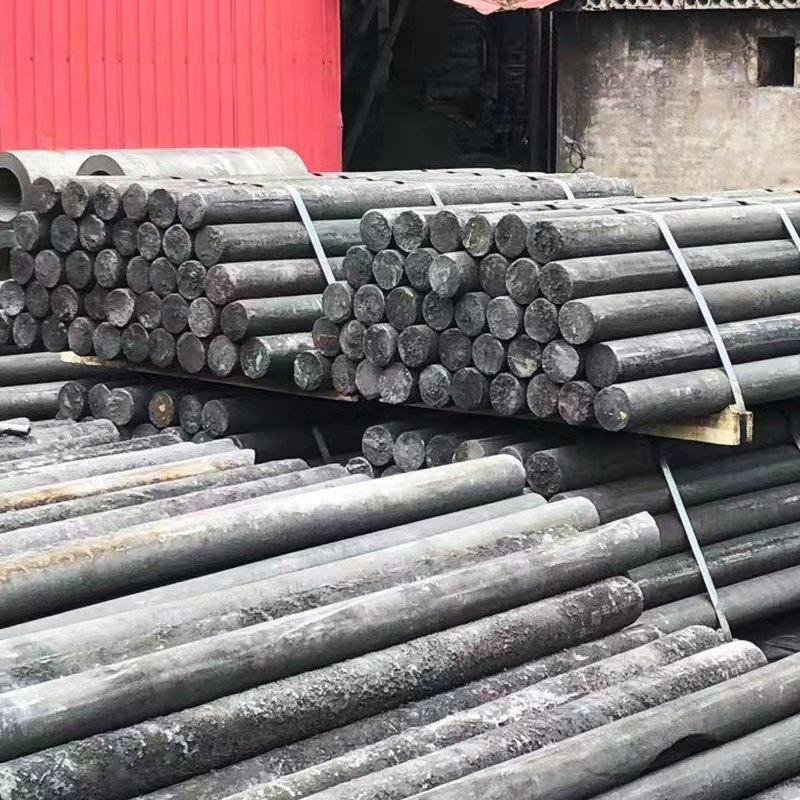

product display
Instructions for use 1. Wet graphite electrodes should be dried before use. 2. Take off the foam plastic protective cap on the spare graphite electrode hole, and check whether the inner thread of the electrode hole is complete. 3. Use oil-free and water-free compressed air to clean the surface of the spare graphite electrode and the inner thread of the hole; avoid cleaning with steel wool or metal brush abrasive cloth. 4. Carefully screw the joint into the electrode hole at one end of the spare graphite electrode (it is not recommended to install the joint directly on the electrode taken out of the furnace), and do not collide with the thread. 5. Screw the electrode support plate (recommended to use graphite material) into the electrode hole at the other end of the spare electrode. 6. When lifting the electrode, place a soft object under one end of the spare electrode installation joint to prevent the ground from hitting the joint; use a hook to extend into the lifting ring of the sling for lifting. fall off or collide with other fixtures. 7. Lift the spare electrode above the electrode to be connected, align it with the electrode hole and drop it slowly; Rotate the spare electrode so that the spiral hook rotates and descends with the electrode; When the distance between the end faces of the two electrodes is 10-20mm, clean the electrode again with compressed air The exposed parts of the two ends and the joint; when the electrode falls completely to the bottom, do not be too violent, otherwise the electrode hole and the thread of the joint will be damaged due to violent collision. 8. Tighten the spare electrode with a torque wrench until the end faces of the two electrodes are in close contact (the correct connection gap between the electrode and the connector is less than 0.05mm).
