FKM premix unvulcanized fluoroelastomer copolymer for oil seal Oring gasket FPM fluorocarbon rubber material combined with metal
-
$20.00 / 20 - 999 kilograms
$19.80 / 1000 - 9999 kilograms
$18.50 / >=10000 kilograms - 20 kilograms
- Sichuan Fudi New Energy Co., Ltd.
- Sichuan, China
- Ms Doris Xie
Product Detail

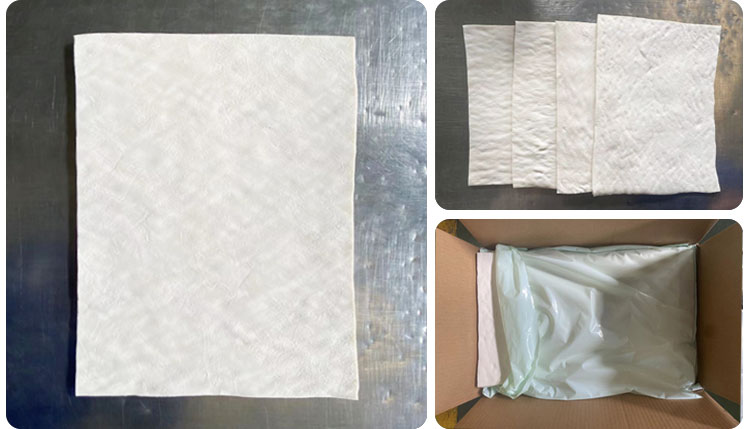

| Packaging Details: | 25kg/carton 500kg/pallet | place of origin; place of origin: | Sichuan, China |
| Certificate: | ISO 9001 | Name: | Fluorine rubber premix |
| Heal Mechanism: | Bisphenol AF | port: | Shanghai, Shenzhen |
| model: | FD 2617P | appearance: | white |
| payment terms: | wire transfer | brand: | Fudi |
| Package preview: | MOQ: | 20KG | |
| Supply capacity: | 100,000 kg per month |
Product Description
FD 2617PComposed of vinylidene fluoride (VDF) and hexafluoropropylene (HFP). Copolymers are the standard type of FKM and show good overall properties.
FD 2617PProvides excellent rubber-to-metal adhesion using a bisphenol AF vulcanization mechanism. The general characteristics of the FD 2617P are listed below:
* Excellent mold release
* Excellent mold flow
* Good compression set
* Strong adhesion to metal
* Processing: transfer molding, injection and compression molding.

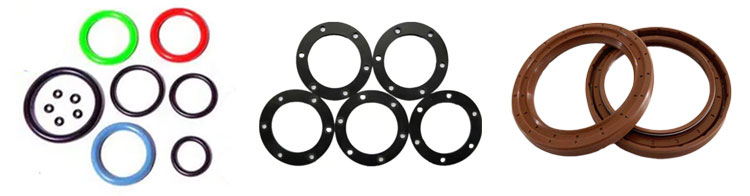

FD 2617PIt can be used for rubber parts such as oil seals and O-rings.
FD 2617P | FD 26401 | FD 26402 | FD 2640B | FD 2655 | ||||||
Fluorine content | 66 | 66 | 66 | 66 | 66 | |||||
Mooney viscosity ML(1+10)121ºC | 35 | 42 | 42 | 30 | 55 | |||||
Density 23ºC (g/cm³) | 1.81 | 1.81 | 1.81 | 1.81 | 1.81 | |||||
MDR at 177 °C 6 minutes arc 0.5 ° | ||||||||||
Minimum torque(N*m) | 0.15 | 0.14 | 0.16 | 0.12 | 0.22 | |||||
Maximum torque(N*m) | 1.9 | 2.5 | 2.35 | 2.45 | 2.4 | |||||
Ts2 | 1′02″ | 1′30″ | 1′20″ | 1′32″ | 1′16″ | |||||
T90 | 2'10'' | 3′20″ | 3'00″ | 3′20″ | 2′40″ | |||||
Pressure cure: 170 °C for 10 minutes, post cure: 230 °C for 24 hours | ||||||||||
Tensile strength (Mpa) | ≥14.5 | ≥16 | ≥15 | ≥13.5 | ≥18 | |||||
Elongation at break (%) | ≥270 | ≥210 | ≥200 | ≥220 | ≥220 | |||||
Shore A Hardness | 76 | 79 | 77 | 78 | 76 | |||||
Compression set (%) 200ºC 70H compression rate 20% | ≤14 | ≤12 | ≤13 | ≤14 | ≤14 | |||||
Please contact our customer service for detailed specifications
E-mail: [email protected]
application
Due to the excellent performance of FKM, it is widely used in different fields, including:
* Chemical processes and petroleum refining, they are used in seals, pumps, gaskets, etc. due to their corrosion resistance
Chemicals;
* Analytical and process instruments: separators, diaphragms, cylindrical fittings, ferrules, gaskets, etc.
* Semiconductor manufacturing;
* Food and pharmaceuticals, also in contact with liquid due to low degradation rate;
* Chemical processes and petroleum refining, they are used in seals, pumps, gaskets, etc. due to their corrosion resistance
Chemicals;
* Analytical and process instruments: separators, diaphragms, cylindrical fittings, ferrules, gaskets, etc.
* Semiconductor manufacturing;
* Food and pharmaceuticals, also in contact with liquid due to low degradation rate;
Advantage
Fudi has been focusing on fluorine material solutions for more than 20 years, and its products range from basic chemical materials to fluorine materials
Products like FKM FVMQ FFKM PTFE HNBR AEM and different kinds of process chemicals.
We focus on continuous improvement in four areas to provide competitive products.
Products like FKM FVMQ FFKM PTFE HNBR AEM and different kinds of process chemicals.
We focus on continuous improvement in four areas to provide competitive products.
About Fudi
Sichuan Fudi New Energy Co., Ltd. was established in 2001. Fudi has been focusing on fluorine material solutions for more than 20 years. our products
From basic chemical materials to fluorine products such as FKM, FVMQ, FFKM, PTFE, HNBR, AEM and different kinds of processing
Chemicals.
Our factory is located in Chengdu, Sichuan, China. Covers an area of more than 30,000 square meters. More than 50 technicians and experienced staff
Serving at FUDI. We have the capacity of 1000 tons of different kinds of fluorine materials.
From basic chemical materials to fluorine products such as FKM, FVMQ, FFKM, PTFE, HNBR, AEM and different kinds of processing
Chemicals.
Our factory is located in Chengdu, Sichuan, China. Covers an area of more than 30,000 square meters. More than 50 technicians and experienced staff
Serving at FUDI. We have the capacity of 1000 tons of different kinds of fluorine materials.
