Made in China Low Price EAF Dia 400mm Graphite Electrode UHP With 4TPI Nipples

Product Detail

place of origin; place of origin:Hebei chinaapplication:Electric Furnace Low Furnace
application:Electric Arc Furnace SteelmakingSupply capacity:30,000 tons/year
Raw materials:100% needle colabrand:Hengqiang
Package:Wooden box with plywood pallet and steel strap fasteningAsh:0.3%MAX
thermal expansion:1.5model:UHV 400
origin:Handan, Hebeiport:Tianjin harbor
Packaging Details:Wooden box with plywood pallet and steel strap fasteningpayment terms:L/C, T/T
port:Tianjin harborBending strength (N/㎡):10.5 MPa
nipple:4TPI/4TPILcolor:black, grey
length:1800mmApparent Density (g/cm3):1.68 g/cm3
Types of:electrode blockPackage preview:
Needle coke content:100%Resistance (μΩ.m):≤5.5μΩ.m
grade:UHP (Ultra High Power)Certificate:ISO9001:2015

Minerals and Metallurgy>Graphite Products>Graphite Electrode

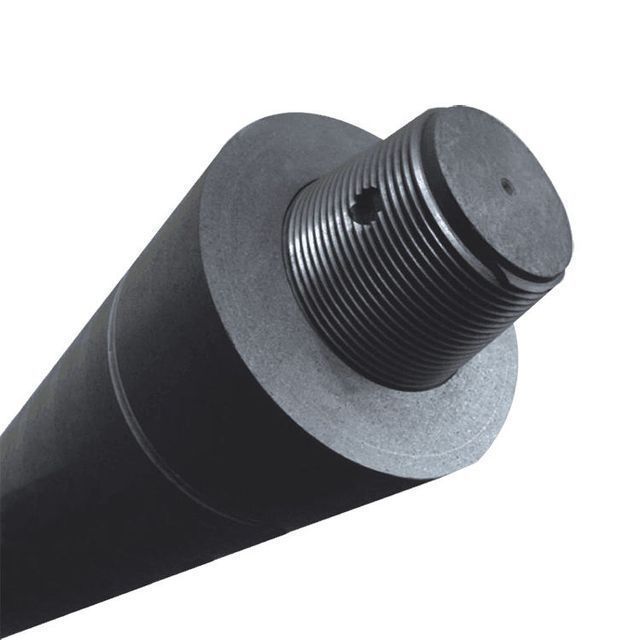

Made in China Low Price EAF Dia 400mm Graphite Electrode UHP With 4TPI Nipples

Product Description

Graphite electrodes are mainly made of petroleum coke and needle coke, with coal tar as a binder, and are made by calcination, compounding, kneading, pressing, roasting, graphitization, machining and other processes. According to the quality index (current capacity) of graphite electrode, it can be divided into RP, HP and UHP.

diameter

400mm
color

black gray

length



1800mm 2100mm

pack

wooden box with pallet

MOQ

1 ton

expiration of pay

T/T or L/C



detailed drawing







Technical data



ultra high pressure

thing

Classification

unit

Nominal diameter (mm)

300-400

450-500

550-600

700

Resistivity

maximum

pole
nipple

μΩm

5.5
4.0

5.5
4.0

5.5
4.0

5.5
4.0

Bending strength

minute

pole
nipple

MPa

10.5
18.0

10.5
18.0

11.0
20.0

11.0
20.0

Young's modulus

maximum

pole
nipple

Gpa

14.0
18.0

14.0
18.0

14.0
22.0

14.0
22.0

Bulk density

minute

pole
nipple

g/cm3

1.68
1.78

1.68
1.78

1.68
1.78

1.68
1.78

Thermal expansion coefficient

maximum

pole
nipple

×10-6/°C

1.5
1.4

1.5
1.4

1.4
1.2

1.4
1.2

Ash content

maximum



%

0.2

0.2

0.2

0.3





Features

good electrical conductivity

good oxidation resistance

low resistivity

low gray

Strong thermal shock resistance

High mechanical strength

Packaging and Shipping

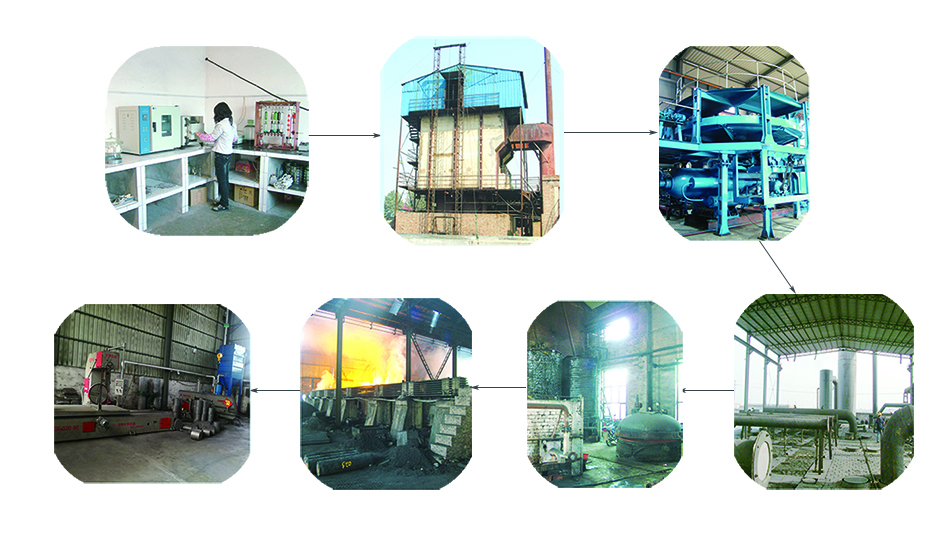

Production Process





QC
