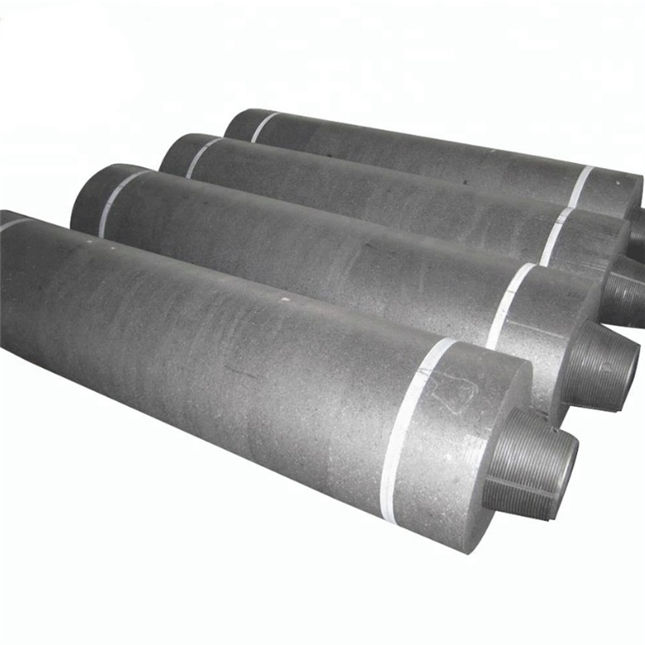

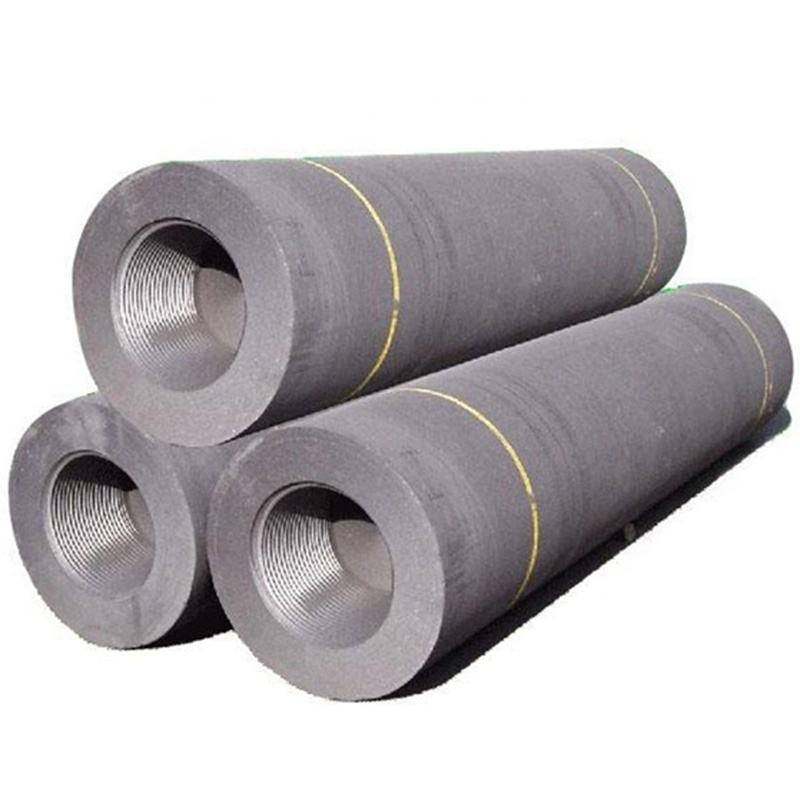

Manufacturer of High Conductivity Density Extruded Carbon Ultra High Power Graphite Electrode for Electric Arc Furnace

Product Detail

Apparent Density (g/cm3):1.65~1.72g/cm3minplace of origin; place of origin:Henan, China
Supply capacity:1000 tons per monthproduct name:Graphite ultra-high voltage electrode
Advantage:high conductivitythermal expansion:2.2 max
application:EAF (Electric Arc Furnace)/LF (Ladle Furnace)quality:high purity
payment terms:L/C, Western Union, T/Tpack:wooden box
brand:JinchengBending strength (N/㎡):10Mpa
Ash:0.20% maxusage:Electric Arc Furnace
Resistance (μΩ.m):6.5μΩm max.length:1800mm+_100mm
port:QingdaoTypes of:Electrode bolt
grade:HP (high power)color:Black
Serve:technical

Graphite electrode technology:

Model echo life value ultra high pressure

resist

μΩm(Maximum value)

electrode 7.5 6.5 5.0
nipple 6.0 5.0 3.6

Bulk density

g/cm3 (minimum value)

electrode 1.53 1.62 1.67
nipple 1.69 1.73 1.75

Bending strength Mpa(Min)

electrode 8.5 10.5 11.0
nipple 15.0 16.0 20.0
Young's modulus Gpa(Max) electrode 9.3 12.0 14.0
nipple 14.0 16.0 22.0

Ash%

(maximum)

electrode 0.5 0.3 0.3
nipple 0.5 0.3 0.3

Thermal expansion coefficient

(100-600℃)

× 10-6/℃

electrode 2.9 2.4 1.5
nipple 2.8 2.2 1.4
