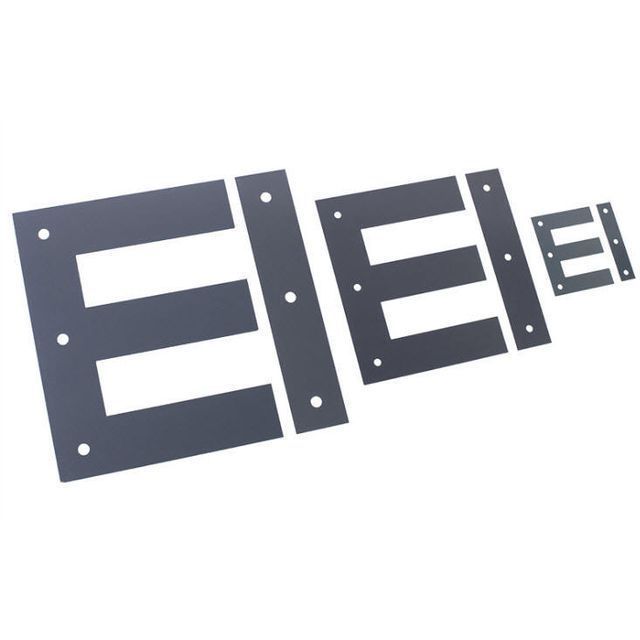

EI-66 4-hole factory direct non-oriented single-phase silicon electrical steel sheet transformer EI type laminated core
-
$2.07 / 20 - 999 kilograms
$2.02 / 1000 - 49999 kilograms
$1.97 / >=50000 kilograms - 20 kilograms
- Dongguan Feixia Magnetoelectric Co., Ltd.
- Guangdong, China
- Mr hua
Product Detail
| color: | white or black | grade: | Non-oriented silicon steel |
| port: | Dongguan | delivery time: | 8-14 days |
| standard: | National standard | Supply capacity: | 120000 kg per month |
| thickness: | 0.5 mm or 0.35 mm, 0.35 - 0.5 mm | model: | EI-66H4 |
| tolerant: | ±1% | payment terms: | wire transfer |
| shape: | EI lamination | place of origin; place of origin: | Guangdong, China |
| Types of: | Non-oriented silicon steel | technology: | cold rolled |
Specification
product name | EI-66 4-hole factory direct sale non-oriented single-phase silicon electrical steel sheet transformer EI type laminated iron core |
Material | H50 H20 H18 H14 H12 H10 |
color | white or black |
thickness | 0.5 mm or 0.35 mm |
unit price | The unit price of different materials, different thickness and different colors will be different, the exchange rate between The US dollar and RMB will be different in different periods, and the cost of materials will also be different in different periods. above The unit price is for reference only, please do not place an order directly, please communicate with us to confirm before placing an order Specifications, models and unit prices. |
Product Description
Model comparison table of non-oriented silicon steel in various countries in the world:

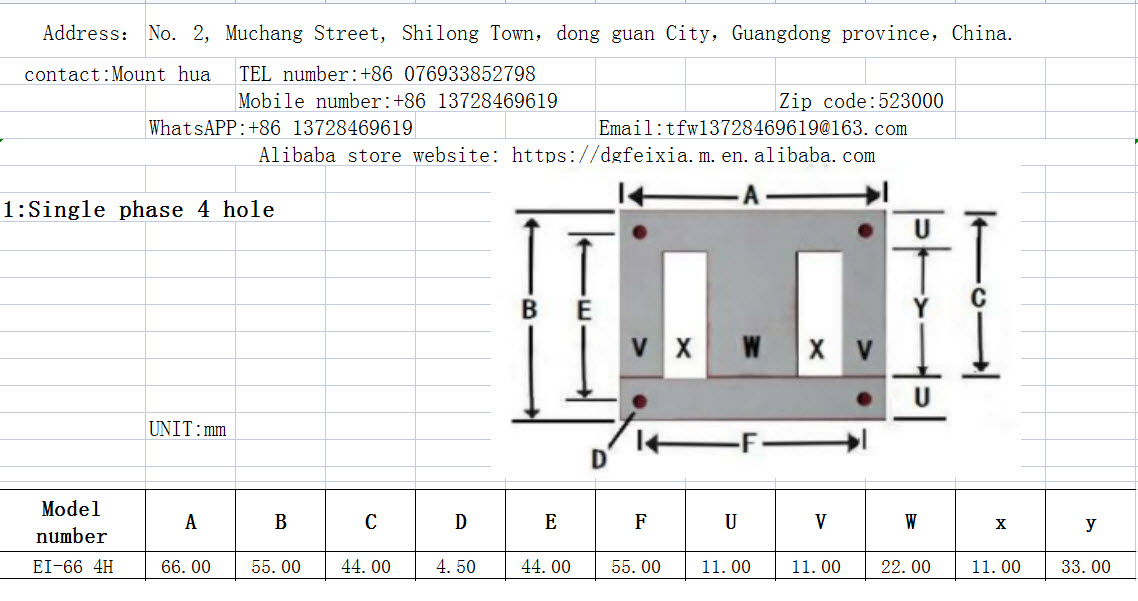

See the figure below for details:
* Bed machinery single phase control transformer
Machine tool machinery single-phase control transformer
* Low frequency transformer
low frequency transformer
* Machine bed high power control transformer
Machine tool power control transformer
* Divider sensing
Divider inductor
* Divider
Divider
* Sealed pin transformer
Potting needle transformer
* induction cooker
electromagnet
* Audio Transformer
audio transformer
* Instrument instrument table
Instrumentation
Machine tool machinery single-phase control transformer
* Low frequency transformer
low frequency transformer
* Machine bed high power control transformer
Machine tool power control transformer
* Divider sensing
Divider inductor
* Divider
Divider
* Sealed pin transformer
Potting needle transformer
* induction cooker
electromagnet
* Audio Transformer
audio transformer
* Instrument instrument table
Instrumentation
