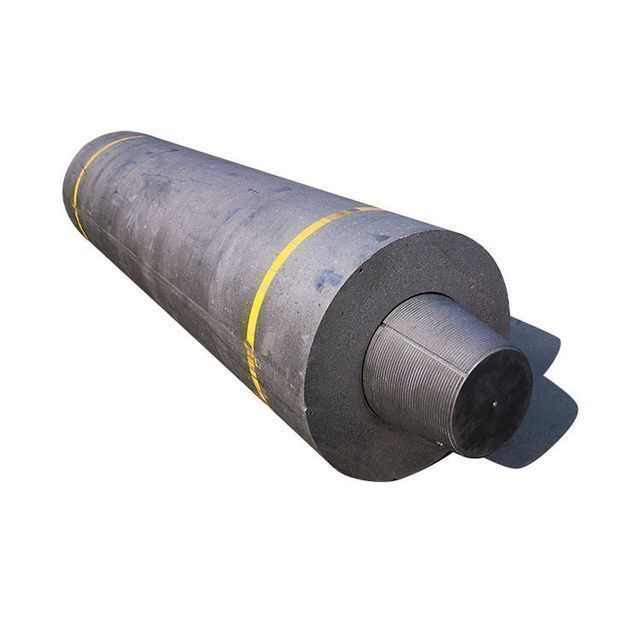

China Factory Price High Quality Ultra High Power Graphite Electrode UHP 600mm with Connector

Product Detail

Apparent density (g/cm³):1.68-1.72g/cm3Thermal expansion:1.4
place of origin; place of origin:Hebei chinaRaw materials:100% Needle Cola
Ash:0.3%MAXCertificate:ISO9001:2015
Packaging Details:Wooden box with plywood pallet and steel strap fasteningSupply capacity:30,000 tons/year
color:dark greynipple:3TPI 4TPI 4TPIL
origin:Handan, Hebeipayment terms:letter of credit, wire transfer
Needle Cola Content:100%port:Tianjin harbor
Package:wooden box with palletapplication:Electric arc furnace steel production, EAF LF
Resistance (μΩ.m):≤5.5μΩ.mPackaging Preview:
model:UHV 600port:Tianjin
brand:HengqiangBending strength (N/㎡):11.0 MPa
length:2100mm/2400mm/2700mm+/-100mmgrade:UHP (Ultra High Power)
type:Electrode bolt

China Factory Price High Quality Ultra High Power Graphite Electrode UHP 600mm with Connector

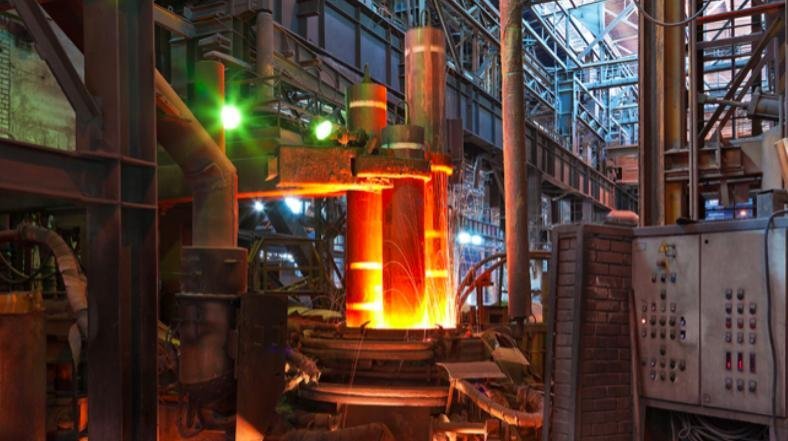

It can be widely used in electric arc furnace (EAF) steelmaking, ladle furnace (LF), industrial foundry, metallurgical furnace steelmaking and many other fields.

Product Description



Graphite electrodes are mainly made of petroleum coke and needle coke as raw materials and coal tar as a binder, which are calcined, kneaded, kneaded, pressed, roasted, graphitized and machined. According to the quality index of graphite electrode (current capacity, it can be divided into RP, HP and UHP.

color

dark grey

Bale

wooden box with pallet



expiration of pay



wire transfer or letter of credit









Technical data

Ultra high pressure

thing

Classification

unit

Nominal diameter (mm)

300-400

450-500

550-600

700

Resistivity

maximum

pole
nipple

μΩm

5.5
4.0

5.5
4.0

5.5
4.0

5.5
4.0

Flexural strength

minute

pole
nipple

MPa

10.5
18.0

10.5
18.0

11.0
20.0

11.0
20.0

Young's modulus

maximum

pole
nipple

grade point average

14.0
18.0

14.0
18.0

14.0
22.0

14.0
22.0

Bulk density

minute

pole
nipple

g/cm3

1.68
1.78

1.68
1.78

1.68
1.78

1.68
1.78

Thermal expansion coefficient

maximum

pole
nipple

×10-6/℃

1.5
1.4

1.5
1.4

1.4
1.2

1.4
1.2

Ash

maximum



%

0.2

0.2

0.2

0.3





Features

low resistivity

low ash content

good electrical conductivity

good oxidation resistance

Strong thermal shock resistance

high mechanical strength

Compact and uniform structure



application







Click here for a quick quote

Packaging and Shipping










Production Process









Quality Control



We have strict quality control system and advanced testing equipment.

Our products have passed ISO 9001 and ISO14001.
