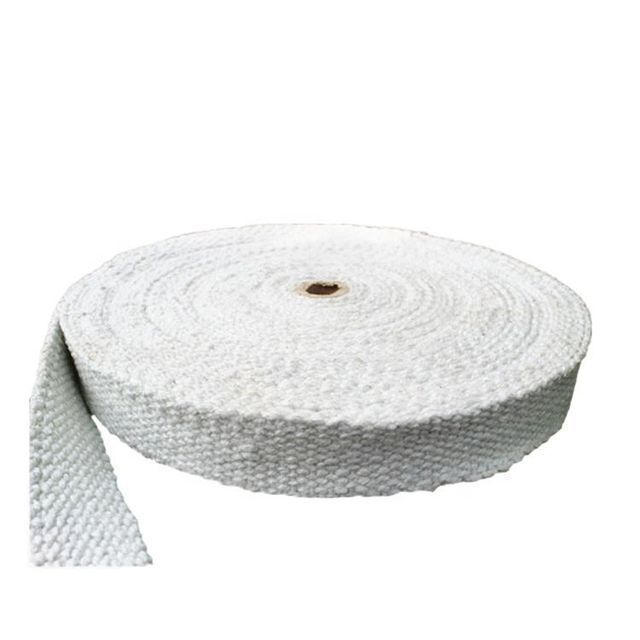

Tape with thermal insulating ceramic fibers

Product Detail

color:whiteOperating temperature:1260°C
place of origin; place of origin:Zhejiang, Chinachemical composition:alumina, silica
Material:glass fiber reinforcedwidth:20-150mm
product name:Thermal insulation ceramic fiber beltShrinkage (1800℉, 3 hours):-3%
Warp density:48~60pcs/10cmport:Ningbo
application:insulationSupply capacity:10000 kg per week
grade:ST (Standard)Fiber Diameter:2-5um
Classification temperature:1260°Cbrand:high spinning
model:TCR2900Ultimate Strength (≥MPa):0.5
Packaging Details:Carton or pp woven bagWeft density:21~30pcs/10cm
payment terms:L/C, D/A, D/P, T/T, Western Union, MoneyGramThermal Conductivity:0.055-0.180
density:500+/-30 kg/m3length:30m, 50m, 100m

Product Description

Ceramic Fiber Belt: Hitex brand ceramic fiber belt is woven from ceramic fiber yarn and treated with anti-dust. The tape is an excellent thermal insulation material and a substitute for asbestos tape. It is reinforced with glass fiber filaments or stainless steel wires (Inconel/alloy steel wire).



Technical data





Types of

data

color

white

working temperature

1260°C

Fiber diameter

3~5μm

Heat shrinkage rate (1232°C, 24h)

3.5%

Thermal conductivity (538°C, 8pcf)

0.130 W/m

Aluminum oxide

45~48%

Ferric oxide

0.7~1.2%

Calcium Oxide & Sodium Chloride

0.43%

shooting

< 8.5%

breakdown voltage

5kv/mm

Resistance

5x10 10Ω

moisture content

< 2%

Organic Fiber Content

< 20%





Specification

 Available Specifications:

Thickness: 2/3/4/5mm

Width: 25mm-150mm

Reinforcement: Fiberglass or stainless steel wire (Inconel).



We also have the following ceramic fiber products:



Ceramic fiber cloth:Hitex Brand Ceramic Fiber Cloth is a woven fabric made from our premium ceramic fiber yarn. The cloth is reinforced with glass fiber filaments or stainless steel wires (Inconel/alloy steel wire).

Normally, it can be used under high temperature conditions up to 1000°C, and the short-term working temperature can even reach 1260°C. What's more, it has good acid corrosion resistance, aluminum resistance,

Attack of zinc and other molten metals.



Ceramic fiber tape:Hitex brand ceramic fiber straps are woven from ceramic fiber yarns and treated to prevent dust

control. The tape is an excellent thermal insulation material and a substitute for asbestos tape. tape is

Reinforced with glass fiber filaments or stainless steel wire (Inconel/alloy steel wire).



Ceramic fiber rope:Hitex brand ceramic fiber rope includes three styles: stranded, round braided and

Square weave, made from our premium ceramic fiber yarn. They can be used for high

Temperature applications up to 1000°C. The rope is reinforced with fiberglass filaments and is optional

Stainless steel wire. It contains a certain amount of binder material and usually burns at a lower temperature

temperature, does not affect the insulating properties.



Ceramic fiber blanket:Hitex brand ceramic fiber blanket is made by dense needling

processing. The product does not contain any binders or other ingredients, nor dross

Contains content. Intensive needling process improves fiber interweaving

and anti-delamination properties and tensile strength. After 750-950 heat treatment in the production process, it has good high-temperature shrinkage.

In addition to the common features, it also has better sound insulation performance and mechanical strength,

Easy to process and install.



Ceramic Fiber Board:Hitex brand ceramic fiberboard is made of different aluminum-silicon fibers

Suitable for applications at temperatures up to 1200 ºC by vacuum forming technology. has a rigid character,

Good strength, light weight, easy to handle, ideal material for kiln, boiler pipe, chimney lining

and other thermal equipment.



Ceramic fiber cotton:Hitex brand ceramic fiberboard wool is made from high purity raw materials:

Alumina powder, high temperature grade silica sand and zircon sand are also used. ceramics

The mixture is heated in an electric furnace to temperatures in excess of 2,000 degrees Celsius, and the molten material flows

Drawn into fibers by spinning or blow molding.

application

Ceramic fiber tape (can replace asbestos rope) is widely used in fire prevention, heat insulation, fire prevention, sealing; metallurgy, chemical industry, ceramics, glass, refractory materials, shipbuilding, aerospace, automobile, machinery, electronics, building materials, light industry and other industries Department of friction braking, noise reduction, high temperature filtration, etc.

l Insulation and sealing of high temperature pipelines

l Cable insulation coating

l Coke oven opening seal

l Pyrolysis furnace brick wall expansion joints

l electric furnace, oven door seal, boiler

l High temperature air seal

l Flexible expansion joint connection



Product advantages



l Excellent heat resistance, the continuous use temperature of alloy steel wire rope can reach 1260C

l Excellent corrosion resistance to acid, oil, gas, aluminum, zinc and other non-ferrous metals

l Excellent high temperature strength and tensile strength

l Excellent electrical insulation

l Non-toxic and harmless, no adverse effects on the environment

l Excellent chemical stability and thermal stability

l Low thermal conductivity, low heat capacity, so that the product has excellent thermal insulation performance

l Resistance to external mechanical force

l Can withstand any thermal shock

l Generate no gaps between modules



detailed image



about Us

Hitex offers a wide range of high temperature fabrics and textiles for the insulation, fire protection, weld and cut protection, seals and gaskets, refractory and composites industries. Technical fabrics are available in different coatings and treatments to suit extreme temperatures and conditions, among other things.
