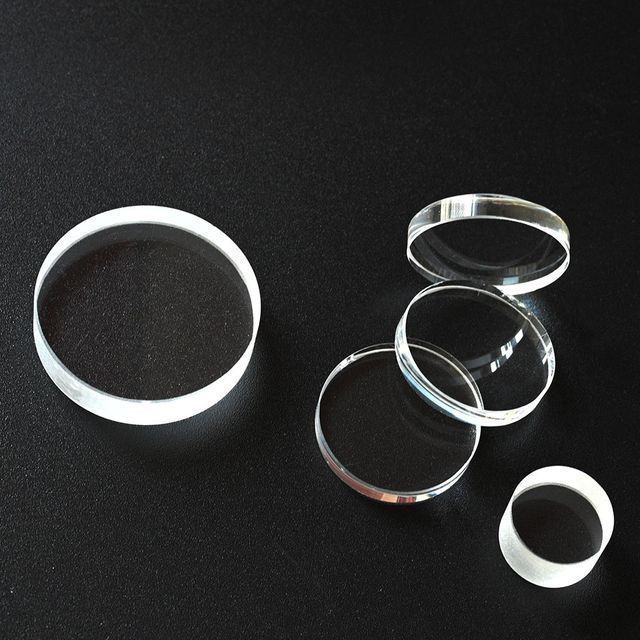

SUCCESS Optical Mass Clear Quartz Disc Round Quartz Plates Dark Transparent Quartz Wafer
- $0.50 /piece
- 1 piece
- Jinzhou City Success Quartz Glass Factory
- Liaoning, China
- Ms Elaine Mei
Product Detail
| Supply capacity: | 10,000 optically clear quartz wafers per week | pack: | standard |
| standard: | ISO9001 and CE | model. : | 17061204 |
| Packaging Details: | Professional and safe packaging of quartz wafers, with cartons inside and wooden boxes outside. | product name: | opaque quartz wafer |
| Origin: | Liaoning, China | surface: | polishing |
| type: | Plate/sheet/window/wafer, transparent quartz plate | brand: | Success Quartz Wafer |
| model: | 17061204, 17061204 | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram, Paypal |
| port: | Dalian | application: | optoelectronics, optoelectronics |
| thickness: | 0.5-100mm, 0.5-100mm | shape: | round/square etc. round |
Product Description
Transparent or Opaque Fused Silica Quartz Plates
We are manufacturers of Quartz Glass Fused Silica Plates/Sheets.
Size & Design: Accept customized according to different diameter, thickness, length or send your drawing.
Advantages of quartz glass plates/sheets/disks:
1) High purity: SiO2>99.99%.
2) Working temperature: 1250℃; softening temperature: 1730℃.
3) Excellent visual and chemical properties: acid resistance, alkali resistance, good thermal stability
4) Health care and environmental protection.
5) No air bubbles, no air path.
6) Excellent electrical insulator.
Size & Design: Accept customized according to different diameter, thickness, length or send your drawing.
Advantages of quartz glass plates/sheets/disks:
1) High purity: SiO2>99.99%.
2) Working temperature: 1250℃; softening temperature: 1730℃.
3) Excellent visual and chemical properties: acid resistance, alkali resistance, good thermal stability
4) Health care and environmental protection.
5) No air bubbles, no air path.
6) Excellent electrical insulator.
We can do JGS1/JGS2/JGS3
JGS1Far-ultraviolet optical quartz glass
JGS2UV optical quartz glass
JGS3 Infrared Optical Quartz Glass
Round Quartz Glass Plate/Substrate/Sheet Dimensions
diameter | 5mm-1500mm |
thickness | 0.8mm-100mm |
Square Quartz Glass Plate/Substrate/Sheet Dimensions
length | 10mm-800mm |
width | 10mm-600mm |
thickness | 0.5mm-100mm |
Physical properties of quartz glass
property | value |
silica | >99.9% |
density | 2.2x103kg/square meter2 |
hardness | 570KHN100 |
tensile strength | 4.8x107Pa (N/m2) |
Compressive strength | >1.1x109Pa |
Coefficient of thermal expansion (20°C-300°C) | 5.5x10-7cm/cm°C |
Thermal conductivity (20℃) | 1.4W/m ℃ |
Specific heat(20℃) | 660J/kg℃ |
Softening Point | 1730°C |
Annealing point | 1250°C |
【Scope of application】:Used in the manufacture of semiconductors, electric light source devices, semiconductor communication devices, lasers, optical instruments, laboratory instruments, electrical equipment, medical equipment and chemical instruments, chemical industry, electronics, metallurgy and other industries
【Product advantages】:Not easy to corrode, high temperature resistance, beautiful appearance, compact structure, convenient operation, strong light transmission, good electrical insulation
detailed image
