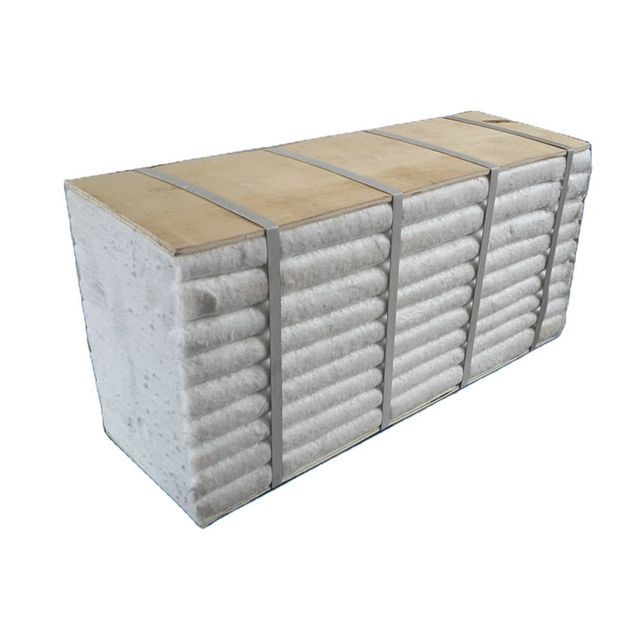

Refractory ceramic fiber heating insulation module 1800c

Product Detail

Role 2:high temperatureFiber Diameter:3-5um
Packaging Details:Packed in cartons or stacked on palletsport:Shanghai, Qingdao, etc.
Classification temperature:1260chemical composition:SIO2 AL2O3
density:190-220 kg/m3Supply capacity:1000 tons of 1260 ceramic fiber modules per month
color:pure whiteOperating temperature:1100
application:insulationCharacter 1:low thermal conductivity
product name:Aluminum silicate ceramic fiber module insulationfeature:fire protection
payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram, ceramic fiber heating module 1800c

Refractory ceramic fiber heating insulation module 1800c

Product Description
Ceramic Fiber Heating Module Product Line 1800c

The ceramic fiber module of the kiln lining material is made of ceramic fiber blanket by weighing, then folded or compressed, cut, anchored and inserted, and finally packed.







Technical data



Ceramic Fiber Heating Module Product Line 1800c



The ceramic fiber module is made of fiber blankets folded into an organ shape with a certain width, and then pre-pressed to a certain extent, and bundled in a compressed state.



Features



Characteristics of ceramic fiber heating module 1800c



· Low heat storage and low thermal conductivity

· High compressive strength

· Non-fragile material with good toughness

· Accurate size and good flatness

· Uniform structure and easy processing

· Continuous production, uniform fiber, stable performance

· Excellent thermal stability and thermal shock resistance

· Easy to install







Ceramic Fiber Heating Module 1800c Data



  HP module Hertz module JD-M1600
Grading temperature (℃) 1050,1260,1350,1430,1600 1050,1260,1350,1430,1600 1050,1260,1350,1430,1600

Working temperature (℃)

1050-1350 1420 1600
color pure white pure white pure white
Bulk density (kg/m3) 160-260 160-260 160-260
Tensile strength (Mpa) 0.04 0.04 0.04
Shrinkage(%) -3 (24 hours) -1.5-3(1300C,24h) -0.5(1500C,24h)
chemical composition Al2O3+SiO2 (%)>=97% Al2O3+SiO2 (%)>=97% Al2O3+SiO2 (%)>=97%



Application of ceramic fiber heating module 1800c





Ceramics: shuttle kilns, tunnel kilns, kiln cars, batch kilns, kilns for making white cups or ceramic plates, gas ceramic kilns

Steel: heaters, continuous annealing furnaces, galvanizing lines, kiln cars, steel industrial furnaces, roller hearth furnaces.

Heat treatment: annealing furnace, normalizing furnace, kiln car, etc.

Petroleum or petrochemical industry: petrochemical furnace, cracking furnace, cracking furnace, reformer, gas flue, flue lining, etc.

Insulation devices and heating elements for high-end household appliances.

Waste recovery, combustion chambers, vacuum wood kilns, brick kilns, crucibles, vacuum furnaces, wood drying kilns, sponge iron rotary kilns.







Packaging and Shipping



Shipping and Packaging of the Ceramic Fiber Heating Module 1800c



Plastic bags or cartons according to customer requirements

Within 15 days after receiving the deposit.









QC



Ceramic fiber heating module 1800c certification



Quality is our promise to you.It is our responsibility to provide you with high-quality products.
