Premium standard TS35 DIN rail for circuit breaker electrical mounting rails
- $0.15 / >=100 pieces
- 100 pieces
- Kaer Technology Co.,Ltd
- Zhejiang, China
- Mr Xiaoke liu
Product Detail
| tolerant: | ±1% | Rail height: | 7.5 |
| Certificate: | EU Directive | model: | K-8500 TH35-75 |
| product name: | noisy track | Web Thickness: | 1.0mm |
| port: | Shanghai or Ningbo | type: | Light Rail |
| Middle school or not: | non-secondary school | application: | guide |
| payment terms: | L/C, Western Union, T/T | Packaging Details: | 100 pieces in a carton |
| Material: | steel | Package preview: | |
| Head Width: | 35 | standard: | industry standard |
| Origin: | Zhejiang, China | size: | 1M,2M or customized |
| weight: | 0.32KG | Supply capacity: | 5,000,000 pieces per month |
| brand: | Zell | length: | 1M~2M, 1M or 2M or customized |
| Bottom width: | 27 | grade: | steel |
| delivery time: | 8-14 days | Bolt hole diameter: | 6.2*15 |
Premium standard TS35 DIN rail for circuit breaker electrical mounting rails
the banner
Product Description

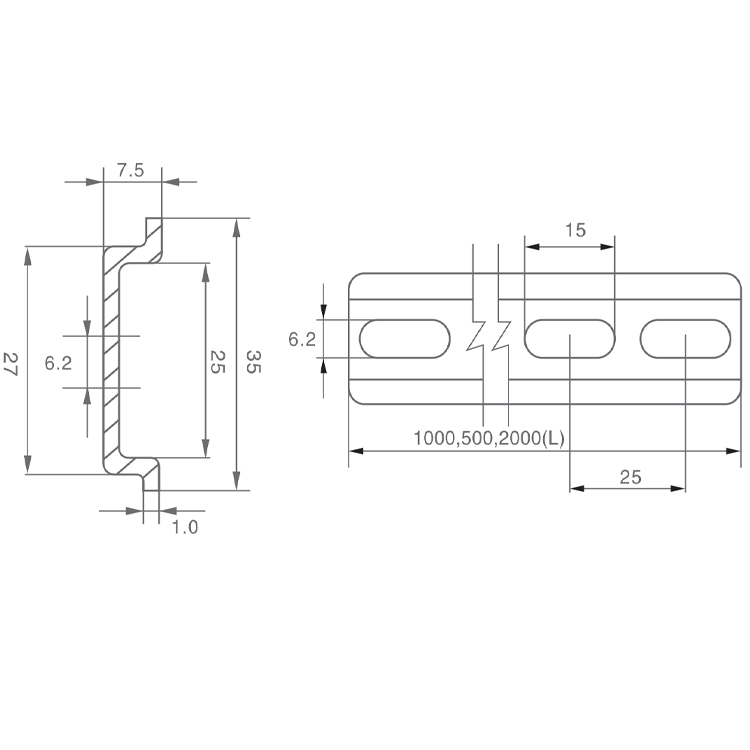

| product name | guide |
| Material | steel |
| width | 35mm |
| high | 7.5mm |
| thickness | 1.0mm |
| length | 1M |
| Package | 100M/set |
| gross weight | 16 kg |

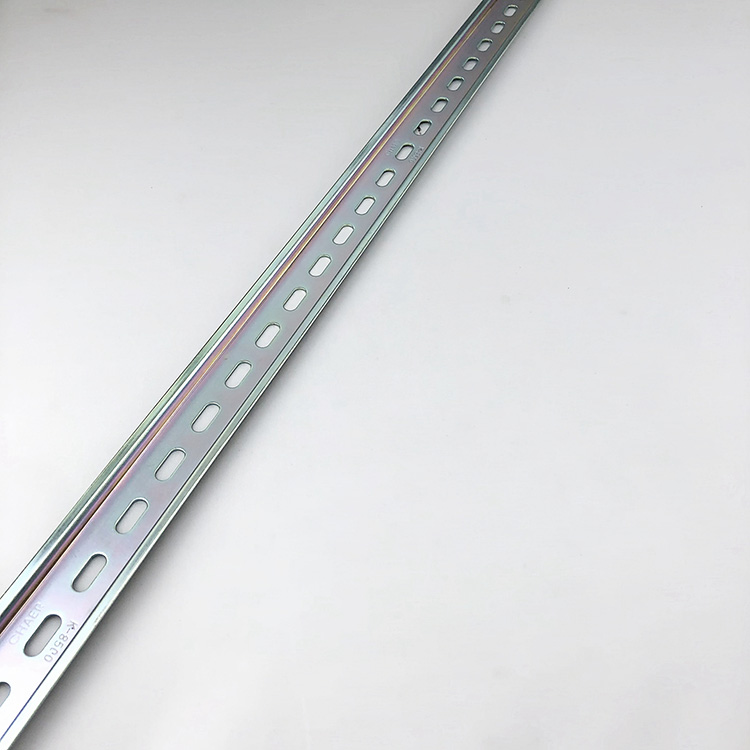

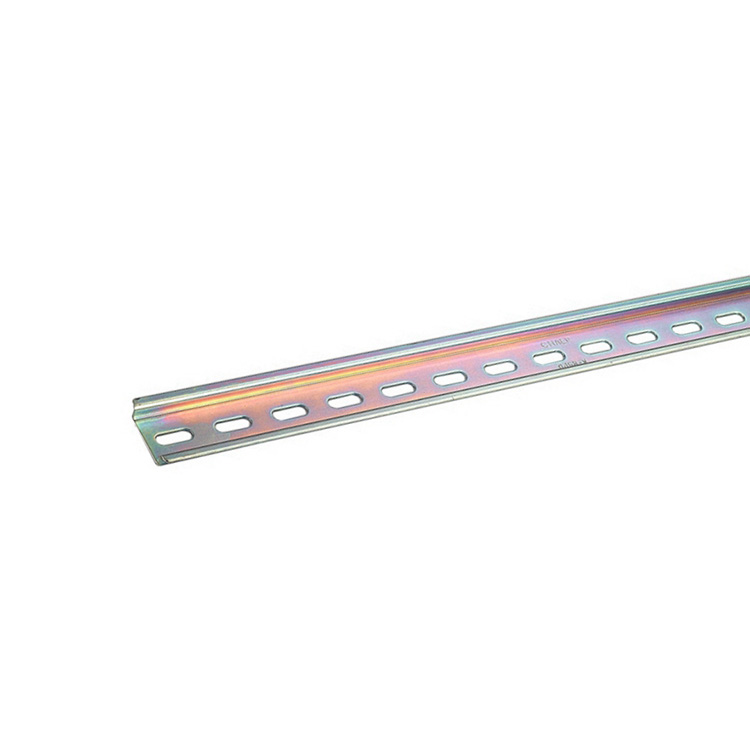

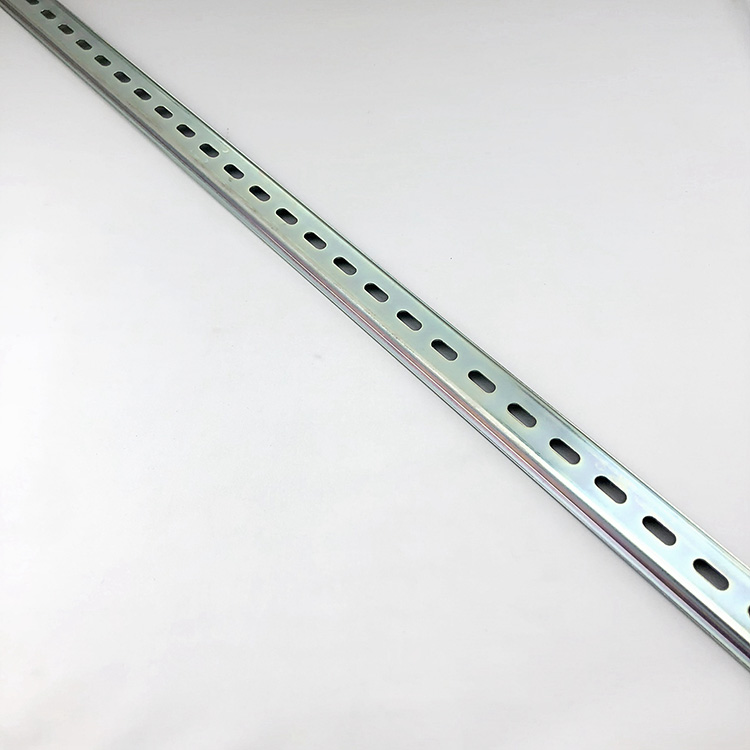

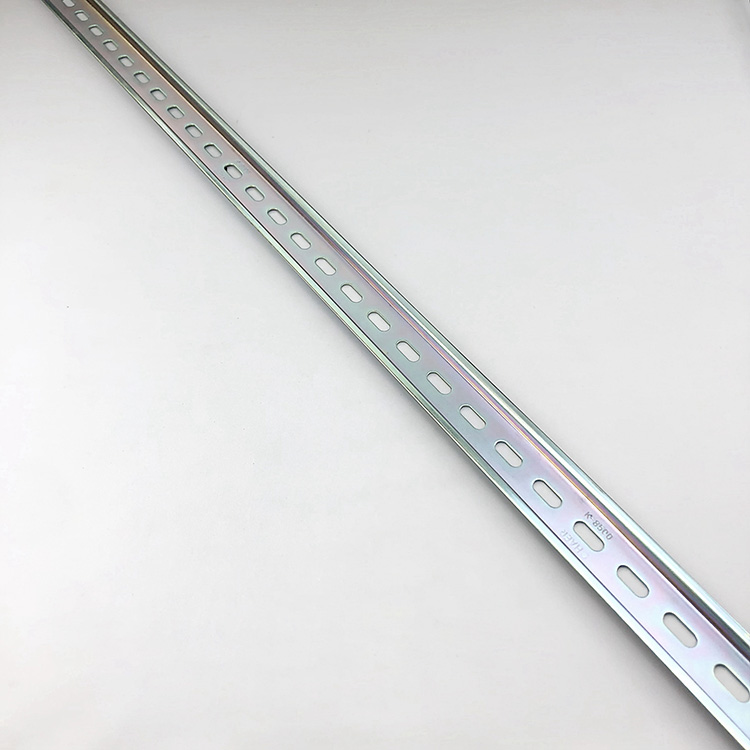

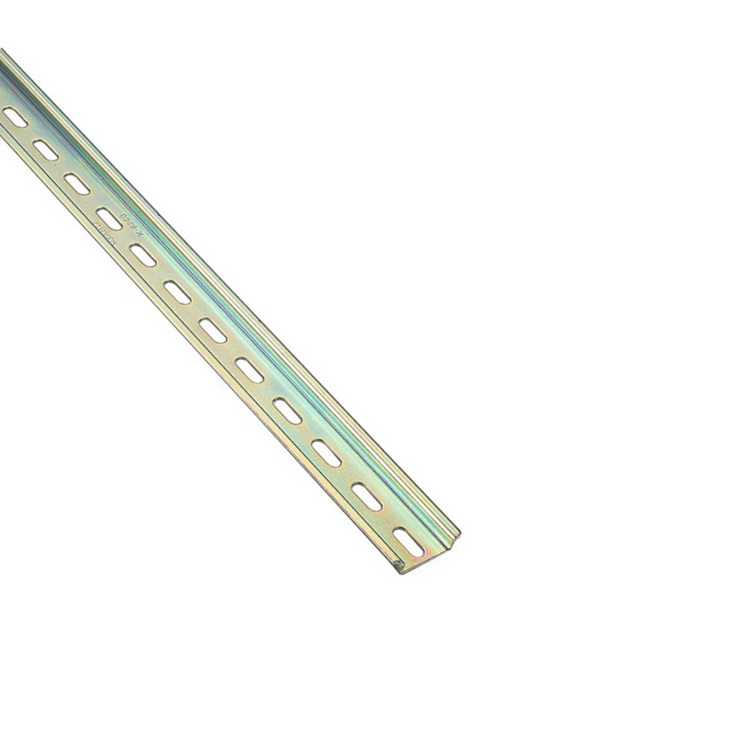

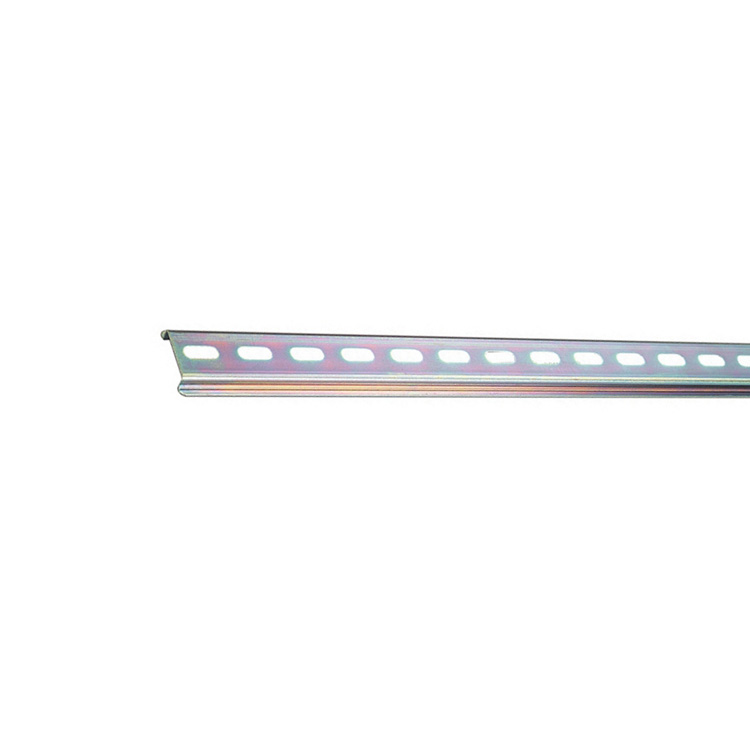

Zinc Dichromate Cold Rolled Plated Steel DIN Rail
describe:
1) Made of carbon structural steel plate, passivated with yellow chromic acid after galvanizing, with good rigidity and accurate size.
2) The standard length of 35x7.5 DIN Rail is 1m and 2m. Custom lengths are also available.
3) 35x7.5 DIN rail is suitable for installing circuit breakers, contactors, surge protectors, relays, terminal blocks, PLCs, modular sockets, and modular electrical appliances, which is conducive to electrical circuit design and maintenance. Improve installation speed, reduce manufacturing cost and use cost.
4) It can be installed in various socket boxes, control cabinets and switch cabinets.
5) Provide OEM/OBM/ODM services, we can also produce according to customers' special requirements, such as fixed size processing, customized slots, etc.
feature:
1) High precision
2) High strength
3) Punching without burrs and deformation
4) Conforms to EN50 022
