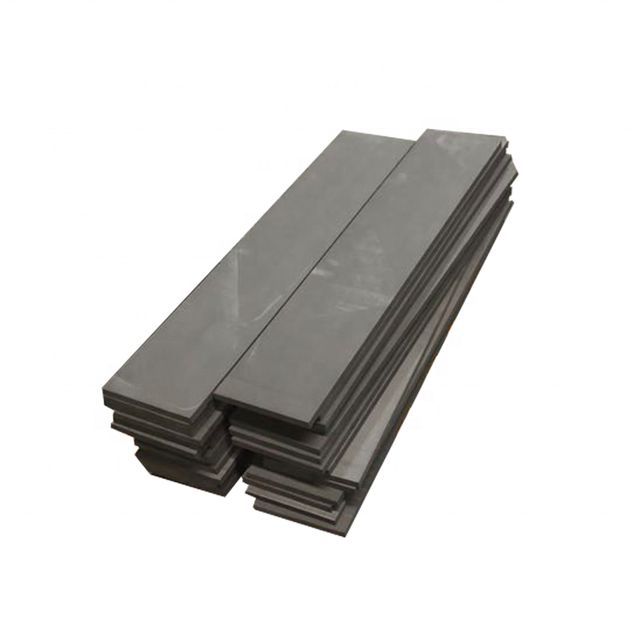

Carbon Vane Vacuum Pump Graphite Vane for High Purity Carbon Vane Pump
-
$5.80 / 1 - 99 pieces
$5.00 / 100 - 699 pieces
$4.30 / 700 - 9999 pieces
$3.00 / >=10000 pieces - 1 piece
- Shandong Guanzhi New Material Technology Co., Ltd.
- Shandong, China
- Mr
Product Detail
| Origin: | Shandong China | product name: | graphite plate |
| Customization support: | OEM, ODM, OBM | Bending strength: | 15-70MPa |
| type: | Composite board | payment terms: | L/C, D/P, D/P, T/T |
| Bulk density: | 1.60--1.90g/cm3 | C content (%): | 99.99% |
| Key words: | high temperature | Material: | High quality graphite |
| Packaging Details: | Professional, safe and standard export-grade packaging. | Package preview: | |
| Energy source: | electrical |
Product Details
Advantages of Vacuum Pump Wipers
Advantages of Vacuum Pump Wipers
3. The carbon sheet of the vacuum pump is more environmentally friendly and pollution-free, because the self-lubricating carbon sheet has mild carbon particles, which will be discharged from the exhaust port; 4. High efficiency, more suitable for high-speed rotating vacuum pumps; 5. Suitable for oil-free rotary vane vacuum pumps, Special carbon sheet and carbon sheet vacuum pump for oil-free vacuum pump
Product Description
1. Pull out the old carbon sheet and clean the inside; 2. Open both sides, check whether there are sundries, and clean it; 3. After installing the new carbon sheet, pay attention to the correct direction; 4. The carbon sheet and the end surface of the shaft must not be stained with Grease. Oil stains will affect the free movement of the carbon sheet, and the carbon sheet will break after operation; 5. After the carbon sheet is placed, turn the shaft by hand to see that the carbon sheet can stretch freely; 6. Use two screws to gently lock the front cover , turn the shaft slightly to check whether it runs smoothly (sometimes the carbon sheet is not placed correctly, and the screw locking force is too strong will cause the diagonal of the carbon sheet to be damaged)
1. Before installation, check whether the cavity and the rotor slot are clean; 2. When installing the carbon sheet, pay attention to the direction of the carbon sheet, and the bevel angle is 45 degrees; 3. The carbon sheet is in the rotor slot, and the carbon sheet can be moved freely by hand. The carbon blades should move freely in and out of the rotor slots without hindrance.
1. Clean the air pump cylinder before installing and replacing the carbon sheet. You can use fine sandpaper to polish the groove of the rotor a little, and there should be no residue (you can blow the cylinder with an air gun); 2. Check whether the cylinder is damaged (the carbon sheet is not used well, the hardness is too high and the cylinder is easy to wear); 3. Install the carbon Pay attention to whether the chamfering direction is reversed when installing the carbon sheet (reverse installation will cause the carbon sheet to break quickly); 4. Regularly maintain the air pump bearing and add high-temperature grease; 5. The air intake filter element should maintain good working performance and be replaced regularly Maintenance (It is recommended to clean with an air gun for 3-5 months, and replace it once a year); 6. The size of the worn carbon sheet must be accurately measured. Worn carbon plates are hard to come by with exact specifications. Please measure from the groove of the rotor to the cylinder wall, leaving a small amount of space (the expansion coefficient of the carbon sheet must be considered, the expansion of the carbon sheet will be crushed from both ends); 7. Commonly used models do not need to be measured, only the machine model or The machine nameplate is sufficient;
VIEW MORE
