China factory direct rail/light rail/heavy rail
-
$0.50 / 1 - 999 kilograms
$0.48 / 1000 - 9999 kilograms
$0.45 / >=10000 kilograms - 1 kilogram
- Shaanxi Hanye Iron And Steel Co., Ltd.
- Shaanxi, China
- Ms yoyo yuan
Product Detail
| Bolt hole diameter: | National standard | brand: | Han Ye |
| Packaging Details: | Packing: 1) Large order: bulk. 2) Small order: steel strapping. 3) Woven cloth with 7 slats. 4) Plastic/snakeskin bag. 5) According to customer requirements. | Rail height: | 140mm |
| size: | Require | type: | heavy iron |
| brand: | Han Ye | Supply capacity: | 10000 tons per month |
| quality: | high quality | Package preview: | |
| application: | railway railway | port: | Shanghai port or as your request |
| Material: | Q235/Q235B/Q345/Q345B/SS400 | Key words: | heavy railway |
| Middle school or not: | non-secondary school | Head Width: | 70mm |
| delivery time: | within 7 days | grade: | Q235/55Q/U71Mn/75V/50Mn/45Mn |
| tolerant: | ±1% | model: | rails |
| standard: | ASTM | Bottom width: | 114mm |
| Serve: | 24-hour service | Alloy or not: | Unalloyed |
| Web Thickness: | 14.5mm | feature: | hard |
| sample: | usable | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| weight: | 8.42-118.1KG/m | length: | 6m, 6m-12m |
| Origin: | Shaanxi, China | MOQ: | 1 ton |
| pack: | Standard Airworthy Packaging |
Product Description
Product Details
Rails Rails are the main component of railway tracks. Its function is to guide the locomotive and vehicle wheels forward and transfer them to the sleepers under the great pressure of the wheels. The track must provide the wheels with a continuous, smooth rolling surface with minimal resistance. In electrified railways or automatic block sections, steel rails can also be used as track circuits.
Specification
heavy rail | ||||||||||
model | Section size/mm | Theoretical weight(kg/m) | ||||||||
track height | base width | head width | Waist Thickness | |||||||
60 | 176 | 150 | 73 | 16.5 | 60.759 | |||||
50 | 152 | 132 | 70 | 15.5 | 51.514 | |||||
45 | 145 | 126 | 67 | 14.5 | 45.546 | |||||
43 | 140 | 114 | 70 | 14.5 | 44.653 | |||||
38 | 134 | 114 | 68 | 13.0 | 38.733 | |||||
Light Rail | ||||||||||
9 | 63.50 | 63.50 | 32.10 | 5.90 | 8.94 | |||||
12 | 69.85 | 69.85 | 38.10 | 7.54 | 12.20 | |||||
15 | 79.37 | 79.37 | 42.86 | 8.33 | 15.20 | |||||
twenty two | 93.66 | 93.66 | 50.80 | 10.72 | 22.30 | |||||
30 | 107.95 | 107.95 | 60.33 | 12.30 | 30.10 | |||||

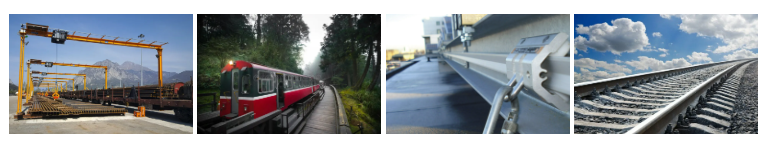

Applications
