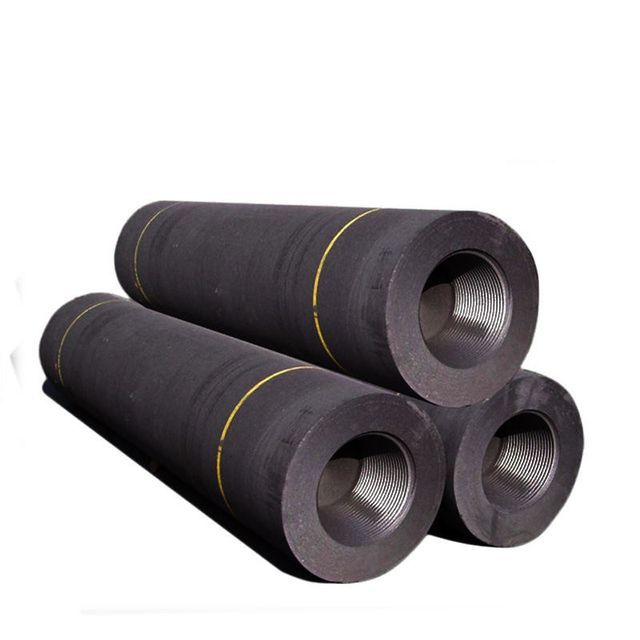

High quality UHP/HP/RP artificial graphite electrodes for power industry
-
$3000.00 / 1 - 4 pieces
$1800.00 / 5 - 19 pieces
$1300.00 / >=20 pieces - 1 piece
- Hebei Xingwangxiang Trade Co., Ltd.
- Hebei, China
- Ms Delia Zhang
Product Detail
| Package: | wooden box | Origin: | Hebei china |
| Resistance (μΩ.m): | 6.20 | Package preview: | |
| Ash: | 0.3% max | Customs code: | 85451100 |
| raw material: | 100% imported needle coke | type: | Electrode bolt |
| grade: | UHP, HP (High Power) | Packaging Details: | Choose the appropriate packaging method according to the customized product |
| Supply capacity: | 50 tons per month | brand: | wxya |
| product name: | graphite electrode | usage: | EAF/LF/other steelmaking |
| color: | dark grey | Bending strength (N/㎡): | 10.50 |
| model: | XWX-23021503 | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| Advantage: | high energy efficiency | Apparent Density (g/cm3): | 1.68 |
| length: | 1800mm/2100mm/2400mm/2700mm or according to your needs, 1800-2700MM | port: | Tianjin |
| application: | EAF/LF/other steelmaking | thermal expansion: | 1.5 |
High quality conventional power graphite electrodes with different lengths 600*2100
Product Description
Graphite electrodes mainly use domestic petroleum coke and imported needle coke, which are widely used in the production of alloy steel, metal and metal products in electric arc furnaces, ladle furnaces, submerged thermal electric furnaces, etc.
non-metallic materials.
Our graphite electrodes include Regular Power, High Power, Ultra High Power and Ultra High Power. It has the characteristics of low resistivity, good electrical and thermal conductivity, strong oxidation resistance and thermal shock resistance, and high mechanical strength. Various sizes and grades are available from our factory to meet customer requirements for specific applications.
non-metallic materials.
Our graphite electrodes include Regular Power, High Power, Ultra High Power and Ultra High Power. It has the characteristics of low resistivity, good electrical and thermal conductivity, strong oxidation resistance and thermal shock resistance, and high mechanical strength. Various sizes and grades are available from our factory to meet customer requirements for specific applications.
Features of graphite electrodes:
1. Low resistance
2. Good electrical and thermal conductivity
3. High density
4. High antioxidant capacity
5. High mechanical strength
6. High processing precision
2. Good electrical and thermal conductivity
3. High density
4. High antioxidant capacity
5. High mechanical strength
6. High processing precision
Graphite Electrode Specifications
thing | unit | RP | life value | ultra high pressure | ||||
300-800 mm | 300-800MM | 300-600MM | 650-800MM | |||||
Resistivity≤ | electrode | micro ohms | 7.8-8.8 | 5.8-6.6 | 4.8-5.8 | 5.8-6.6 | ||
nipple | 5.0-9.5 | 4.2-5.0 | 3.8-4.5 | 4.2-5.0 | ||||
Flexural strength≥ | electrode | MPa | 7.0-12.0 | 10.0-13.0 | 10.0-14.0 | 10.0-13.0 | ||
nipple | 15.0-20.0 | 18.0-22.0 | 20.0-26.0 | 18.0-22.0 | ||||
Elastic modulus≤ | electrode | grade point average | 7.0-9.3 | 8.0-12.0 | 9.0-13.0 | 8.0-12.0 | ||
nipple | 12.0-14.0 | 14.0-16.0 | 15.0-18.0 | 14.0-16.0 | ||||
Bulk density≥ | electrode | g/cubic centimeter | 1.53-1.56 | 1.62-1.66 | 1.68-1.74 | 1.62-1.66 | ||
nipple | 1.70-1.74 | 1.74-1.80 | 1.77-1.82 | 1.74-1.80 | ||||
Coefficient of thermal expansion≤ | electrode | x10-6/℃ | 2.2-2.6 | 1.6-1.9 | 1.1-1.4 | 1.6-1.9 | ||
nipple | 2.0-2.5 | 1.1-1.4 | 0.9-1.2 | 1.1-1.4 | ||||
Ash | % | 0.3 | 0.3 | 0.3 | 0.3 | |||
A variety of product shapes are available, and customization is also supported
Product advantages:
* A full range of carbon materials, graphite materials, refractory materials and water treatment materials products and solutions;
* High output, 80,000 tons per year, timely delivery; guaranteed delivery date
* Low resistivity
* high temperature strength
* Good thermal and electrical conductivity
* Low coefficient of thermal expansion
* Low ash content, the ash content is controlled within 3%.
* The structure is dense and uniform, and the consumption of graphite electrodes is low.
* Good oxidation resistance
* High mechanical strength
* The content of needle coke accounts for 80%, and the raw materials are imported from Japan and South Korea
* A full range of carbon materials, graphite materials, refractory materials and water treatment materials products and solutions;
* High output, 80,000 tons per year, timely delivery; guaranteed delivery date
* Low resistivity
* high temperature strength
* Good thermal and electrical conductivity
* Low coefficient of thermal expansion
* Low ash content, the ash content is controlled within 3%.
* The structure is dense and uniform, and the consumption of graphite electrodes is low.
* Good oxidation resistance
* High mechanical strength
* The content of needle coke accounts for 80%, and the raw materials are imported from Japan and South Korea
