Silicon core steel EI240 - the most popular size for transformer stamping in Pakistan market
-
$2.00 / 1000 - 24999 kilograms
$1.09 / 25000 - 199999 kilograms
$0.90 / >=200000 kilograms - 1000 kilograms
- Jiangyin Chuangjia Electrical Co., Ltd.
- Jiangsu, China
- Ms Sandy Chan
Product Detail
| Material: | CRNO 50W470/600/800 | Certification: | ISO9001/14001 |
| Surface treatment: | baked, coated | Processing service: | Bending, welding, uncoiling, cutting, punching |
| grade: | Silicon steel | shape: | EI lamination |
| place of origin; place of origin: | China, Jiangsu, China | application: | Transformer core |
| color: | grey | standard: | GB/T6451-2008, Ace, ASTM, bs, DIN, GB, JIS |
| type: | non-oriented silicon steel, non-oriented silicon steel | technology: | cold rolled |
| Packaging Preview: | tolerant: | 0.1 mm | |
| thickness: | 0.5mm,0.25 - 0.5mm | Packaging Details: | A carton of 25 kg, sprayed with anti-rust and anti-rust paper, 1-1.5 tons/pallet, 25-27 tons/20GP container. |
| model: | EI-240 | port: | Shanghai |
| Supply capacity: | 3000000 kg per month | payment terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |

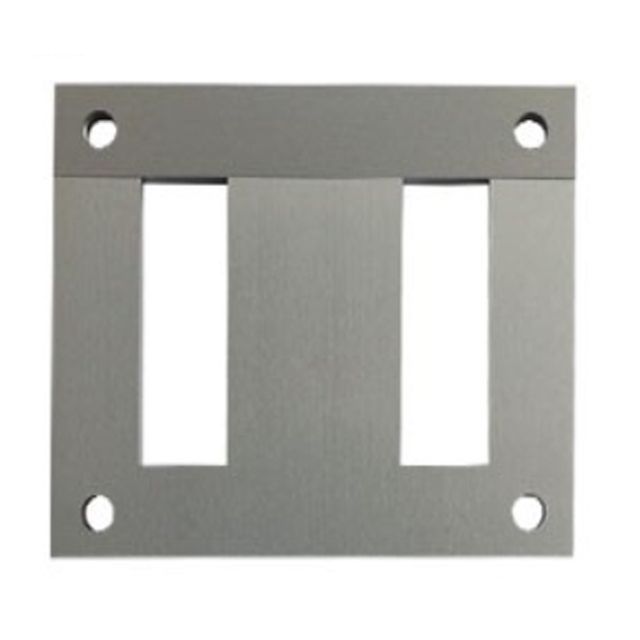

| EI-240 single-phase transformer core |

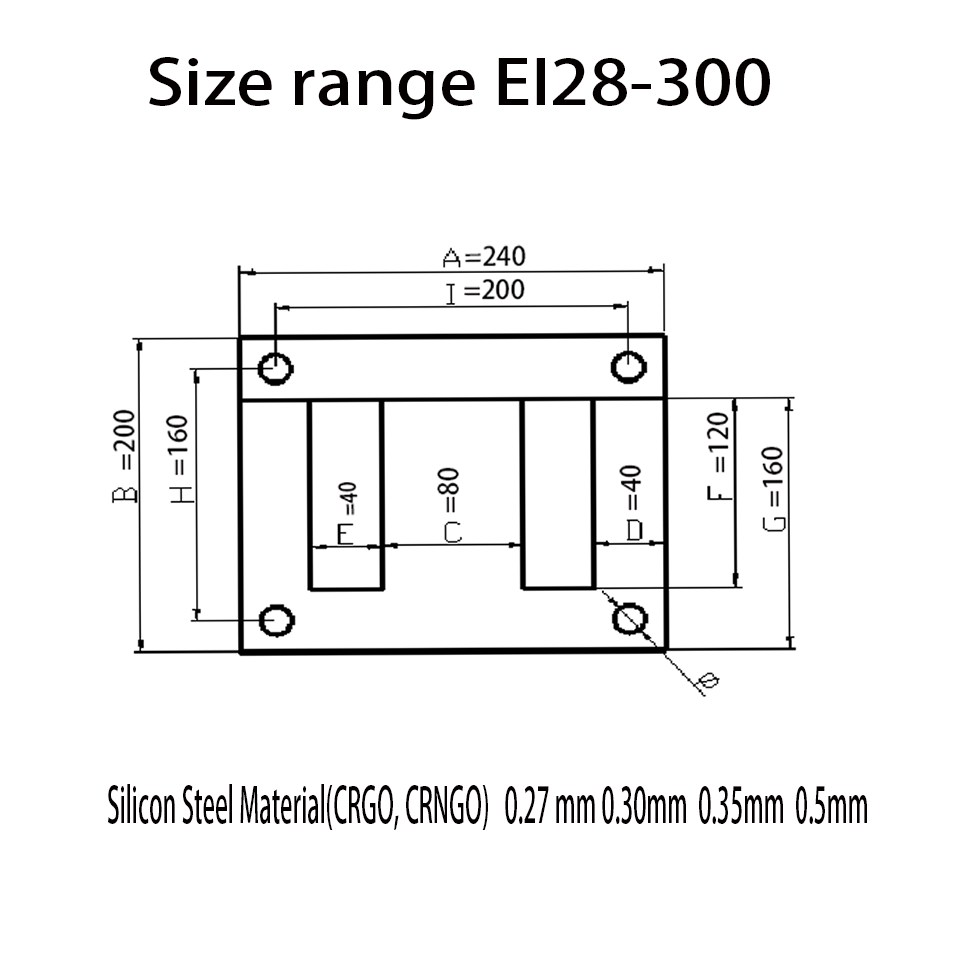

| EI Core Laminate Date Table: |
| product name | Silicon steel sheet/EI iron chip | ||||
| size | EI-28 | ||||
| usage | EI laminated core application scope: power transformers, ballasts, UPS, chargers, control transformers, etc. | ||||
| other size | EI single-phase series EI28-300/EI three-phase series EI 80-300 | ||||
| Material code: | Silicon steel materials (CRGO, CRNGO) | ||||
| thickness | 0.30mm 0.35mm 0.5mm | ||||
| material brand | Wugang/Baosteel/Angang/Taigang/Shougang etc. | ||||
| Related Types | LT series/UI series | ||||
| Sample delivery time | 3-5 days after confirming the sample | ||||
| mold | No mold fee is required for standard size, if it is not standard size, we can make molds according to customer's drawings. | ||||
| Minimum order quantity | 500KG | ||||
| Package | A carton of 25 kg, sprayed with anti-rust and anti-rust paper, 1-1.5 tons/pallet, 25-27 tons/20GP container. | ||||
| delivery time | 14 days per 20 GP container. | ||||
| expiration of pay | Wire Transfer, Letter of Credit, Cash | ||||
| shipping | Air or Sea or Combined Shipping | ||||
| production capacity | 10,000 tons/year. | ||||
| Our focus | 1.OEM & ODM | ||||
| 2. Customized customer service | |||||
| 3. High quality and prompt delivery | |||||
| Electrical steel, also known as laminated steel, silicon electrical steel, silicon steel or transformer steel, is a special steel tailored to produce certain magnetic properties, such as a small hysteresis area (small energy dissipation per cycle, or low core loss) and high permeability. Electrical steel is often coated to increase electrical resistance between laminations, to provide resistance to corrosion or rust, and to act as a lubricant during die cutting. It is a commonly used material for transformers and motor cores. |
|||||

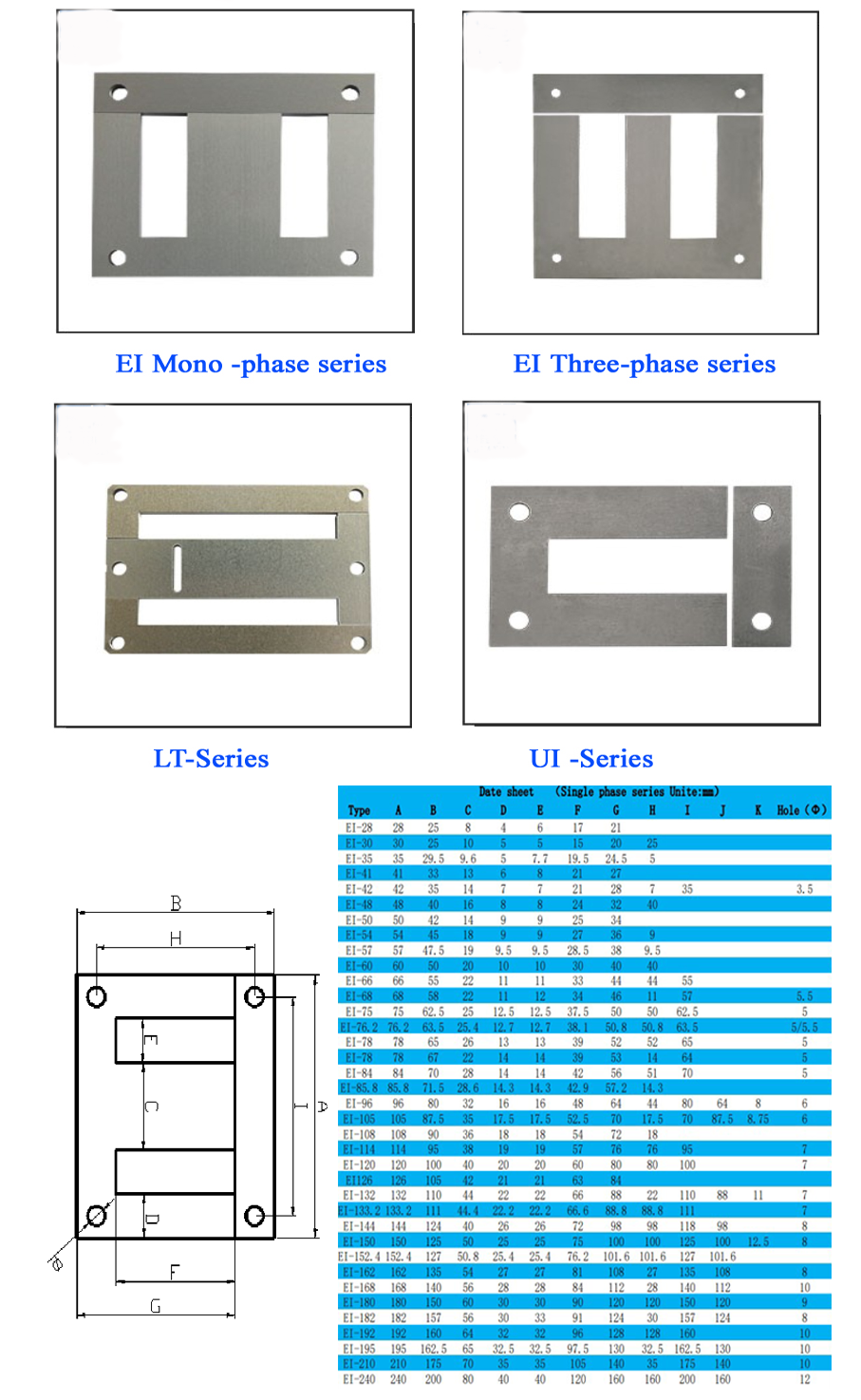

| Silicon chip series: |
| Packaging and Delivery: |
| Certificate: |
| patent: |

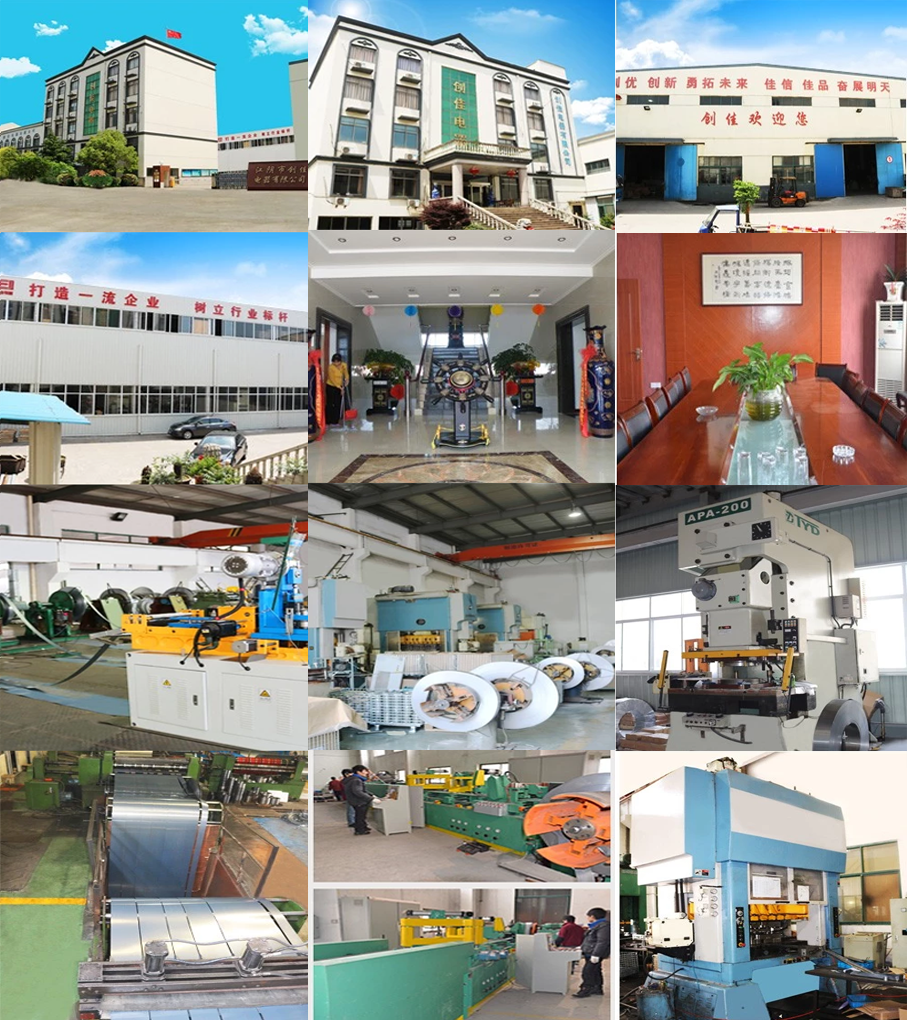

| Office and workshop: |
| contact us: |
| sand | Sales Manager | ||||
| Tel: 0086 510 86033909 | Mobile & WeChat: 0086 15995329060 | ||||
| Whatsapp: 13621523395 | Skype: sandy6040 | ||||
| Email: sandy(@j)ycjdq.com | sandychan505(@)163.com | ||||
| FAQ: |
1. Are you a trading company or a manufacturer?
A: We are a custom factory.
2. Is there a small supply?
A: Yes, small trial orders are available.
3. What is the quality of your products?
Before our production, we choose good raw materials to keep our laminations with low iron loss and good stability for a long time.
4. What is the shelf life of your products?
Our laminates come with a long life warranty because our raw material channels are standard and regular and certified before delivery.
