Junai 1260c ceramic fiber refractory thermal insulation
-
$13.60 / 1 - 49 pieces
$3.80 / >=50 pieces - 1 piece
- Shaanxi Junai Energy Saving Technology Co., Ltd.
- Shaanxi, China
- Mr Bryant Yu
Product Detail
| Density lb/ft3 (kg/m3): | 11-16 (170-250) | Al2O3+SiO2: | ≥96% |
| Fiber diameter (μm): | 3~5 | payment terms: | Letter of Credit, Wire Transfer, Paypal |
| Ferric oxide: | ≤1% | type: | ORCFB-100 |
| Card: | Jun love | Thermal conductivity (W/mK): | 0.20 at 1472°F (800°C) |
| maximum. Rated temperature °F (°C): | 1832°F (1000°C) | Classification Temperature °F (°C): | 2300°F (1260°C) |
| port: | Shanghai | feature: | fireproof |
| Packaging Details: | 1. Inner plastic bag and outer carton; 2. Inner plastic bag, pallet packing; 3. Inner plastic bag and outer carton, then it will be packed on pallet. | Supply capacity: | 10000 pieces per month |
| Linear contraction: | 1832℉(1000℃)*24h≤3.0% |
Product Description

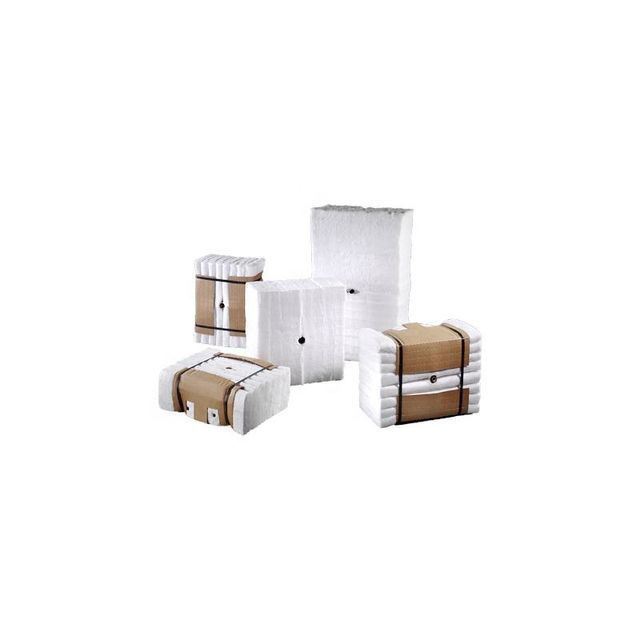

Junai Ceramic Fiber Module
Junai ceramic fiber module is made by folding and compressing ceramic fiber blanket. It exhibits excellent thermal insulation properties at high temperatures, provides products with a working temperature of up to 1400°C, has excellent thermal stability, and maintains its original soft fiber structure at the highest continuous use temperature. Ceramic fiber modules are available in a variety of furnace types, with a choice of anchoring systems for quick, easy and efficient installation. Ceramic fiber modular liners increase productivity and reduce maintenance costs for various furnace types due to their high construction efficiency. The ceramic fiber module can be directly fixed on the anchoring nails of the steel plate of the furnace shell.
>>Get latest price
Product parameters
Junai Ceramic Fiber Module | ||||||||||||
product name | standard | high purity | High aluminum | zirconium | chromium | |||||||
Product Code | RM-100 | RM-110 | RM-120 | RM-130 | RM-140 | |||||||
Classification temperature (°C) | 1260 | 1260 | 1400 | 1430 | 1500 | |||||||
Operating temperature (°C) | 1000 | 1100 | 1200 | 1350 | 1400 | |||||||
Bulk density (kg/m³) | 180/210/230 | 210/230 | 210/230 | 210/230 | 230 | |||||||
Heating permanent circuit change [working temperature × 24h] (%) | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | |||||||
Thermal conductivity (W/m·K) | 400℃ | 0.10 | 0.10 | 0.10 | 0.10 | 0.10 | ||||||
600℃ | 0.18 | 0.17 | 0.16 | 0.15 | 0.15 | |||||||
800℃ | 0.20 | 0.20 | 0.20 | 0.19 | 0.19 | |||||||
1000℃ | 0.27 | 0.26 | 0.26 | 0.26 | 0.26 | |||||||
chemical composition (%) | Alumina | ≥43 | ≥47 | 52-58 | 36-40 | 43 | ||||||
Al2O3+SiO2 | ≥96 | ≥97 | ≥98 | — | — | |||||||
ZrO2 (Cr2O3) | — | — | — | 13~18 | 2~4 | |||||||
Al2O3+SiO2+ZrO2 (Cr2O3) | — | — | — | ≥99 | ≥99 | |||||||
>>OEM service is here!
Applications
Our products are widely used and experienced in these industries.
We can provideSystem SolutionsIn the field of high and low temperature industrial energy saving, includingProject design, product supply, on-site guidance and technical support.4e979d
>> System solution is here!

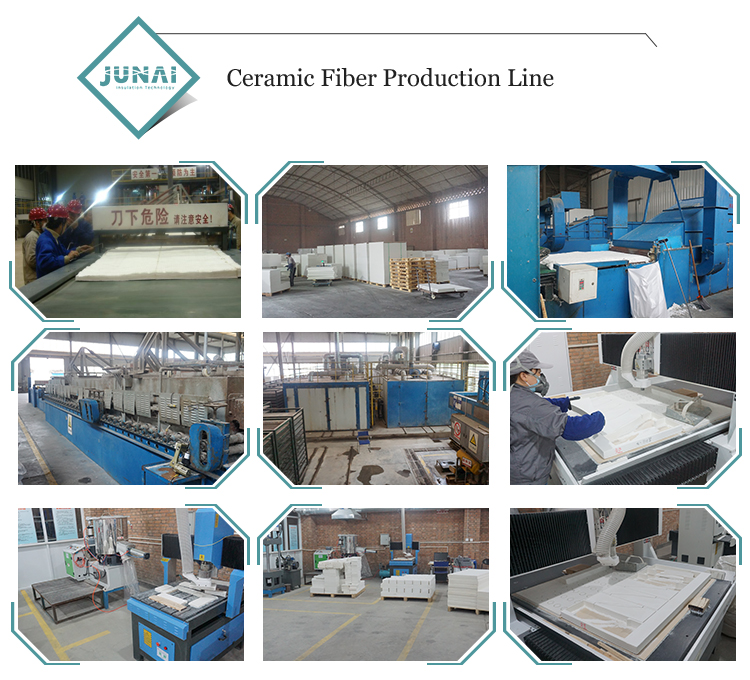

production line
>> Get Free Samples!
