Ceramic Honeycomb Plate Custom Refractory Cordierite Infrared Honeycomb Gas Burner Plate

Product Detail

Material:cordieriteFerric oxide:0.44
Silicon carbide content (%):0density:2.1 g/cm3
payment terms:Western Union, Letter of Credit, Wire Transfer, MoneyGram, Credit Cardproduct name:Cordierite honeycomb ceramic plate
Cr2O content (%):0Place of origin:Jiangsu, China
Volume resistance temperature:400 (1MΩcm, minimum ℃)Minimum peeling resistance:250 tons
CaO content (%):1.14application:Refractory products
Maximum opening ratio:0.5%shape:plate
Thermal conductivity:1.5-2.5Magnesium oxide content (%):6.71
Processing services:Punching, cutting, formingRefractory degree (degree):Ordinary (1580°
Silica content (%):41.65brand:HB
Maximum operating temperature:1280℃model:HBM
Packaging details:Cordierite honeycomb ceramic plate infrared honeycomb ceramic heating plate gas burner plate 1. Plastic air cushion film 2. Foam material 3. Carton 4. Wooden box or palletPackage preview:
Supply capacity:10,000 pieces per monthAdvantage:heat resistant
Al2O3 content (%):48.94
Product Description
product name
Customized refractory cordierite honeycomb ceramic plate infrared honeycomb ceramic heating plate gas burner plate
Forming method
Hot casting/dry press/extrusion
pay
T/T, Western Union, credit card can be used to pay online
transport company
Air shipment: 5-10 days; Sea shipment: about 1 month.
delivery time
1. Inventory: Shipped within 3-5 days after payment is received.

2. OEM/ODM: Normal delivery time is 15-45 days, depending on your quantity.

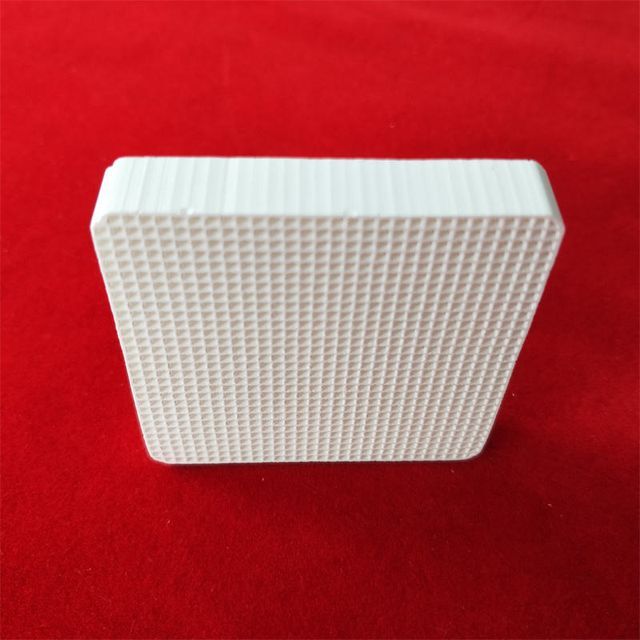

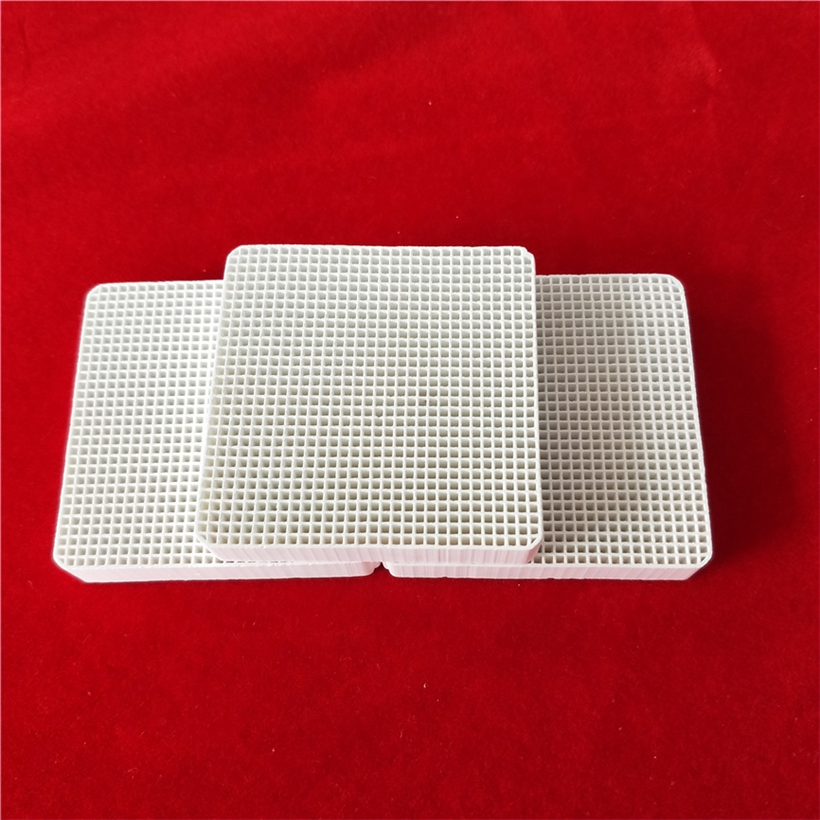

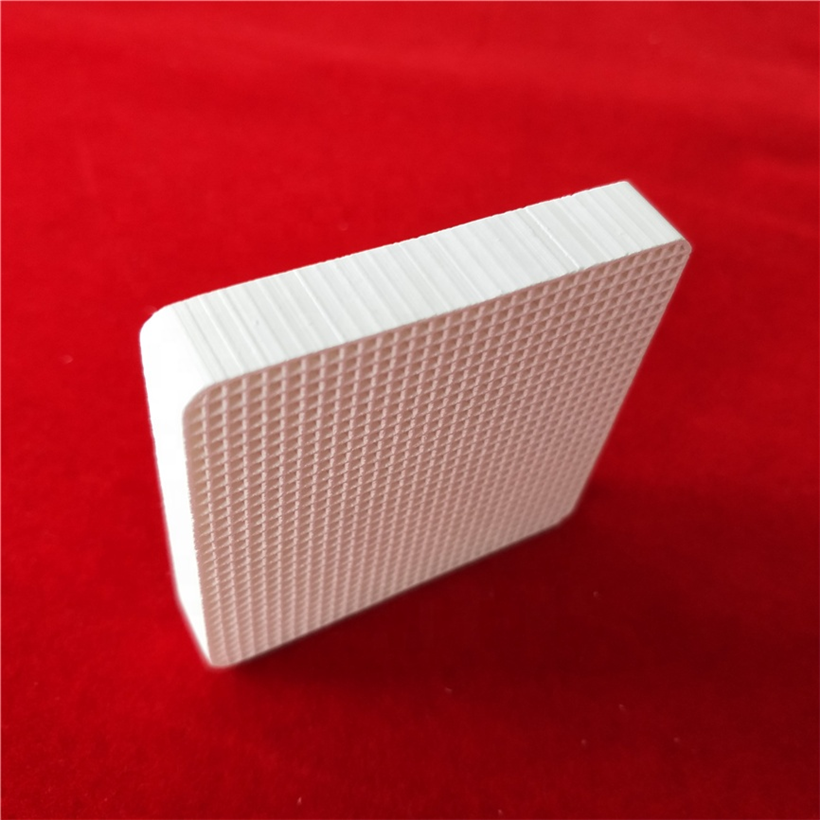

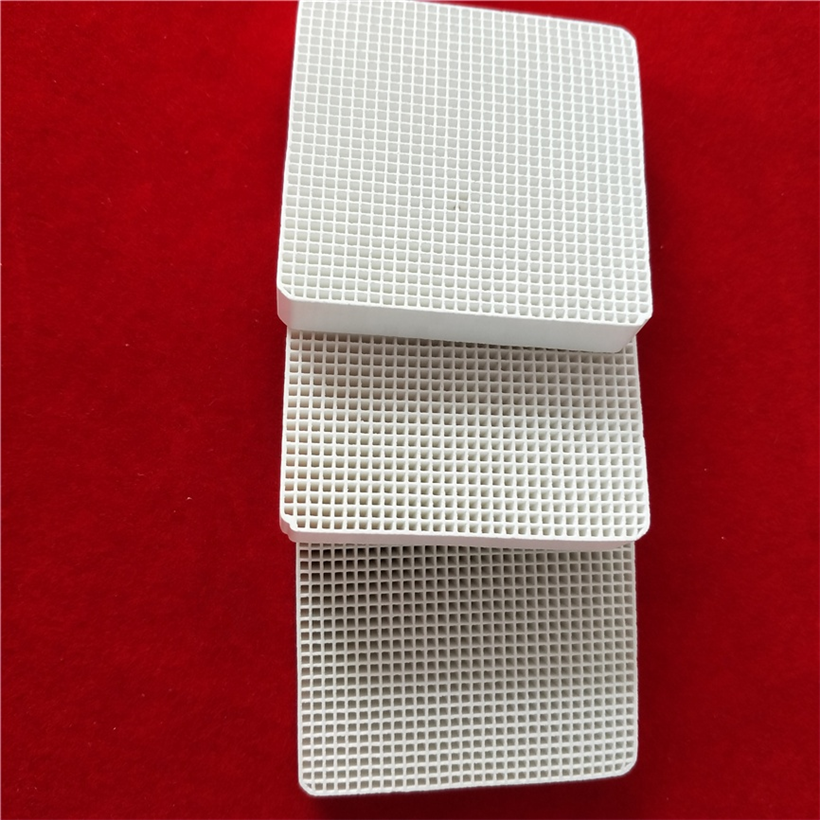

Cordierite honeycomb ceramic plate
The main raw materials of cordierite are clay, talc, alumina, etc. Due to its low thermal expansion coefficient, it is generally used in harsh environments with thermal shock. It can be used for coil skeletons, arc-resistant electrical insulation materials, composite material substrates, and burner materials for electric heating insulation devices.
Advantages of Honeycomb Ceramic Heating Plate
1. It has the characteristics of acid resistance, wear resistance, high temperature resistance, antistatic, etc. 2. Long use time, which can extend the service life of the equipment by more than 10 times. 3. Corrosion resistance, high precision, high density, high mechanical properties, high strength and strong chemical stability. 4. Strong electrical insulation, insulator at room temperature, high resistivity 5. Diamagnetic, does not absorb dust, can reduce surface shedding

Application of Honeycomb Ceramic Heating Plate Gas Burning Plate
Cordierite ceramics are widely used in various fields such as electronics, electrical appliances, welding equipment, chemical industry, machinery, railways, textiles, environmental protection, thermal engineering, instrumentation, mining machinery, postal and telecommunications and national defense industries.
Technical data
cordierite
Cordierite technical data
Material
Material
Cordierite(C410)
Silica%
41.65
Ferric oxide%
0.44
Aluminum oxide%
48.94
Calcium Oxide%
1.14
Magnesium oxide%
6.71
Potassium oxide%
0.34
Sodium oxide%
0.17
Distrust rate %
0.17
Maximum porosity
Maximum opening rate.Vol%
0.5
density
Density g/cm3
2.1
20…100℃ 10-6K-1
1…3
20…600℃ 10-6K-1
2…4
Electrical and thermal properties
Thermal and electrical properties
maximum temperature
maximum. Operating temperature℃
1280
thermal activity
thermal conductivity
1.5…2.5
Temperature versus Volume Resistance
Volume resistance temperature
1MΩcm, minimum ℃
400
Spalling strength
Minimum peeling resistance △t
250
