High Strength Silicon Carbide Furnace Shelves

  • $2.50 / >=50 kilograms
  • 50 kilograms
  • Shine Technology Co., Ltd.
  • Beijing, China
  • Ms Nancy Lee

Product Detail

model:Maximum temperature: 1450CPackaging Details:wooden box or pallet
Coating Color:whiteLoad softening temperature (°C):>1750(T2)2Kg/cm2
Magnesium oxide content (%):0%Cr2O content (%):0%
CaO content (%):0%Silica content (%):8%
density:2.70-2.75color:Black
brand:shineSilicon carbide content (%):90%
payment terms:L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal, Alibaba Trade AssuranceSupply capacity:350 tons per month
shape:plateport:any port in china
product name:High Strength Silicon Carbide Furnace ShelvesMaterial:Silicon carbide (SiC)
Origin:Jiangsu, ChinaThermal expansion rate (*10-6/℃):4.2-4.8
Delivery Details:7-15 days according to different quantityAl2O3 content (%):99% coating
Refractoriness (degrees):Ordinary (1580°
Product Description

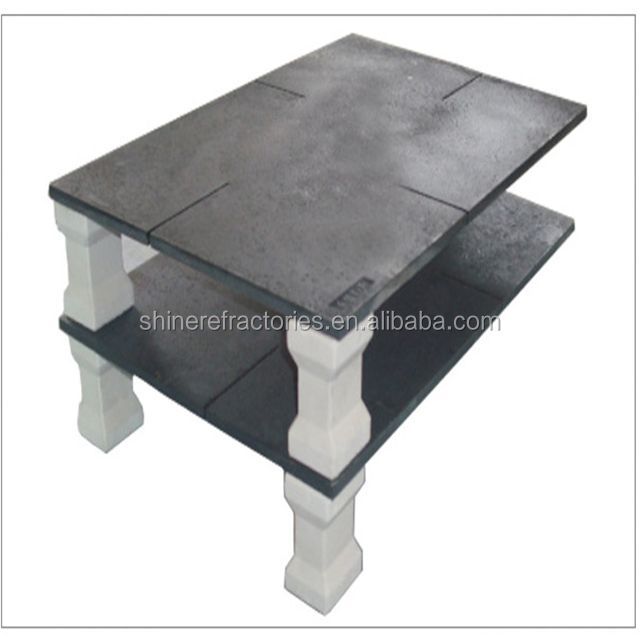

 High Strength Silicon Carbide Furnace Shelves



1. Introduction
High Strength Silicon Carbide Furnace ShelvesThin and lightweight, made from an advanced nitride-bonded silicon carbide composition that provides greater strength and half or less weight than traditional 1-inch thick cordierite kiln frames. They won't sag or warp after multiple firings under heavy loads, are suitable for temperatures up to 2600°F, and are an excellent choice for gas, soda, and fired kilns. They cost about twice as much as cordierite or high alumina kiln frames.

The kiln rack should be stored upright on its edge. Laying them flat will make them more likely to crack or crack. Keep shelf dry. If they do get wet (for example, after a kiln wash), heat them slowly and soak them at 300°F for a few hours.
Kiln wash is a layer of material between the pot and the kiln frame, which protects the kiln frame during glaze firing and prevents the glaze from sticking to the frame. Unglazed pottery may stick to the kiln frame if the clay body vitrifies. Kiln wash materials are made from silica sand, hydrated alumina and kaolin. You can mix your own kiln wash or buy it.

During the glaze firing process, if accidents occur (such as glaze flow, pot overturning, etc.), even if the glaze at the bottom is wiped off or stilts are used, the glaze will still come into contact with the kiln frame. If kiln washing is not used in the above possible cases, your pan will stick to the rack and crack when you try to remove it. You have to grind the glaze off the surface of the shelf, the remaining glaze soaking into the shelf will continue to attack the kiln frame.

We also recommend kiln washing the bricks at the bottom of the kiln to prevent glaze drips from damaging soft bricks.



warn:Keep away from electric kiln components - kiln washing will corrode and shorten the life expectancy of components.


2. Specifications

thingTechnical data
Bulk density (g/cm3)2.70-2.75
Apparent porosity(%)7-8
Normal temperature strength (Mpa)>50
High temperature flexural strength (Mpa/1400℃)>55
Cold crushing strength (Mpa)>90
Softening temperature under load (°C)>1750(T2)2Kg/cm2
Maximum operating temperature (°C)1450
Thermal conductivity (Kcal/mh℃)13.5-14.5
Thermal expansion rate (×10-6/℃)4.2-4.8
chemical compositionSilicon carbide>90%
Ferric oxide<0.3%
Al2O3>99% (surface coating)



Main dimensions of silicon carbide kiln frame
240*200*T295*295*T310*310*T320*320*T340*340*T320*150*T
320*300*T340*200*T380*340*T400*150*T400*190*T400*195*T
400*200*T400*230*T400*270*T400*320*T400*400*T420*420*T
450*450*T400*215*T320*240*T550*400*T500*450*T500*370*T
600*500*T530*330*T600*400*T600*550*T620*560*T550*370*T
700*500*T550*500*T500*480*T600*400*T420*400*T450*400*T
Thickness can be 10-30mm



Packaging and Shipping

wooden pallet or wooden box



our service



1. Timely response,

Reply to your inquiries in a timely manner, make multi-choice recommendations according to your needs, quickly reply to emails and provide solutions.



2. Sample evaluation

Accept to provide samples and trial orders for quality evaluation.



3. Strict quality control

Arrange production on time and strictly control quality.



4. Short delivery time

Book the earliest ship or plane to guarantee delivery time.



5. Professional and complete shipping documents

Provide all detailed news and pictures from order to delivery;

Provide relevant export documents and original certificates when necessary;



6. Warm and thoughtful after-sales service
