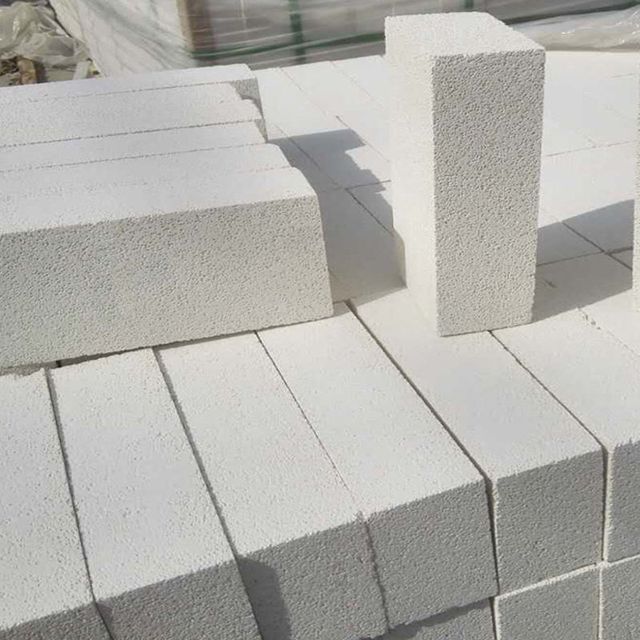

Sintered Mullite Insulation Refractory Brick Lightweight Refractory Brick JM-23

Sintered Mullite Insulation Refractory Brick Lightweight Refractory Brick JM-23

Lightweight brick is a high-quality refractory insulation material with light weight, low thermal conductivity, heat insulation and high compressive strength for high-temperature furnaces. Lightweight bricks are mainly used for hot blast stove top, blast furnace chimney and bottom, glass furnace regenerator, ceramic high temperature furnace lining, etc.
Lightweight bricks use mullite as the main crystal phase, containing about 65-75% alumina. Mullite insulation bricks have high refractoriness, up to 1790°C. Its apparent initial softening temperature is about 1600-1700°C. Its cold compressive strength is about 70~260MPa.
Mullite insulation bricks are divided into different models such as 1350 light weight bricks, 1450 light weight bricks and 1550 light weight bricks according to different use temperatures, and are divided into light weight mullite bricks and heavy weight mullite bricks according to different bulk density.

Lightweight brick is a high-quality high-temperature resistant material with the following excellent characteristics

Performance:
Low thermal conductivity and low heat capacity
High purity and low impurity content
Excellent high temperature strength
good thermal shock resistance
low expansion coefficient
Strong acid and alkali corrosion resistance
Features of lightweight mullite insulation bricks:
1. Excellent compressive strength
2. Excellent thermal stability
3. Low thermal conductivity
4. Low heat storage
5. High aluminum, low iron and alkali flux content
6. Accurate size
7. Design packaging



Sintered Mullite Insulation Refractory Brick Lightweight Refractory Brick JM-23

item/index		HT23	HT26	HT28	HT30	HT32
Alumina%		37	54	64	72	77
Ferric oxide%		1.0	0.9	0.8	0.7	0.5
Thermal conductivity (w/m*k)	400°C	0.14	0.27	0.32	0.41	0.49
	600°C	0.16	0.29	0.34	0.43	0.5
	800℃	0.18	0.31	0.36	0.44	0.51
	1000℃	0.20	0.33	0.38	0.45	0.53
Grading temperature (°C)		1260	1430	1540	1650	1760
Thermal expansion 1000℃ (%)		0.5	0.7	0.8	0.9	1.1
Bulk density (g/cm3)		0.55-0.62	0.78-0.8	0.88	1.03	1.25
Cold compressive strength (Mpa)		1.2	1.6	2.1	2.5	3.5
Modulus of rupture (Mpa)		0.9	1.4	1.6	2.1	2.1
Reheat linear change (%)   CT-30℃*8H		1230°C   -0.5	1400°C   -0.5	1510°C   -0.5	1620°C   -0.9	1730°C   -0.9



Common Size of Lightweight Bricks

Power Industry
petrochemical industry
Metallurgical industry
Kiln insulation
other insulation
Recommended for primary hot face refractory lining or for use in furnaces, kilns, flues, refining vessels and heaters, regenerators, gas generators and primary, soaking pits, stress relief furnaces, reaction chambers and other refractories of similar high temperature Spare insulation temperature industrial equipment behind the material.

Sintered Mullite Insulation Refractory Brick Lightweight Refractory Brick JM-23

Package:

Standard export wooden pallet with cardboard and PET strap, 10 bricks in 1 carton, 48 cartons in 1 pallet.

1. Strong packaging will protect the goods from any possible damage during transportation.
2. Sturdy packing and integral packing can prevent the case from vibrating and shaking.
3. We must take the necessary precautions so that the packaging can protect the goods from theft or rain.
4. We can confirm that we have taken every possible precaution to ensure that our products reach our customers all over the world in the best condition.

shipping:

By ship or train from any port in China, samples can be delivered by international express.





Delivery: 15-30 working days for large quantity. We will arrange shipment as soon as possible. Of course, if it is a customized product, the delivery time will be delayed.
Sample: usually by EMS, DHL, UPS, TNT, FedEx. whatever you like. Bulk order: usually by sea.

Payment method: T/T, letter of credit at sight is acceptable. The specific terms are determined according to the quantity of goods, etc.
Your inquiries about our products and prices will be responded within 24 hours.
exit:
Our products have been exported to many countries: Australia, Chile, the United States, Russia, the United Kingdom, Indonesia, etc., and the good quality has been recognized by customers.



 about Us
1. Strong professionalism:
Our company has thirty years of experience in the production of refractory products. Our managers will supervise the production materials, process control, quality supervision and package delivery of various refractory materials, and ensure that the products are 100% qualified.
2. Annual supply:
Our company has passed ISO9001 quality management system certification and SGS certification. The annual supply of shaped and unshaped refractory products is 28,800-35,000 tons.
3. Export experience:
Now we have gained a global sales network covering Taiwan, Russia, Korea, Vietnam, Pakistan, Bulgaria, France, India, Congo, Angola, South Africa and so on.
4. Production equipment:
Production and testing equipment are new and complete, automatic or semi-automatic. These modern facilities and equipment provide a good technical guarantee for production and testing.
5. Testing equipment:
Our company's testing equipment is as follows:
High temperature RUL tester
Bulk Density Meter
pressure tester
Fire resistance tester
