Lightweight Mullite Insulation Brick JM23 JM26 JM28 JM30

Product Detail

MgO content (%):0.05% maxAl2O3 content (%):38%-75%
application:industrial furnaceSupply capacity:1000 tons of lightweight mullite bricks per month
model:mullite brickBulk density:0.6~1.3g/cm3
Silica content (%):15%~45%product name:lightweight mullite brick
CrO content (%):0.1~0.3%MAXProcessing:yes
Packaging Details:Mullite Lightweight Insulation Brick Plywood PalletTypes of:factory
sample:freelypayment terms:L/C, D/A, T/T, Western Union, MoneyGram
shape:brickMaterial:Mullite
color:whiteport:Tianjin, Qingdao, Shanghai
Fe2O3≤:1.0%size:230mm*114mm*75mm
Certificate:ISO BV SGSplace of origin; place of origin:Henan, China
Shipping Details:Shipped within 15 days after paymentRefractoriness (degrees):Ordinary (1580°
CaO content (%):0.34%Silicon carbide content (%):0.1~1.4%
brand:Hongtai
Product Description

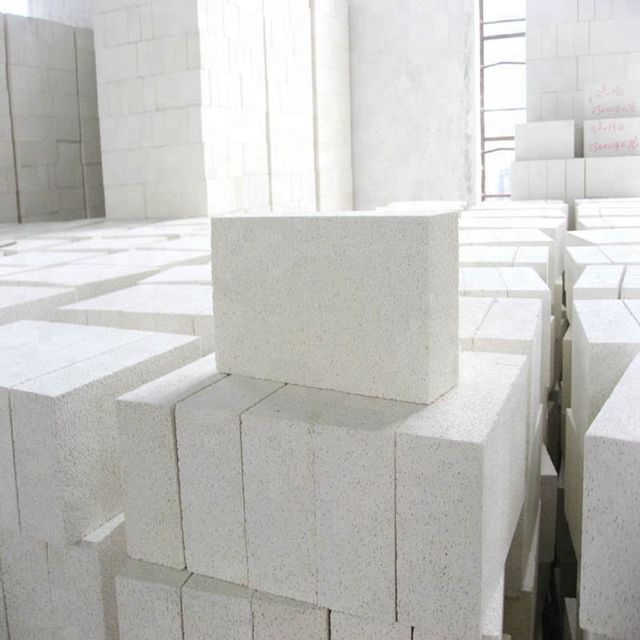

Lightweight mullite insulation brick JM23 JM26 JM28 JM30

Mullite insulation brick is a kind of high-quality high-temperature-resistant insulation material with light weight, low thermal conductivity, heat insulation and high compressive strength for high-temperature furnaces. Mullite insulation bricks are mainly used for hot blast stove top, blast furnace chimney and bottom, glass melting furnace regenerator, ceramic high temperature furnace lining, etc.

Mullite insulation bricks use mullite as the main crystal phase, and the alumina content is about 65~75%. Mullite insulation bricks have high refractoriness, up to 1790°C. Its apparent initial softening temperature is about 1600-1700°C. Its cold compressive strength is about 70~260MPa.
Mullite insulation bricks are divided into 1350 mullite insulation bricks, 1450 mullite insulation bricks and 1550 mullite insulation bricks according to different operating temperatures. Quality mullite bricks.

feature

 Lightweight mullite insulation brick JM23 JM26 JM28 JM30

Mullite insulation brick is a high-quality high-temperature-resistant material with the following excellent properties:
Low thermal conductivity and low heat capacity
High purity and low impurity content
Excellent high temperature strength
good thermal shock resistance
low expansion coefficient
Strong acid and alkali corrosion resistance

Features of lightweight mullite insulation bricks:
1. Excellent compressive strength
2. Excellent thermal stability
3. Low thermal conductivity
4. Low heat storage
5. High aluminum, low iron and alkali flux content
6. Accurate size
7. Design packaging

Specification

  Lightweight mullite insulation brick JM23 JM26 JM28 JM30

Mullite insulation brick specifications

Mullite insulation brick

item/indexHT23HT26HT28HT30HT32
Alumina%3754647277
Ferric oxide%1.00.90.80.70.5




Thermal conductivity (w/m*k)

400°C0.140.270.320.410.49
600°C0.160.290.340.430.5
800℃0.180.310.360.440.51
1000℃0.200.330.380.450.53
Grading temperature (°C)12601430154016501760
Thermal expansion 1000℃ (%)0.50.70.80.91.1
Bulk density (g/cm3)0.55-0.620.78-0.80.881.031.25
Cold compressive strength (Mpa)1.21.62.12.53.5
Modulus of rupture (Mpa)0.91.41.62.12.1
Reheat linear change (%)



CT-30℃*8H

1230°C



-0.5

1400°C



-0.5

1510°C



-0.5

1620°C



-0.9

1730°C



-0.9

Mullite insulation brick common size

size
Length x width x height (mm)Length × width × height / hour (mm)Length × width × height / hour (mm)
230×114×65230×614×64250×640×64
230×114×76230×614×76
Other sizes according to customer requirements

Packaging and Shipping

Lightweight mullite insulation brick JM23 JM26 JM28 JM30

Package: Standard export wooden pallet with cardboard and PET straps, 10 blocks in 1 carton, 48 cartons in 1 pallet.

1. Strong packaging will protect the goods from any possible damage during transportation.
2. Sturdy packing and integral packing can prevent the case from vibrating and shaking.
3. We must take the necessary precautions so that the packaging can protect the goods from theft or rain.
4. We can confirm that we have taken every possible precaution to ensure that our products reach our customers all over the world in the best condition.

shipping: By ship or train from any port in China, samples can be shipped by international express.

application

 Lightweight mullite insulation brick JM23 JM26 JM28 JM30

Power Industry
petrochemical industry
Metallurgical industry
Kiln insulation
other insulation

Recommended for primary hot face refractory lining or for use in furnaces, kilns, flues, refining vessels and heaters, regenerators, gas generators and primary, soaking pits, stress relief furnaces, reaction chambers and other refractories of similar high temperature Spare insulation temperature industrial equipment behind the material.



Serve

  Lightweight mullite insulation brick JM23 JM26 JM28 JM30

1. Timely response,

Respond to your inquiries in a timely manner, make multiple recommendations according to your needs, quickly reply to emails and provide solutions.


2. Free samples

Samples and trial orders are accepted for quality evaluation.


3. Strict quality control

Arrange production on time and strictly control quality.


4. Shorter delivery time.

Book the earliest ship or plane to guarantee delivery time.


5. Professional Services

Provide all detailed news and pictures from order to delivery;

If necessary, the original relevant export documents and certificates can be provided;

Warm and thoughtful after-sales service
