Rock wool production lines and machines

Product Detail

width:600mm-1200mmport:Qingdao
payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGrambrand:Sant
Density (kg/cubic meter):160Packaging details:According to customer's requirements.
grade:COM (common)application:Industrial furnace lining
length:1000mm or 1200mmthickness:30-200mm
Place of origin:Shandong Province, ChinaThermal Conductivity:0.03-0.04W/mk
Fiber diameter:4-7 micron
Product Description

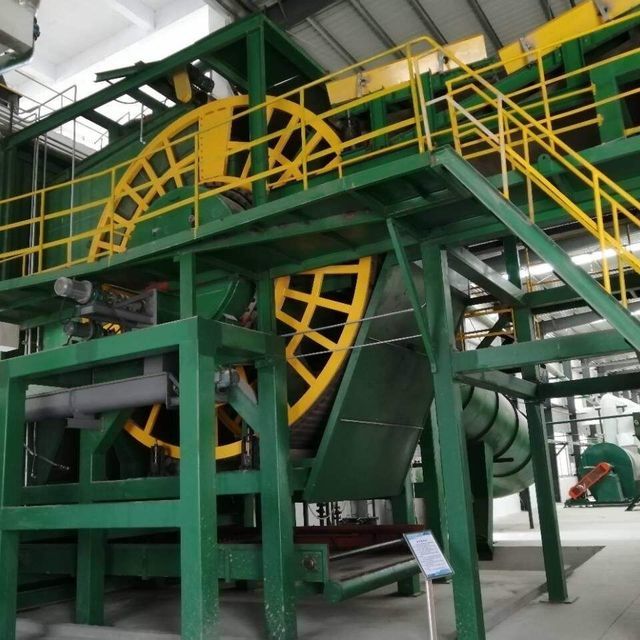

SUNTHERM rock wool production line

The raw materials used in rock wool production include basalt, dolomite, binder, etc. The raw materials are loaded into the hopper by an elevator, heated and melted by the melting furnace, and then enter the melt launder. After the lava flow is cooled, it is spun into fibers by a centrifuge and then sprayed into the fiber forming chamber. During the spraying process, the adhesive is added and the fibers are heated by negative pressure wind. Pull down to the mesh belt to form the original felt. The mesh belt transports the raw felt to the swinging machine to swing the cloth. The laid out raw felt is transported to the curing oven by the distributor and runs forward between the upper and lower chain belts. A hot air blower blows hot air into the curing oven. The cotton felt is cured in the furnace, and the cured product is cut, first longitudinally, then transversely, and the finished product is packaged and stored in the warehouse.


Product parameters
Technical parameters of SUNTHERM rock wool production line
application
Production of rock wool blankets and rock wool boards
capacity
20,000 tons/year, 25,000 tons/year, 30,000 tons/year
raw material
Basalt, dolomite, binder, etc.
Main energy supply systems: (1) Raw coal energy supply system
(2) Electric power supply system
(3) Customized according to customer requirements
