1260C high temperature ceramic fiber products including ceramic fiber blanket/board/paper
- $1.00 / >=10 rolls
- 10 rolls
- Henan Lite Refractory Material Co., Ltd.
- Henan, China
- Mr Pengfei Zhang
Product Detail
| application: | Industrial lining | Ceramic fiber blanket features 1: | Excellent insulation performance |
| Fiber Diameter: | 2-3um | sample: | free |
| port: | Qingdao and other major Chinese ports | Certificate: | ISO9001:2000 |
| width: | 610/1220mm | brand: | Lite |
| Bulk density: | 64/80/96/128/160kg/m3 | Density (kg/m3): | 128 |
| thickness: | 6-50mm | Origin: | Henan, China |
| Package preview: | Packaging Details: | Packaging of our ceramic fiber insulation blanket: 1. Outer carton, inner plastic bag 2. Woven bag 3. According to customer requirements | |
| Packaging of ceramic fiber blanket: | carton or woven bag | payment terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| product name: | Ceramic Fiber Board, 1260 Ceramic Fiber Board | Shrinkage (1800℉, 3 hours): | < -3 |
| grade: | Serial port (common) | Ultimate Strength (≥MPa): | 0.04 |
| Features 2 ceramic fiberboard: | low thermal conductivity | color: | pure white |
| Operating temperature: | 1260-1430℃ | length: | 7200mm |
| model: | 1260 degrees, 1300 degrees, 1430 degrees | Supply capacity: | Monthly production of 1,000 tons of ceramic fiber insulation blankets, 1,260 ceramic fiber boards |
| quality assurance: | one year | chemical composition: | SIO2 AL2O3 |
| Alumina + Silica: | 96-99% | Thermal Conductivity: | 0.055-0.180 (weekly kilometers) |
1260C high temperature ceramic fiber products including ceramic fiber insulation blanket/board/paper
What are the details of our 1260 ceramic fiber insulation blanket?
1. Ceramic fiber insulation blanket is also called acupuncture fiber blanket.
2. It is made of ordinary, standard, high-purity, high-alumina, aluminum-zirconium silicate fiber blocks through blown fiber molding process.
3. It is produced through multiple processes such as acupuncture, thermoforming, vertical and horizontal cutting, and rolling.

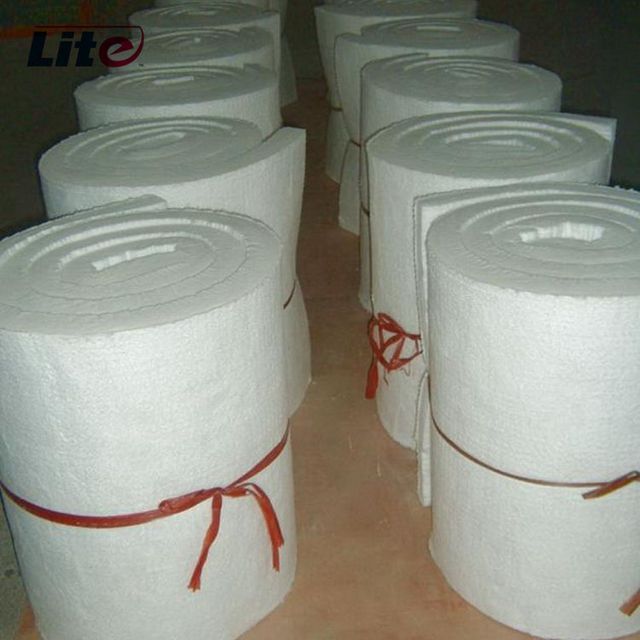

Showcase of our Ceramic Fiber Insulation Blankets:
What is the technical data of our 1260 ceramic fiber insulation blanket?
| grade | Common | standard | High purity | high aluminum | zirconium | |
| Maximum temperature (°C) | 1100 | 1260 | 1260 | 1360 | 1450 | |
| Maximum temperature (°C) | <1000 | 1150 | 1180 | 1260 | 1350 | |
| color | pure white | pure white | pure white | pure white | pure white | |
| Density(kg/m3) | 96/128/160 | 96/128/160 | 96/128/160 | /128/160 | /128/160 | |
|
Heat shrinkage (%) 24 hours, the density is 128/m3 |
-4 (1000℃) |
-3 (1000℃) |
-3 (1100℃) |
-3 (1250°C) |
-3 (1350°C) |
|
|
Thermal conductivity at average temperature. (w/mk) (density is 128kg/m3) |
0.09(400℃) 0.16(800℃) |
0.09(400℃) 0.16(800℃) |
0.09(400℃) 0.16(800℃) 0.20(1000℃) |
0.12(600℃) 0.20(1000℃) |
0.16(800℃) 0.20(1000℃) |
|
| Tensile strength (mpa) (density 128kg/m3) | 0.04 |
0.04 |
0.04 | 0.04 | 0.04 | |
|
chemical composition(%) |
Aluminum oxide | 44 | 46 | 47-49 | 52-55 | 39-40 |
| Alumina + Silica | 96 | 97 | 99 | 99 | - | |
| AL2O3+SiO2+ZrO2 | - | - | - | - | 99 | |
| Zirconia | - | - | - | - | 15-17 | |
| Ferric oxide | <1.2 | <1.0 | 0.2 | 0.2 | 0.2 | |
| Na2O+k2O | <0.5 | <0.5 | 0.2 | 0.2 | 0.2 | |
What are the dimensions of our ceramic fiber insulation blankets?
| size | 15000*610/1220*10mm | 14400*610/1220*12.5mm |
| 7200*610/1220*20mm | 7200*610/1220*25mm | |
| 5000*610/1220*30mm | 4500*610/1220*40mm | |
| 3600*610/1220*50mm | ||
| pack |
1. Outer carton, inner plastic bag 2. Blank woven bag |
|
| Comment | Size, shape and packaging can be customized | |
More details on our 1260 Ceramic Fiber Insulation Blanket:
What are the features of our 1260 ceramic fiber insulation blanket?
Excellent insulation properties.
high temperature stability.
low thermal conductivity
Excellent thermal shock resistance
low heat storage capacity
What are the applications of our 1260 ceramic fiber insulation blanket?
1. Lining, heat preservation and repair of furnaces, kilns, ovens and boilers;
2. Insulation for power plants, turbines, thermal reactors, generators and nuclear applications;
3. Expansion joint sealing and heat preservation;
4. Covering and heat preservation of high temperature pipes or metal castings;
5. Fire and heat insulation lining
6. Other high temperature resistant seals, gaskets, insulation or protection.
The packaging of our ceramic fiber insulation blanket:
1. Outer carton, inner plastic bag
2. According to customer requirements
3. We will do our best to avoid damage to the goods and ensure the safety of your goods during transportation.
Shipping of our Ceramic Fiber Insulation Blankets:
1. FEDEX/DHL/UPS/TNT for samples.
2. Bulk goods by sea.
3. Delivery time: within 25 days
