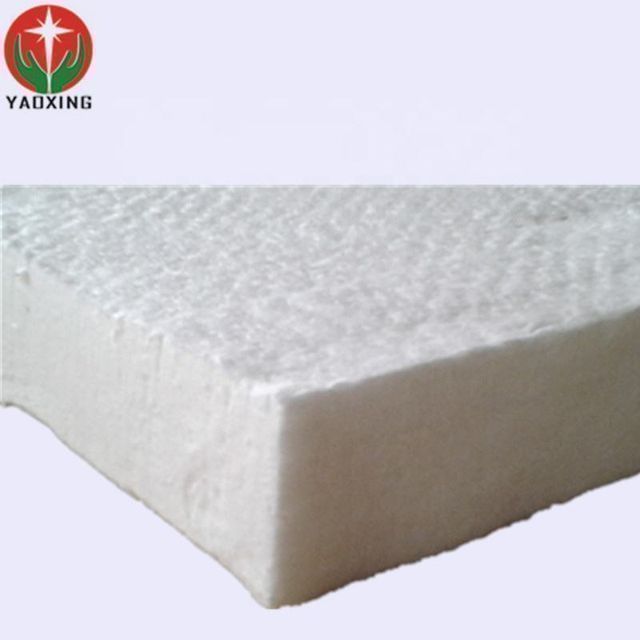

Refractory high temperature furnace ceramic fiber 128 fire blanket insulation
- $0.55 /kilogram
- 1 kilogram
- Zibo Yaoxing Fire-Resistant And Heat-Preservation Material Co., Ltd.
- Shandong, China
- Mr ERIC WONG
Product Detail
| length: | 7200mm | model: | YXTX-212 |
| Package preview: | Fiber Diameter: | 3 microns | |
| thickness: | 25mm | grade: | Serial port (common) |
| place of origin; place of origin: | Shandong China | port: | Qingdao |
| Name: | Ceramic fiber 128 fire blanket insulation | Thermal Conductivity: | 0.09-0.22 |
| Ultimate Strength (≥MPa): | 008-0.12 | size: | 25*610*7200mm |
| brand: | shining star | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| Packaging Details: | Ceramic fiber 128 fireproof blanket lined with plastic bags, lined with cartons or woven bags | deliver goods: | Within 7 days after payment |
| Supply capacity: | 50000 kg per day | Density (kg/m3): | 128 |
| application: | Industrial lining | Operating temperature: | 1000C,1000℃ |
| chemical composition: | alumina, silica | loading: | 225CTNS/20GP |
| density: | 128 kg/m3 | Shrinkage (1800℉, 3 hours): | <3% |
| color: | white | Classification temperature: | 1260°C |
| Package: | Inside is plastic bag, outside is carton | width: | 610mm |
1260 aluminum silicate thermal insulation ceramic fiber blanket
describe:
1.Yaoxing Ceramic Fiber BlanketUsing continuous processing,
The fibers interweave evenly after needling and have excellent tensile strength.
The blanket does not contain any adhesives.
2. Our needle punched blankets come in a variety of densities and thicknesses, allowing our customers to have a variety of choices,
This will result in a perfectly insulated frame and margin.
3.Yaoxing Ceramic Fiber BlanketCan resist chemicals very well,
But excluding hydrofluoric acid, phosphoric acid and strong bases.
4.Yaoxing Ceramic Fiber BlanketHas excellent oil resistance,
Thermal and physical properties are restored after drying.
We are a professional team for kiln insulation construction.
We are in the tunnel kiln, trolley furnace, pit furnace,
Fall tube furnace, aluminum melting furnace cover, furnace door, etc.
and ourCeramic fiber blanket, ceramic fiber module, refractory anchorandOther related furnace refractories
Exported to Malaysia, Indonesia, Vietnam, Tajikistan, etc.
What's more, we can provide you with professional guidance on your construction site.
Therefore, choosing us is the best opportunity for us to exchange experience in international kiln construction.
Sincerely hope we can have pleasant cooperation in the future.
|
Grading temperature |
1050 |
1260 |
1400 |
||
|
the code |
TXTX-112 |
TXTX-212 |
TXTX-312 |
TXTX-422 |
TXTX-512 |
|
Heat shrinkage (%) |
950℃×24h≤-3 |
1000℃×24h≤-3 |
1100℃×24h≤-3 |
1200℃×24h≤-3 |
1350℃×24h≤-3 |
|
theoretically Thermal Conductivity (W/m·k)(128kg/m3) |
0.09(400℃) 0.176(800℃) |
0.09(400℃) 0.176(800℃) |
0.09(400℃) 0.176(800℃) 0.22(1000℃) |
0.132(600℃) 0.22(1000℃) |
0.76(600℃) 0.22(1000℃) |
|
Theoretical density (kg/m3) |
64/96/128 |
||||
|
Specifications (mm) |
7200/5000/3600/3000×610/1220×/20/30/40/50 According to your requests |
||||
|
Tensile strength (Mpa) (128kg/m3) |
0.08-0.12 |
||||
|
Al2Europe3(%) |
≥44 |
≥45 |
≥45 |
52~55 years old |
38~40 years old |
|
Zirconia2(%) |
- |
15~17 years old |
|||
|
Al2Europe3+ silica2(%) |
≥96 |
≥97 |
≥99 |
≥99 |
— |
|
Al2Europe3+ silica2+zirconia2(%) |
— |
— |
— |
— |
≥99 |
|
iron2Europe3(%) |
≤1.2 |
≤1.0 |
≤0.2 |
≤0.2 |
≤0.2 |
|
Potassium2oxygen + sodium2O(%) |
≤0.5 |
≤0.5 |
≤0.2 |
≤0.2 |
≤0.2 |
|
pack |
Inner plastic bag, outer woven bag |
||||
|
Quality Control System |
ISO9001-2000, ISO14001-1996 |
||||
