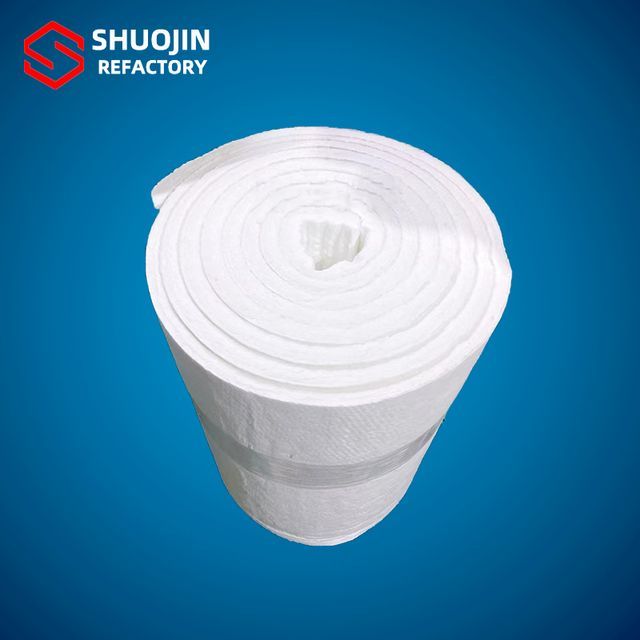

Fire Blanket Heat Insulation Aluminum Silicate Ceramic Fiber Blanket
-
$2.80 / 1000 - 4999 kilograms
$2.20 / 5000 - 9999 kilograms
$1.30 / >=10000 kilograms - 1000 kilograms
- Zhengzhou Shuojin Refractory Material Co., Ltd.
- Henan, China
- Mr Edwin Wei
Product Detail
| Origin: | China | sample: | supply |
| Operating temperature: | 1000℃~1600℃ | model: | SJ-1260℃ ceramic fiber blanket |
| brand: | Shuo Jin | application: | refractory |
| Ultimate Strength (≥MPa): | 80 | Density (kg/m3): | 128 |
| color: | white | Classification temperature: | 1000℃/1260℃/1425℃/1500℃/1600℃ |
| Shrinkage (1800℉, 3 hours): | 1000℃ *24h≤2.5 | Supply capacity: | 5000 tons per month |
| port: | Qingdao Port; Wuhan Port | ZRO2: | customer request |
| grade: | HA (High Aluminum) | manufacturer: | Shuo Jin |
| Package preview: | product name: | Aluminum silicate ceramic fiber blanket | |
| chemical composition: | Al2O3≥44, SiO2≥52, Fe2O3+TiO2≤1, K2O+Na2O≤1 | Packaging Details: | Fireproof blanket heat insulation aluminum silicate ceramic fiber blanket is a plastic bag inside and a carton outside |
| raw material: | ceramic fiber block | Bulk density: | 96/128/160kg/m3 |
| length: | 1220mm | size: | customer request |
| Application of ceramic fiber blanket: | Refractory furnace lining insulation material | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| Thermal Conductivity: | 0.09-0.22 | Fiber Diameter: | 2.8um |
| thickness: | 50mm | width: | 3600mm |
Fire Blanket Heat Insulation Aluminum Silicate Ceramic Fiber Blanket
Product Description
Shuojin ceramic fiber blanket
Shuojin ceramic fiber blanket is a blanket with higher tensile strength made of ceramic fiber through a unique double-sided needling process. Fiber blankets do not contain organic binders.
Shuojin ceramic fiber blanket has good chemical stability and can resist most corrosive chemicals (except phosphoric acid, hydrofluoric acid and strong alkali). Even if this series of products are wetted by oil, water or steam, their physical properties such as temperature resistance and heat insulation will not change.
The characteristics of ceramic fiber blanket
●It does not contain corrosive substances such as binders, has excellent chemical stability, and is non-flammable.
● Low thermal conductivity, excellent thermal insulation performance.
●Excellent thermal shock resistance.
●Excellent wind erosion resistance.
●Excellent sound insulation performance.
●High heat reflection coefficient.
●low thermal capacity.
●Excellent tensile strength and resilience.
Grading temperature
●Fiber blanket: 1000℃
●Fiber Blanket: 1260
●Zirconium-containing blanket: 1425°C
●Chrome blanket: 1500°C
●Mullite carpet: 1600℃
Application of Ceramic Fiber Blanket
●Linings for industrial kilns.
●The glass stove top is insulated.
●Insulation inside and outside the flue.
●Coal mine rescue cabin insulation layer.
●Thermal insulation of rail train equipment.
●High temperature filter media.
●Furnace door, manhole cover, high temperature.
●The flange connection is airtight.
●Expansion joints are packed.
●Thermal insulation in nuclear power and aviation fields.
●Household appliances are insulated.
●fire prevention.
product specification
main performance | unit | SJ-1000 blanket | SJ-1260 blanket | SJ-1425 blanket | SJ-1500 blanket | SJ-1600 blanket | ||||||
Grading temperature | ℃ | 1000 | 1260 | 1425 | 1500 | 1600 | ||||||
Normal temperature performance (23°C/50% relative humidity) | ||||||||||||
color | white | white | white | light green | white | |||||||
proportion | g/cubic centimeter | 2. 70 | 2. 70 | 2. 70 | 2. 70 | 3. 2 | ||||||
melting point | ℃ | 1760 | 1760 | 1760 | 1760 | - | ||||||
average fiber diameter | Micron | 2. 8 | 2. 8 | 2. 8 | 2. 8 | 3. 1 | ||||||
Tensile strength 128kg/m³ ASTM 686-76 | kPa | 40 | 80 | 80 | 80 | 103 | ||||||
shooting content | ≥0. 212 | 10 | 7 | 7 | 7 | trace | ||||||
mm% | ||||||||||||
high temperature performance | ||||||||||||
permanent thread shrinkage (keep warm for 24 hours) 128 kg/m3 | % | ≤2 | ≤2 | ≤2. 5 | ≤3. 5 | ≤1 | ||||||
900°C | 1100°C | 1300°C | 1400°C | 1600℃ | ||||||||
Thermal conductivity (W/( m• k) ASTM- C-201 at the following average temperature) | ||||||||||||
Bulk density 96 kg/m3 | ||||||||||||
200℃ | 0. 06 | 0. 06 | 0. 06 | 0. 06 | - | |||||||
400°C | 0. 10 | 0. 10 | 0. 10 | 0. 10 | 0. 08 | |||||||
600°C | 0. 18 | 0. 18 | 0. 18 | 0. 18 | 0. 13 | |||||||
800℃ | 0. 27 | 0. 27 | 0. 27 | 0. 27 | 0. 19 | |||||||
1000℃ | - | 0. 36 | 0. 36 | 0. 36 | 0. 27 | |||||||
1200℃ | - | - | - | - | 0. 39 | |||||||
Bulk density 128 kg/m3 | ||||||||||||
200℃ | 0. 05 | 0. 05 | 0. 05 | 0. 05 | - | |||||||
400°C | 0. 09 | 0. 09 | 0. 09 | 0. 09 | 0. 08 | |||||||
600°C | 0. 15 | 0. 15 | 0. 15 | 0. 15 | 0. 12 | |||||||
800℃ | 0. twenty three | 0. twenty three | 0. twenty three | 0. twenty three | 0. 17 | |||||||
1000℃ | - | 0. 30 | 0. 30 | 0. 30 | 0. twenty four | |||||||
1200℃ | - | - | - | - | 0. 33 | |||||||
chemical composition | ||||||||||||
Aluminum 2 O 3 | % | 42 - 44 | 44 - 48 | 34 - 36 | 43 | 72 | ||||||
silica | % | 55 - 57 | 52 - 56 | 48 - 50 | 54 | 28 | ||||||
Zr 2 O 3 | % | - | - | 15 - 17 | - | - | ||||||
CrO2 | % | - | - | - | 2. 8 | - | ||||||
Ceramic Fiber Blanket Size | ||||
Thickness (mm) | Length (mm) | Width (mm) | ||
6 | 7200 | 610 ( 1220 ) | ||
13 | 7200 | 610 ( 1220 ) | ||
20 | 7200 | 610 ( 1220 ) | ||
25 | 7200 | 610 ( 1220 ) | ||
38 | 3600 | 610 ( 1220 ) | ||
50 | 3600 | 610 ( 1220 ) | ||
Other thickness, length and width can be customized | ||||
●SHUOJIN-1000°C blanket is a lightweight and flexible thermal insulation fiber blanket made of kaolin.●SHUOJIN-1260°C blanket is a high-purity, light-weight, high-strength flexible double-sided needle-punched blanket. Its excellent tensile strength, airflow resistance and fire and heat insulation properties make it widely used on different hot and cold surfaces. Warm and insulated. There are various thicknesses, widths and densities to choose from.●SHUOJIN-1425°C blanket is made of high-purity alumina, silica, zircon sand and spun ceramic fiber through double-sided needle punching. Has very low high temperature shrinkage properties.●SHUOJIN-1500℃ blanket is made of high-purity alumina, silica and a small amount of chromium oxide. Due to the chemical stability of chromium oxide, its shrinkage rate is small under long-term high temperature, which effectively fills the temperature gap between the zirconium-containing fiber and the alumina crystal fiber.●SHUOJIN-1600°C blanket is made of mullite fiber, double-sided needling, without any adhesive or other ingredients. The long-term use temperature can reach 1600°C. In an oxidizing atmosphere, a neutral atmosphere or a weakly reducing atmosphere, it can still maintain the original toughness, strength and softness after long-term high temperature.●SHUOJIN-1600°C blankets are more resistant to acid and alkali corrosion than ordinary ceramic fiber blankets. Because it does not contain slag balls, it has better thermal insulation performance, and its advantages are more prominent in reducing atmospheres.
