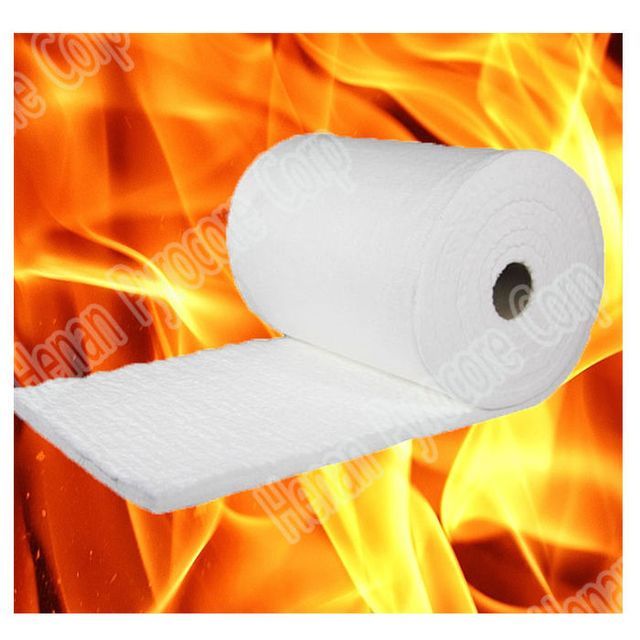

Tempmax 3000f 1600c polycrystalline wool needle punched insulation blanket fireproof material alumina fiber blanket
- $18.80 /piece
- 1 piece
- Henan Pyrocore Corporation
- Henan, China
- Mr Sun Wang
Product Detail
| thickness: | 6-50mm | Ultimate Strength (≥MPa): | 0.5Mpa (25mm thickness) |
| model: | PYR-1050-1600PCF | grade: | HA (High Aluminum) |
| Operating temperature: | MAX.1500C | Density (kg/m3): | 96 |
| width: | 100~1220mm | Product advantages: | low thermal conductivity |
| product name: | Alumina blanket | raw material: | ceramic fiber block |
| usage: | Insulating refractories and linings | Classification temperature: | 1050-1600 degrees Celsius |
| brand: | fire core | density: | 96/128/160 |
| Origin: | Henan, China | Shrinkage (1800℉, 3 hours): | 1400℃×24h <1.0 |
| Fiber Diameter: | 3-5μm | Stand size: | 7200*610*(6-50mm) |
| application: | refractory | payment terms: | L/C, D/P, T/T |
| Our advantage: | Inner double needle technology | length: | 3600~20000mm |
| Packaging Details: | Standard export packaging | port: | any port in China |
| chemical composition: | Al2O3+SIO2≥99% | Package preview: | |
| Thermal Conductivity: | 0.06-0.3 | Slag ball content 212um≤(%): | 10 |
| Certification: | ROHS Directive | Supply capacity: | 3000 pieces per month |
Product Description

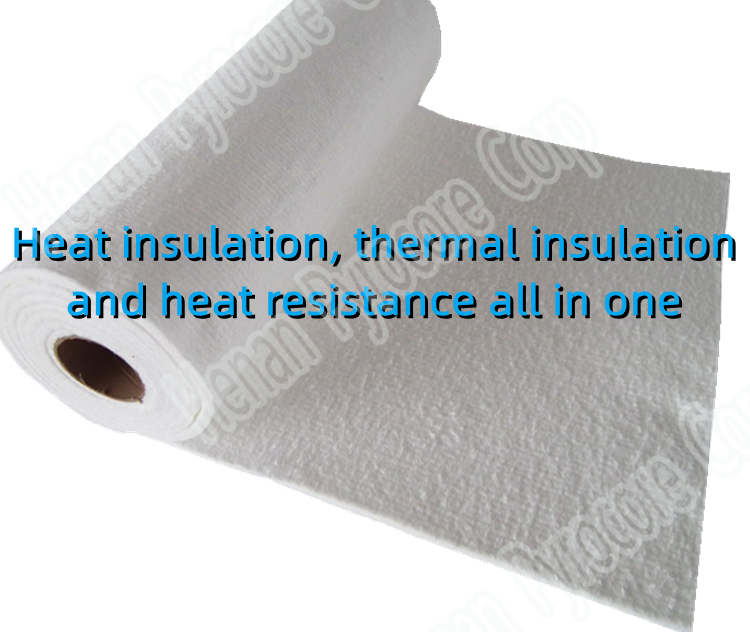

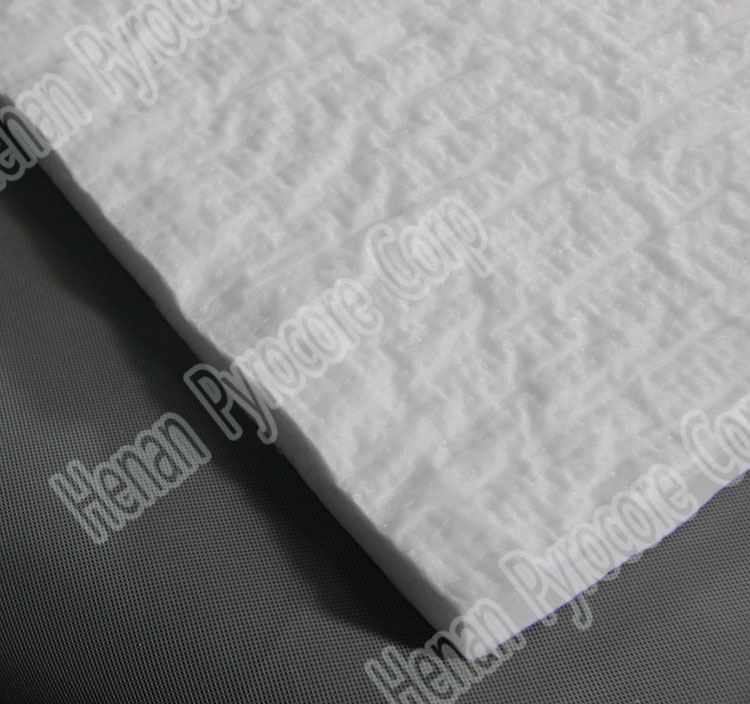

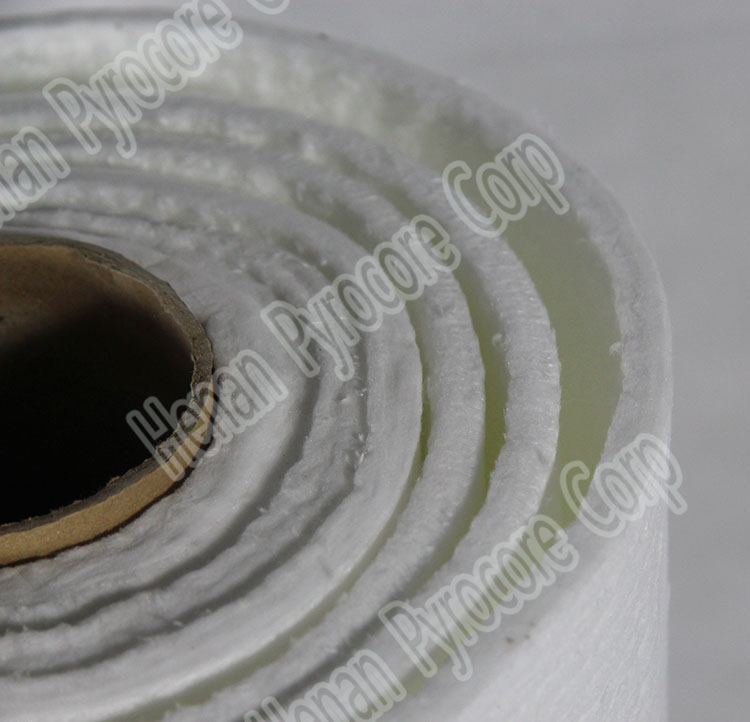

The ceramic fiber blanket is made of special ceramic fiber through double-sided needle punching. Double needling technology increases fiber interweaving, improving delamination resistance and tensile strength. The blanket does not contain any binder, has stable chemical properties, is resistant to most chemicals, and maintains physical properties such as fire resistance and insulation when exposed to oil, water or steam.
Specification
technical indicators | ||||||||||||||
ceramic fiber blanket | PYR-1050 | PYR-1260ST | PYR-1260HP | PYR-1350HP | PYR-1430Zr | PYR-1600PCF | ||||||||
Maximum operating temperature (°C) | 1050 | 1260 | 1260 | 1350 | 1430 | 1600 | ||||||||
Density(KG/m³) | 96-160 | 96-160 | 96-160 | 96-160 | 96-160 | 96-160 | ||||||||
Liner Shrinkage %(24h, 128kg/m³) | ≤3.0(950℃) | ≤3.0(1000℃) | ≤3.0(1050℃) | ≤3.0(1200℃) | ≤3.0(1300℃) | ≤3.0(1500℃) | ||||||||
Tensile strength Kpa(128Kg/m³) | 70 | 70 | 70 | 70 | 70 | 70 | ||||||||
Thermal conductivity (W/mk)128Kg/m³ | 600°C | 0.2 | 0.15 | 0.15 | - | - | - | |||||||
800℃ | 0.29 | 0.22 | 0.22 | 0.23 | 0.2 | - | ||||||||
1000℃ | - | 0.31 | 0.31 | 0.32 | 0.27 | 0.24 | ||||||||
Chemical composition (after combustion)% | Al2Europe3 | ≥40 | ≥43 | ≥45 | ≥52 | ≥37 | ≥72 | |||||||
Al2Europe3+ silica2 | ≥96.0 | ≥97.0 | ≥98.0 | ≥98.0 | ≥83.0 | ≥99.0 | ||||||||
Zirconia3 | - | - | - | - | ≥15 | - | ||||||||
others | ≤3.0 | ≤3.0 | ≤2.0 | ≤2.0 | ≤2.0 | ≤1.0 | ||||||||
standard size | ||||
Length (mm) | Width (mm) | Thickness (mm) | ||
7200/15000/20000 | 610(1220) | 6 | ||
7200/15000 | 610(1220) | 10 | ||
7200/15000 | 610(1220) | 12.5 | ||
7200/15000 | 610(1220) | 15 | ||
7200 | 610(1220) | 20/25 | ||
6000/5000 | 610(1220) | 30 | ||
4500 | 610(1220) | 40 | ||
3600 | 610(1220) | 50 | ||
pack | carton or woven bag | |||
Other specifications according to customer inquiry | ||||
features
1. Excellent chemical stability, non-flammable. 2. Low thermal conductivity and good insulation. 3. Good tensile strength and elasticity. 4. Excellent sound insulation performance, good barrier and thermal shock resistance. 5. Ceramic fiber blankets can be cut into different sizes according to user needs. They can also be wrapped with aluminum foil on one or both sides to meet the requirements of different industries. 6. We can provide free samples and free designs and drawings for your testing. 7. According to your special requirements, we can provide designs and drawings for free. Our technical team and design ability are our biggest advantages.
application

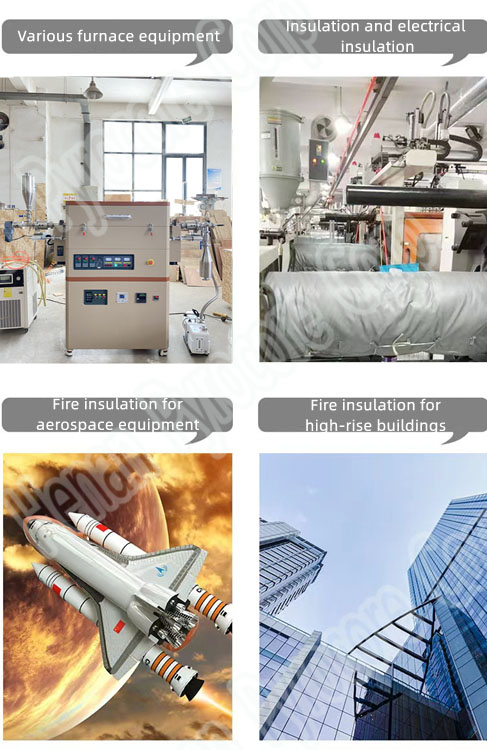

application: Thermal insulation of various kilns, high-temperature pipes and containers; furnace doors, valves, flange seals, fire doors and fire shutter materials, high temperature furnace door curtains; engine and instrument insulation, fireproof cable coating materials, high temperature fireproof materials ; Fabric insulation cover, high-temperature expansion joint filler, flue lining; Thermal equipment thermal insulation materials in metallurgy, machinery, chemical industry, environmental protection and other industries; High-temperature-resistant labor protection products, fire-proof clothing, high-temperature filtration, sound-absorbing and other applications to replace asbestos
