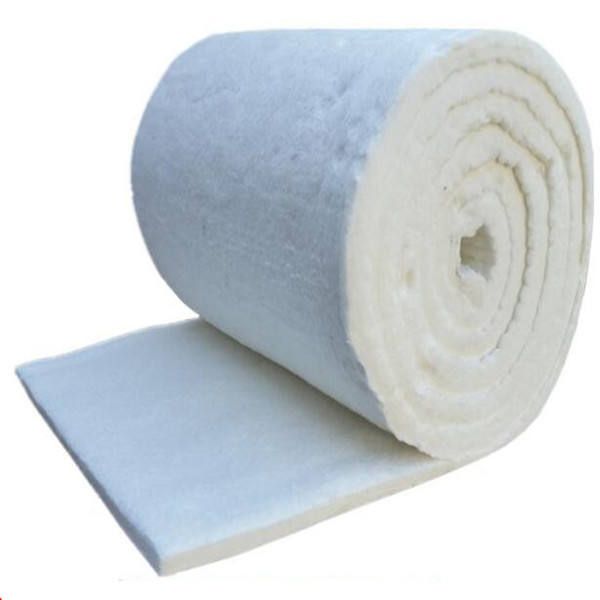

128kg/m3 ceramic fiber insulation blanket
- $1.00 /roll
- 1 roll
- Beijing Coning Building Materials Co., Ltd.
- Beijing, China
- Ms Lily Xing
Product Detail
| Packaging Details: | Ordinary packing of ceramic fiber: woven bag or carton | Application of ceramic fiber blanket: | Refractory lining |
| brand: | conical | Shrinkage (1800℉, 3 hours): | 0.04 |
| Package: | Woven bag | Operating temperature: | 1260 |
| Certificate: | ISO9001:2000 | model: | AC001 |
| thickness: | 50mm | Advantage: | high working temperature |
| Features: | pure white | Origin: | Hebei china |
| port: | Tianjin harbor | Ultimate Strength (≥MPa): | 0.08-0.12Mpa(128kg/m3) |
| Density (kg/m3): | 128 | length: | 3600mm |
| application: | refractory | feature: | Excellent tensile strength |
| pack: | carton or bag | thickness: | 20-40mm |
| width: | 600mm | Fiber Diameter: | 6 |
| payment terms: | L/C, T/T, Western Union | chemical composition: | 95-99% |
| density: | 90-128 kg/m3 | grade: | HAZ (High Aluminum Zirconium) |
| Supply capacity: | 10000 tons per day 100000000 rolls of ceramic fiber blanket for insulation per month | color: | white |
| Thermal Conductivity: | 0.048 |
Product Description
Aluminum silicate ceramic fiber blanket
CONING Aluminum Silicate Ceramic Fiber Blankets offer 5 standard grades of spun ceramic fiber blankets, which are completely inorganic and available in various densities, thicknesses, widths and temperature grades, all of which are lightweight and thermally efficient, thereby This gives the material the advantage of low heat storage and complete thermal shock resistance.
Ceramic fiber blankets are used in a variety of heat treating applications and are made from high strength spun ceramic fibers and needle punched to provide excellent handling strength.
Technical parameters of aluminum silicate ceramic fiber blanket
| Type (°C) | Ordinary ceramic fiber blanket | Standard Ceramic Fiber Blanket | High Purity Ceramic Fiber Blanket | High alumina ceramic fiber blanket | Zirconia ceramic fiber blanket | |
| Celsius) | 950°C | 1050°C | 1100°C | 1200℃ | 1350°C | |
| Operating temperature | (1742F) | (1922) | (2012F) | (Floor 2192) | (2462F) | |
| density | 64-160 | |||||
| (kg/cubic meter) | ||||||
| (%) | 950°Cx24 hours | 1050°Cx24 hours | 1100°Cx24 hours | 1200°Cx24 hours | 1350°Cx24 hours | |
| heating permanent change | ≤-3 | ≤-3 | ≤-3 | ≤-3 | ≤-3 | |
| 0.15 | 0.12 | 0.12 | 0.12 | 0.16 | ||
| W/(m·k)(128kg/m3) | (600°C) | (600°C) | (600°C) | (600°C) | (800°C) | |
| Theoretical thermal conductivity | 0.22 | 0.20( | 0.2 | 0.2 | 0.2 | |
| (800°C) | 800°C) | (800°C) | (800°C) | (1000℃) | ||
| (MPa) | ≥0.04 | ≥0.05 | ≥0.05 | ≥0.04 | ≥0.06 | |
| (25mm) | ||||||
| tensile strength | ||||||
| (thickness 25mm) | ||||||
| Al2O3(%) | 44 | 45-46 | 47-49 | 52-55 | 39-40 | |
| chemical industry | Al2O3+SiO2(%) | ≥96 | ≥98 | ≥99 | ≥99 | - |
| work | ZrO2(%) | - | - | - | - | 15-17 |
| Al2O3+SiO2 | - | - | - | - | ≥99 | |
| +ZrO2(%) | ||||||
| Ferric oxide(%) | ≤1.0 | ≤0.8 | ≤0.2 | ≤0.2 | ≤0.2 | |
| Na2O+K2O(%) | ≤0.4 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.2 | |
| Calcium Oxide + Magnesium Oxide | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | |
