STA high insulation thermal conductivity 1600C 1700C 1800C Kelin alumina ceramic fiber board
- $11.50 /piece
- 1 piece
- Sta Refractory (zhengzhou) Co., Ltd.
- Henan, China
- Ms Alice Wang
Product Detail
| Delivery Details: | Within 15 days after confirming the order | Origin: | Henan, China |
| Ultimate Strength (≥MPa): | 40 | model: | STA-HK-1700 |
| Certificate: | ISO9001:2000 | payment terms: | T/T, Western Union |
| Thermal Conductivity: | 0.32 W/mq | brand: | star |
| grade: | HA (High Aluminum) | Shrinkage (1800°F, 3 hours): | -3 |
| chemical composition: | Aluminum oxide | port: | Shanghai port |
| Packaging Details: | Carton (polybag inside, carton outside), wooden pallet or plastic pallet with fumigation (disinfection) certificate. | application: | insulation |
| Operating temperature: | 1700°C 1800°C | length: | 1200/1000/600/300 |
| Fiber Diameter: | 3-5 microns | thickness: | 10mm-50mm |
| size: | 1000X600X50mm or as required | density: | 280-480 kg/m3 |
| color: | pure white | Aluminum oxide: | 52% |
| width: | 1000/600/300mm | Supply capacity: | 260 pieces per day |
STA high insulation thermal conductivity 1600C 1700C 1800C Kelin alumina ceramic fiber board

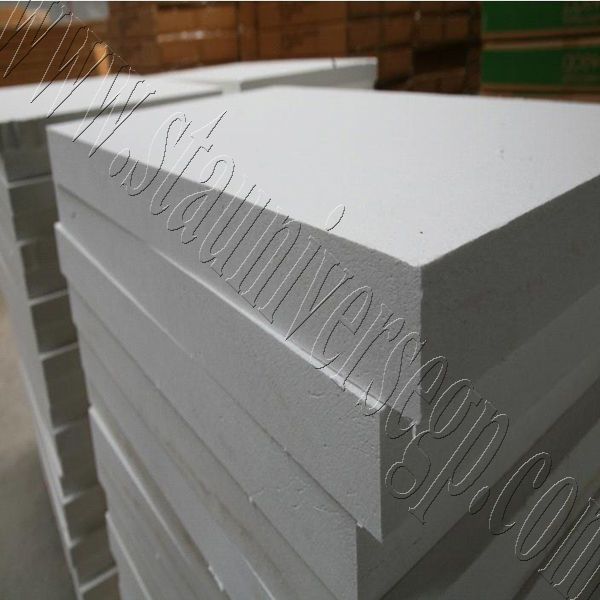

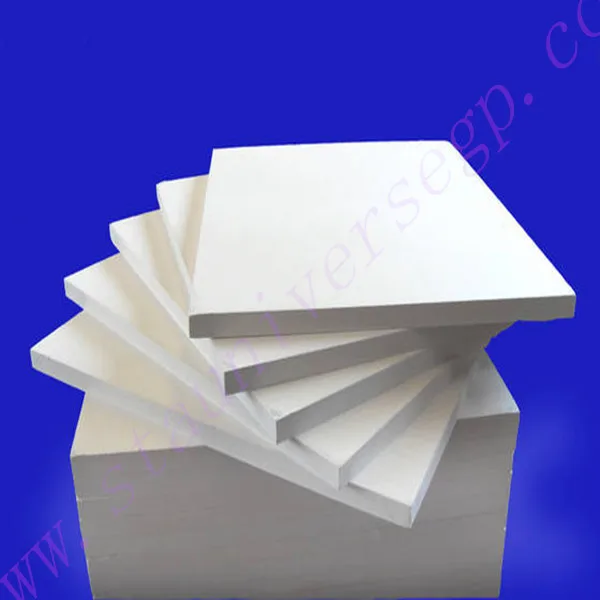

STA ceramic fiber board is made of STA refractory ceramic fiber as raw material, adding inorganic and suitable organic binders. The mixture is vacuum processed into sheets or formed shapes, which retain good mechanical strength after heating. These products can be manufactured using five basic fiber types: STA board, graded at 1000, 1260, 1400, 1600, 1700 and 1800 degrees.
Features of ceramic fiberboard:
smooth surface and light weight
B Low impurities, uniform bulk density and thickness
C Excellent mechanical strength and structural strength
D strong compressive strength
E Low thermal conductivity, low shrinkage
F Resistance to space velocity erosion
G low thermal storage

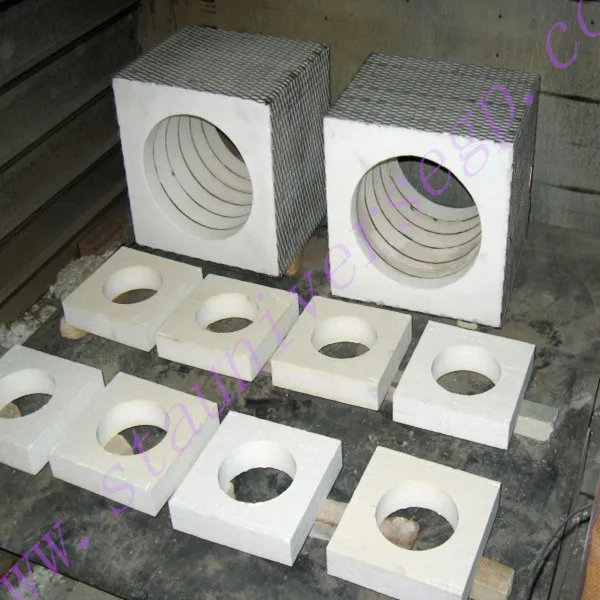

H High plasticity, can make complex shapes
I Light weight, easy to cut or install
J Good corrosion resistance
K Shorter heating and cooling times

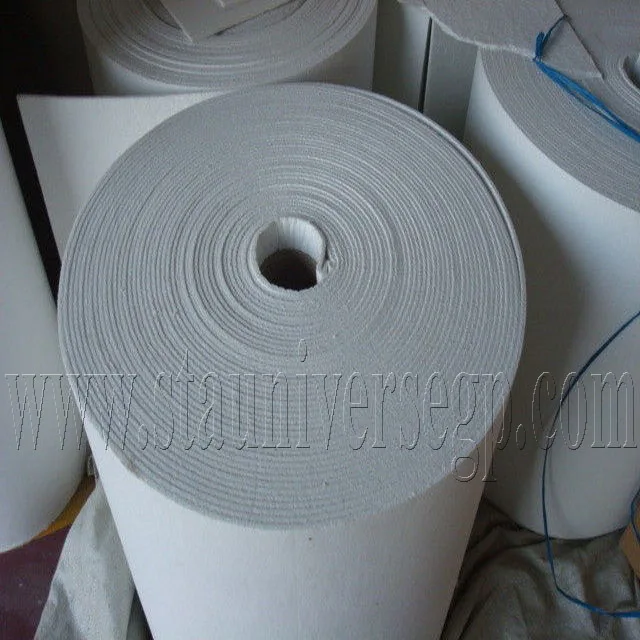

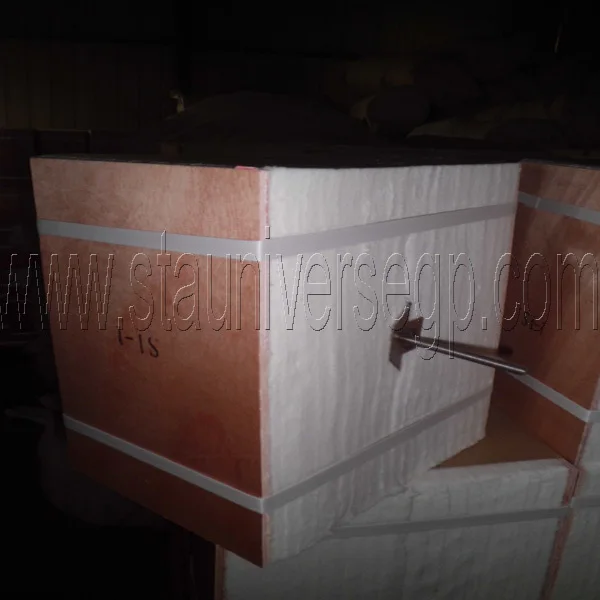

Note: Besides Ceramic Fiber Board, we also produce Ceramic Fiber Blanket, Ceramic Fiber Module, Ceramic Fiber Cloth, Ceramic Fiber Paper, Ceramic Fiber Rope/Textile.
density:
250,280,300,320,350,400KG/M3
size:
Length*Width(mm*mm):1200*1000,1000*600,900*600
Thickness (mm): 6, 10, 13, 20, 25, 30, 40, 50, 75, 100 or as required.
Ceramic Fiber Board Parameters
| Classification temperature °C | 1000 | 1260 | 1400 | 1500 | 1600 | 1700 | 1800 |
| Unit weightkg/m3 | 250 | 250 | 250 | 300 | 400 | 400 | 500 |
| Breaking StrengthMPaMPa | 0.5 | 0.5 | 0.5 | 0.5 | 0.6 | 0.7 | 1 |
| High temperature line shrinkage % | 1 | 1.5 | 1.6 | 0.9 | 0.4 | 0.1 | 0.2 |
| ( )℃×24 hours | 900 | 1100 | 1200 | 1350 | 1500 | 1600 | 1700 |
| (below is the average temperature) | |||||||
| 600°CW/mick | 0.15 | 0.15 | 0.11 | 0.15 | - | - | - |
| 800℃ | 0.23 | 0.22 | 0.15 | 0.16 | 0.15 | 0.16 | 0.16 |
| 1000℃ | - | - | 0.22 | 0.23 | 0.19 | 0.2 | 0.2 |
| Positive numbers represent expandability | |||||||
| Order specifications and packaging | |||||||

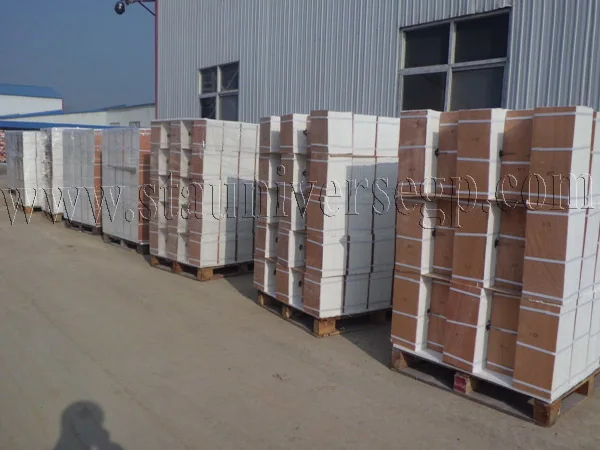

| The packaging of ceramic fiberboard has cartons and pallets. | |||||||
| Standard size: 1200×1000×50~10mm | |||||||
Application of ceramic fiberboard
features | Applications |
high temperature stability | Verity High Temperature Industrial Furnace backing insulation |
low thermal conductivity | Industrial furnaces such as ceramic kilns, mechanical metallurgical heating furnaces, heat treatment furnaces and hot surface linings Low calorific value, high temperature, fire insulation, heat insulation |
easy to machine | Insulation materials for kiln doors, kiln cars, expansion joints, etc. |
clean surface | Glass Furnace Insulation |
Make a display:
Related Products:
polyethylene foam andcartonBoxes and wooden pallets or according to customer requirements.
You can contact our trade manager at any time. Your questions can be answered within 12 hours, and we will provide you with solutions within 24 hours. Also, we accept to resend again if there is a problem with the quality of our products. Thanks.
