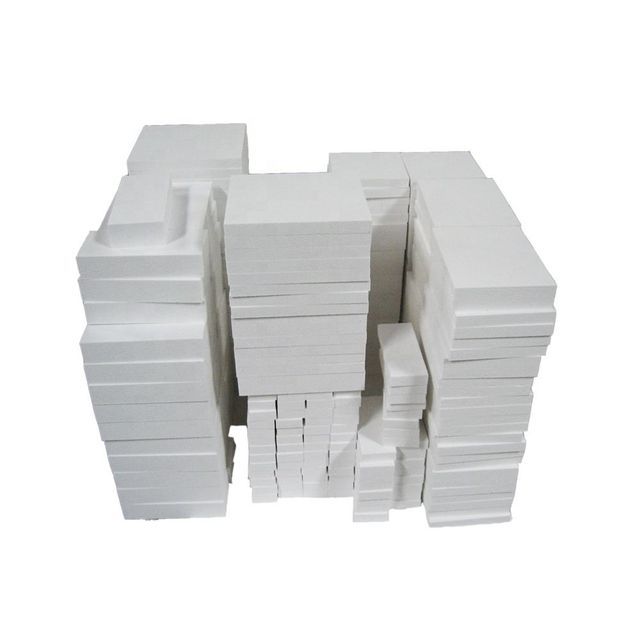

ORCAS 1700C Polycrystalline Mullite Ceramic Fiber Boards
- $11.00 /kilogram
- 1 kilogram
- Zhejiang Orcas Refractories Co., Ltd.
- Zhejiang, China
- Ms Michelle Shen
Product Detail
| port: | Shanghai/Ningbo/Yiwu | Thermal Conductivity: | 0.085-0.2 |
| application: | refractory | type: | Ceramic Fiber Insulation Products |
| color: | pure white | length: | 900/1000mm |
| Supply capacity: | 100,000 kg per month | grade: | ST (Standard) |
| model: | AK-74 | brand: | killer whale |
| Packaging Details: | Carton/wooden box/pallet | payment terms: | L/C, T/T, Western Union, MoneyGram |
| size: | customer request | Package preview: | |
| port: | Shanghai/Ningbo | Fiber Diameter: | 3.5 microns |
| thickness: | 25-150mm | Shrinkage (1800°F, 3 hours): | 2% |
| product name: | Polycrystalline Mullite Ceramic Fiber Board | chemical composition: | Alumina + Silica |
| Origin: | China | use: | Industrial furnace |
| Ultimate Strength (≥MPa): | 0.25 | MOQ: | 1 item |
| Operating temperature: | Up to 1550C | density: | 500 |
| Feature 2: | heat resistance | width: | 600/1000mm |
| quality: | high quality |
Polycrystalline mullite fiberboardIt is made of polycrystalline mullite fiber cotton with organic and inorganic adhesives, and is made by wet vacuum suction filtration process. Fiberboard has the characteristics of excellent strength, erosion resistance, easy processing and cutting. As a multi-purpose product, polycrystalline mullite fiberboard can be applied to the high-temperature heating surface of furnace lining.
thing | AK-54 | AK-64 | AK-74 | AK-84 | |||
Classification temperature (°C) | 1500 | 1600 | 1700 | 1800 | |||
Working temperature (℃) | ≤1350 | ≤1450 | ≤1550 | ≤1650 | |||
Heating linear change (%) | 1250℃*24H≤-3 | 1400℃*24H≤-3 | 1500℃*24H≤-1 | 1600℃*24H≤-0.8 | |||
Density (kg/m33) | 400-600 | ||||||
aluminum2oxygen3(%) | ≥63 | ≥69 | ≥80 | ≥83 | |||
silica2+ aluminum2oxygen3(%) | ≥99 | ≥99 | ≥99 | ≥99 | |||
iron2oxygen3(%) | / | / | / | / | |||
Zirconia2(%) | / | / | / | / | |||
Dimensions (mm) | 1000/900*600* (5-150) | ||||||
feature
Low heat capacity, low thermal conductivity
The material is not fragile and has good elasticity
excellent thermal stability
Anti-wind erosion, long service life
Excellent thermal shock resistance
Excellent anti-peeling performance
Easy to shape and cut
The material is not fragile and has good elasticity
excellent thermal stability
Anti-wind erosion, long service life
Excellent thermal shock resistance
Excellent anti-peeling performance
Easy to shape and cut
Application field
High temperature gasket
Anti-scouring parts on the inner lining
High temperature furnace lining hot surface material
Heating device insulation
Furnace door and furnace filling material
Anti-scouring parts on the inner lining
High temperature furnace lining hot surface material
Heating device insulation
Furnace door and furnace filling material
equipment
We have our own mixers, drying chambers, calciners, grinders, cutters, engravers, laboratories, etc. Plates of different sizes, densities, and operating temperatures can be customized. OEM is welcome.
Zhejiang Aukas Refractories Co., Ltd.Zhejiang Refractory Material Co., Ltd. was established in 2014, specializing in the research, development, manufacture and sales of new energy-saving refractory materials. With strong technical force and economic strength, advanced products are widely used in metallurgy, construction, electric power, chemical industry, casting, glass, kiln and other industries.
Orcas main products include polycrystalline mullite fiber series, ceramic fiber cotton, blanket, board, paper, module, special-shaped parts, furnace, textile and airgel blanket, etc.
In the spirit of integrity, harmony, efficiency and passion, we sincerely hope to cooperate with your company.
Orcas main products include polycrystalline mullite fiber series, ceramic fiber cotton, blanket, board, paper, module, special-shaped parts, furnace, textile and airgel blanket, etc.
In the spirit of integrity, harmony, efficiency and passion, we sincerely hope to cooperate with your company.
