High quality 1200-1800C aluminum ceramic fiber board for thermal insulation
- 1 piece
- Rosewool Insulation Refractory Co., Ltd.
- Henan, China
- Mr chilli
Product Detail
Ceramic fiber board introduction:
Density: 260-320 kg/cubic meter (16-20 lb/cubic foot)
Raw material: Ceramic fiber dispersion

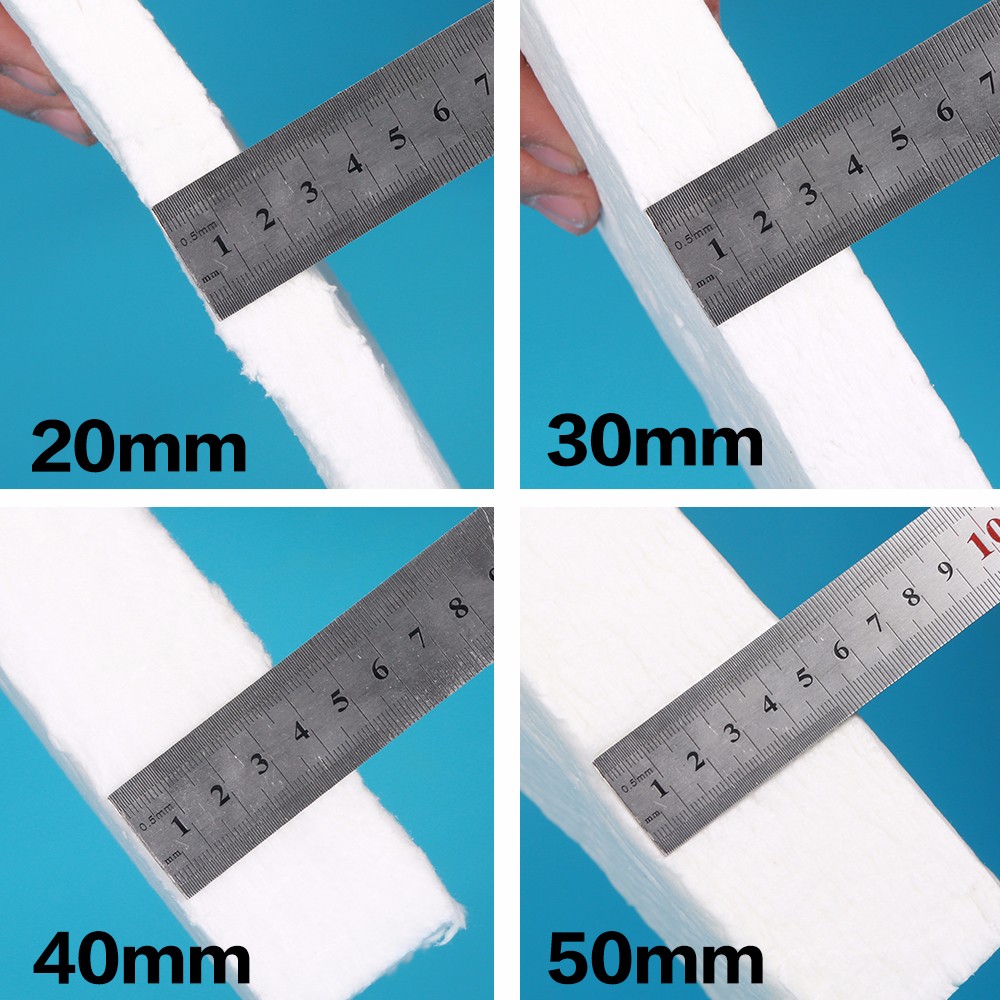

Thickness: 10mm, 20-50mm
Asbestos: 100% asbestos-free
Function: fire resistance, fire prevention, heat preservation
SSJD ceramic fiber board is made of ceramic fiber cotton as raw material, refined by vacuum forming or dry process, dried and machined. It has good characteristics such as rigidity, flexibility, high strength, wind erosion resistance, non-expansion, light weight and easy construction. It can be cut and bent at will. It is a practical and efficient material for insulation equipment such as kilns and pipes.
Ceramic fiber board technical data:
| type | communication | Yingshi | HP | ha | Zirconium aluminum | hertz | |
| Classification temperature. | 1100℃ (1983°F) |
1260℃ (2300°F) |
1260℃ (2300°F) |
1360℃ (2480°F) |
1400℃ (2550°F) |
1430℃ (2600°F) |
|
| working temperature | <1000℃ (2012°F) |
1050℃ (1922°F) |
1100℃ (2012°F) |
1200℃ (2192°F) |
1200℃ (1192°F) |
1350℃ (2462°F) |
|
| color | white | white | white | white | white | white | |
| Density(kg/m3) | 260-320 (16-20 lbs/ft3) |
260-320 (16-20 lbs/ft3) |
260-320 (16-20 lbs/ft3) |
260-320 (16-20 lbs/ft3) |
260-320 (16-20 lbs/ft3) |
260-320 (16-20 lbs/ft3) |
|
| Linear shrinkage (%) (24 hours) |
-3 (1000℃/1832°F) |
-3 (1000℃/1832°F) |
-3 (1100℃/2012°F) |
-3 (1250℃/2282°F) |
-3 (1000℃/2012°F) |
-3 (1350℃/2462℉) |
|
| thermal conductivity (W/MK) |
0.085 (400℃/752°F) 0.132 (800℃/1472°F) 0.180 (1000℃/2012°F) |
0.085 (400℃/752°F) 0.132 (800℃/1472°F) 0.180 (1000℃/2012°F) |
0.085 (400℃/752°F) 0.132 (800℃/1472°F) 0.180 (1000℃/2012°F) |
0.085 (400℃/752°F) 0.132 (800℃/1472°F) 0.180 (1000℃/2012°F) |
0.085 (400℃/752°F) 0.132 (800℃/1472°F) 0.180 (1000℃/2012°F) |
0.085 (400℃/752°F) 0.132 (800℃/1472°F) 0.180 (1000℃/2012°F) |
|
| Compressive strength (MPa) |
0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | |
|
Chemical composition(%) |
aluminum2oxygen3 | 44 | 46 | 47-49 | 52-55 | 45-46 | 39-40 |
|
aluminum2oxygen3+ Silica2 |
96 | 97 | 99 | 99 | - | - | |
|
aluminum2oxygen3+silica2 +zirconia2 |
- | - | - | - | 99 | ||
| Zirconia2 | - | - | - | - | .5-7 | 15-17th | |
| iron2oxygen3 | <1.2 | <1.0 | 0.2 | 0.2 | 0.2 | 0.2 | |
| sodium2Europe+K2oxygen | ≤0.5 | ≤0.5 | 0.2 | 0.2 | 0.2 | 0.2 | |
| Dimensions (mm) | 1200*1000mm (47 inches*40 inches); 1000*600mm (40″*36″); 900*600mm (24″*36″) 20-50mm(1″/2″) thickness |
||||||

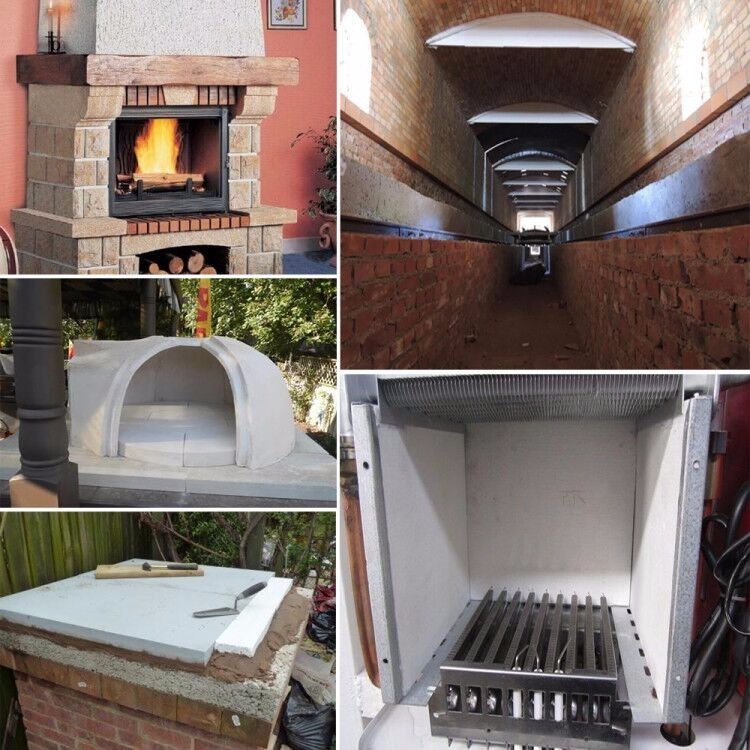

Ceramic fiber board applications:
1. High-temperature reaction and heating equipment such as old glass tempering furnaces, ceramic kilns, ceramic kilns, tunnel kilns, and wall lining and backing materials for various industrial kilns
2. Insulation and fireproof boards for furnace doors, roofs or house chimneys, and fireplaces
3. Chimney cake ovens and pizza ovens have low fire protection and heat insulation properties
4. Boiler and heater combustion chamber
5. Aluminum factory-reduction tank refractory brick backing
6. Ladle furnace backing
7. Ships, aviation, precision industrial equipment
8. Refractory, thermal insulation materials and high-temperature treated wall linings for heating of construction industrial kilns
Ceramic fiber board features:
1. Excellent thermal stability
2. Burning resistance
3. Low thermal conductivity
4. Low heat storage
5. Good sound isolation and structural strength
6. Low shrinkage
7. The fiber has good elasticity
8. Easy to produce and install
Notice:Safety first. Follow good safety/industrial hygiene practices during insulation. Wear appropriate personal protective equipment. Read the SDS and literature before specifying and insulating.
