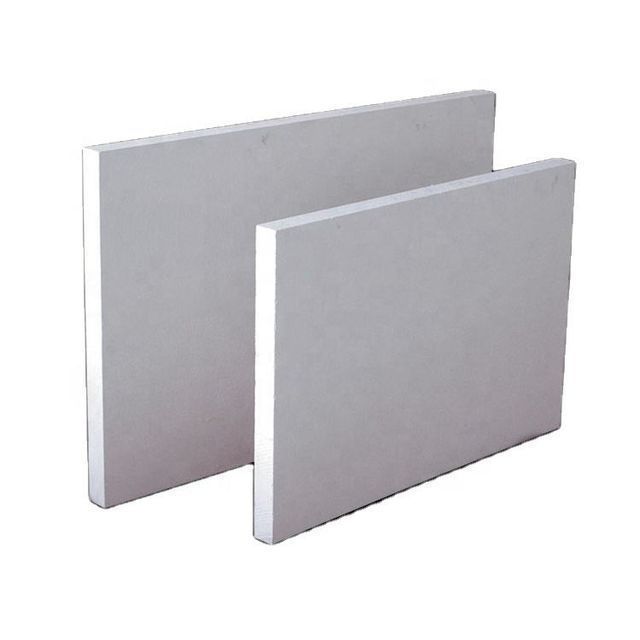

1800C high temperature resistant polycrystalline mullite fiber ceramic fiber board for kiln
-
$19.99 / 1 - 99 kilograms
$11.43 / >=100 kilograms - 1 kilogram
- Luyang Energy-Saving Materials Co., Ltd.
- Shandong, China
- Mr Louis LU
Product Detail
| Fiber Diameter: | 3-5um | thickness: | 3-100mm |
| Package preview: | grade: | HA (High Aluminum) | |
| Key words: | Polycrystalline alumina fiber board | manufacturer: | Luyang |
| application: | Industrial lining | product name: | High temperature heat insulation alumina fiber board |
| Fiber length (μm): | ≥100 | Fiber diameter (μm): | 3-6 |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Operating temperature: | 1450°C |
| Ultimate Strength (≥MPa): | 0.1~0.3 | model: | Alumina Fiber Board |
| Supply capacity: | 100 tons per month | Continuous Temperature Use Limits: | 1450°C |
| Thermal Conductivity: | 0.085-0.182/(mk) | width: | 1000/600/300mm |
| length: | 1200/1000/900/600mm | brand: | maximum temperature |
| chemical composition: | Al2O3+SiO2 97% | Shrinkage (1800℉, 3 hours): | 1450℃×24h≤2.0 |
| Alumina + Silica: | 98 | port: | Qingdao Port |
| Packaging Details: | 1. Inner polybag, outer carton; 2. Inner plastic bag, palletized; 3. Inner polybag, outer carton, then palletized. | describe: | Maximum temperature plate |
| Grading temperature: | 1600℃ | density: | 300kg/cubic meter |
| Origin: | Shandong China |
Product Description
maximum temperature®alumina fiberboard /
Polycrystalline wool board
maximum temperature®Circuit boards manufactured in a wet-laid process using TempMax®bulk and binders.TempMax®The board has excellent thermal stability at very high operating temperatures. TempMax® board can reduce energy costs and cycle times because of its high insulating capacity and protects refractory surfaces from thermal shock and chemical attack.
feature
Excellent thermal shock resistance
Easy to machine, cut and shape
High rigidity and light weight
low thermal conductivity
low heat storage
Easy to machine, cut and shape
High rigidity and light weight
low thermal conductivity
low heat storage
Typical parameters
describe | maximum temperature® 140 plates | maximum temperature® 145 plates | maximum temperature® 160 LD board | maximum temperature® 160 HD board | ||||
Grading temperature (°C) | 1600 | 1600 | 1600 | 1600 | ||||
Continuous use temperature limit (°C) | 1400 | 1450 | 1600 | 1600 | ||||
chemical composition(%) | ||||||||
Aluminum oxide | 60 | 62 | 70 | 70 | ||||
Al2O3+SiO2 | 98 | 98 | 98.5 | 98.5 | ||||
color | white | white | white | white | ||||
Density (kg/m3) | 300 | 300 | 300 | 300 | ||||
Modulus of rupture (MPa) | ≥0.3 | ≥0.3 | ≥0.3 | ≥0.3 | ||||
Compressive strength (MPa, 10% relative deformation) | 0.25 | 0.25 | 0.25 | 0.25 | ||||
Combustion loss (%) | ≤8 | ≤8 | ≤8 | ≤8 | ||||
Permanent line shrinkage (%) | 1400℃×24 hours ≤2.0 | 1450℃×24 hours ≤2.0 | 1600℃×24 hours ≤2.0 | 1600℃×24 hours ≤2.0 | ||||
Thermal conductivity (W/m·K) | ||||||||
400°C | 0.08 | 0.08 | 0.08 | 0.08 | ||||
600°C | 0.10 | 0.10 | 0.12 | 0.09 | ||||
800℃ | 0.13 | 0.13 | 0.14 | 0.12 | ||||
1000℃ | 0.16 | 0.15 | 0.17 | 0.15 | ||||
1200℃ | 0.19 | 0.19 | 0.20 | 0.19 | ||||
application
typical application | typical application | |
1 | high temperature laboratory | |
2 | High temperature furnace | |
3 | aerospace industry | |
4 | Back-up insulation with dense refractory lining | |
5 | expansion joint | |
