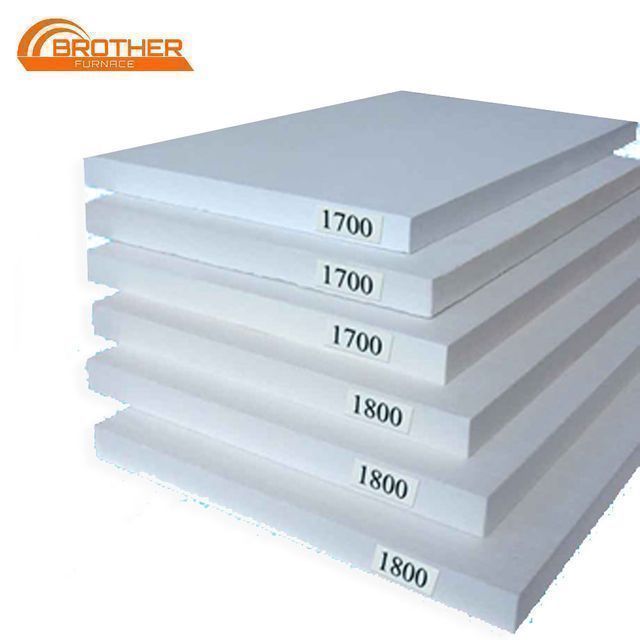

Laboratory furnace and industrial furnace insulation material ceramic fiber board, 1000C -1900C, manufacturers, price list
- $5.00 /piece
- 1 piece
- Zhengzhou Brother Furnace Co., Ltd.
- Henan, China
- Mr Kevin Zhang
Product Detail
| brand: | brother stove | Fiber Diameter: | 3-5um |
| grade: | HP (high purity) | density: | 450kg/m3 |
| Reburning line shrinkage: | (1500℃x6h)<1 | model: | BR-1000 to 1900 |
| thickness: | 25mm | length: | Aluminum oxide |
| application: | insulation | place of origin; place of origin: | Henan, China |
| Thermal Conductivity: | 0.085(400C)/0.132(800C)/0.180(1000C) | Supply capacity: | 100,000 pieces per year |
| Types of: | ceramic fiberboard | Shipping Details: | a week |
| Ultimate Strength (≥MPa): | 0.5MPa | payment terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,ceramic fiberboard |
| width: | 600mm | Thermal conductivity (1200°C): | 0.18W/square meter |
| chemical composition: | Alumina + Silica | Operating temperature: | 900C to 1750C |
| Shrinkage (1800℉, 3 hours): | follow your order | Packaging Details: | Ceramic fiberboard+carton+wooden box |
| port: | Chinese port |
Laboratory furnace and industrial furnace insulation material ceramic fiber board, 1000C -1900C, manufacturers, price list
introduce:
Made of alumina fibers in various compositions, densities and sizes, for extra stiffness and strength it can withstand temperatures up to 1700 degrees Celsius.
Specification:
the code | BR-1000 | BR-1260 | BR-1400 | BR-1600 | BR-1700 | BR-1800 |
Operating temperature | 1000 | 1260 | 1400 | 1600 | 1700 | 1800 |
Density (kg/m3) | 200-600 | 200-600 | 200-600 | 200-600 | 350-600 | 350-600 |
new line | 1.3 | 1.1 | 1.6 | <2.0 | <2.0 | <2.0 |
(.CX24hS) | (900.C) | (1100.C) | (1200.C) | (1400.C) | (1500.C) | (1600.C) |
Compressive strength | 0.5 | 0.5 | 0.5 | 0.3 | 0.3 | 0.3 |
Standard size:
25x600x900mm
40x600x900mm
30x600x900mm
50x600x900mm
100x600x900mm
feature:
Excellent thermal stability. Low thermal conductivity. Low heat storage. Tight tolerances and excellent surface finish.
Easy to cut, drill or saw.
application:
Verity High Temperature Industrial Furnace Backing Insulation.
Ceramic kiln, mechanical metallurgical heating furnace, heat treatment furnace and other industrial kilns and hot surface lining with low calorific value.
High temperature block fire and flame insulation.
Kiln doors, kiln cars, expansion joints and other insulation materials.
Glass furnace insulation.
factory:
mufflfurnace.en.alibaba.com
