Experimental furnace and industrial furnace insulation ceramic fiberboard 1000.C -1800.C
- $2.98 /kilogram
- 1 kilogram
- Zhengzhou ZYlab Instruments Co., Ltd.
- Henan, China
- Ms Eva Fan
Product Detail
| Packaging Details: | EPE standard wooden box in bubble bag for ceramic fiber board | width: | 600mm |
| place of origin; place of origin: | Zhejiang, China | thickness: | 20-150mm |
| Shrinkage (1800°F, 3h): | 0.13 | application: | Insulation materials for experimental and industrial furnaces, thermal insulation materials |
| length: | 900mm | brand: | ZYLAB |
| Thermal Conductivity: | 0.296W/(mK) | port: | Qingdao, Shanghai and any other ports in China |
| Supply capacity: | 1 million kg/month ceramic fiberboard | model: | ceramic fiberboard |
| chemical composition: | Al2O3+SiO2 | product name: | ceramic fiberboard |
| Ultimate strength (≥ MPa): | 0.72 | payment terms: | Letter of Credit, T/T, Western Union, MoneyGram |
| Standard size: | 900x600x(20-150)mm | grade: | HAZ (High Aluminium Zirconium) |
| Operating temperature: | 1000-1800.C |
Experimental furnace and industrial furnace insulation ceramic fiberboard 1000.C -1800.C

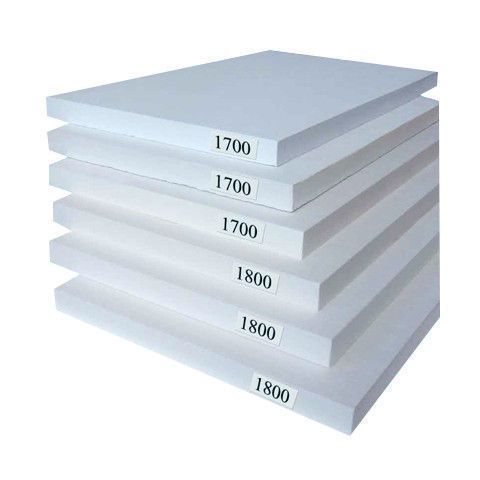

Brief introduction of ceramic fiberboard:
The ceramic fiberboard is made of high-purity alumina fiber and alumina powder, formed and fired in special equipment using advanced patented process, and can withstand temperature up to 1700 degrees Celsius.
The main features of ceramic fiberboard:
1. Smooth surface.
2. Average thickness and density.
3. Excellent organization and structural strength.
4. Low thermal conductivity and small shrinkage.
5. High temperature stability, thermal shock resistance.
6. Good flame retardancy and airflow erosion.
7. Ultra light weight.
8. Easy processing and cutting performance, accurate thickness and size, easy installation and use.
Application of ceramic fiberboard:
1.The kiln wall of industrial kiln is lined with refractory layer and thermal insulation layer, which can be directly calcined by open fire
2.High temperature furnace lining, kiln car, furnace door baffle, furnace temperature partition.
3.Insulation and heat preservation of high temperature and high heat equipment
4.Thermal insulation, fire protection, sound insulation, etc. in aerospace and shipbuilding industries
5.Polycrystalline crucible high temperature insulation cover.
Ceramic fiberboard technical data:
|
Model |
B-1260 |
B-1400 |
B-1430 |
B-1600 |
B-1700 |
B-1800 |
|
Grading temperature °C |
1260 |
1400 |
1430 |
1600 |
1700 |
1800 |
|
Density (kg/m3) |
300-600 |
300-600 |
300-600 |
300-600 |
300-600 |
300-600 |
|
change line (.CX24hS) |
(1050℃x24h)<1 |
(1150℃x24h)<1 |
(1250℃x24h)<1 |
(1500℃x6h)<1 |
(1600℃x6h)<1 |
(1700℃x6h)<1 |
|
Compressive strength |
0.5 |
0.5 |
0.5 |
0.3 |
0.3 |
0.3 |
Physical properties of ceramic fiberboard:
|
Density (kg/m3) |
400 |
|
|
Flexural strength (MPa, 25.C) |
0.72 |
|
|
Linear Shrinkage% (1600 .Cx8hrs) |
0.13(1.7)* |
|
|
Expansion % (600℃) |
0.28 |
|
|
Average Linear Expansion Modulus (x10-6/K) |
1.77 |
|
|
Thermal conductivity GHP[W/(mK)] |
400.C |
0.147 |
|
600.C |
0.186 |
|
|
800.C |
0.236 |
|
|
1000.C |
0.296 |
|
|
chemical composition |
AL2O3: 87% SiO2: 13% |
|
Standard size:
900x600x(20-150)mm 1000x600x(20-150)mm
Note: 1. We have enough stock and a lot of semi-finished products for fast delivery.
2. Can be customized according to drawings.
Bale:
Standard wooden box/carton with bubble bag and pearl cotton inside.
Shipping:
Shipping:Large size or large quantity or not urgent product, low price and a little long to arrive.
Usually arrives within 11-45 days.
air transport:Over 100kg or emergency products. Usually arrives in 7-10 days, and direct flights can arrive in 3-5 days.
International express:For example FedEx/UPS/DHL/TNT/EMS or others. On-site service is convenient and fast.
Usually 5-7 days to arrive.
Can also arrange global shipping as a customer'Require.
l Professional team 24-hour online consultation support.
l Quick response, provide suitable solutions and detailed quotations according to customer requirements.
l Customizable design.
Warranty:
Our products are warranted against defects in materials or workmanship for one year (12 months) from the date of purchase. During this time, we will replace any components that fail in normal use.
notes:This warranty does not cover consumables and malfunctions resulting from abuse, misuse, accident or unauthorized alteration or repair.
